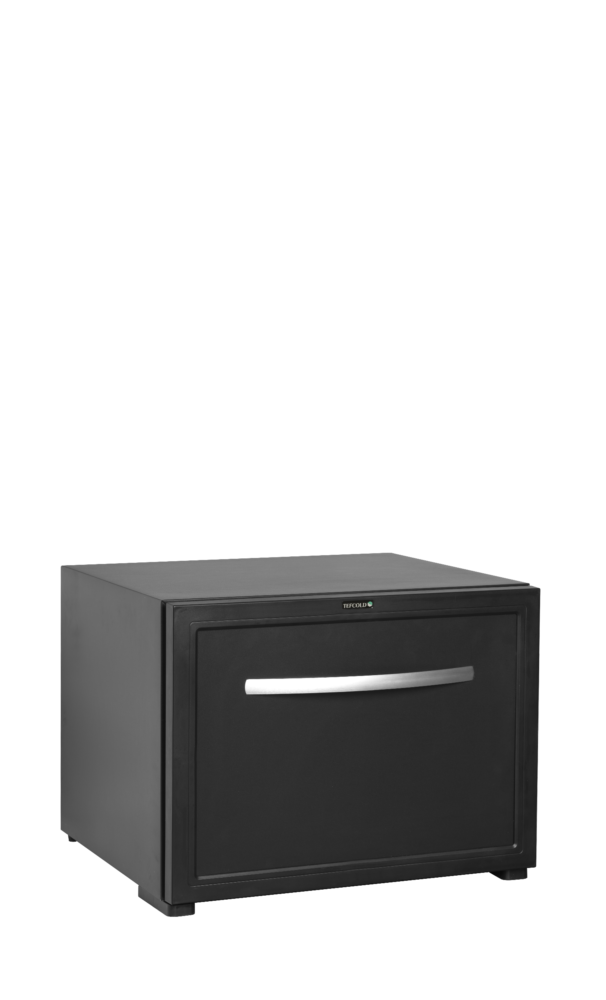

TEFCOLD TD50A Minibar Drawer

£394.00

+vat

Brand:

SKU: 47851

Energy Arrow

Product summary

  • Compressor operated cooling system
  • Low energy consumption
  • Low noise operation
  • SLEEP-mode function for silence period
  • Great product presentation
  • LED interior light

Product description

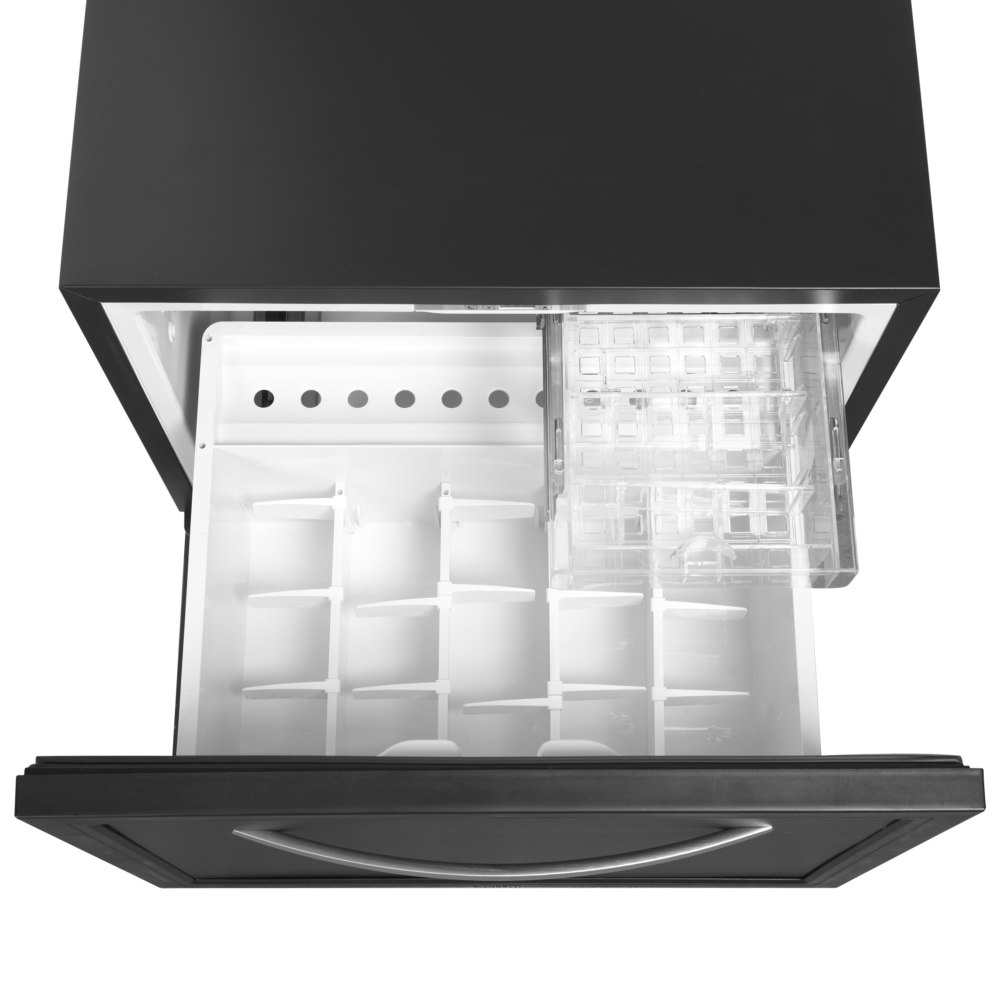

The TD minibars are a great option for hotel rooms and meeting rooms. Featuring a quiet compressor that operates on a timed schedule, it achieves optimal temperatures with shorter pull-down times than absorption operated minibars. These units can be set to operate for two periods of the day, meaning they are silent at other times. The drawer layouts provide guests with a clear view, streamlining their search for snacks and drinks. Additionally, neat inner drawers offer extra space, perfect for storing smaller items like chocolates and bottles.

The TEFCOLD TD50A is a black drawer-format minibar holding +5 to +12 °C across 45 litres net, running near-silent at 38 dB on a 40 W input with R600a refrigerant — about £26 a year at 25p/kWh.

SPECIFICATION 43 facts · tap for all External W × D × H550 x 508 x 420 mmWidth550 mmDepth508 mmGross / net weight24 / 22 kgGross weight24 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181727673site
Product code 47851site
Sub title Minibar Drawercatalogue
Type Minibars & Hotel Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 508 mmsite
External (W×D×H) 550 × 508 × 420 mmcatalogue
External W × D × H 550 x 508 x 420 mmsite
Gross / net weight 24 / 22 kgsite
Gross weight 24 kgcatalogue
Height 420 mmsite
Internal (W×D×H) 470 × 395 × 332 mmcatalogue
Internal W × D × H 470 x 395 x 332 mmsite
Packed (W×D×H) 590 × 520 × 470 mmcatalogue
Packed W × D × H 590 x 520 x 470 mmsite
Width 550 mmsite

Capacity1

Gross volume 52 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 20 gsite
Temperature range +5 to +12site
Thermometer Nosite

Power & energy6

Annual energy consumption 106 kWh/yearsite
Energy consumption 0.29 kWh/24hsite
Energy efficiency index 136 %site
Input power 40 Wsite
Noise level 38 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Drawers 1site
Exterior finish Blacksite
Feet / legs Adjustable Feetsite
Interior light LEDsite

Other stated facts1

Energy class Gcatalogue
THE WORKING VIEW

Why this minibars & hotel fridge earns its place

The TEFCOLD TD50A is a drawer-format minibar with a black exterior and white interior, built to pull out from under a counter or from within a room cabinet. The 45-litre net drawer keeps drinks chilled and to hand in a small footprint, making it a discreet in-room or service-point unit.

It holds +5 to +12 °C under electronic control, with static cooling and automatic defrost. Sound output is rated at 38 dB, near-silent for a guest room. It sits in the G energy class with an efficiency index of 136%, drawing 105.8 kWh a year — about £26 a year at 25p/kWh.

At 550 × 508 × 420 mm externally it fits under a counter or inside a cabinet, with an internal cavity of 470 × 395 × 332 mm. It runs from a 220–240 V supply at up to 13 A with a 40 W input, and cools on R600a refrigerant with a 20 g charge. Weight is 24 kg gross, 22 kg net.

BEFORE YOU BUY

Questions, answered straight

It is rated at 38 dB, near-silent and suited to a guest room. Cooling is static with automatic defrost.

It runs from +5 to +12 °C under electronic control, for chilling drinks rather than deep cooling.

It is G energy class, 105.8 kWh a year with an efficiency index of 136%, which is about £26 a year at 25p/kWh depending on your tariff.

It measures 550 × 508 × 420 mm externally with a 470 × 395 × 332 mm interior, designed to pull out from under a counter or inside a cabinet.

A 220–240 V supply at up to 13 A with a 40 W input, cooling on R600a with a 20 g charge.

Yes, we service and maintain commercial refrigeration. Call 01792 732702 to arrange a service visit or a maintenance contract.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 470 x 395 x 332 mm
External Dimension (WxDxH): 550 x 508 x 420 mm
Packed Dimension (WxDxH): 590 x 520 x 470 mm

Cooling and Functions

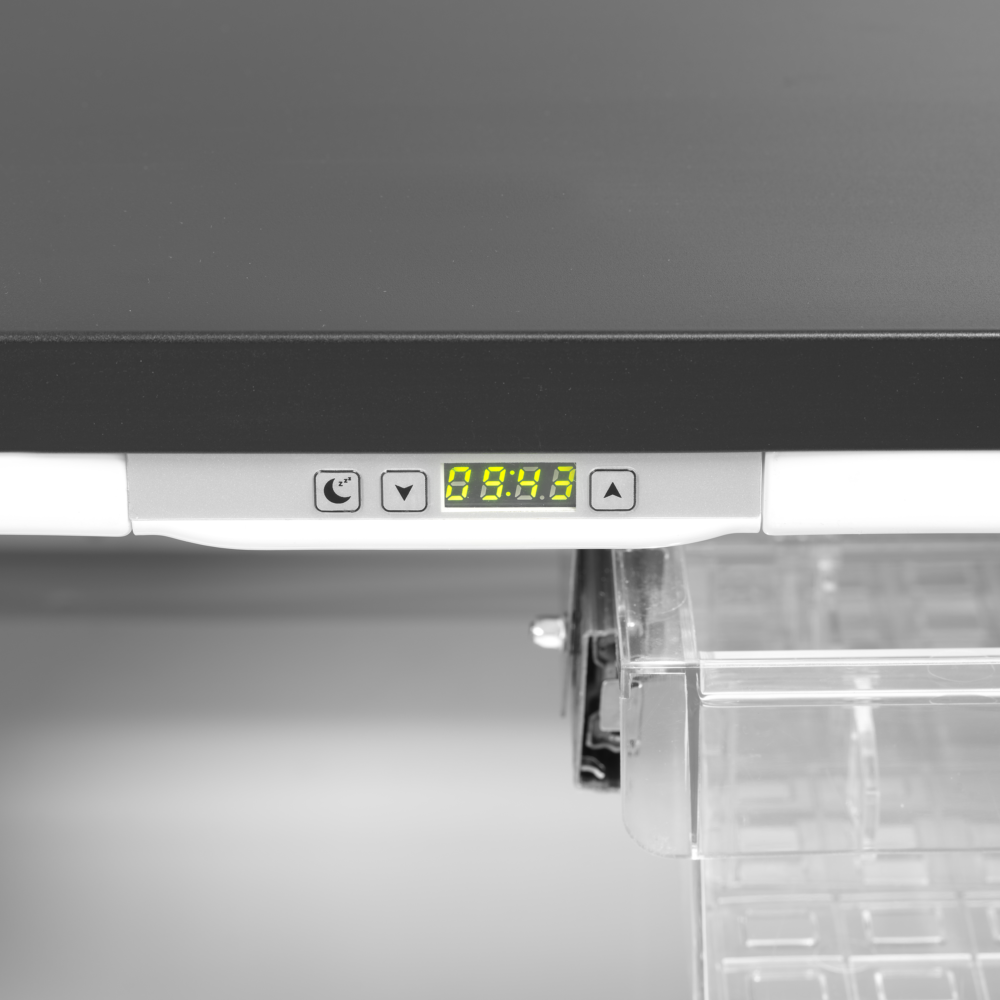

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 20 g
Thermometer: No

Power and Consumption

Energy Consumption: 0.29 kWh/24h
Temperature Range: +5 to +12 °C
Annual Energy Consumption: 106 kWh/year m³
EEI: 136 %
Input Power: 40 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 38 dB(A)

Measures and Content

Temperature Range: +5 to +12 °C
Climate Class: 4
Gross / Net Weight: 24 / 22 kg
Gross / Net Volume: 52 / 45 l
Max Ambient: +30°C, 55% RH

Design and Material

Drawers: 1
Feet / Legs: Adjustable Feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: No
If you have any questions about the TEFCOLD TD50A Minibar Drawer then please get in touch.
