TEFCOLD BC145 Undercounter Chiller

£527.00 £323.00

+vat

- +

Brand:

SKU: 19997

Energy Arrow

Product summary

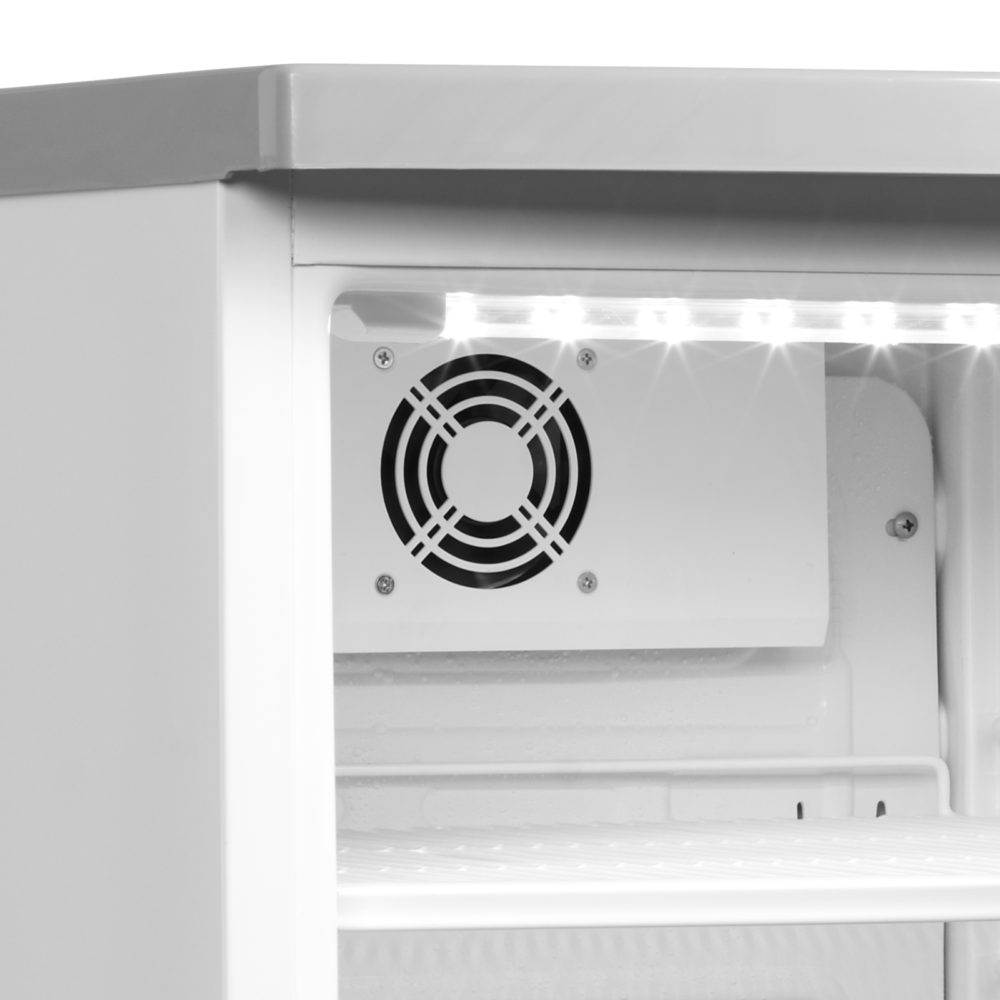

  • Fan assisted cooling

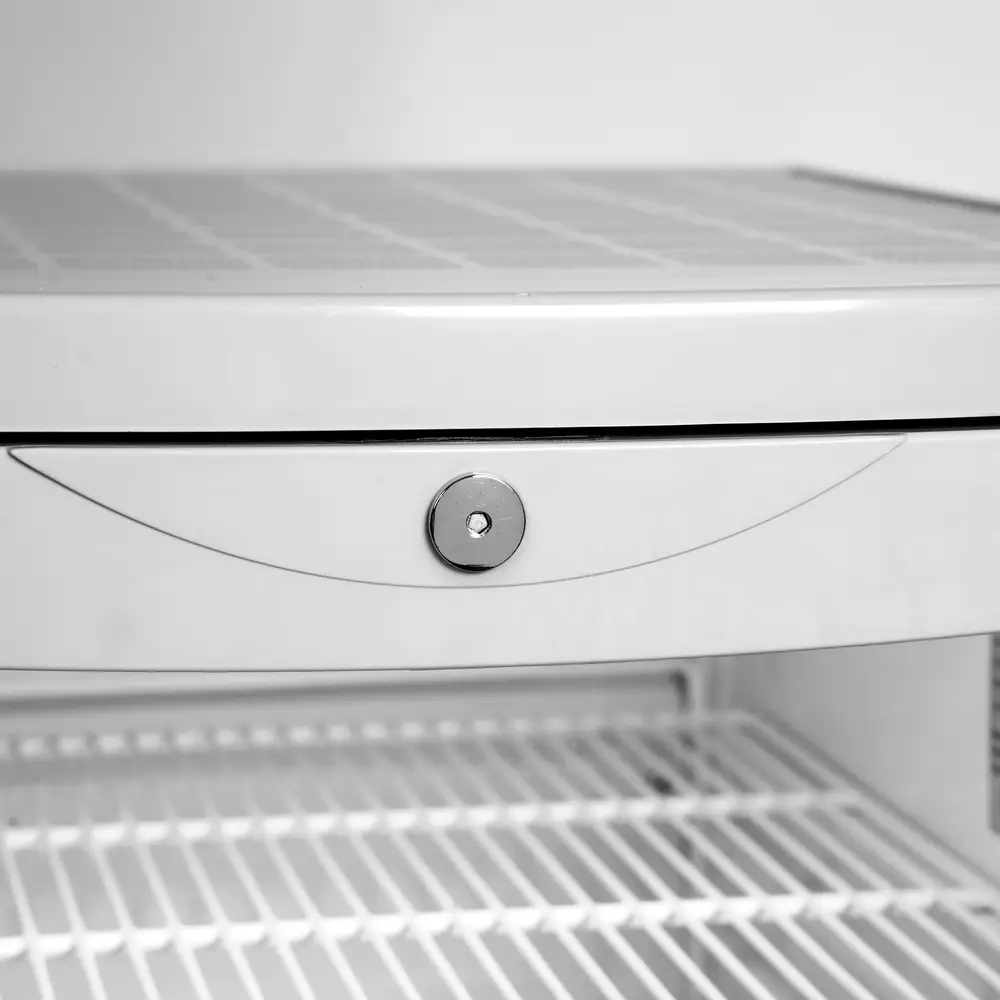

  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Digital temperature display
  • Curved reversible glass door

Product description

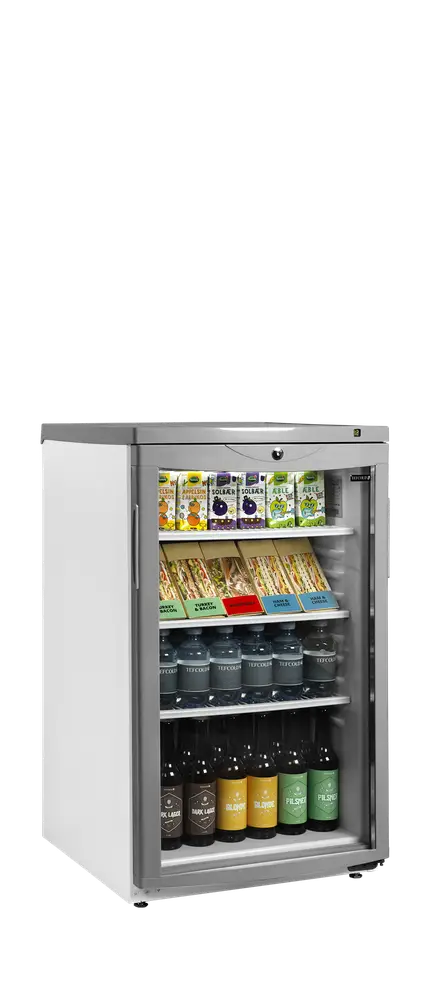

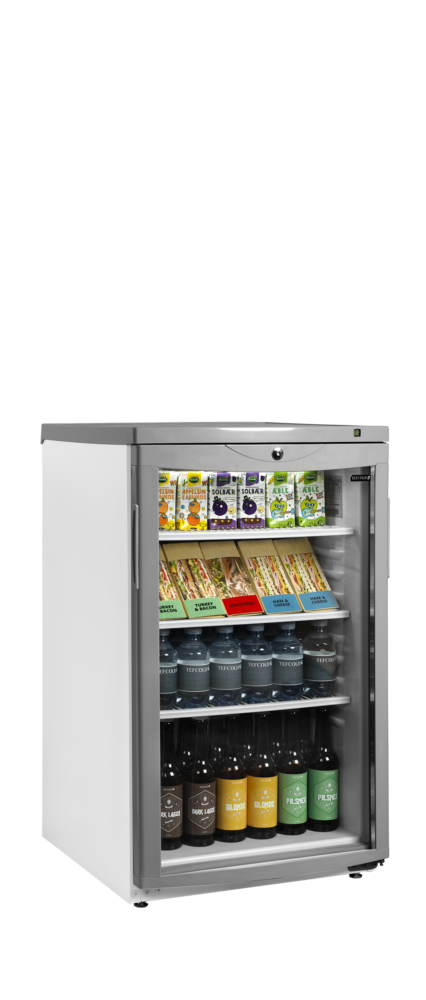

An excellent choice for small cafés and cafeterias, ideal for display of drinks and other chilled produce. With fan assisted cooling for even temperature and internal LED light, this is a great unit for a wide variety of situations.

The Tefcold BC145 is a compact undercounter glass-door chiller holding 105 litres net across three white wire shelves, running +2 to +10 °C behind a single curved glass door, measuring 503 × 567 × 850 mm and rated energy class D at 357.7 kWh a year.

Sale!
SPECIFICATION 49 facts · tap for all External W × D × H503 x 567 x 850 mmWidth503 mmDepth567 mmGross / net weight41 / 36 kgGross weight41 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181500955site
Product code 19997site
Sub title Undercounter Chillercatalogue
Type Under Counter Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 567 mmsite
External (W×D×H) 503 × 567 × 850 mmcatalogue
External W × D × H 503 x 567 x 850 mmsite
Gross / net weight 41 / 36 kgsite
Gross weight 41 kgcatalogue
Height 850 mmsite
Internal (W×D×H) 410 × 415 × 710 mmcatalogue
Internal W × D × H 410 x 415 x 710 mmsite
Packed (W×D×H) 570 × 610 × 900 mmcatalogue
Packed W × D × H 570 x 610 x 900 mmsite
Width 503 mmsite

Capacity6

330ml bottles 48 pcssite
330ml cans 93 pcssite
500ml cans 68 pcssite
Doors 1catalogue
Gross volume 109 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 28 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 359 kWh/yearsite
Energy consumption 0.98 kWh/24hsite
Energy efficiency index 36 %site
Input power 165 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 410 x 353 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this under counter glass door fridge earns its place

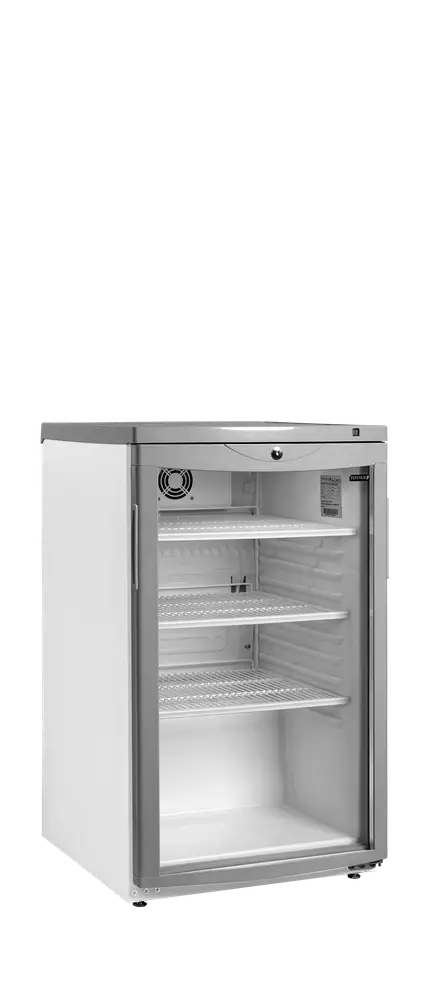

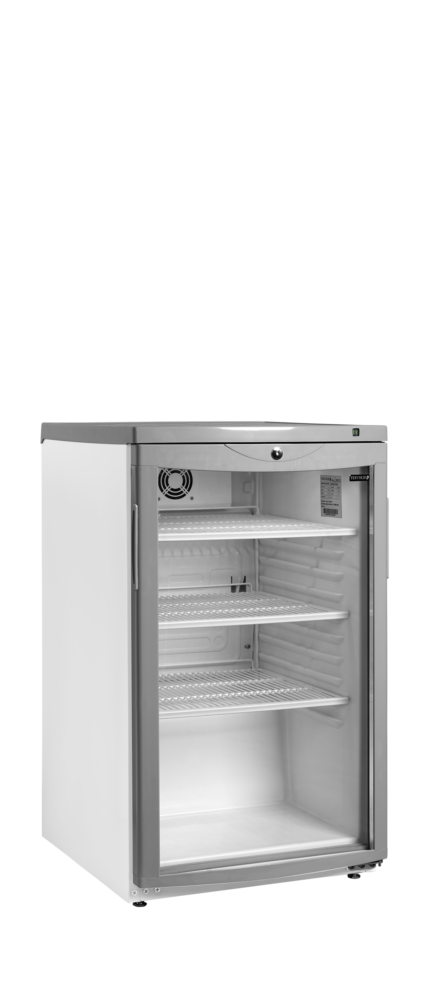

The BC145 is a single-door undercounter glass-door chiller built to put chilled stock on show below the counter. A curved hinged glass door and three white wire shelves front 105 litres of net capacity (109 litres gross), turning under-counter space into visible, self-selecting display for drinks, snacks and grab-and-go lines. The exterior is white with a white ABS interior, so the product does the talking.

Day to day it holds +2 to +10 °C under automatic defrost with a mechanical controller, and runs at 45 dB — quiet enough for a customer-facing position. It carries climate class 4, so it copes with warmer, busier rooms. Rated energy class D at 357.7 kWh a year, it costs about £89 a year to run at 25p/kWh, drawing 165 W.

The cabinet measures 503 × 567 × 850 mm (W×D×H), sized to slot under a standard counter run at 850 mm high. It runs on a 13 A supply and uses R600a refrigerant with a 28 g charge. Net weight is 36 kg, 41 kg packed, and the internal space measures 410 × 415 × 710 mm.

BEFORE YOU BUY

Questions, answered straight

It stands 850 mm high and measures 503 mm wide by 567 mm deep, so it slots under most standard counter runs. Check your worktop height allows for the 850 mm cabinet plus clearance.

It runs +2 to +10 °C, suitable for chilled drinks, snacks and packaged food. Automatic defrost and a mechanical controller keep it steady.

It is rated energy class D at 357.7 kWh a year, which is about £89 a year at 25p/kWh. It draws 165 W and uses R600a refrigerant.

At 45 dB it is quiet enough to sit in a customer-facing spot. Its climate class 4 rating means it handles warmer, busier rooms.

105 litres net (109 litres gross) across three white wire shelves.

Yes, Craven Cooling can arrange servicing and support. Call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 410 x 415 x 710 mm
External Dimension (WxDxH): 503 x 567 x 850 mm
Packed Dimension (WxDxH): 570 x 610 x 900 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 28 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.98 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 359 kWh/year m³
EEI: 36 %
Input Power: 165 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 93 pcs pcs
Cans 500 ml: 68 pcs pcs
Bottles 330 ml: 48 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 41 / 36 kg
Gross / Net Volume: 109 / 105 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 410 x 353 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BC145 Undercounter Chiller then please get in touch.
