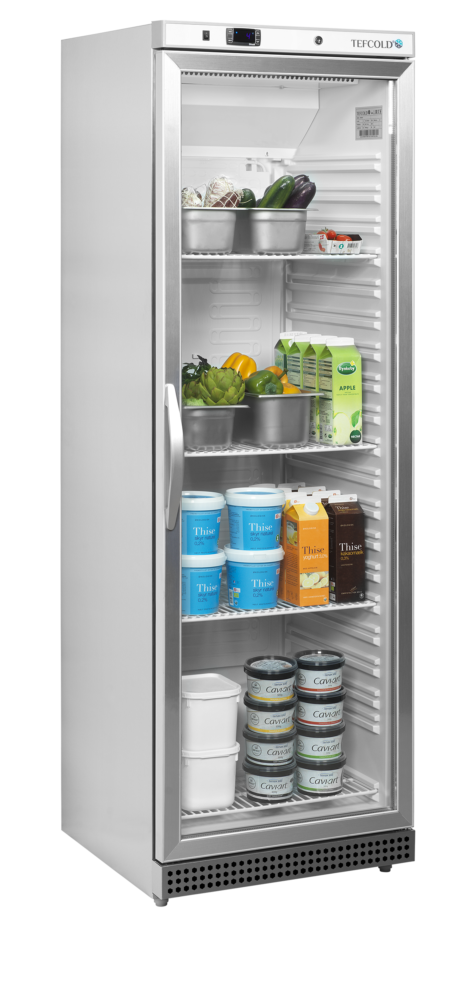

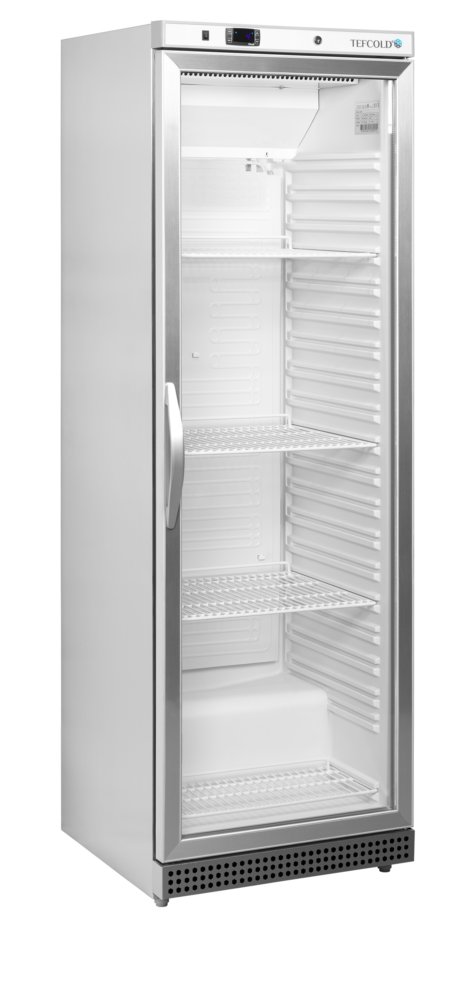

TEFCOLD UR400SG Glass Door Merchandiser

£642.00

+vat

- +

Brand:

SKU: 33853

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Electronic thermostat
  • Adjustable shelves
  • LED interior light with switch
  • Adjustable feet with rollers to rear

Product description

The UR-SG range is available in a white or stainless steel exterior finish to suit your requirement and features a sturdy aluminium door frame. Developed from the solid door UR400 that has a reputation for quality and reliability, this glass door option has fan assisted cooling and vertical LED lighting within the door frame to help create an excellent display for your produce. A digital temperature display and controller help ensure ease of use and reliability.

SPECIFICATION 51 facts · tap for all External W × D × H600 x 585 x 1855 mmWidth600 mmDepth585 mmGross / net weight85 / 80 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994273site
Product code 33853site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 1855 mmcatalogue
External W × D × H 600 x 585 x 1855 mmsite
Gross / net weight 85 / 80 kgsite
Gross weight 85 kgcatalogue
Height 1855 mmsite
Internal (W×D×H) 506 × 485 × 1620 mmcatalogue
Internal W × D × H 506 x 485 x 1620 mmsite
Packed (W×D×H) 690 × 650 × 2050 mmcatalogue
Packed W × D × H 690 x 650 x 2050 mmsite
Width 600 mmsite

Capacity6

330ml bottles 288 pcssite
330ml cans 448 pcssite
500ml cans 273 pcssite
Display area 0.75 m²site
Doors 1catalogue
Gross volume 374 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 75 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 773 kWh/yearsite
Energy consumption 2.12 kWh/24hsite
Energy efficiency index 14.8 %site
Input power 130 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 505 x 220site
Castors 2 rollerssite
Exterior finish SS430site
Feet / legs 4 adjustable feetsite
Interior light LED Cold whitesite
Max load per shelf 110site
Shelf dimensions 505 x 415 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The UR400SG is a single glass-door upright display fridge for chilled grab-and-go merchandising. It gives 374 litres gross and 350 litres net over four white wire shelves and 0.75 m² of display area, behind one hinged glass door. The exterior is SS430 stainless steel with a white ABS interior, in a slim 600 mm-wide footprint that fits into a fixture line or beside a till.

It holds +2 to +10 °C with automatic defrost and an electronic controller, and it carries climate class 4. At 40 dB it runs quietly enough for a front-of-house position. Energy class B works out at 773.8 kWh a year, roughly £193 a year to run at 25p/kWh, with an energy efficiency index of 14.8%.

The cabinet measures 600 × 585 × 1855 mm (W × D × H) and weighs 80 kg net, 85 kg gross. Packed for delivery it is 690 × 650 × 2050 mm, so check doorways and access against that before it arrives. It runs from a standard 13 A supply at 220–240 V, drawing 130 W, and uses R600a refrigerant with a 75 g charge.

BEFORE YOU BUY

Questions, answered straight

It offers 350 litres net across four white wire shelves, with 0.75 m² of display area behind a single hinged glass door.

The cabinet is 600 × 585 × 1855 mm (W × D × H) and packs to 690 × 650 × 2050 mm for delivery. Measure your access route against the packed size before it arrives.

It is energy class B, using 773.8 kWh a year. At 25p/kWh that is about £193 a year, with an energy efficiency index of 14.8%.

It is rated at 40 dB, low enough to sit in a customer-facing spot such as beside a till or in a café.

It runs from a standard 13 A supply at 220–240 V and draws just 130 W, so it plugs into an ordinary socket.

Yes. Craven Cooling offers servicing and can advise on maintenance — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 506 x 485 x 1620 mm
External Dimension (WxDxH): 600 x 585 x 1855 mm
Packed Dimension (WxDxH): 690 x 650 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 75 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.12 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 773 kWh/year m³
EEI: 14.8 %
Input Power: 130 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Cans 330 ml: 448 pcs pcs
Cans 500 ml: 273 pcs pcs
Bottles 330 ml: 288 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 85 / 80 kg
Gross / Net Volume: 374 / 350 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.75 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 505 x 415 mm
Max load on Shelves: 110 kg/m²
Bottom Shelf Dimensions: 505 x 220
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: SS430
Interior Finish: SS430
Interior Light: LED Cold white
Lock: Yes
If you have any questions about the TEFCOLD UR400SG Glass Door Merchandiser then please get in touch.
