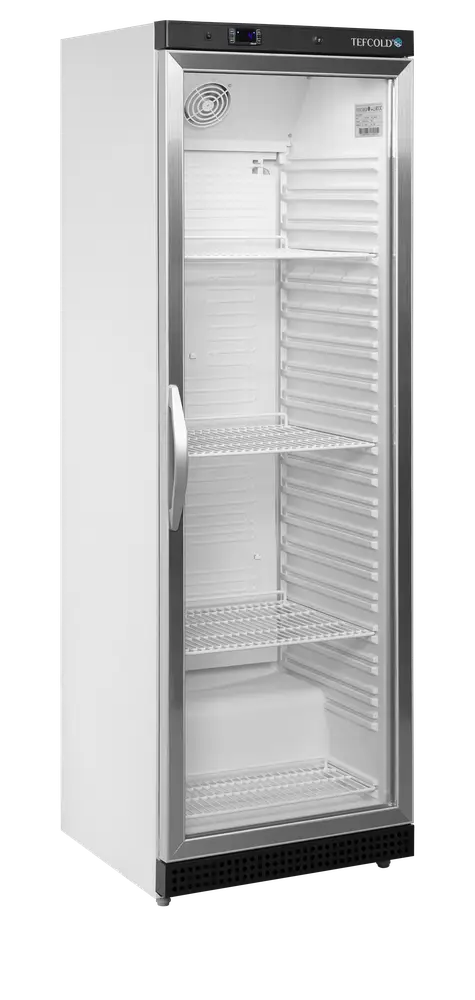

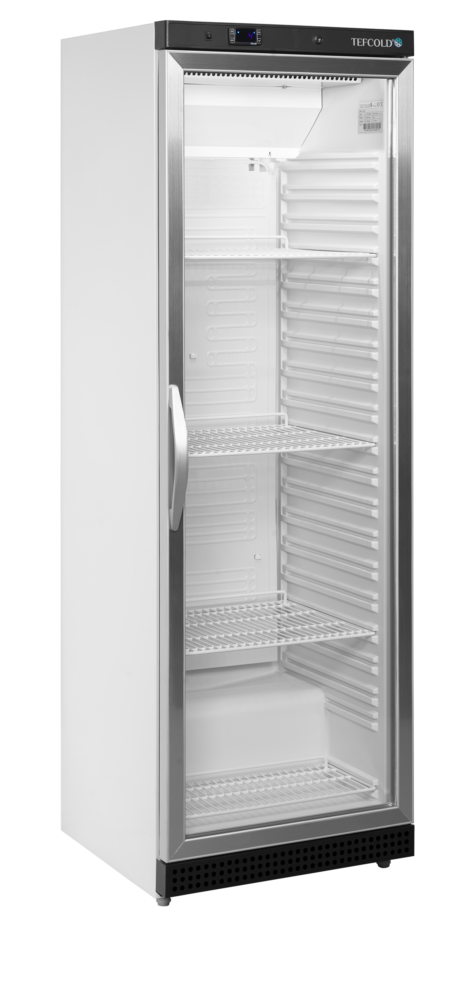

TEFCOLD UR400G Glass Door Merchandiser

£579.00

+vat

- +

Brand:

SKU: 33852

Energy Arrow

Product summary

  • Hinged glass door
  • Electronic thermostat
  • Adjustable shelves
  • Fan assisted cooling
  • LED interior light with switch
  • Digital controller and temperature display
  • Adjustable feet with rollers to rear

Product description

The UR400G range is available in a white or stainless steel exterior finish to suit your requirement and features a sturdy aluminium door frame. Developed from the solid door UR400 that has a reputation for quality and reliability, this glass door option has fan assisted cooling and vertical LED lighting within the door frame to help create an excellent display for your produce. A digital temperature display and controller help ensure ease of use and reliability.

SPECIFICATION 51 facts · tap for all External W × D × H600 x 585 x 1855 mmWidth600 mmDepth585 mmGross / net weight85 / 80 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994266site
Product code 33852site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 585 mmsite
External (W×D×H) 600 × 585 × 1855 mmcatalogue
External W × D × H 600 x 585 x 1855 mmsite
Gross / net weight 85 / 80 kgsite
Gross weight 85 kgcatalogue
Height 1855 mmsite
Internal (W×D×H) 506 × 485 × 1620 mmcatalogue
Internal W × D × H 506 x 485 x 1620 mmsite
Packed (W×D×H) 690 × 650 × 2050 mmcatalogue
Packed W × D × H 690 x 650 x 2050 mmsite
Width 600 mmsite

Capacity6

330ml bottles 288 pcssite
330ml cans 448 pcssite
500ml cans 273 pcssite
Display area 0.75 m²site
Doors 1catalogue
Gross volume 374 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 75 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 773 kWh/yearsite
Energy consumption 2.12 kWh/24hsite
Energy efficiency index 14.8 %site
Input power 130 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 505 x 220site
Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 110site
Shelf dimensions 505 x 415 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

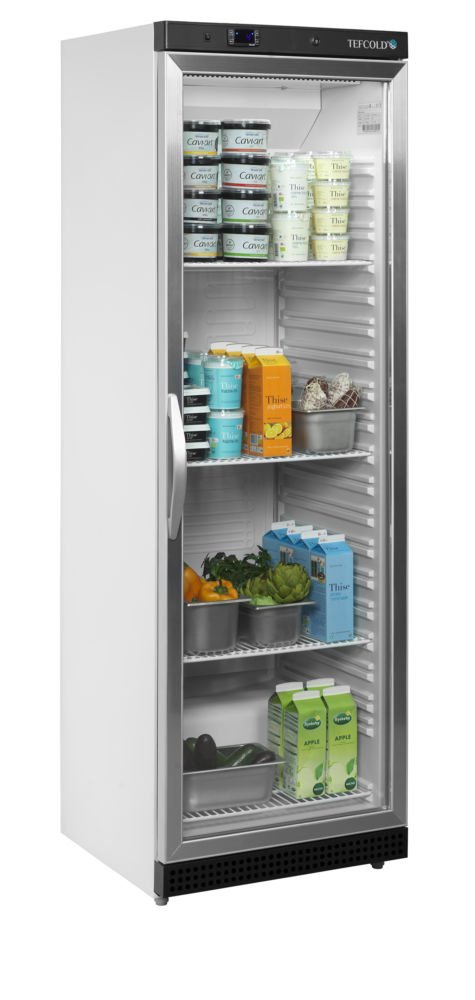

The UR400G is an upright single-door glass merchandiser built to put chilled stock on show. Behind one hinged glass door sit four white wire shelves and 350 litres of usable space (374 litres gross), giving a 0.75 m² display face for drinks, grab-and-go food or packaged chilled lines. The white cabinet and full-height glass keep the product, not the fridge, as the thing the customer looks at.

It runs a +2 to +10 °C band suited to general chilled retail, held by an electronic controller with automatic defrost so there is no manual routine to schedule. Running noise sits at 40 dB, quiet enough for a shop floor or a customer-facing counter. Climate class 4 rates it for warm, busy retail environments, and it draws 130 W in normal running — about £193 a year at 25p/kWh.

The cabinet measures 600 × 585 × 1855 mm (W×D×H) and weighs 80 kg empty, so plan the route in — packed it stands 2050 mm tall. It plugs into a standard 13-amp socket at 220–240 V / 50 Hz, no special electrics, and uses R600a refrigerant with a 75 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 600 mm wide and 585 mm deep, inside a UK doorway's typical 762 mm opening. Note it stands 1855 mm tall (2050 mm boxed), so check height and access along the delivery route.

It is rated energy class B at 773.8 kWh a year, roughly £193 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

It runs a +2 to +10 °C band, suited to general chilled retail like soft drinks, packaged food and dairy. An electronic controller and automatic defrost keep it steady without a manual defrost routine.

No. It runs on a standard 13-amp plug at 220–240 V / 50 Hz and draws 130 W in normal operation, so any standard socket will do.

Net capacity is 350 litres (374 litres gross) across four white wire shelves, with a 0.75 m² display area behind the glass door.

Yes, Craven Cooling can arrange servicing and repair — call 01792 732702. The cabinet uses R600a refrigerant with a 75 g charge and an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 506 x 485 x 1620 mm
External Dimension (WxDxH): 600 x 585 x 1855 mm
Packed Dimension (WxDxH): 690 x 650 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 75 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.12 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 773 kWh/year m³
EEI: 14.8 %
Input Power: 130 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Cans 330 ml: 448 pcs pcs
Cans 500 ml: 273 pcs pcs
Bottles 330 ml: 288 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 85 / 80 kg
Gross / Net Volume: 374 / 350 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.75 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 505 x 415 mm
Max load on Shelves: 110 kg/m²
Bottom Shelf Dimensions: 505 x 220
Feet / Legs: 4 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UR400G Glass Door Merchandiser then please get in touch.
