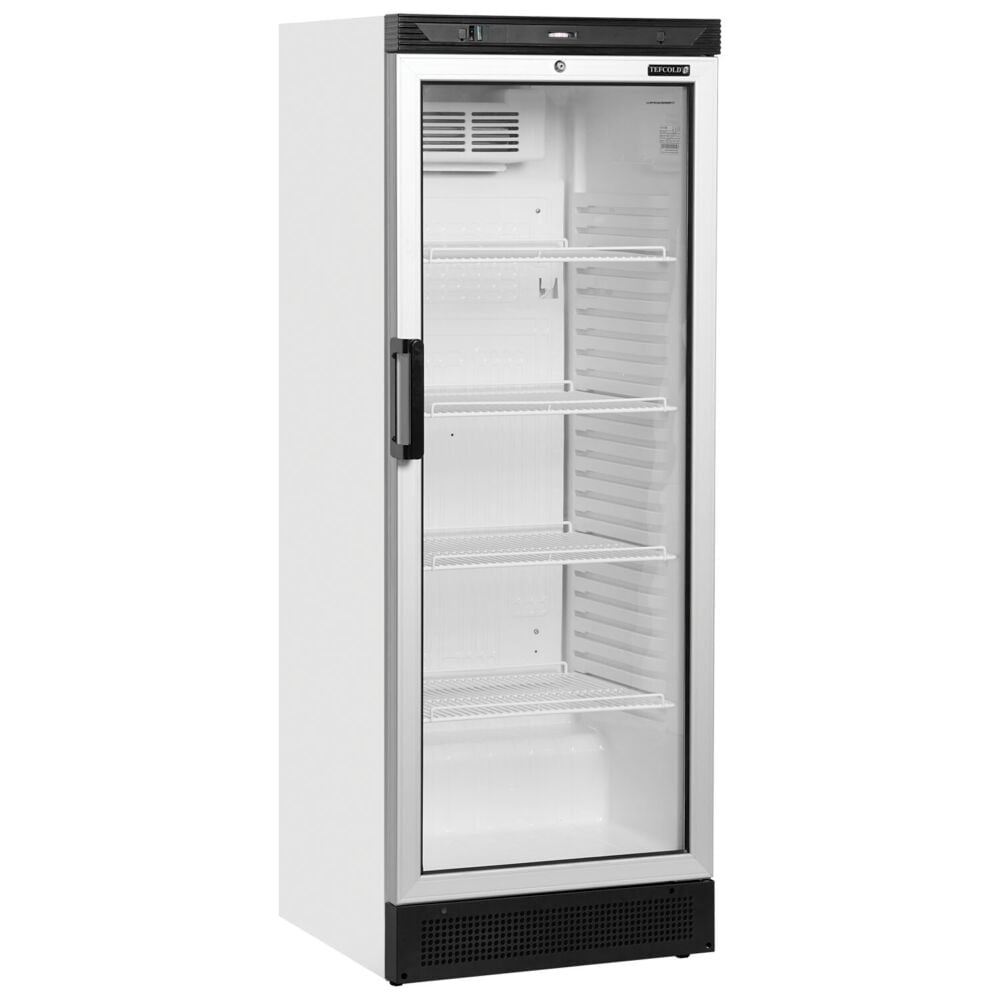

TEFCOLD FS1280 Glass Door Merchandiser

£543.00

+vat

- +

Brand:

SKU: 22514

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Thermometer
  • Replaceable door gasket

Product description

The baby brother of the popular and best selling FS1380.It is ideal for spaces where height is restricted, but you have more room than a normal undercounter. With the same build quality and reliability of the FS1380, just shorter. This could be just what you are looking for.

The Tefcold FS1280 is a single glass-door merchandiser holding +2 to +10 °C across 290 litres net, with four white wire shelves, R600a refrigerant, automatic off-cycle defrost and mechanical control, on a standard 13-amp supply.

SPECIFICATION 49 facts · tap for all External W × D × H595 x 640 x 1635 mmWidth595 mmDepth640 mmGross / net weight78 / 73 kgGross weight78 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181003029site
Product code 22514site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1635 mmcatalogue
External W × D × H 595 x 640 x 1635 mmsite
Gross / net weight 78 / 73 kgsite
Gross weight 78 kgcatalogue
Height 1635 mmsite
Internal (W×D×H) 462 × 505 × 1355 mmcatalogue
Internal W × D × H 462 x 505 x 1355 mmsite
Packed (W×D×H) 680 × 710 × 1740 mmcatalogue
Packed W × D × H 680 x 710 x 1740 mmsite
Width 595 mmsite

Capacity5

330ml bottles 175 pcssite
330ml cans 392 pcssite
500ml cans 259 pcssite
Doors 1catalogue
Gross volume 305 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 730 kWh/yearsite
Energy consumption 2 kWh/24hsite
Energy efficiency index 48 %site
Input power 266 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 498 x 405 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

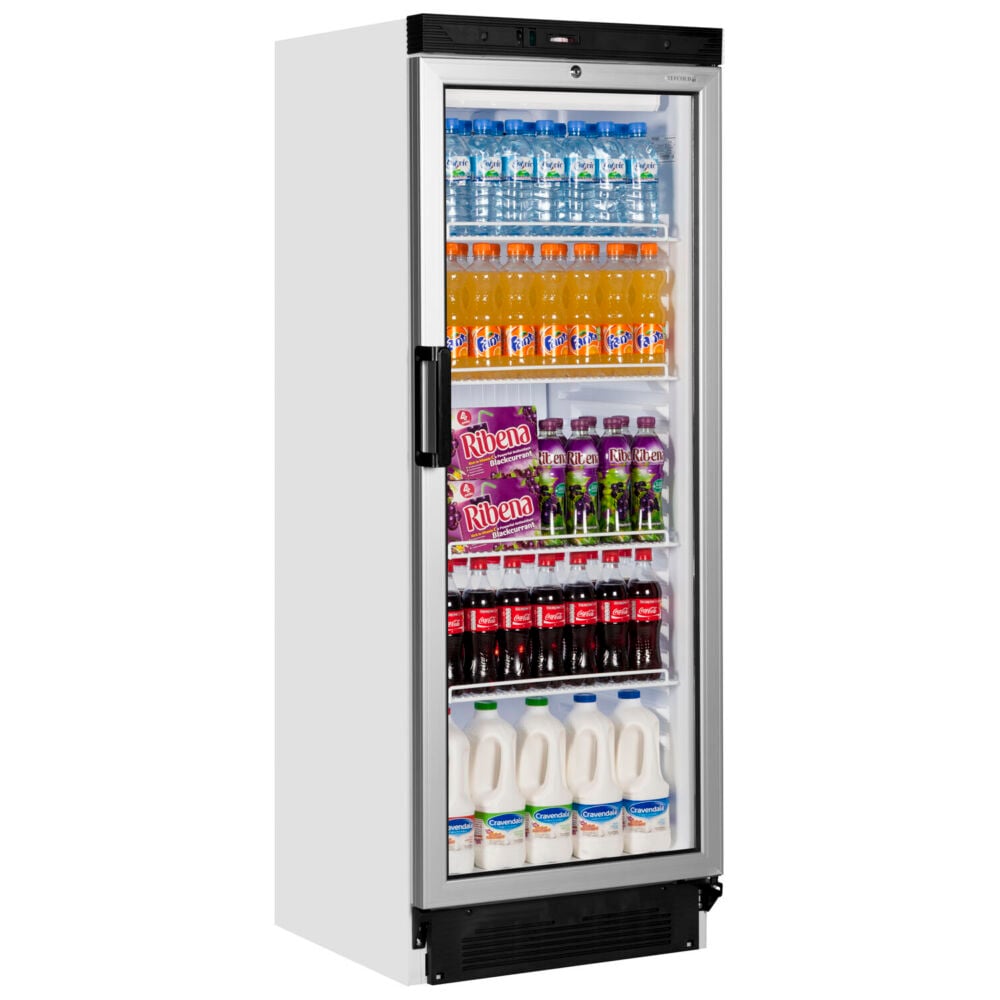

The Tefcold FS1280 is a compact upright single glass-door merchandiser for putting chilled stock on show. It is finished in white inside and out, with a single hinged glass door and four white wire shelves across 290 litres net (305 litres gross), keeping drinks and grab-and-go lines visible and within reach at the front of a store or counter.

It holds a chilled band of +2 to +10 °C under mechanical control, with automatic off-cycle defrost keeping the interior clear during normal running. Noise sits at a low 45 dB, suited to customer-facing areas, and it is rated climate class 4. On energy class D it draws 266 W and uses about 730 kWh a year — roughly £183 a year at 25p/kWh.

At 595 mm wide, 640 mm deep and 1635 mm high, it fits through a standard doorway, and it ships packed at 680 × 710 × 1740 mm, so measure the access route against the packed size before delivery. Internally it measures 462 × 505 × 1355 mm. Gross weight is 78 kg. It runs on a 13-amp 220–240 V supply and uses R600a refrigerant with a 70 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 595 mm wide, 640 mm deep and 1635 mm high, and ships packed at 680 × 710 × 1740 mm. Measure your access route against the packed width before delivery, but the unit itself clears a standard doorway.

It runs a chilled band of +2 to +10 °C under mechanical control, suited to bottled and canned drinks and pre-packed chilled lines. Automatic off-cycle defrost keeps the interior clear during normal running.

It is energy class D and uses about 730 kWh a year, which is roughly £183 a year at 25p/kWh. Your actual figure depends on tariff, ambient temperature and how often the door is opened.

Net volume is 290 litres (305 litres gross) across four white wire shelves, giving a good merchandising face for a compact cabinet. Internal dimensions are 462 × 505 × 1355 mm.

No. It runs on a standard 13-amp 220–240 V supply and draws 266 W, so it plugs into an ordinary commercial socket.

It uses R600a with a 70 g charge and is rated climate class 4. Craven Cooling can advise on installation and servicing — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 462 x 505 x 1355 mm
External Dimension (WxDxH): 595 x 640 x 1635 mm
Packed Dimension (WxDxH): 680 x 710 x 1740 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 730 kWh/year m³
EEI: 48 %
Input Power: 266 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 392 pcs pcs
Cans 500 ml: 259 pcs pcs
Bottles 330 ml: 175 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 78 / 73 kg
Gross / Net Volume: 305 / 290 l
Max Ambient: +25°C, 60% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 498 x 405 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS1280 Glass Door Merchandiser then please get in touch.
