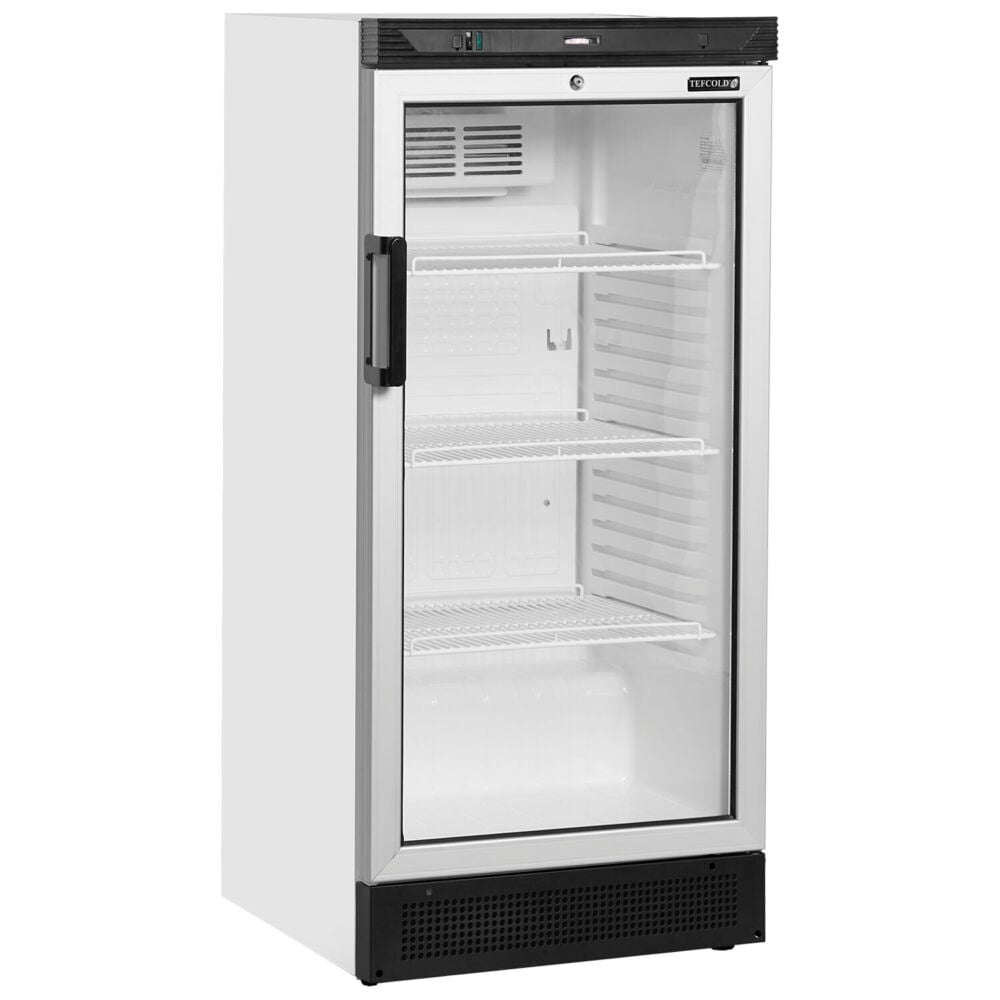

TEFCOLD FS1220 Glass Door Merchandiser

£497.00

+vat

- +

Brand:

SKU: 22512

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Thermometer
  • Replaceable door gasket

Product description

The baby brother of the popular and best selling FS1380.It is ideal for spaces where height is restricted, but you have more room than a normal undercounter. With the same build quality and reliability of the FS1380, just shorter. This could be just what you are looking for.

SPECIFICATION 50 facts · tap for all External W × D × H595 x 640 x 1315 mmWidth595 mmDepth640 mmGross / net weight67 / 62 kgGross weight67 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181355920site
Product code 22512site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1315 mmcatalogue
External W × D × H 595 x 640 x 1315 mmsite
Gross / net weight 67 / 62 kgsite
Gross weight 67 kgcatalogue
Height 1315 mmsite
Internal (W×D×H) 470 × 440 × 1027 mmcatalogue
Internal W × D × H 470 x 440 x 1027 mmsite
Packed (W×D×H) 680 × 710 × 1410 mmcatalogue
Packed W × D × H 680 x 710 x 1410 mmsite
Width 595 mmsite

Capacity6

330ml bottles 133 pcssite
330ml cans 301 pcssite
500ml cans 175 pcssite
Doors 1catalogue
Gross volume 215 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R600asite
Refrigerant charge 50 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 694 kWh/yearsite
Energy consumption 1.9 kWh/24hsite
Energy efficiency index 52 %site
Input power 229 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Shelf dimensions 498 x 405 mmsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The FS1220 is a single-door upright merchandiser built to put chilled stock in front of customers. Behind one hinged glass door sit three white wire shelves and 190 litres of net capacity (215 litres gross), with a white finish inside and out. At 595 mm wide it takes up little floor space, which suits it to till-point and grab-and-go positions where visible stock drives impulse purchases.

Day to day it holds a +2 to +10 °C band suited to soft drinks, waters and pre-packed chilled lines, managed by a mechanical controller with automatic off-cycle defrost so there is no manual defrost routine. It is rated climate class 4 and runs at 45 dB. On the energy label it carries class E at 693.5 kWh a year, which works out at about £173 a year at 25p/kWh.

The cabinet measures 595 × 640 × 1315 mm and ships packed at 680 × 710 × 1410 mm, so the packed width clears most standard doorways for delivery. It weighs 62 kg net (67 kg packed), draws from a standard 13-amp 220-240 V supply, and uses R600a refrigerant with a 50 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 595 mm wide and ships packed at 680 × 710 × 1410 mm. That packed width clears most standard doorways, though check any tight access before delivery.

It offers 190 litres net (215 litres gross) across three white wire shelves. The shelves are adjustable to suit bottle and can heights.

It is energy class E rated at 693.5 kWh a year, which is about £173 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

A standard 13-amp 220-240 V socket. No special electrical work is required.

It holds a +2 to +10 °C band, suited to soft drinks, waters and pre-packed chilled products rather than fresh meat or fish.

Yes. Craven Cooling services the cabinets it supplies — call the team on 01792 732702 to arrange a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 470 x 440 x 1027 mm
External Dimension (WxDxH): 595 x 640 x 1315 mm
Packed Dimension (WxDxH): 680 x 710 x 1410 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 50 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.9 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 694 kWh/year m³
EEI: 52 %
Input Power: 229 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 301 pcs pcs
Cans 500 ml: 175 pcs pcs
Bottles 330 ml: 133 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 67 / 62 kg
Gross / Net Volume: 215 / 190 l
Max Ambient: +25°C, 60% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 498 x 405 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS1220 Glass Door Merchandiser then please get in touch.
