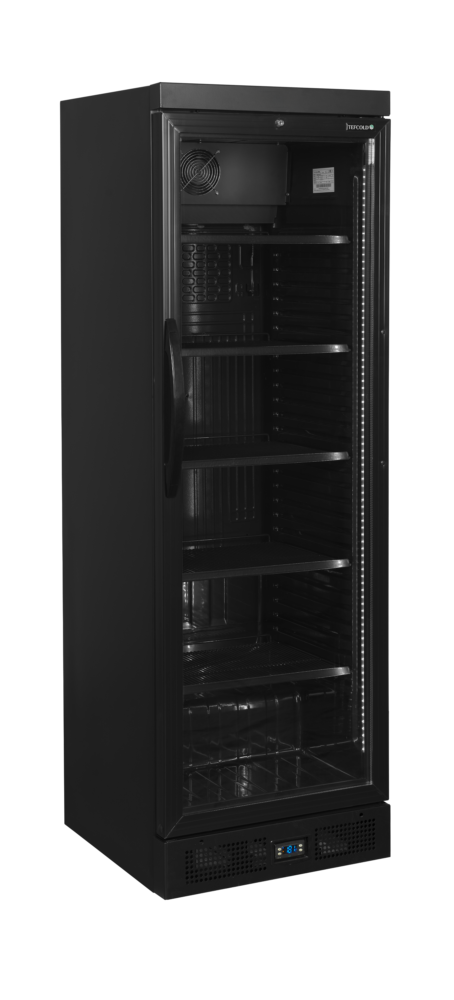

TEFCOLD CEV435 BLACK Glass Door Merchandiser

£687.00

+vat

Brand:

SKU: 51521

Energy Arrow

Product summary

  • Black interior and exterior
  • Elegant design
  • Great product presentation
  • Extra shelf space
  • LED interior light
  • Adjustable shelves
  • Fan assisted cooling
  • Reversible door (spare part 12850 needed)
  • Adjustable feet with rollers to rear

Product description

Energy-efficient glass door chiller

Designed to provide a more premium feel for a display fridge, the CEV435 is the more energy efficient version of the CEV425. It features a black interior and exterior. It has the benefit of twin vertical LED lighting (one strip down each side of the interior of the door frame). This provides exceptional lighting to showcase the front of the products, while many cabinets light produce from the side or the top. Excellent for display of craft beers, ciders, sports and energy drinks setting your display apart from the rest. The CP version is ideal for branding too.

The TEFCOLD CEV435 BLACK is a black single hinged glass-door merchandiser holding 345 litres net across five wire shelves, running from +2 to +10 °C on natural R600a refrigerant, rated energy class C at 562.1 kWh a year — about £141 at 25p/kWh.

SPECIFICATION 50 facts · tap for all External W × D × H595 x 640 x 1840 mmWidth595 mmDepth640 mmGross / net weight81 / 74 kgGross weight81 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181734930site
Product code 51521site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1840 mmcatalogue
External W × D × H 595 x 640 x 1840 mmsite
Gross / net weight 81 / 74 kgsite
Gross weight 81 kgcatalogue
Height 1840 mmsite
Internal (W×D×H) 505 × 462 × 1555 mmcatalogue
Internal W × D × H 505 x 462 x 1555 mmsite
Packed (W×D×H) 650 × 715 × 2050 mmcatalogue
Packed W × D × H 650 x 715 x 2050 mmsite
Width 595 mmsite

Capacity6

330ml bottles 213 pcssite
330ml cans 357 pcssite
500ml cans 231 pcssite
Doors 1catalogue
Gross volume 358 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 563 kWh/yearsite
Energy consumption 1.54 kWh/24hsite
Energy efficiency index 34.1 %site
Input power 370 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Blacksite
Feet / legs 2 adjustable feetsite
Interior light LED inside door framesite
Max load per shelf 196site
Shelf dimensions 490 x 360 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The CEV435 BLACK is a single-door glass merchandiser in an all-black finish, built to display chilled drinks and food-to-go where a darker cabinet suits the fit-out. A single hinged glass door fronts five black wire shelves, holding 358 litres gross and 345 litres net — sized for cans, bottles and packaged chilled lines.

It holds +2 to +10 °C under an electronic controller with automatic defrost, so there is no manual defrost in daily trading. The cabinet runs at 55 dB and carries climate class 4 for warmer or busier retail environments. Rated energy class C, it uses 562.1 kWh a year, about £141 at 25p/kWh, at an energy efficiency index of 34.1.

Externally the cabinet measures 595 × 640 × 1840 mm — a 595 mm width that suits standard doorways — and weighs 74 kg net. It runs on natural R600a refrigerant with a 70 g charge, drawing 370 W from a standard 13 A supply, and is delivered packed at 650 × 715 × 2050 mm.

BEFORE YOU BUY

Questions, answered straight

+2 to +10 °C under an electronic controller with automatic defrost, so no manual defrost is needed in daily use.

The cabinet is 595 mm wide externally (595 × 640 × 1840 mm) and delivered packed at 650 × 715 × 2050 mm. Measure your access route against the packed width. It weighs 74 kg net.

Rated energy class C, it uses 562.1 kWh a year, about £141 at 25p/kWh, at an energy efficiency index of 34.1. Actual cost depends on your tariff and siting.

Natural R600a refrigerant with a 70 g charge, drawing 370 W from a standard 13 A supply.

358 litres gross, 345 litres net, across five black wire shelves behind a single hinged glass door.

Yes — call 01792 732702 for servicing or support. It uses automatic defrost and an electronic controller for routine running.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 505 x 462 x 1555 mm
External Dimension (WxDxH): 595 x 640 x 1840 mm
Packed Dimension (WxDxH): 650 x 715 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.088 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 397.12 kWh/year m³
EEI: 24 %
Input Power: 370 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Cans 330 ml: 357 pcs pcs
Cans 500 ml: 231 pcs pcs
Bottles 330 ml: 213 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: CC2
Gross / Net Weight: 81 / 74 kg
Gross / Net Volume: 358 / 219 l
Max Ambient: +32,2°C, 65% RH

Design and Material

Door Reversible: Yes
Shelf Color: Black
Shelf Dimensions: 490 x 360 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED inside door frame
Lock: Yes
If you have any questions about the TEFCOLD CEV435 BLACK Glass Door Merchandiser then please get in touch.
