TEFCOLD CEV425CP BLACK Glass Door Merchandiser

£611.00

+vat

- +

Brand:

SKU: 22562

Energy Arrow

Product summary

  • Black interior and exterior
  • Elegant design
  • Great product presentation
  • Illuminated canopy
  • Ideal for branding
  • LED light in door frame
  • Adjustable shelves
  • Fan assisted cooling
  • Adjustable feet with rollers to rear
  • Digital controller and temperature display

Product description

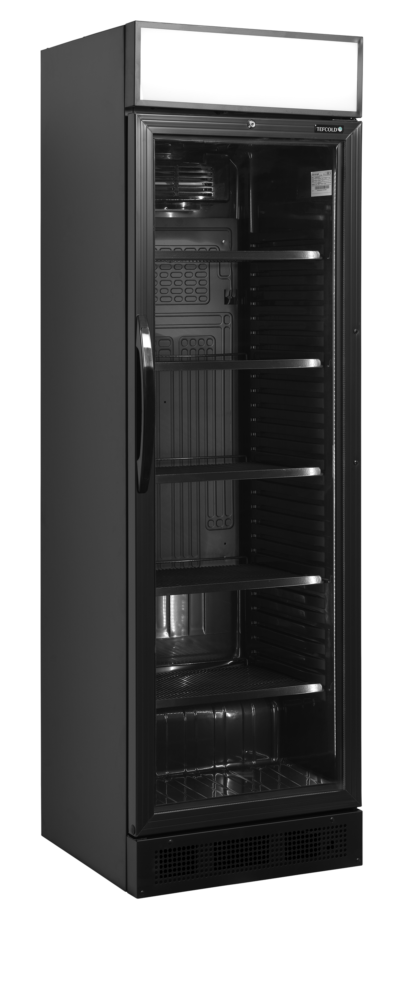

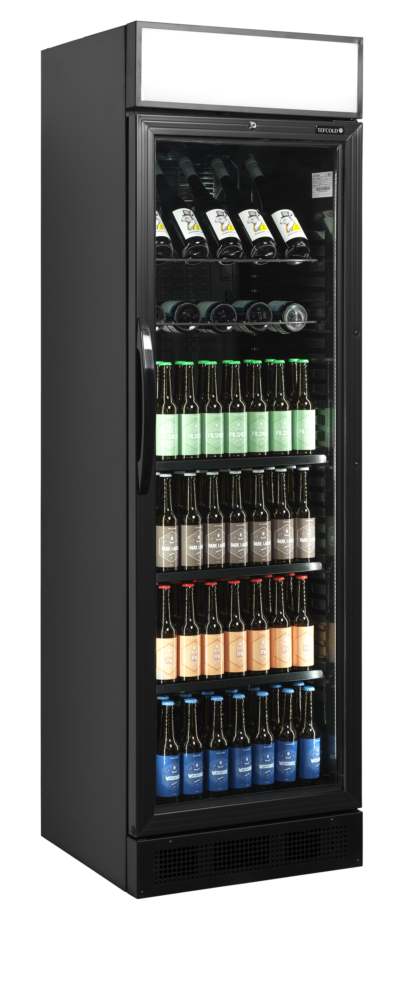

Black Glass Door Merchandiser with Canopy

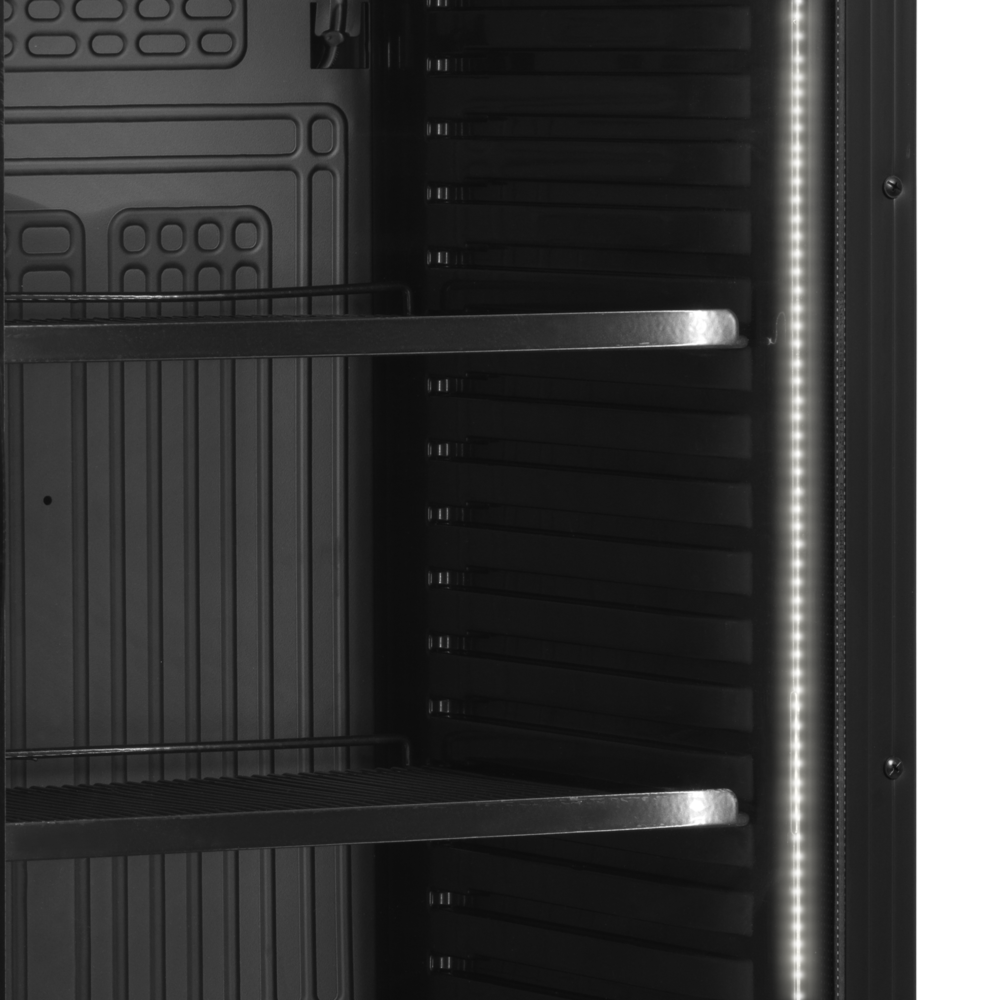

A great chilled display solution that puts the focus on the produce you are trying to sell. Twin vertical LED lights (set into the left and right hand side of the door frame) ensure clear and even illumination of the product inside the unit. A fan assisted cooling system ensures even cooling of the product and the LED light canopy (for CEV425CP BLACK) is ideal for branding. Ideal for cafés, convenience stores, takeaways and coffee shops. The unit is also popular with drinks companies as it provides an excellent route to market with full branding.

The Tefcold CEV425CP Black is a single-glass-door merchandiser holding 345 litres of net capacity across five black wire shelves, with automatic off-cycle defrost, a mechanical controller and natural R600a refrigerant on a standard 13 A supply.

SPECIFICATION 51 facts · tap for all External W × D × H595 x 645 x 1980 mmWidth595 mmDepth645 mmGross / net weight83 / 78 kgGross weight83 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181019778site
Product code 22562site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 645 mmsite
External (W×D×H) 595 × 645 × 1980 mmcatalogue
External W × D × H 595 x 645 x 1980 mmsite
Gross / net weight 83 / 78 kgsite
Gross weight 83 kgcatalogue
Height 1980 mmsite
Internal (W×D×H) 504 × 458 × 1553 mmcatalogue
Internal W × D × H 504 x 458 x 1553 mmsite
Packed (W×D×H) 665 × 715 × 2150 mmcatalogue
Packed W × D × H 665 x 715 x 2150 mmsite
Width 595 mmsite

Capacity6

330ml bottles 213 pcssite
330ml cans 357 pcssite
500ml cans 231 pcssite
Doors 1catalogue
Gross volume 358 litrescatalogue
Shelves 5catalogue

Performance10

Climate class CC2site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automatic / Off Cyclesite
Max ambient 322 °Ccatalogue
Maximum ambient +32,2°C, 65% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range 0 to +7site
Thermometer Yessite

Power & energy6

Annual energy consumption 821 kWh/yearsite
Energy consumption 2.25 kWh/24hsite
Energy efficiency index 49.7 %site
Input power 370 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy L-Shapesite
Castors 2 rollerssite
Exterior finish Blacksite
Feet / legs 2 adjustable feetsite
Interior light LED inside door framesite
Max load per shelf 196site
Shelf dimensions 490 x 360 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The Tefcold CEV425CP Black is a single-door upright glass merchandiser for chilled drinks and grab-and-go stock, presenting product behind one hinged glass door on five black wire shelves. Its all-black finish suits a convenience store, bar or café where a dark cabinet fits the fit-out. With 345 litres of net capacity, it handles an impulse drinks range from a compact upright.

It uses a mechanical controller with automatic off-cycle defrost to keep the coil clear without manual intervention. Running noise is rated at 45 dB, so it suits a customer-facing position. At its rated 821.2 kWh a year, running cost is about £205 a year at 25p/kWh, and it sits in energy class D.

Internally it offers 504 × 458 × 1553 mm (W×D×H) of shelved display space and it weighs 83 kg gross, so plan the delivery route and a level position. It runs from a standard 13 A supply and uses 70 g of natural R600a refrigerant, so no special electrics are needed beyond a dedicated socket.

BEFORE YOU BUY

Questions, answered straight

Net capacity is 345 litres across five black wire shelves behind a single hinged glass door. It suits an impulse chilled drinks range.

It needs 504 × 458 × 1553 mm (W×D×H) of internal shelved space, and the cabinet weighs 83 kg gross, so plan the delivery route and a level position.

At its rated 821.2 kWh a year, running cost is about £205 a year at 25p/kWh, and it sits in energy class D. Actual cost depends on your tariff and siting.

Running noise is rated at 45 dB, and it uses 70 g of natural R600a refrigerant. It runs from a standard 13 A supply.

It uses a mechanical controller with automatic off-cycle defrost, which clears the coil without manual intervention.

Yes, servicing and support can be arranged; call 01792 732702. The cabinet uses R600a refrigerant and automatic off-cycle defrost.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 504 x 458 x 1553 mm
External Dimension (WxDxH): 595 x 645 x 1980 mm
Packed Dimension (WxDxH): 665 x 715 x 2150 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic / Off Cycle
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.25 kWh/24h
Temperature Range: 0 to +7 °C
Annual Energy Consumption: 821 kWh/year m³
EEI: 49.7 %
Input Power: 370 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Cans 330 ml: 357 pcs pcs
Cans 500 ml: 231 pcs pcs
Bottles 330 ml: 213 pcs pcs
Temperature Range: 0 to +7 °C
Climate Class: CC2
Gross / Net Weight: 83 / 78 kg
Gross / Net Volume: 358 / 345 l
Max Ambient: +32,2°C, 65% RH

Design and Material

Shelf Color: Black
Shelf Dimensions: 490 x 360 mm
Max load on Shelves: 196 kg/m²
Canopy Type: L-Shape
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED inside door frame
Lock: Yes
If you have any questions about the TEFCOLD CEV425CP BLACK Glass Door Merchandiser then please get in touch.
