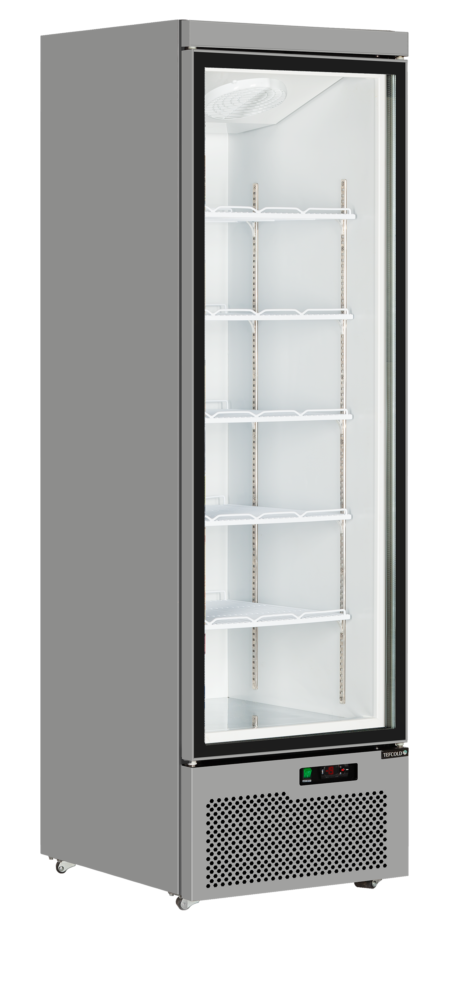

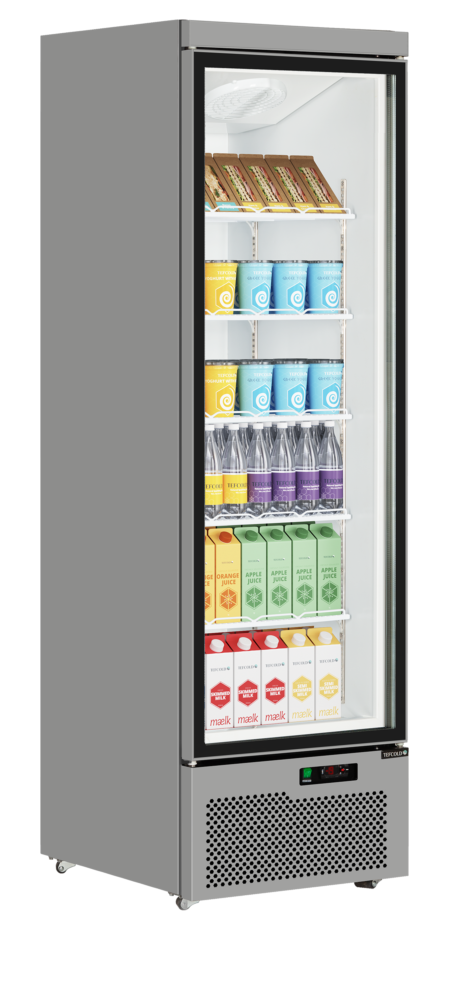

TEFCOLD Atom Maxi C1DS Glass Door Merchandiser

£1,359.00 £906.00

+vat

Brand:

SKU: 49849

Energy Arrow

Product summary

  • Low energy consumption
  • Hinged glass doors
  • Self-closing doors
  • Double glazed doors
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Ventilated cooling

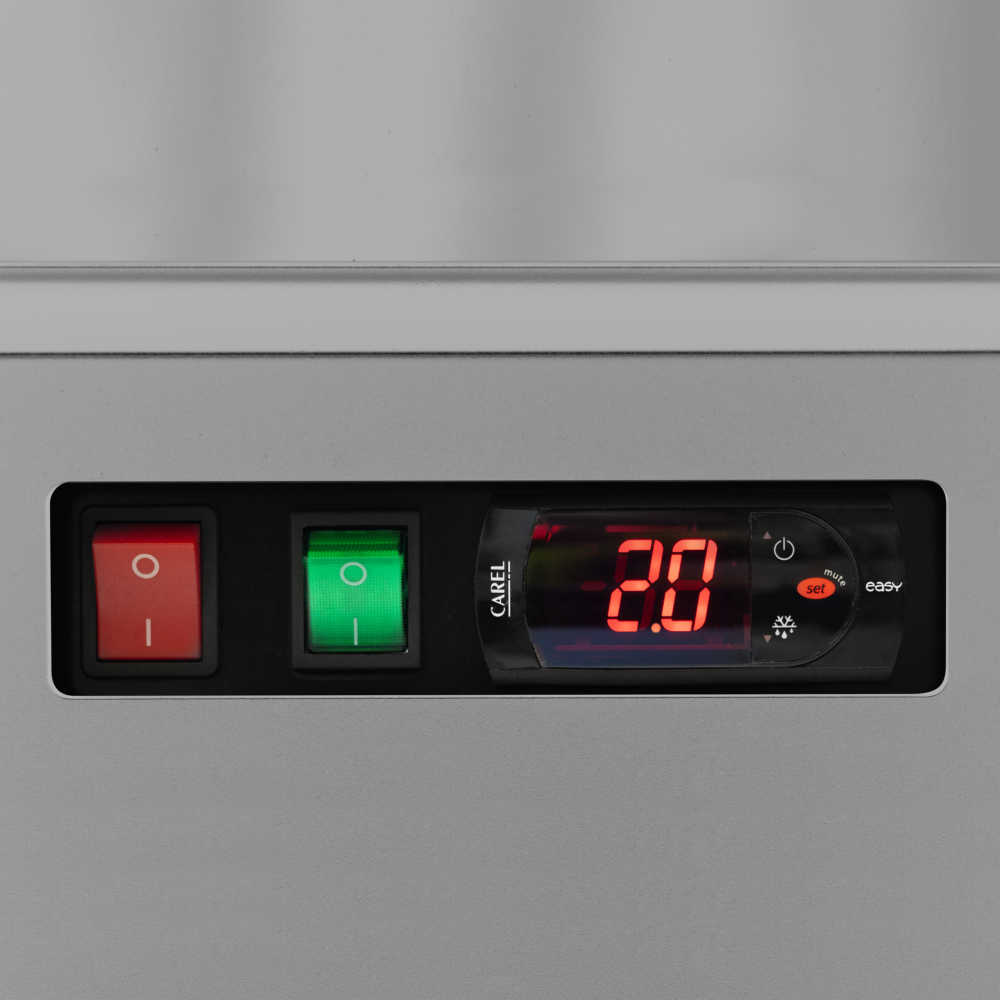

  • Digital controller and temperature display
  • Castors
  • Freezer Option Available

Product description

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A white interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.

The TEFCOLD Atom Maxi C1DS is a single hinged glass-door merchandiser holding 459 litres net across five adjustable shelves, running from -1 to +10 °C on natural R290 refrigerant, rated energy class B at 912.5 kWh a year — about £228 at 25p/kWh.

Sale!
SPECIFICATION 51 facts · tap for all External W × D × H750 x 710 x 2003 mmWidth750 mmDepth710 mmGross / net weight141.5 / 130 kgGross weight141.5 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733698site
Product code 49849site
Sub title Glass Door Merchandisercatalogue
Type Single Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 710 mmsite
External (W×D×H) 750 × 710 × 2003 mmcatalogue
External W × D × H 750 x 710 x 2003 mmsite
Gross / net weight 141.5 / 130 kgsite
Gross weight 141.5 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 660 × 595 × 1568 mmcatalogue
Internal W × D × H 660 x 595 x 1568 mmsite
Packed (W×D×H) 775 × 770 × 2090 mmcatalogue
Packed W × D × H 775 x 770 x 2090 mmsite
Width 750 mmsite

Capacity7

330ml bottles 350 pcssite
330ml cans 630 pcssite
500ml cans 378 pcssite
Display area 0.98 m²site
Doors 1catalogue
Gross volume 614 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 913 kWh/yearsite
Energy consumption 2.5 kWh/24hsite
Energy efficiency index 15.4 %site
Input power 323 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 4 castorssite
Exterior finish Silver RAL9006site
Interior light LEDsite
Max load per shelf 135site
Reversible doors Nosite
Shelf dimensions 637 x 480 mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this single door glass door fridge earns its place

The Atom Maxi C1DS is a single-door glass merchandiser built to put chilled stock in front of customers rather than store it out of sight. A single hinged glass door fronts 0.98 m² of display across five adjustable shelves, with a silver RAL9006 exterior and white RAL9003 interior, holding 614 litres gross and 459 litres net — sized for drinks, food-to-go and grab-and-go chilled lines.

Ventilated cooling holds the cabinet from -1 to +10 °C under an electronic controller, with automatic off-cycle defrost so there is no manual intervention in daily trading. It carries climate class 3 for standard indoor retail conditions and runs at 58 dB. Rated energy class B, it uses 912.5 kWh a year — about £228 a year at 25p/kWh — at an energy efficiency index of 15.4.

The cabinet measures 660 × 595 × 1568 mm internally and runs on natural R290 refrigerant with an 85 g charge, drawing from a standard 13 A, 220–240 V supply. It is delivered packed at 775 × 770 × 2090 mm and weighs 130 kg net, so plan the delivery route and a second pair of hands for positioning.

BEFORE YOU BUY

Questions, answered straight

It operates from -1 to +10 °C under an electronic controller with ventilated cooling. Automatic off-cycle defrost runs without manual intervention.

Rated energy class B, it uses 912.5 kWh a year, about £228 at 25p/kWh, at an energy efficiency index of 15.4. Actual cost depends on your tariff and siting.

It uses natural R290 refrigerant with an 85 g charge, running on a standard 13 A, 220–240 V supply.

It is delivered packed at 775 × 770 × 2090 mm, so measure your doorways and route against those figures before delivery. The cabinet weighs 130 kg net, so plan for handling.

Five adjustable shelves across 0.98 m² of display area, so shelf spacing can be set to your packaging. Gross capacity is 614 litres, 459 litres net.

Yes. Craven Cooling can arrange servicing and support — call 01792 732702. The cabinet uses an electronic controller and automatic defrost, so routine operation needs no manual defrost cycle.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 660 x 595 x 1568 mm
External Dimension (WxDxH): 750 x 710 x 2003 mm
Packed Dimension (WxDxH): 775 x 770 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.5 kWh/24h
Temperature Range: -1 to +10 °C
Annual Energy Consumption: 913 kWh/year m³
EEI: 15.4 %
Input Power: 323 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Cans 330 ml: 630 pcs pcs
Cans 500 ml: 378 pcs pcs
Bottles 330 ml: 350 pcs pcs
Temperature Range: -1 to +10 °C
Climate Class: 3
Gross / Net Weight: 141.5 / 130 kg
Gross / Net Volume: 614 / 459 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.98 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 637 x 480 mm
Max load on Shelves: 135 kg/m²
Castors: 4 castors
Exterior Finish: Silver RAL9006
Interior Finish: Silver RAL9006
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD Atom Maxi C1DS Glass Door Merchandiser then please get in touch.
