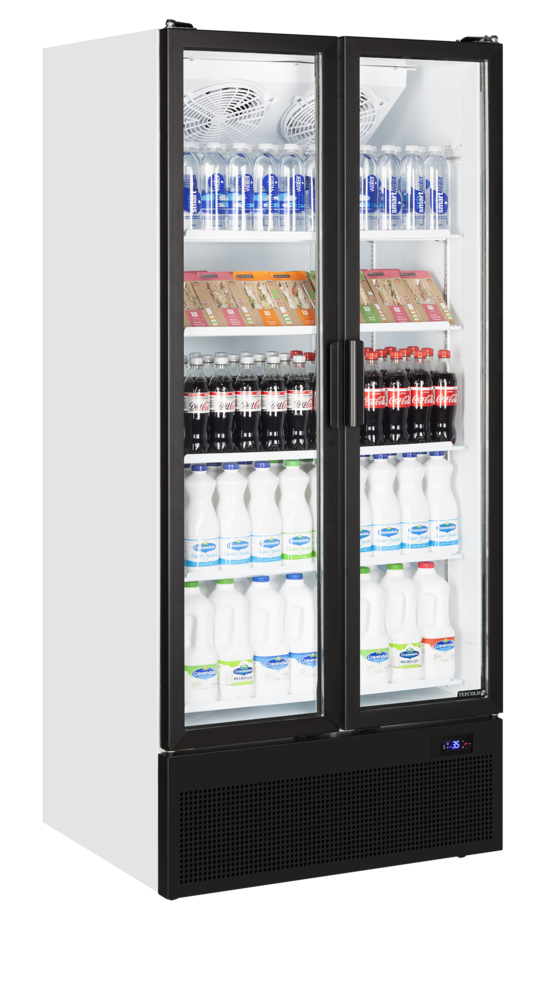

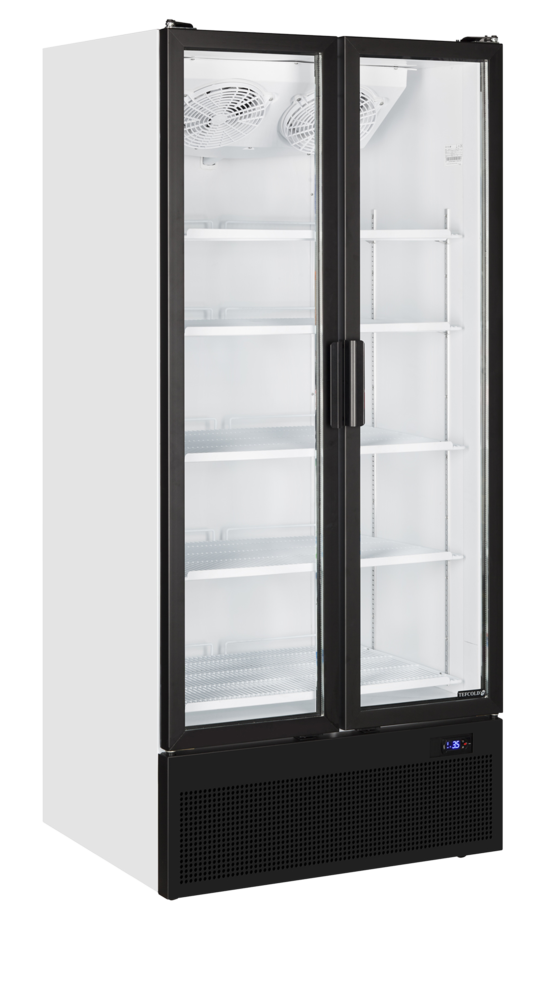

TEFCOLD FS890H Glass Door Merchandiser

£1,224.00

+vat

- +

Brand:

SKU: 22521

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves

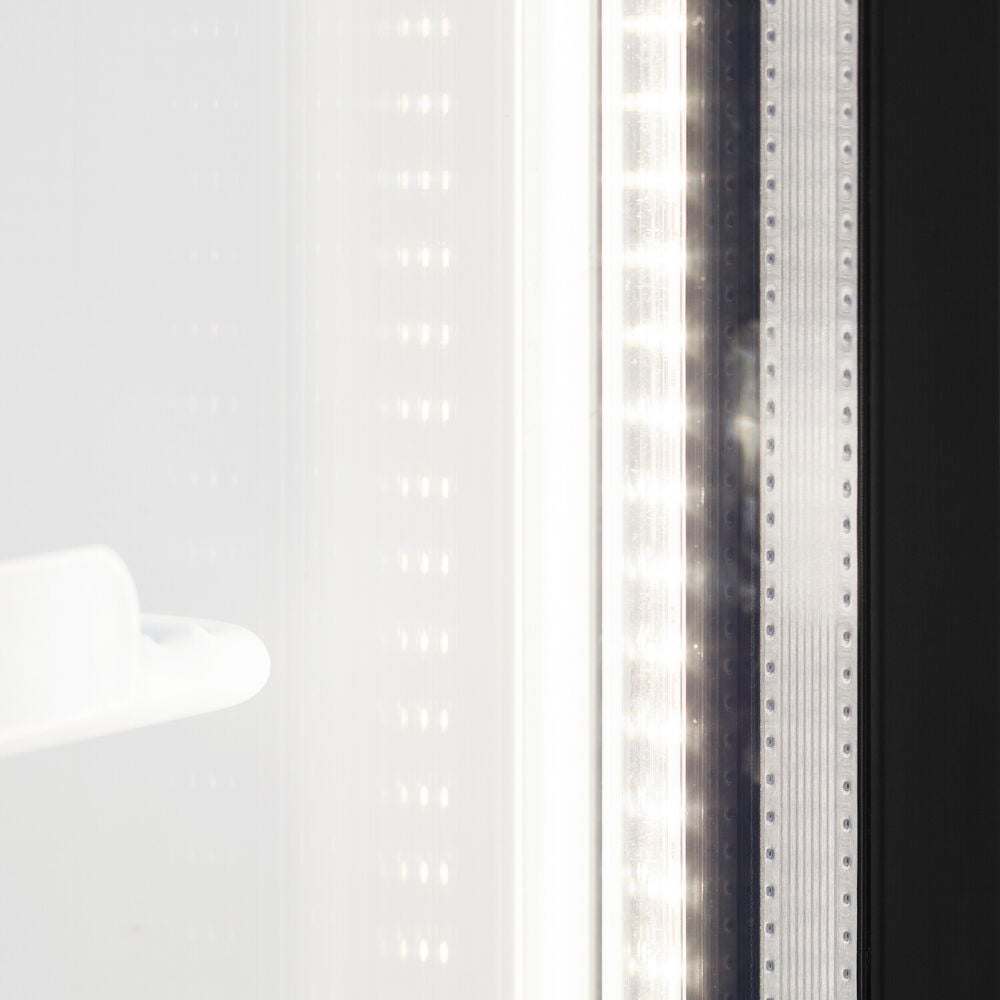

  • Vertical LED interior light with switch
  • Thermometer
  • Self-closing hinged glass doors
  • Adjustable feet with rollers to rear

Product description

An excellent choice of double door display chiller when a light canopy for branding isn’t required. It gives a little more interior height and makes for a cleaner looking cabinet. With TEFCOLD’s build quality and reliability as standard, this style of cabinet has become a popular choice for shops and cafés.

The TEFCOLD FS890H is a double glass door merchandiser holding 535 litres net at +2 to +10 °C, 890 mm wide and running from a standard 13 A plug — a full-height chilled display for convenience stores, takeaways and bars.

SPECIFICATION 51 facts · tap for all External W × D × H890 x 740 x 1990 mmWidth890 mmDepth740 mmGross / net weight166 / 153 kgGross weight166 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181018047site
Product code 22521site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 740 mmsite
External (W×D×H) 890 × 740 × 1990 mmcatalogue
External W × D × H 890 x 740 x 1990 mmsite
Gross / net weight 166 / 153 kgsite
Gross weight 166 kgcatalogue
Height 1990 mmsite
Internal (W×D×H) 810 × 561 × 1556 mmcatalogue
Internal W × D × H 810 x 561 x 1556 mmsite
Packed (W×D×H) 950 × 840 × 2160 mmcatalogue
Packed W × D × H 950 x 840 x 2160 mmsite
Width 890 mmsite

Capacity6

330ml bottles 528 pcssite
330ml cans 948 pcssite
500ml cans 480 pcssite
Doors 2catalogue
Gross volume 707 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 115 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2227 kWh/yearsite
Energy consumption 6.101 kWh/24hsite
Energy efficiency index 78.5 %site
Input power 410 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 794 x 540 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The TEFCOLD FS890H is a double-door glass merchandiser with 535 litres of net capacity — 707 litres gross — behind two hinged glass doors. The white finish inside and out keeps chilled drinks, dairy and grab-and-go lines clearly visible against a clean background, and at 890 mm wide it delivers serious display capacity from a footprint that suits shop floors where every metre earns its keep.

Day to day it holds +2 to +10 °C on ventilated cooling, with automatic defrost and an electronic controller, so there is no manual defrost routine to manage. Climate class 4 rates it for warm, busy retail environments, and at 48 dB(A) it sits at a level suited to front-of-house positioning. Energy class is F, using 2226.9 kWh a year — about £557 a year at 25p/kWh.

Installation is straightforward: the cabinet measures 890 × 740 × 1990 mm and weighs 153 kg, and it runs from a standard 13 A socket at 220-240 V, drawing 410 W — no dedicated electrics needed. It arrives packed at 950 × 840 × 2160 mm, so check the delivery route against the packed size or plan to unpack before the final doorway. The refrigerant is R290, a low-GWP hydrocarbon, with a 115 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet itself is 890 mm wide and 740 mm deep, so it passes most commercial doorways on its narrower dimension. It ships packed at 950 × 840 × 2160 mm, so check the delivery route against the packed size or plan to unpack it before the final doorway.

It is energy class F, using 2226.9 kWh a year — about £557 a year at 25p/kWh. The Energy label decoder tool below will convert that to your own tariff.

No. It runs from a standard 13 A plug at 220-240 V and draws 410 W, so any sound standard socket will do.

It holds +2 to +10 °C on ventilated cooling with automatic defrost, controlled electronically. That is a chilled band for drinks, dairy and packaged grab-and-go stock — it is not a freezer.

It runs at 48 dB(A), and its climate class 4 rating means it is built for warm, busy retail environments rather than just a cool back room.

Craven Cooling supplies and supports commercial refrigeration across the UK. For servicing, parts or a breakdown, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 810 x 561 x 1556 mm
External Dimension (WxDxH): 890 x 740 x 1990 mm
Packed Dimension (WxDxH): 950 x 840 x 2160 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 115 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.101 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2227 kWh/year m³
EEI: 78.5 %
Input Power: 410 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 948 pcs pcs
Cans 500 ml: 480 pcs pcs
Bottles 330 ml: 528 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 166 / 153 kg
Gross / Net Volume: 707 / 535 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 794 x 540 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS890H Glass Door Merchandiser then please get in touch.
