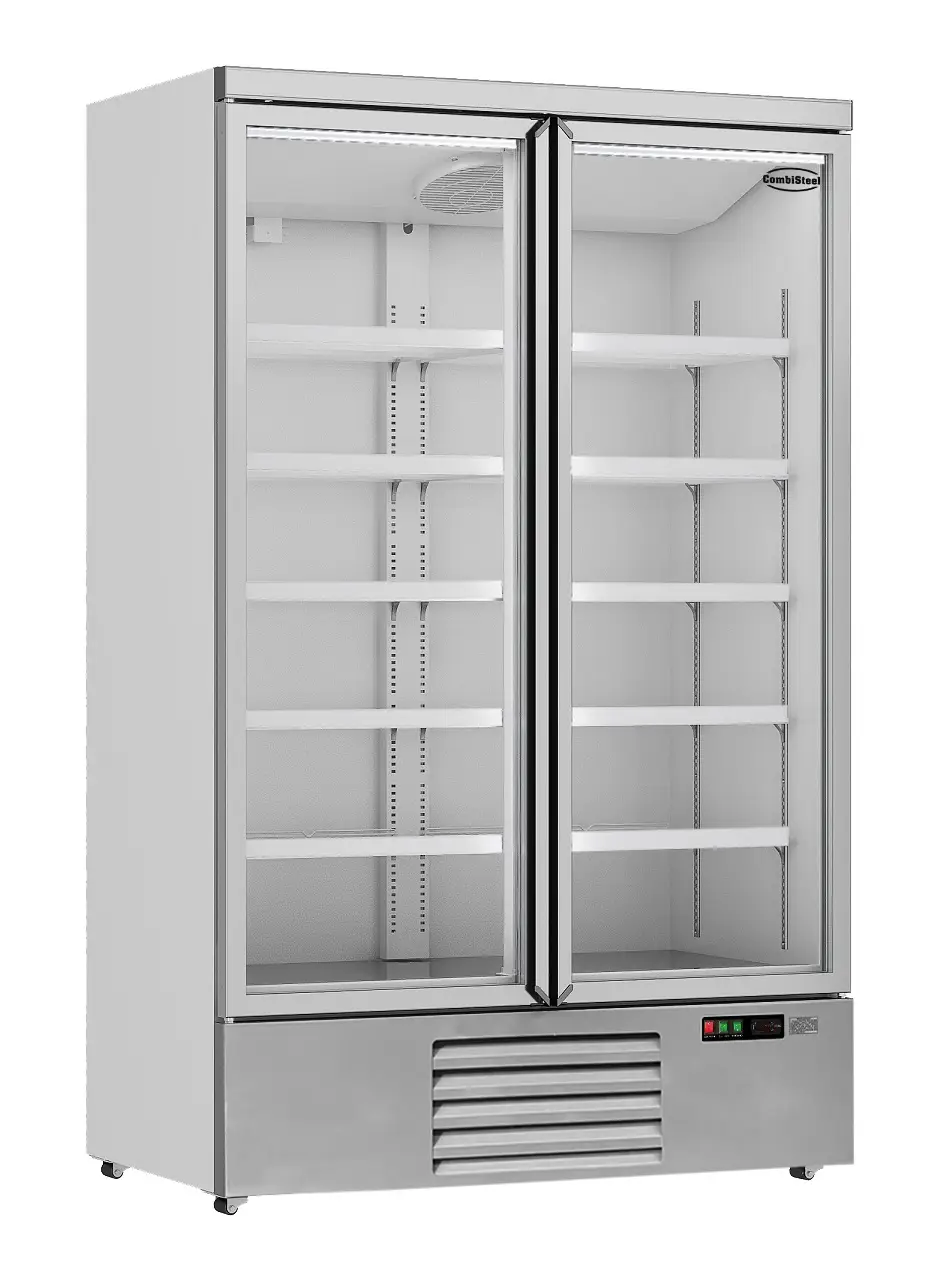

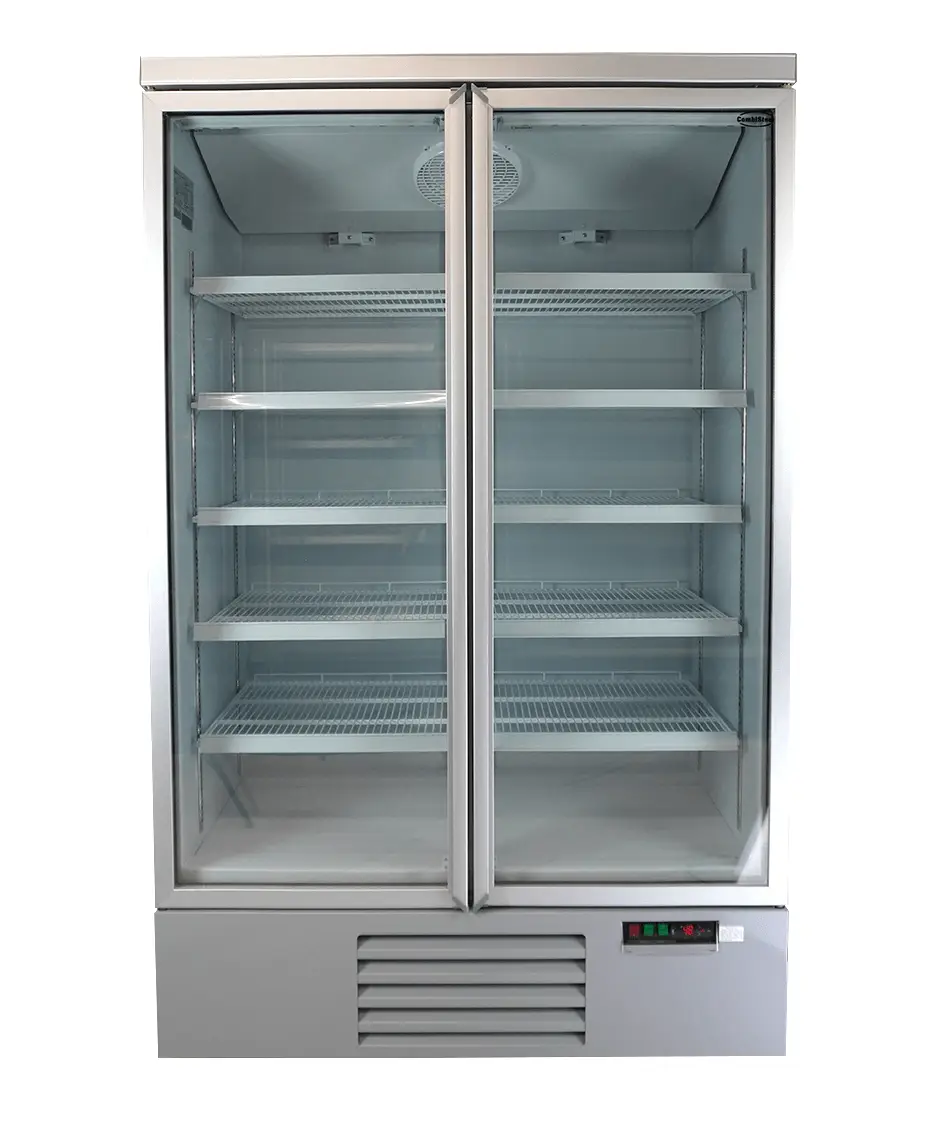

CombiSteel Double Glass Door Display Fridge JDE-1000R 7455.2200

£1,349.60

+vat

SKU: 7455.22

Product summary

Size W/D/H (mm) 1253 x 710 x 2003

Product description

With door heating which can be operated via a switch

The JDE-1000R is a two-glass-door upright display refrigerator, built to merchandise chilled drinks and packaged grab-and-go stock behind clear full-height glass so customers can see the range and serve themselves in convenience, retail and hospitality settings.

Downloads

SPECIFICATION 36 facts · tap for all Width1253 mmDepth710 mmHeight2003 mmGross / net weight197 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137863830catalogue
Type Double Door Glass Door Fridgescatalogue

Size & weight7

Depth 710 mmsite
External (W×D×H) 1253 × 710 × 2003 mmcatalogue
Gross / net weight 197 kgsite
Height 2003 mmsite
Internal (W×D×H) 1163 × 545 × 1569 mmcatalogue
Internal W × D × H 1163x545x1569site
Width 1253 mmsite

Capacity3

Capacity 1000 Ltrcatalogue
Gross volume 1000 litrescatalogue
Shelves 10catalogue

Performance6

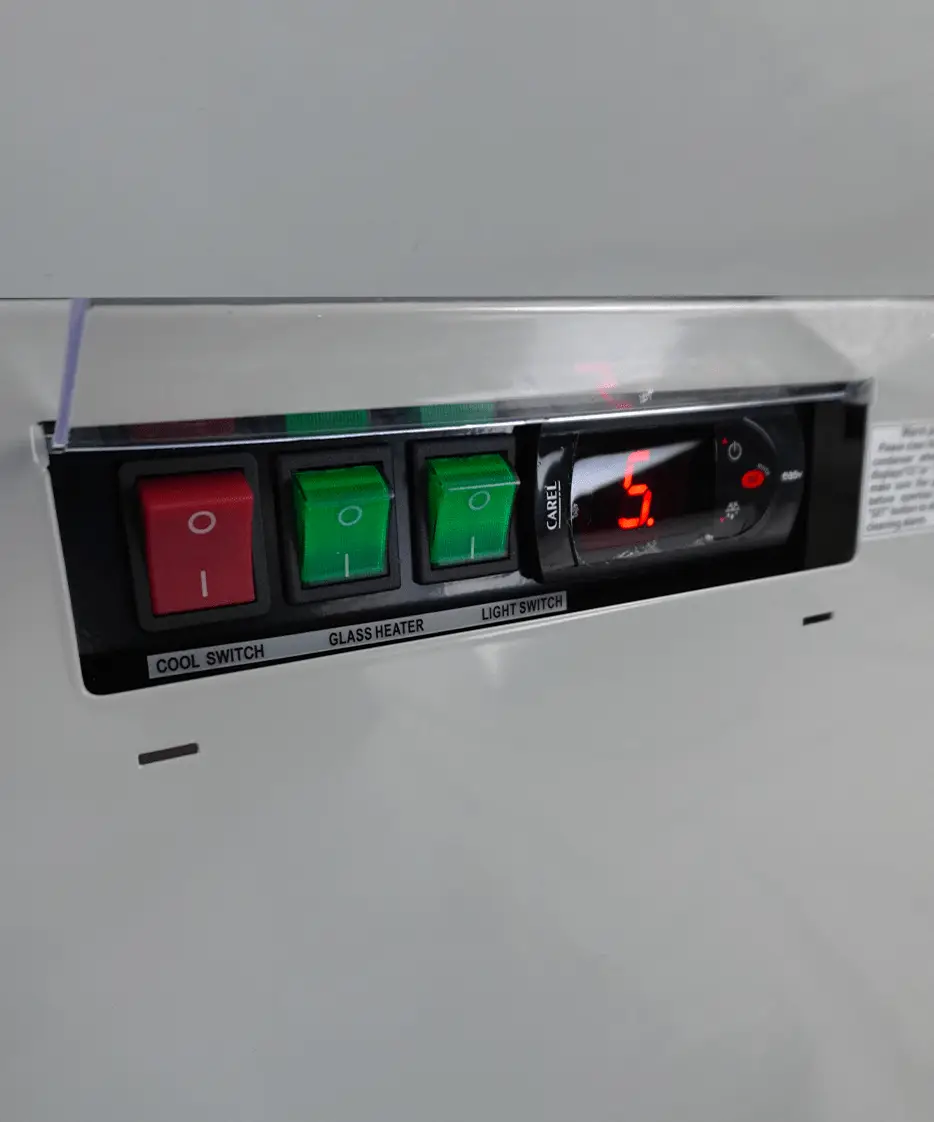

Controller Push buttoncatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range 0/+10site

Power & energy7

Energy consumption 0,33site
Frequency 50 Hzcatalogue
Noise level 6262site
Rated input 330 Wcatalogue
Rated power 33 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings8

Accessories 4 castors and 10 grids with clips and price card holderscatalogue
Colour Whitecatalogue
Doors Left and right hingedsite
Exterior finish Powder coated steelsite
Insulation 45 mmcatalogue
Interior finish Stainless steel, Aluminiumsite

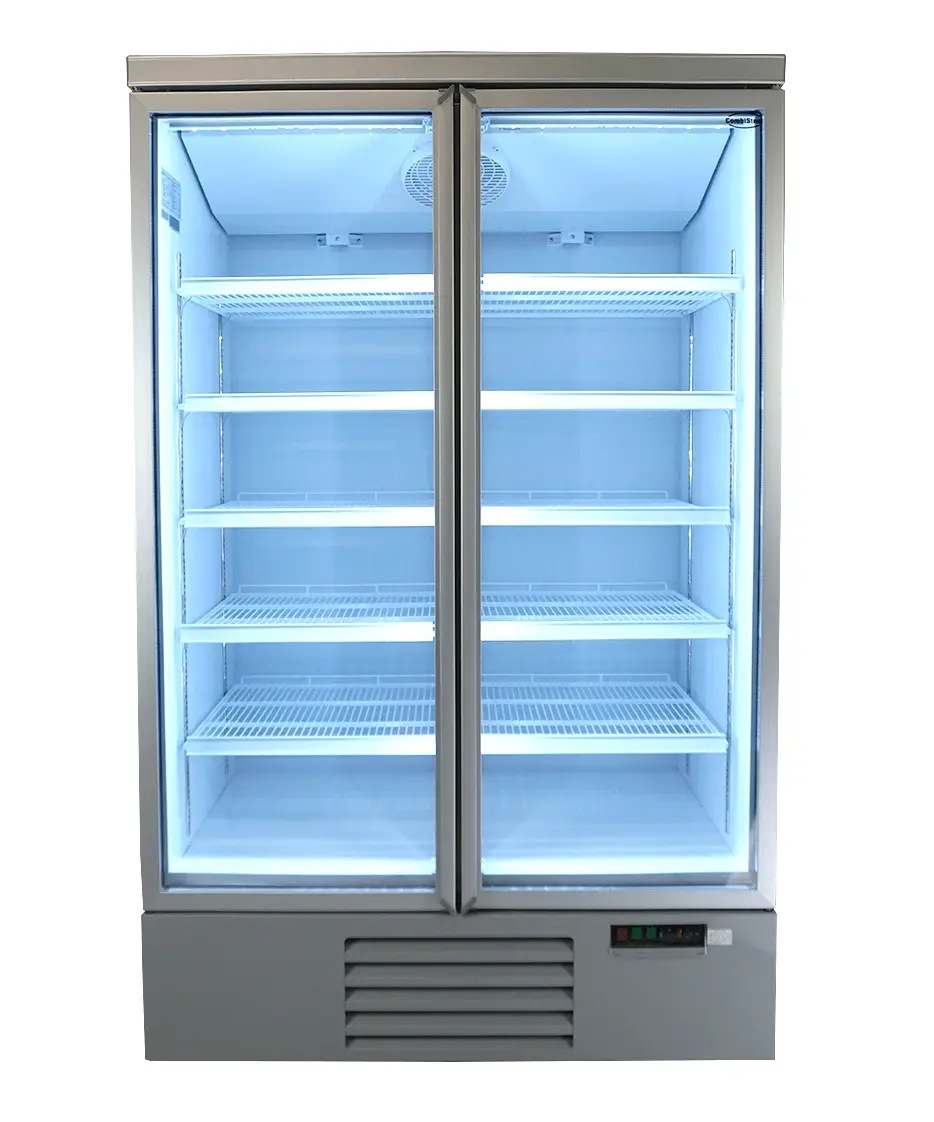

Interior light Yes, LEDsite
Reversible doors Nosite

Other stated facts2

Energy (24h) 545 kWh/24hcatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The JDE-1000R is an upright display refrigerator with two full-height glass doors. It holds 1000 litres of chilled stock behind clear glass so customers can see what is on offer and serve themselves across a 1253 mm width, which is the standard format for drinks chillers and grab-and-go lines. The two-door layout gives a substantial self-service display for mid-sized retail runs and front-of-house areas without the floor footprint of a four-door wall.

In day-to-day use, staff load and face up stock from the front while the two doors keep the cold in between customers. It runs at 0–10 °C in refrigeration mode with automatic defrost and LED interior lighting, so match that thermal band and the 1000 litre capacity against the stock you plan to display before ordering. The 45 mm insulation holds temperature reliably even with steady door traffic. Keep the shelf fronts clear so both doors close fully.

Plan the installation around access and supply. It arrives upright as a single unit weighing 197 kg, so check the 1253 × 710 × 2003 mm footprint against your doorway, the final position and the floor before delivery—upright glass-door cabinets are heavy and arrive as one piece. Have a qualified electrician confirm the 230 V socket and 33 kW circuit capacity, and Craven Cooling can advise on siting and delivery access. The 62 dB(A) noise level works well in open trading areas.

BEFORE YOU BUY

Questions, answered straight

Check the external width and depth on the spec panel against your access route and final position. An upright glass-door cabinet arrives in one piece and is heavy, so measure the doorway, any turns and lift access, and confirm the delivered weight on the spec panel before ordering.

Yes. The two full-height glass doors let customers see the stock and open the doors to take what they want, which is why this format is used for drinks and grab-and-go displays. Staff restock and face up from the front.

It is a chilled display refrigerator for packaged stock such as bottled and canned drinks and grab-and-go items. Check the operating temperature range on the spec panel against your product before ordering; it is a refrigerator, not a freezer.

The capacity is listed on the spec panel on this page. Match it against the number of facings and the range you want on display, and use the capacity calculator in the tools rail if you are sizing up.

The voltage and electrical details are on the spec panel. Have a qualified electrician confirm the socket position and circuit before install so the cabinet runs on a suitable supply.

Yes. Craven Cooling supports the refrigeration it supplies and can arrange servicing or advise on faults. Call the team on 01792 732702 with the model and serial details to hand.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Double Glass Door Display Fridge JDE-1000R 7455.2200 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1253 × 710 × 2003 mm
Interior Dimensions 1163x545x1569
Capacity 1000 Ltr
Material Powder coated steel
Interior Material Stainless steel, Aluminium
Colour / Finish White
Temperature Range 0/+10
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 10
Electrical Power 0.33 kW
Energy Use 5.45 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable No
Noise Level 62 dB
Insulation 45 mm
Weight 197 kg
If you have any questions about the CombiSteel Double Glass Door Display Fridge JDE-1000R 7455.2200 then please get in touch.
