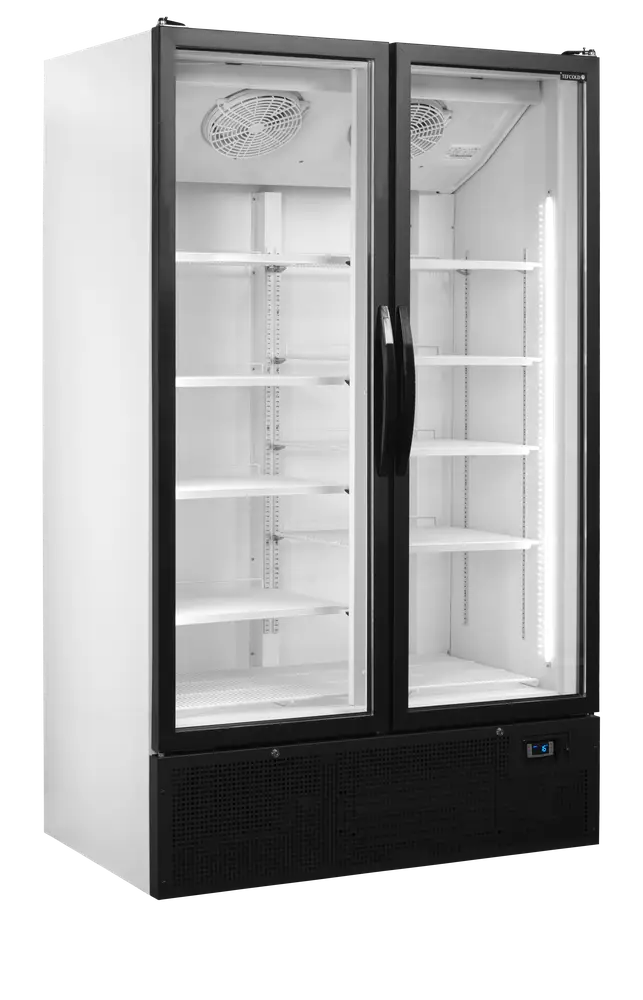

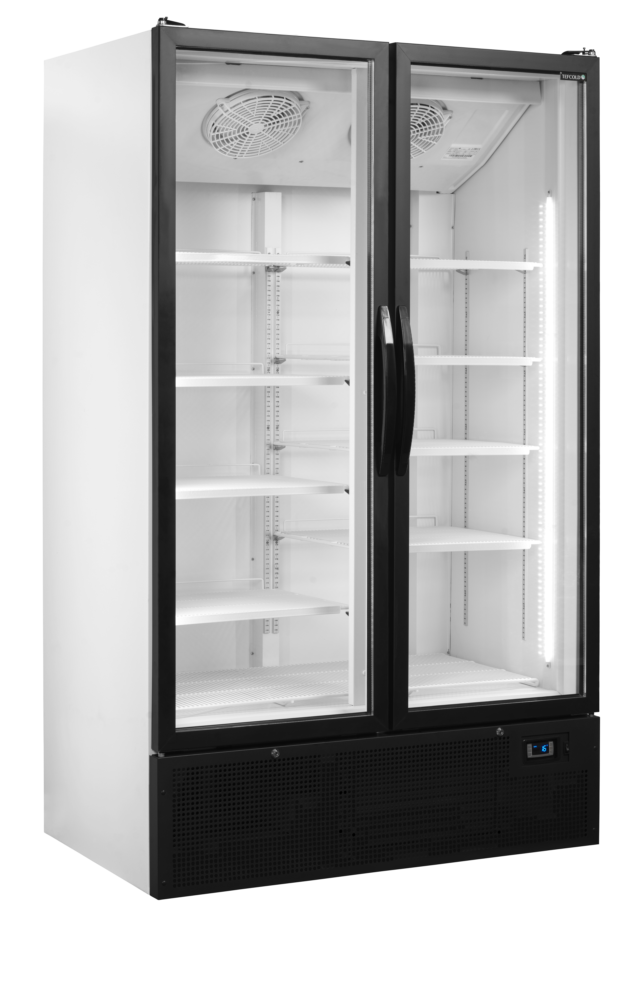

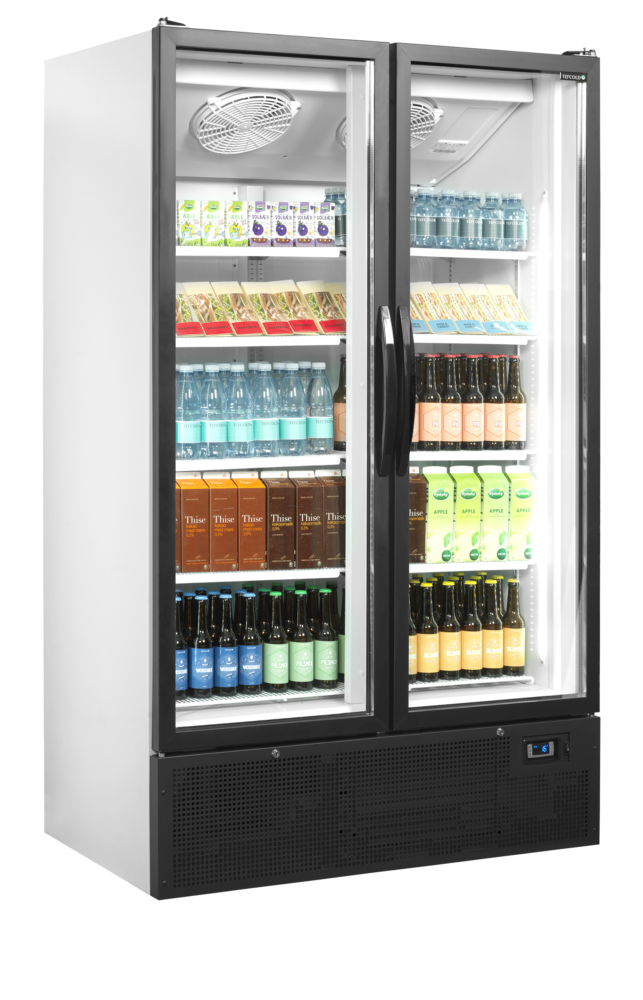

TEFCOLD FS1202H Display Chiller

£1,424.00

+vat

- +

Brand:

SKU: 58669

Energy Arrow

Product summary

  • Self-closing door
  • Hinged alu-framed glass door
  • Extra shelf space
  • Internal vertical LED light
  • Adjustable shelves
  • Adjustable feet
  • Ventilated cooling

Product description

2-door display chiller with hinged doors

The FS range of 2 and 3-door display coolers offers excellent build quality at a competitive price. Choose between white or black exterior cabinets with black alu-framed glass doors – hinged or sliding. The shelves are adjustable, making the FS range a flexible solution. You get great product presentation combined with a powerful ventilated refrigeration system controlled by an electronic thermostat. Many models are also available with a canopy (FSC range).

The TEFCOLD FS1202H is a double glass-door display chiller holding +2 to +10 °C with 652 litres net across 10 white wire shelves, ventilated cooling and automatic defrost, in a white RAL9016 cabinet measuring 1200 × 735 × 1990 mm.

SPECIFICATION 48 facts · tap for all External W × D × H1200 x 735 x 1990 mmWidth1200 mmDepth735 mmGross / net weight189 / 174 kgGross weight189 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181743017site
Product code 58669site
Sub title Display Chillercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 735 mmsite
External (W×D×H) 1200 × 735 × 1990 mmcatalogue
External W × D × H 1200 x 735 x 1990 mmsite
Gross / net weight 189 / 174 kgsite
Gross weight 189 kgcatalogue
Height 1990 mmsite
Internal (W×D×H) 1090 × 573 × 1533 mmcatalogue
Internal W × D × H 1090 x 573 x 1533 mmsite
Packed (W×D×H) 1250 × 850 × 2160 mmcatalogue
Packed W × D × H 1250 x 850 x 2160 mmsite
Width 1200 mmsite

Capacity6

330ml bottles 560 pcssite
330ml cans 1152 pcssite
500ml cans 816 pcssite
Doors 2catalogue
Gross volume 936 litrescatalogue
Shelves 10catalogue

Performance8

Climate class 4site

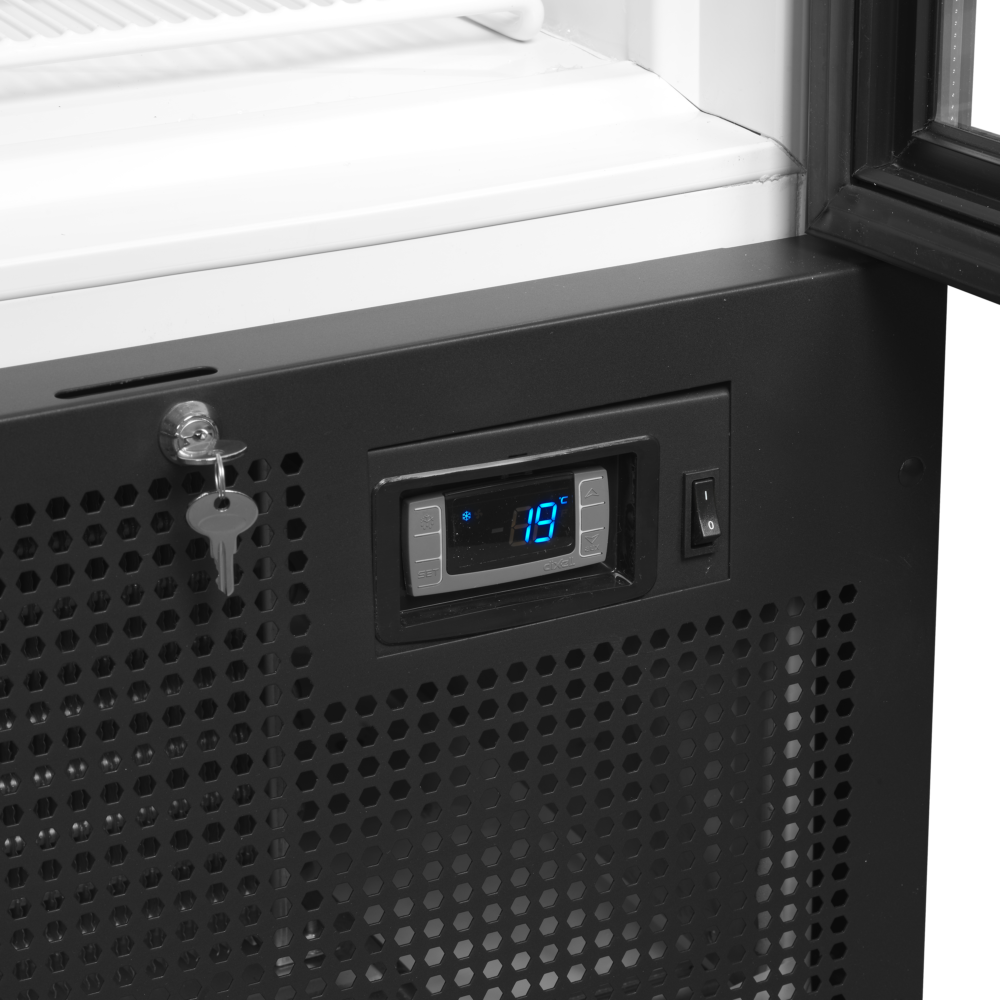

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2438 kWh/yearsite
Energy consumption 6.68 kWh/24hsite
Energy efficiency index 68.7 %site
Input power 850 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 rollerssite
Exterior finish White RAL9016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 1072 x 540 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The TEFCOLD FS1202H is a double-door display chiller for merchandising cold drinks and grab-and-go lines behind glass. Two hinged glass doors front a white RAL9016 cabinet with a white painted-steel interior, and 10 white wire shelves carry 652 litres of usable stock (936 litres gross).

Ventilated cooling holds the chiller between +2 and +10 °C, with automatic defrost and an electronic controller keeping the cycle hands-off. It runs at 48 dB, quiet enough for a shop floor or bar, and sits in energy class F, using 2438.2 kWh a year — about £610 at 25p/kWh.

The cabinet stands 1200 × 735 × 1990 mm and ships packed at 1250 × 850 × 2160 mm, so check door heights and lift access on the delivery route. It weighs 174 kg net, 189 kg gross, runs from a 220-240 V/50 Hz supply, and uses R290 refrigerant with a 120 g charge.

BEFORE YOU BUY

Questions, answered straight

It offers 652 litres net (936 litres gross) across 10 white wire shelves behind two hinged glass doors.

The cabinet is 1200 × 735 × 1990 mm and ships packed at 1250 × 850 × 2160 mm. Check door heights and lift clearance, as it stands close to 2 m and weighs 189 kg gross.

It holds +2 to +10 °C with ventilated cooling and automatic defrost, suited to bottled and canned drinks and pre-packed chilled lines.

It sits in energy class F and uses 2438.2 kWh a year, about £610 at 25p/kWh, varying with your tariff and how often the doors open.

It measures 48 dB in operation, quiet enough for a shop floor or front-of-house bar position.

Yes. We arrange installation and servicing across the UK — call 01792 732702 to book or set up a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1090 x 573 x 1533 mm
External Dimension (WxDxH): 1200 x 735 x 1990 mm
Packed Dimension (WxDxH): 1250 x 850 x 2160 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.68 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2438 kWh/year m³
EEI: 68.7 %
Input Power: 850 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 1152 pcs pcs
Cans 500 ml: 816 pcs pcs
Bottles 330 ml: 560 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 189 / 174 kg
Gross / Net Volume: 936 / 652 l

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 1072 x 540 mm
Max load on Shelves: 196 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White RAL9016
Interior Finish: White RAL9016
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD FS1202H Display Chiller then please get in touch.
