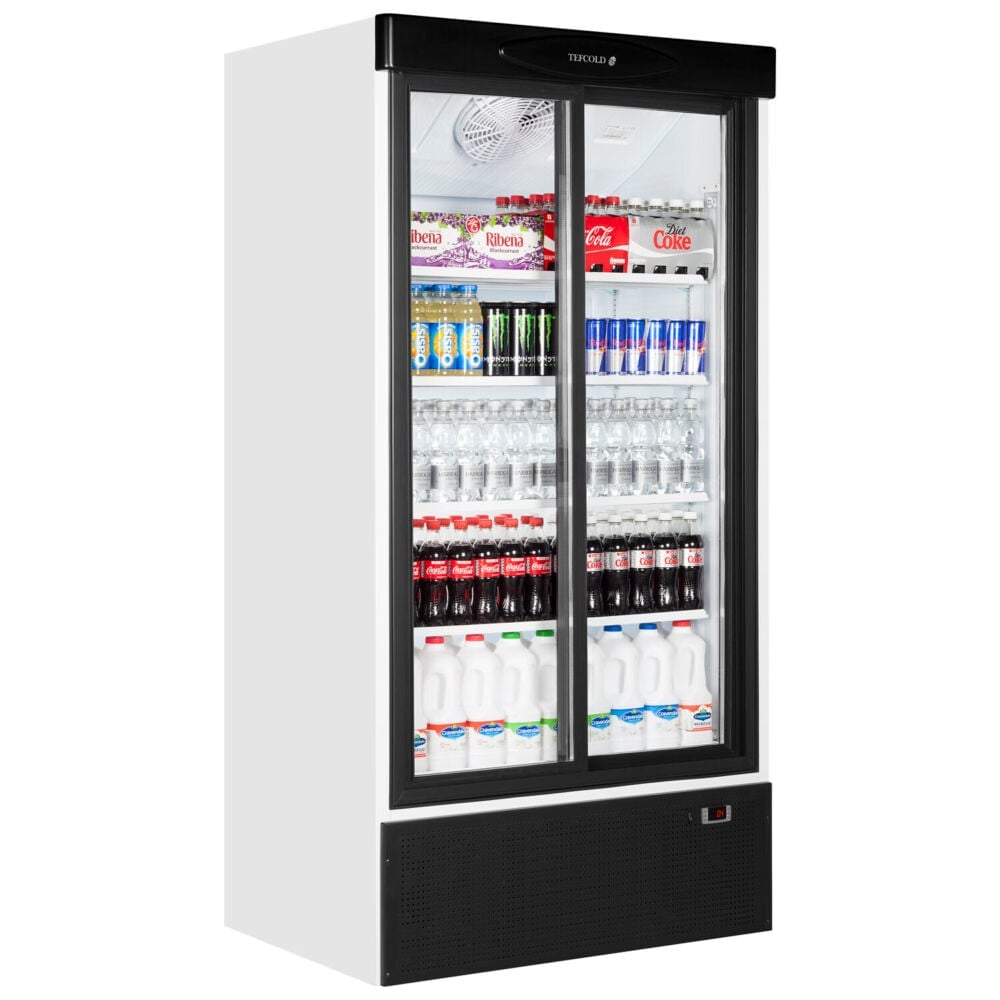

TEFCOLD FS1002S Glass Door Merchandiser

£1,282.00

+vat

Brand:

SKU: 17010

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable full width shelves
  • Lock
  • Interior light with switch
  • Digital temperature display
  • Self closing doors with stay open feature for ease of loading
  • Adjustable feet with rollers to rear

Product description

The TECOLD FS1002S & FS1202S are a range of sliding glass door merchandisers. They maximise the display space allowing higher glass doors, without a light canopy. They are versatile units suitable for drinks, dairy (milk, cheese etc) and sandwiches. Fan assisted cooling, vertical interior lights and self closing doors make it ideal for supermarkets, convenience stores, shops and cafés.

The TEFCOLD FS1002S is a 1000 mm wide double sliding glass door merchandiser holding 540 litres net at +2 to +10 °C, giving convenience stores, forecourts and hospitality sites full-height chilled display from a standard 13 amp plug.

SPECIFICATION 53 facts · tap for all External W × D × H1000 x 735 x 1990 mmWidth1000 mmDepth735 mmGross / net weight176 / 163 kgGross weight176 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181019648site
Product code 17010site
Sub title Glass Door Merchandisercatalogue
Type Double Door Glass Door Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 735 mmsite
External (W×D×H) 1000 × 735 × 1990 mmcatalogue
External W × D × H 1000 x 735 x 1990 mmsite
Gross / net weight 176 / 163 kgsite
Gross weight 176 kgcatalogue
Height 1990 mmsite
Internal (W×D×H) 890 × 573 × 1533 mmcatalogue
Internal W × D × H 890 x 573 x 1533 mmsite
Packed (W×D×H) 1060 × 800 × 2160 mmcatalogue
Packed W × D × H 1060 x 800 x 2160 mmsite
Width 1000 mmsite

Capacity6

330ml bottles 455 pcssite
330ml cans 936 pcssite
500ml cans 663 pcssite
Doors 2catalogue
Gross volume 730 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2175 kWh/yearsite
Energy consumption 5.96 kWh/24hsite
Energy efficiency index 72 %site
Input power 450 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings9

Bottom shelf 870 x 475site
Castors 4 rollerssite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Factory Optionsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 870 x 470 mmsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this double door glass door fridge earns its place

The FS1002S is TEFCOLD's full-height double door merchandiser: two self-closing sliding glass doors on a white cabinet, with 540 litres of net display volume (730 litres gross) behind the glass. Sliding doors keep the aisle in front clear in tight shop layouts, and the self-closers shut behind every customer during busy periods. Inside, the white finish gives stock a clean, high-contrast background across a usable internal space of 890 × 573 × 1533 mm.

It holds +2 to +10 °C with ventilated cooling and automatic defrost, managed by an electronic controller — there is no manual defrost routine to keep on top of. At 48 dB it sits comfortably in customer-facing areas, and its climate class 4 rating covers hot, busy retail environments. The trade-off for the capacity is energy: it is rated class F at 2,482 kWh a year, which works out at about £621 a year at 25p/kWh.

At 1000 mm wide, 735 mm deep and 1990 mm tall, the cabinet stands just under two metres; packed it measures 1060 × 800 × 2160 mm, so check the height of the delivery route as well as door widths. It weighs 163 kg unpacked. Electrics are straightforward — 450 W on a 220-240 V 50 Hz supply through a standard 13 amp plug — and it runs on R290 refrigerant with a 120 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet itself is 1000 mm wide, 735 mm deep and 1990 mm tall, so depth is the figure to check against door openings. Packed for delivery it grows to 1060 × 800 × 2160 mm — measure the full route, including corridor and ceiling heights.

It is rated energy class F at 2,482 kWh a year, which is about £621 a year at 25p/kWh. That reflects a full-height 540-litre glass door cabinet running at chilled temperatures all day.

No. It draws 450 W from a 220-240 V 50 Hz supply and runs from a standard 13 amp plug, so there is no hard wiring involved.

The operating range is +2 to +10 °C under electronic control, with ventilated cooling and automatic defrost. That is the standard chilled band for drinks, dairy and packaged chilled goods.

Yes — it carries climate class 4, the rating for hotter, busier ambient conditions, and ventilated cooling keeps air moving around the load rather than relying on still air.

It runs on R290 refrigerant with a 120 g charge, an electronic controller and automatic defrost, so it is a straightforward cabinet to maintain. Craven Cooling services what it sells — call 01792 732702 to arrange cover or book an engineer.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 573 x 1533 mm
External Dimension (WxDxH): 1000 x 735 x 1990 mm
Packed Dimension (WxDxH): 1060 x 800 x 2160 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.96 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 2175 kWh/year m³
EEI: 72 %
Input Power: 450 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Cans 330 ml: 936 pcs pcs
Cans 500 ml: 663 pcs pcs
Bottles 330 ml: 455 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 176 / 163 kg
Gross / Net Volume: 730 / 540 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 870 x 470 mm
Max load on Shelves: 196 kg/m²
Bottom Shelf Dimensions: 870 x 475
Feet / Legs: 4 adjustable feet
Castors: 4 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Factory Option
If you have any questions about the TEFCOLD FS1002S Glass Door Merchandiser then please get in touch.
