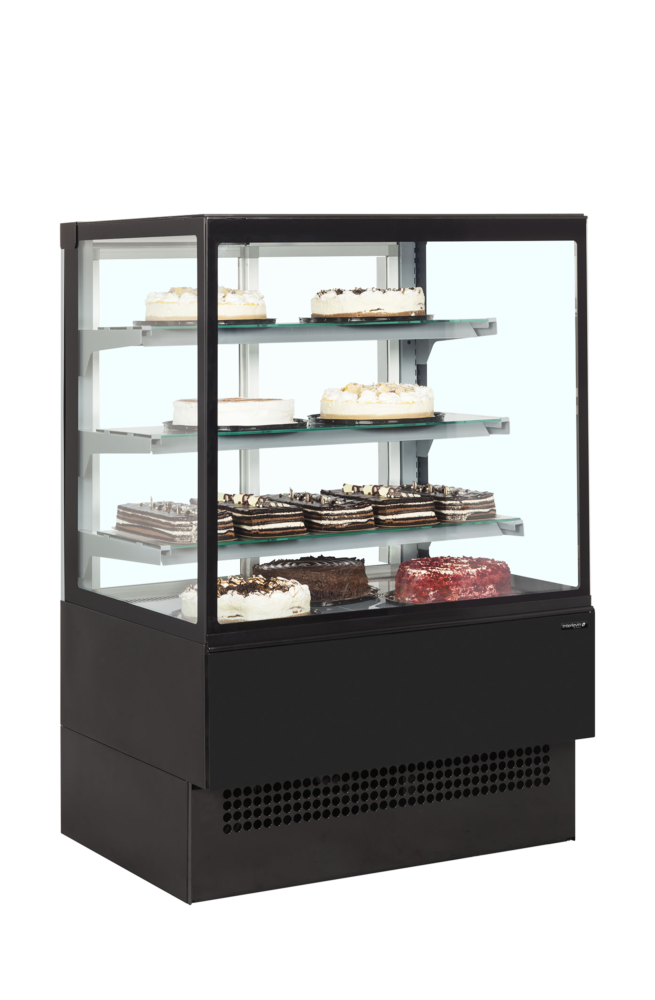

TEFCOLD EVOK902 Patisserie and Deli Display

£1,961.00

+vat

Brand:

SKU: 38323

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet
  • Interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Glass rear sliding doors

Product description

Inject a blend of sophistication and practicality with the EVOK Patisserie Display Cabinet, ideal of high-end patisseries and cafés. Great for showcasing products with operation efficiency. The fully automatic system simplifies operations by managing defrosting and temperature control effortlessly. Fan-assisted cooling ensures an even temperature distribution throughout the cabinet, keeping pastries fresh and delectable all day.

The TEFCOLD EVOK902 is a 905 mm-wide flat-glass patisserie and deli display holding +1 to +10 °C across a 1.2 m² display on three glass shelves plus base behind two sliding glass doors, cooled by R290 refrigerant with automatic defrost.

SPECIFICATION 39 facts · tap for all External W × D × H905 x 755 x 1400 mmWidth905 mmDepth755 mmGross / net weight145 / 125 kgGross weight145 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181999988site
Product code 38323site
Sub title Patisserie and Deli Displaycatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 755 mmsite
External (W×D×H) 905 × 755 × 1400 mmcatalogue
External W × D × H 905 x 755 x 1400 mmsite
Gross / net weight 145 / 125 kgsite
Gross weight 145 kgcatalogue
Height 1400 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1020 × 850 × 1540 mmcatalogue
Packed W × D × H 1020 x 850 x 1540 mmsite
Width 905 mmsite

Capacity2

Display area 1.2 m²site
Doors 2catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 135 gsite
Temperature range +1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 2658 kWh/yearsite
Energy consumption 7.28 kWh/24hsite
Energy efficiency index 34.1 %site
Input power 400 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Blacksite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

The EVOK902 is a flat-glass patisserie and deli display cabinet, 905 mm wide, merchandising cakes, desserts and chilled deli lines across a 1.2 m² display. Three glass shelves plus the base tier stack product for visibility, with a black exterior, grey interior and two sliding glass doors for serve-side access.

It holds a +1 to +10 °C band under an electronic controller with automatic defrost. Rated to climate class 3, it runs at 55 dB. At energy class C with an EEI of 34.1% and 2657.2 kWh a year, running cost is about £664 a year at 25p/kWh.

External size is 905 × 755 × 1400 mm (W×D×H); at 905 mm wide, check standard single doorways and measure the delivery route, as some openings are narrower than the cabinet. It runs from a standard 13A supply drawing 400W and cools with R290 refrigerant on a 135 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet offers a 1.2 m² display across three glass shelves plus the base tier. Two sliding glass doors give serve-side access.

It runs a +1 to +10 °C band under electronic control with automatic defrost, suited to chilled patisserie, desserts and deli.

At 2657.2 kWh a year it works out at about £664 a year at 25p/kWh, at energy class C with an EEI of 34.1%.

External size is 905 × 755 × 1400 mm (W×D×H). At 905 mm wide, check standard doorways and your delivery route, as some openings are narrower.

It runs from a standard 13A supply and draws 400W, connecting to an ordinary commercial socket without a dedicated circuit.

Yes — Craven Cooling services what it supplies. Call 01792 732702 for servicing or spares. It uses R290 refrigerant with an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 905 x 755 x 1400 mm
Packed Dimension (WxDxH): 1020 x 850 x 1540 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 135 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.28 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 2658 kWh/year m³
EEI: 34.1 %
Input Power: 400 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 145 / 125 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.2 m² m²

Design and Material

Shelf Color: Glass
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the TEFCOLD EVOK902 Patisserie and Deli Display then please get in touch.
