TEFCOLD EVOK1502 Patisserie and Deli Display

£2,475.00

+vat

- +

Brand:

SKU: 38321

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet
  • Interior light with switch
  • Digital controller and temperature display
  • Individually illuminated glass shelves
  • Glass rear sliding doors

Product description

Inject a blend of sophistication and practicality with the EVOK Patisserie Display Cabinet, ideal of high-end patisseries and cafés. Great for showcasing products with operation efficiency. The fully automatic system simplifies operations by managing defrosting and temperature control effortlessly. Fan-assisted cooling ensures an even temperature distribution throughout the cabinet, keeping pastries fresh and delectable all day.

SPECIFICATION 39 facts · tap for all External W × D × H1500 x 755 x 1400 mmWidth1500 mmDepth755 mmGross / net weight170 / 160 kgGross weight170 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181999964site
Product code 38321site
Sub title Patisserie and Deli Displaycatalogue
Type Flat Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 755 mmsite
External (W×D×H) 1500 × 755 × 1400 mmcatalogue
External W × D × H 1500 x 755 x 1400 mmsite
Gross / net weight 170 / 160 kgsite
Gross weight 170 kgcatalogue
Height 1400 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 1620 × 850 × 1540 mmcatalogue
Packed W × D × H 1620 x 850 x 1540 mmsite
Width 1500 mmsite

Capacity2

Display area 2.05 m²site
Doors 2catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 145 gsite
Temperature range +1 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 4163 kWh/yearsite
Energy consumption 11.4 kWh/24hsite
Energy efficiency index 51.2 %site
Input power 717 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Blacksite
Interior light LEDsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this flat glass cake display fridge earns its place

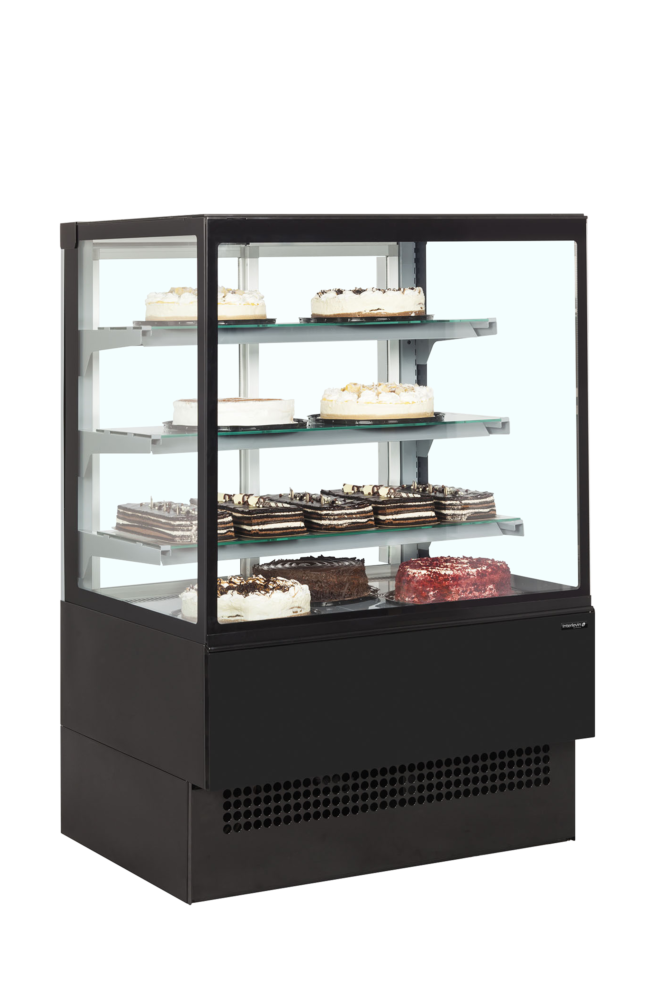

The EVOK1502 is a flat-glass patisserie and deli display cabinet built to merchandise cakes, pastries and cold deli lines at eye level. It carries 2.05 m² of display space across three glass shelves plus the base deck, so a full counter of product stays visible from the customer side. The black exterior and grey interior keep the focus on what's on the shelves, and two sliding glass doors give staff access from behind.

In use the cabinet holds a display band of +1 to +10 °C, managed by an electronic controller with automatic defrost, so there's no manual defrost routine to schedule. It's rated at climate class 3 for normal indoor trading conditions and runs at 55 dB. At energy class E and 4161 kWh a year, running costs come to about £1040 a year at 25p/kWh.

The cabinet measures 1500 × 755 × 1400 mm (W×D×H) and arrives packed at 1620 × 850 × 1540 mm, so check doorways and lift access against the packed height before delivery. It weighs 160 kg net (170 kg packed), runs from a standard 13 A supply drawing 717 W at 220–240 V, and uses R290 refrigerant with a 145 g charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet itself is 1500 mm wide, 755 mm deep and 1400 mm high, and ships packed at 1620 × 850 × 1540 mm. Measure your access route against the packed dimensions, and note the 170 kg packed weight will need more than one person to move.

It runs across a +1 to +10 °C display band, set through its electronic controller. Automatic defrost is built in, so the temperature is maintained without a manual defrost cycle.

It's energy class E and rated at 4161 kWh a year, which works out at about £1040 a year at 25p/kWh. Actual cost depends on your tariff, ambient conditions and how often the doors are opened.

It runs from a standard 13 A supply at 220–240 V, drawing 717 W. No special electrical installation is needed beyond a suitable socket.

It uses R290, a low-GWP hydrocarbon refrigerant, with a 145 g charge. An electronic controller and automatic defrost manage the cooling.

Yes. Craven Cooling supports the cabinets it supplies, including servicing and spares. Call the team on 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 1500 x 755 x 1400 mm
Packed Dimension (WxDxH): 1620 x 850 x 1540 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 145 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.4 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 4163 kWh/year m³
EEI: 51.2 %
Input Power: 717 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 170 / 160 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.05 m² m²

Design and Material

Shelf Color: Glass
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the TEFCOLD EVOK1502 Patisserie and Deli Display then please get in touch.
