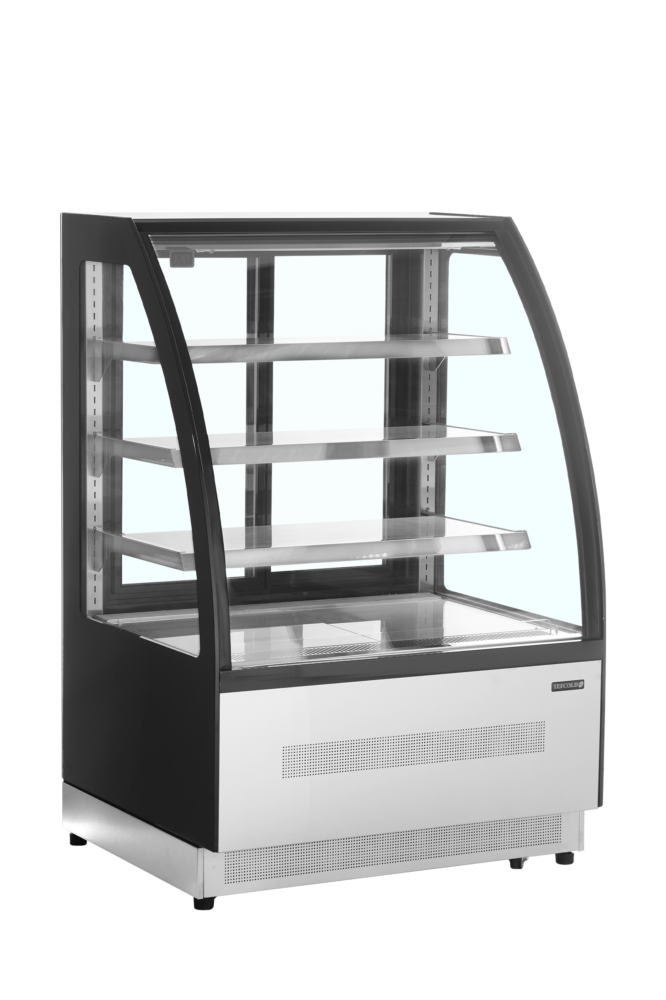

TEFCOLD LPD900C Chilled Display Cabinet

£1,731.00 £991.00

+vat

Brand:

SKU: 19317

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet and castors
  • Adjustable shelves
  • LED interior light with switch
  • Digital controller and temperature display
  • Individually illuminated opaque white glass shelves
  • Double glazed glass
  • Anti mist front glass
  • Glass rear sliding doors

Product description

A premium range of refrigerated curved glass displays ideal for cafés and coffee shops. Suitable for deli or cake display and available in 4 different sizes, units have LED lighting under each shelf to help give an excellent display. Sliding doors to the rear allow easy loading and serving while double glazed glass helps to reduce running costs. Cabinets comes fitted with castors for easy movement with adjustable feet at each corner for positioning and levelling if required. Finished in stainless steel and gloss black glass.

The TEFCOLD LPD900C is a curved-glass chilled display cabinet holding +2 to +8 °C across 1.54 m² of glass-shelved display behind two sliding glass doors, measuring 905 mm wide and running on a standard 13 A supply.

Sale!
SPECIFICATION 47 facts · tap for all External W × D × H905 x 745 x 1360 mmWidth905 mmDepth745 mmGross / net weight235 / 204 kgGross weight235 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991364site
Product code 19317site
Sub title Chilled Display Cabinetcatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 905 × 745 × 1360 mmcatalogue
External W × D × H 905 x 745 x 1360 mmsite
Gross / net weight 235 / 204 kgsite
Gross weight 235 kgcatalogue
Height 1360 mmsite
Internal (W×D×H) 750 × 580 × 780 mmcatalogue
Internal W × D × H 750 x 580 x 780 mmsite
Packed (W×D×H) 960 × 800 × 1480 mmcatalogue
Packed W × D × H 960 x 800 x 1480 mmsite
Width 905 mmsite

Capacity3

Display area 1.54 m²site
Doors 2catalogue
Gross volume 238 litrescatalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 4004 kWh/yearsite
Energy consumption 10.97 kWh/24hsite
Energy efficiency index 39 %site
Input power 598 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Castors 4 castorssite
Exterior finish Stainless steel / Glasssite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 33.7site
Reversible doors Nosite
Shelf dimensions 75×33 / 75×33 / 75×44site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The LPD900C is a curved-glass chilled display cabinet for staging cakes, desserts and chilled patisserie at the counter. It carries 1.54 m² of display over three glass shelves plus the base deck, so a range can be merchandised across several tiers in a compact 905 mm-wide footprint. The stainless steel and glass build looks clean front-of-house, and two sliding glass doors let staff serve from behind without breaking the display line.

It holds a +2 to +8 °C chilled band controlled electronically, with automatic off-cycle defrost so there is no manual routine to manage. The cabinet is energy class D at 4004.1 kWh a year, which is about £1001 a year in electricity at 25p/kWh. It uses R290 refrigerant with a 110 g charge and is built to climate class 3.

The cabinet measures 905 × 745 × 1360 mm (W×D×H) and ships packed at 960 × 800 × 1480 mm, so measure access routes before delivery — the 800 mm packed depth is the number that catches standard single doorways. It runs from a standard 13 A supply at 220–240 V / 50 Hz, rated 598 W. Net weight is 204 kg (235 kg gross), so plan for two or more people and a clear, level siting position.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 905 × 745 × 1360 mm and ships packed at 960 × 800 × 1480 mm. The 800 mm packed depth is tighter than many single doorways, so measure the route and be ready to unpack at the threshold if needed.

It runs a +2 to +8 °C chilled band, suitable for cakes, desserts and chilled patisserie, set electronically.

It is energy class D at 4004.1 kWh a year, which is about £1001 a year in electricity at 25p/kWh. Actual figures depend on ambient conditions and door openings.

A standard 13 A supply at 220–240 V / 50 Hz. Rated input power is 598 W.

No. Defrost is automatic on an off-cycle, so there is no manual routine to run.

Yes, Craven Cooling can arrange servicing and support after installation. Call the team on 01792 732702 to discuss cover.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 750 x 580 x 780 mm
External Dimension (WxDxH): 905 x 745 x 1360 mm
Packed Dimension (WxDxH): 960 x 800 x 1480 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.97 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 4004 kWh/year m³
EEI: 39 %
Input Power: 598 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 3
Gross / Net Weight: 235 / 204 kg
Gross / Net Volume: 238 / 158 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.54 m² m²

Design and Material

Door Reversible: No
Shelf Dimensions: 75×33 / 75×33 / 75×44
Max load on Shelves: 33.7 kg/m²
Feet / Legs: 4 adjustable feet
Castors: 4 castors
Exterior Finish: Stainless steel / Glass
Interior Finish: Stainless steel / Glass
Interior Light: LED
If you have any questions about the TEFCOLD LPD900C Chilled Display Cabinet then please get in touch.
