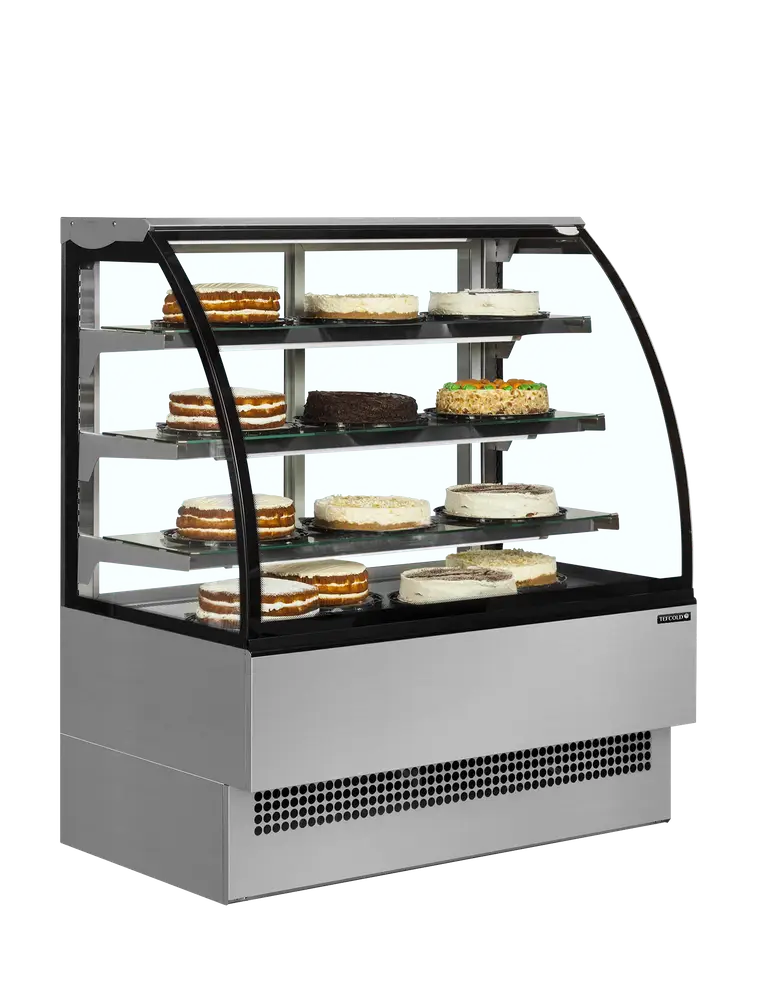

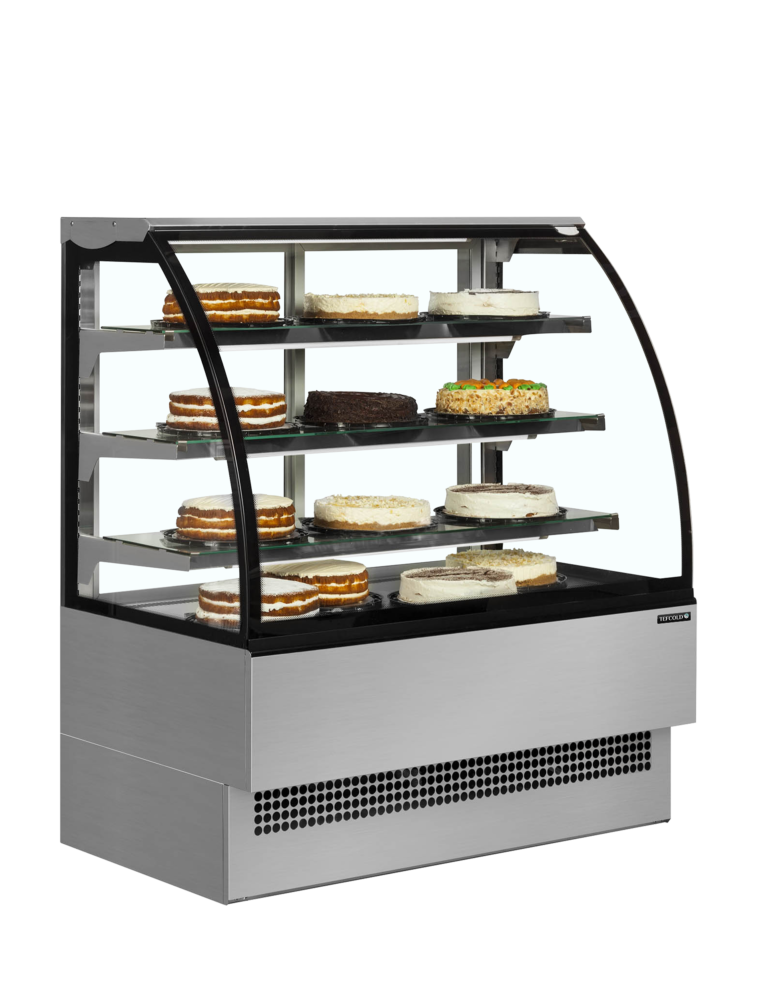

TEFCOLD EVO602 SS Serveover Display

£2,636.00 £1,784.00

+vat

- +

Brand:

SKU: 38315

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable feet
  • Interior light with switch
  • Digital controller and temperature display
  • Hinged glass for easy cleaning

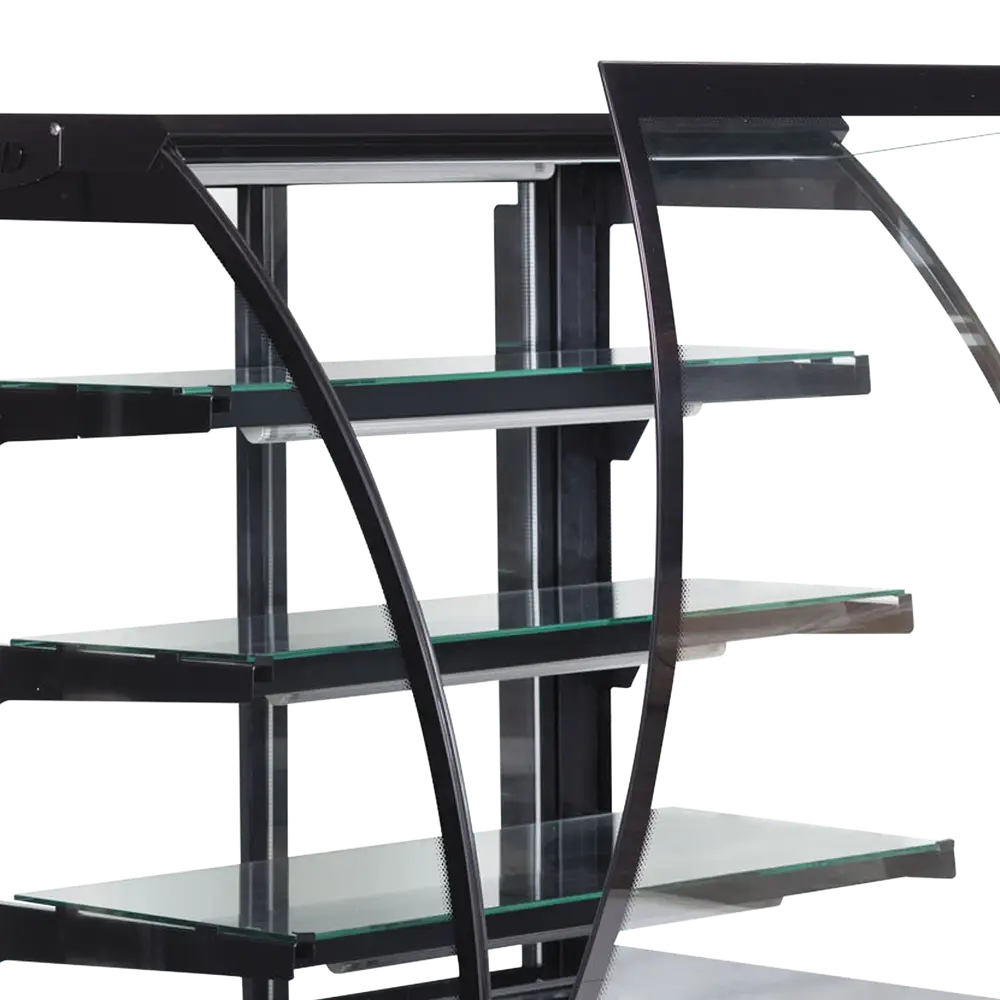

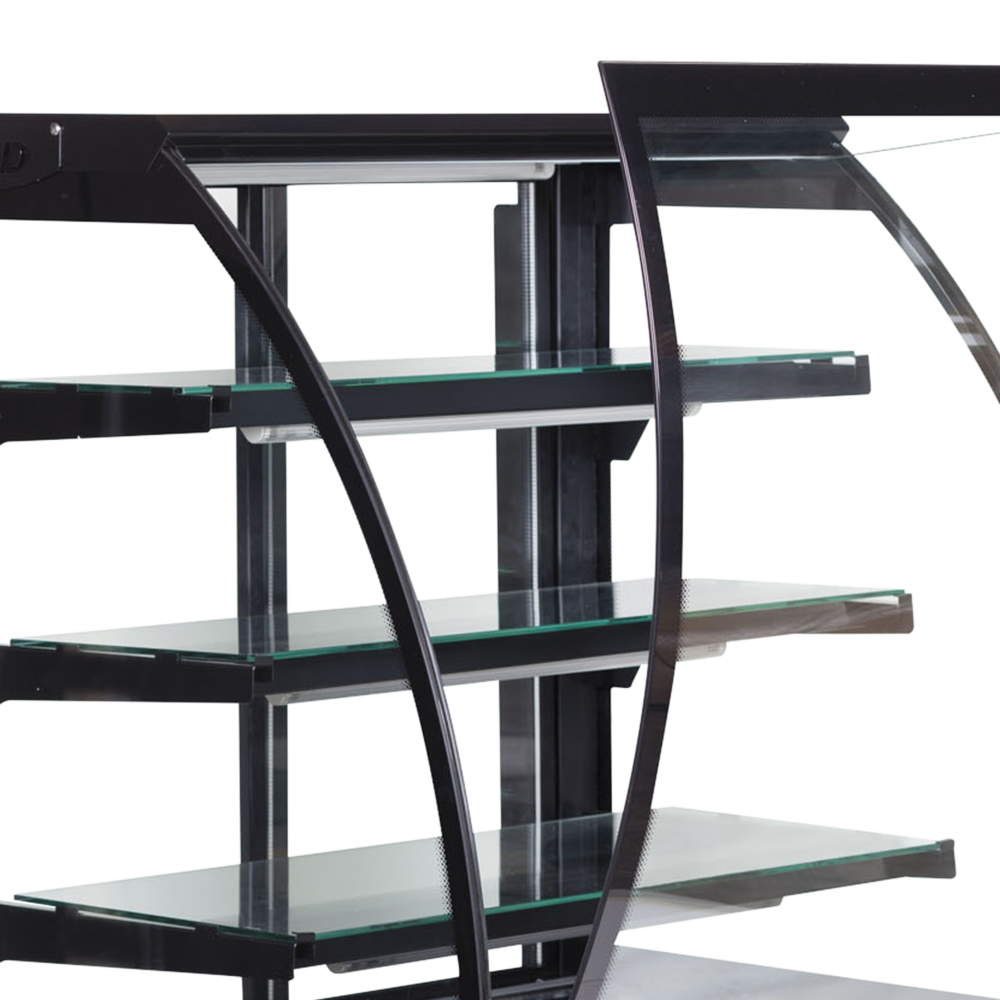

  • Individually illuminated glass shelves
  • Rear glass door

Product description

The stainless steel units of the EVO range feature 4-tier patisserie display cabinets designed to beautifully showcase cakes and desserts. These cabinets boast individually illuminated glass shelves to enhance presentation. Fully automated fan-assisted cooling guarantees consistent cooling throughout the cabinet. Adjustable feet ensure stability, and the curved front glass hinges forward for easy cleaning. The pre-built glass design allows quick installation. An interior light with a switch offers optimal illumination, and the digital controller with a temperature display ensures precise control.

The TEFCOLD EVO602 SS is a stainless-steel serveover display fridge holding +1 to +10 °C across 0.77 m² of glass-shelved display behind a hinged glass door, cooled by R290 refrigerant with automatic defrost and electronic control.

Sale!

Downloads

SPECIFICATION 38 facts · tap for all External W × D × H600 x 755 x 1400 mmWidth600 mmDepth755 mmGross / net weight133 / 115 kgGross weight133 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents2

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181999902site
Product code 38315site
Sub title Serveover Displaycatalogue
Type Curved Glass Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 755 mmsite
External (W×D×H) 600 × 755 × 1400 mmcatalogue
External W × D × H 600 x 755 x 1400 mmsite
Gross / net weight 133 / 115 kgsite
Gross weight 133 kgcatalogue
Height 1400 mmsite
Internal (W×D×H) 555 × 502 × 790 mmcatalogue
Internal W × D × H 555 x 502 x 790 mmsite
Packed (W×D×H) 700 × 840 × 1580 mmcatalogue
Packed W × D × H 700 x 840 x 1580 mmsite
Width 600 mmsite

Capacity2

Display area 0.77 m²site
Doors 1catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range +1 to +10site
Thermometer Yessite

Power & energy5

Annual energy consumption 2926 kWh/yearsite
Energy consumption 8.02 kWh/24hsite
Energy efficiency index 38.4 %site
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Stainless steelsite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this curved glass cake display fridge earns its place

The EVO602 SS is a compact stainless-steel serveover display cabinet for merchandising cakes, pastries and chilled counter lines. It offers 0.77 m² of display across three glass shelves plus the base deck, giving a tiered view of product from the customer side. A stainless-steel exterior and interior suit a clean, professional front-of-house counter.

In use it holds a +1 to +10 °C display band, controlled electronically with automatic defrost, so no manual defrost cycle is needed. The cabinet is rated at climate class 3 for normal indoor trading conditions and runs at 55 dB. At energy class D and 2927.3 kWh a year, running costs come to about £732 a year at 25p/kWh.

Internally the display measures 555 × 502 × 790 mm (W×D×H). The cabinet weighs 133 kg, runs from a standard 13 A supply, and is cooled by R290 refrigerant with a 130 g charge and automatic defrost.

BEFORE YOU BUY

Questions, answered straight

It runs across a +1 to +10 °C display band, set through its electronic controller. Automatic defrost is built in, so the temperature holds without a manual defrost cycle.

The cabinet offers 0.77 m² of display area across three glass shelves plus the base deck. Internally it measures 555 × 502 × 790 mm (W×D×H).

It's energy class D and rated at 2927.3 kWh a year, which works out at about £732 a year at 25p/kWh. Actual cost depends on your tariff, ambient conditions and door use.

It runs from a standard 13 A supply. No special electrical installation is needed beyond a suitable socket.

It uses R290, a low-GWP hydrocarbon refrigerant, with a 130 g charge. An electronic controller and automatic defrost manage the cooling.

Yes. Craven Cooling supports the cabinets it supplies, including servicing and spares. Call the team on 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 555 x 502 x 790 mm
External Dimension (WxDxH): 600 x 755 x 1400 mm
Packed Dimension (WxDxH): 700 x 840 x 1580 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 8.02 kWh/24h
Temperature Range: +1 to +10 °C
Annual Energy Consumption: 2926 kWh/year m³
EEI: 38.4 %
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 133 / 115 kg
Gross / Net Volume: / l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.77 m² m²

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
Interior Light: LED
If you have any questions about the TEFCOLD EVO602 SS Serveover Display then please get in touch.
