TEFCOLD UPD200 Refrigerated Glass Display

£1,323.00

+vat

Brand:

SKU: 20062

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Castors, 2 lockable
  • LED interior light with switch
  • Digital controller and temperature display
  • Replaceable door gasket
  • Double glazed glass

Product description

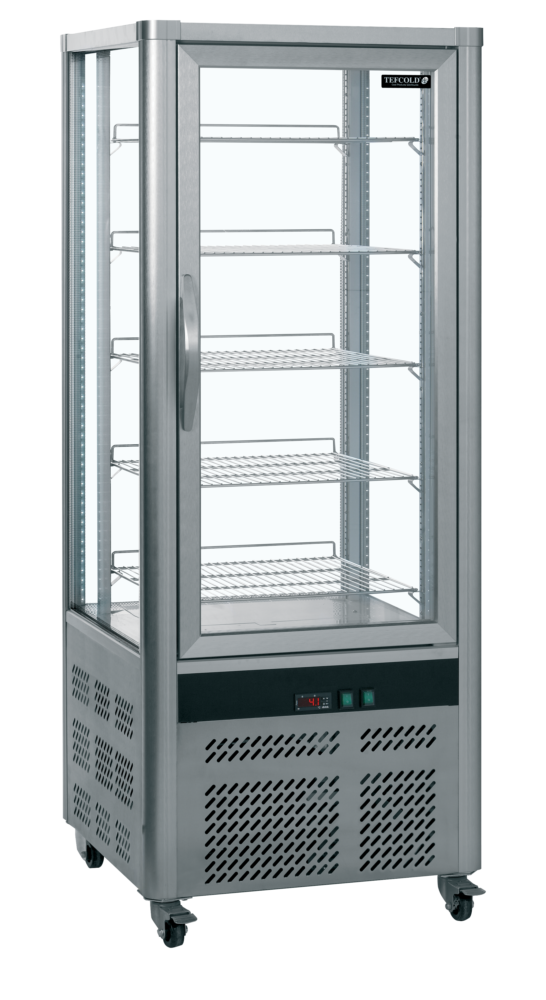

Vertical refrigerated glass display

The UPD range of refrigerated display cases has a vertical design with double glazed glass on all four sides. It comes with adjustable wire shelves for flexibility. LED lighting illuminates the content, while a ventilated cooling system keeps it cool and fresh. The UPD range comes in several sizes and finishes to meet any need.

The Tefcold UPD200 is an upright refrigerated glass display tower holding +2 to +12 °C across five wire shelves and 2.29 m² of display area, measuring 706 × 706 × 1800 mm with a single hinged glass door and 425 litres net capacity.

SPECIFICATION 45 facts · tap for all External W × D × H706 x 706 x 1800 mmWidth706 mmGross / net weight160 / 140 kgGross weight160 kgVoltage / frequency220-240/50 V/HzInput power255 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181361716site
Product code 20062site
Sub title Refrigerated Glass Displaycatalogue
Type Countertop Cake Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 706 × 706 × 1800 mmcatalogue
External W × D × H 706 x 706 x 1800 mmsite
Gross / net weight 160 / 140 kgsite
Gross weight 160 kgcatalogue
Height 1800 mmsite
Internal (W×D×H) 638 × 638 × 1180 mmcatalogue
Internal W × D × H 638 x 638 x 1180 mmsite
Packed (W×D×H) 760 × 820 × 1930 mmcatalogue
Packed W × D × H 760 x 820 x 1930 mmsite
Width 706 mmsite

Capacity4

Display area 2.29 m²site
Doors 1catalogue
Gross volume 468 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 4site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range +2 to +12site
Thermometer Yessite

Power & energy6

Annual energy consumption 1822 kWh/yearsite
Energy consumption 33 kWh/24hsite
Energy efficiency index 18.5 %site
Input power 255 Wsite
Noise level 46 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Castors 4 wheels, 2 with brakesite
Exterior finish Anodised Aluminiumsite
Interior light LEDsite
Reversible doors Nosite
Shelf dimensions 511*486site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this countertop cake display fridge earns its place

The Tefcold UPD200 is an upright refrigerated glass display tower built to show cakes, desserts and cold patisserie through 2.29 m² of glass. Five white wire shelves stack product up an 1800 mm cabinet behind a single hinged glass door, turning a small 706 × 706 mm footprint into a full-height merchandising display. The anodised aluminium body holds 468 litres gross, 425 litres net.

It holds a +2 to +12 °C band, wide enough to suit cakes and chilled desserts, with automatic defrost managed by an electronic controller. Rated noise is 46 dB, and climate class 4 covers warm café conditions. At energy class B it uses 1822 kWh a year — about £456 a year at 25p/kWh.

The tower stands 706 mm wide, 706 mm deep and 1800 mm tall, so check ceiling and door heights before delivery — packed it ships at 760 × 820 × 1930 mm and 160 kg gross. It plugs into a standard 13 A socket, drawing 255 W at 220-240 V, and uses natural R290 refrigerant with a 130 g charge.

BEFORE YOU BUY

Questions, answered straight

Five white wire shelves, stacked up the 1800 mm cabinet behind a single hinged glass door, giving 2.29 m² of display area. Gross capacity is 468 litres, 425 litres net.

It runs +2 to +12 °C, suitable for cakes, desserts and chilled patisserie. Automatic defrost and an electronic controller manage the cabinet.

The tower is 706 mm wide, 706 mm deep and 1800 mm tall, so check ceiling and door heights. Packed it measures 760 × 820 × 1930 mm and weighs 160 kg gross, so plan lift access.

At energy class B it uses 1822 kWh a year, about £456 a year at 25p/kWh. Your figure depends on your tariff and door usage.

It uses natural R290 refrigerant with a 130 g charge, a low-GWP hydrocarbon. It draws 255 W at 220-240 V from a standard 13 A socket.

Yes, we service the refrigeration we supply. Call the team on 01792 732702 to arrange servicing or parts.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 638 x 638 x 1180 mm
External Dimension (WxDxH): 706 x 706 x 1800 mm
Packed Dimension (WxDxH): 760 x 820 x 1930 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 33 kWh/24h
Temperature Range: +2 to +12 °C
Annual Energy Consumption: 1822 kWh/year m³
EEI: 18.5 %
Input Power: 255 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 46 dB(A)

Measures and Content

Temperature Range: +2 to +12 °C
Climate Class: 4
Gross / Net Weight: 160 / 140 kg
Gross / Net Volume: 468 / 425 l
Max Ambient: +30°C, 55% RH
Total Display Area: 2.29 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 511*486
Castors: 4 wheels, 2 with brake
Exterior Finish: Anodised Aluminium
Interior Finish: Anodised Aluminium
Interior Light: LED
If you have any questions about the TEFCOLD UPD200 Refrigerated Glass Display then please get in touch.
