TEFCOLD CW2V Buffet Display

£647.00

+vat

- +

Brand:

SKU: 20018

Product summary

  • Fan assisted cooling
  • Digital controller and temperature display
  • Stainless steel construction
  • Suitable for building into counters
  • Accepts Gastronorm pans (not supplied)
  • Accepts GN1/1 pan(s) (not supplied)

Product description

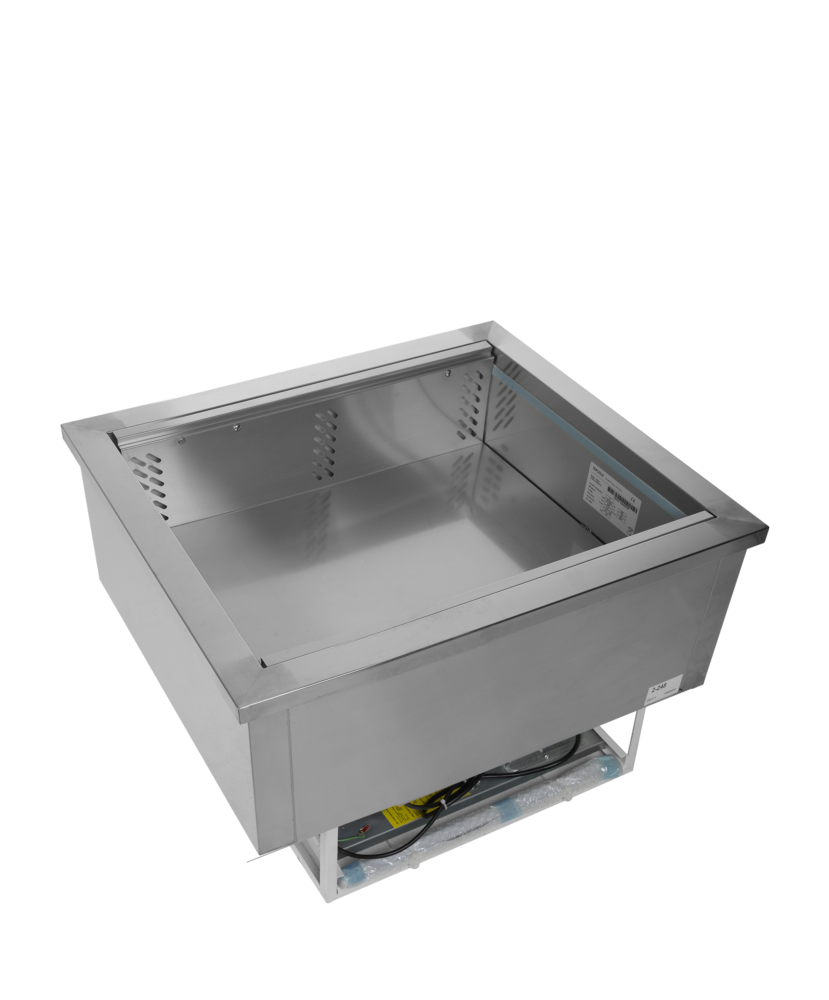

A drop-in refrigerated well with ventilated (fan assisted) cooling designed to be used with gastronorm pans (available in sizes to take 2, 3, 4 or 5 x 1/1 gastronorm pans). The well features a robust stainless steel construction and is ideal for use with salads or other chilled produce. Please note these units have to be built into a counter (not supplied). It is the purchaser’s responsibility to ensure there is a suitable sneeze screen or covers for the purpose it is being used for, and that airflow within the unit is not interrupted and suitable cooling is allowed around the condenser. Incorrect installation will invalidate any warranty. Installation must comply with relevant environmental health and food safety standards.

The Tefcold CW2V is a drop-in buffet display fridge with a 676 × 576 × 186 mm chilled well, holding 110 litres net at +2 to +8 °C on natural R290 refrigerant with automatic defrost, finished in stainless steel for built-in serveries.

SPECIFICATION 38 facts · tap for all External W × D × H788 x 688 x 636 mmWidth788 mmDepth688 mmGross / net weight46 / 38 kgGross weight46 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181354084site
Product code 20018site
Sub title Buffet Displaycatalogue
Type Drop-In Display Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 688 mmsite
External (W×D×H) 788 × 688 × 636 mmcatalogue
External W × D × H 788 x 688 x 636 mmsite
Gross / net weight 46 / 38 kgsite
Gross weight 46 kgcatalogue
Height 636 mmsite
Internal (W×D×H) 676 × 576 × 186 mmcatalogue
Internal W × D × H 676 x 576 x 186 mmsite
Packed (W×D×H) 842 × 760 × 742 mmcatalogue
Packed W × D × H 842 x 760 x 742 mmsite
Width 788 mmsite

Capacity3

Capacity item specification 2 x GN1/1 pcscatalogue
GN pan capacity 2 x GN1/1site
Gross volume 111 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 60 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1336 kWh/yearsite
Energy consumption 3.66 kWh/24hsite
Input power 122 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this drop-in display fridge earns its place

The Tefcold CW2V is a drop-in buffet display fridge designed to be built into a counter or servery for chilled self-service. Its stainless steel well holds 111 litres gross and 110 litres net, presenting cold food at the point of service. The stainless finish inside and out wipes down easily in a food-service setting.

It runs at +2 to +8 °C, the food-safe chilled band for buffet and grab-and-go lines, held by an electronic controller with automatic defrost so there is no manual routine to manage. Running noise is 42 dB, quiet enough for a customer-facing counter. At 1335.9 kWh a year it costs about £334 a year at 25p/kWh.

The chilled well measures 676 × 576 × 186 mm (W×D×H) internally, the aperture to design your counter cut-out around. It runs from a standard 13 amp supply, draws 122 W, and uses natural R290 refrigerant. Because it drops into a counter, confirm your worktop depth and cut-out before installation.

BEFORE YOU BUY

Questions, answered straight

The chilled well is 676 × 576 × 186 mm (W×D×H) internally, so design your counter aperture around that footprint. Confirm your worktop depth before cutting.

It runs at +2 to +8 °C, the chilled band for buffet and self-service food, managed by an electronic controller with automatic defrost.

The well offers 111 litres gross and 110 litres net of chilled display space.

At 1335.9 kWh a year it works out at about £334 a year at 25p/kWh, depending on your tariff and how warm the room is.

No. It runs from a standard 13 amp supply and draws 122 W, using natural R290 refrigerant.

Running noise is 42 dB. For installation or servicing advice call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 676 x 576 x 186 mm
External Dimension (WxDxH): 788 x 688 x 636 mm
Packed Dimension (WxDxH): 842 x 760 x 742 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.66 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1336 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Capacity GN Pans: 2 x GN1/1 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 46 / 38 kg
Gross / Net Volume: 111 / 110 l
Max Ambient: +30°C, 55% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CW2V Buffet Display then please get in touch.
