Serrco by TEFCOLD SGD-360GE High-end Backbar Cooler

£2,369.00

+vat

Product summary

  • Excellent product visibility
  • Suitable for bottles and KEGS
  • Low energy consumption

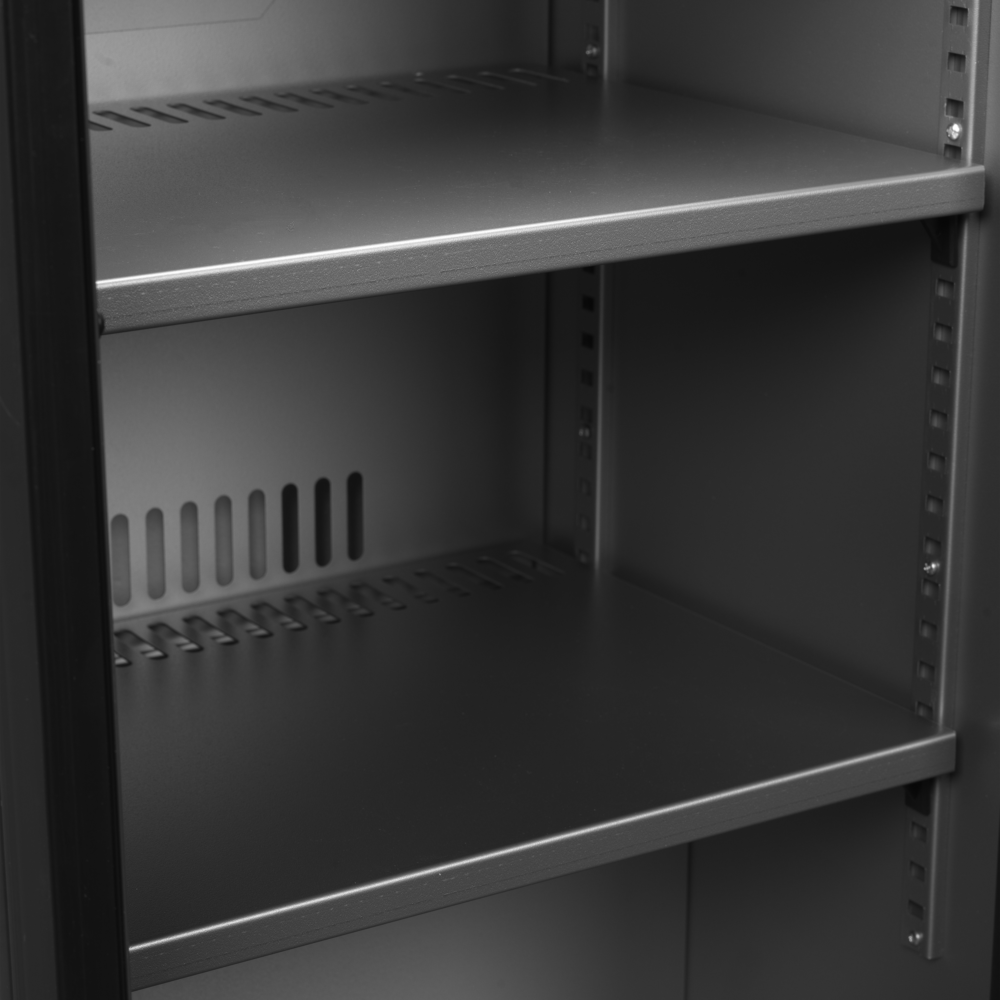

  • Adjustable plate shelves
  • LED interior light with switch
  • Adjustable legs
  • Skinplate exterior/interior

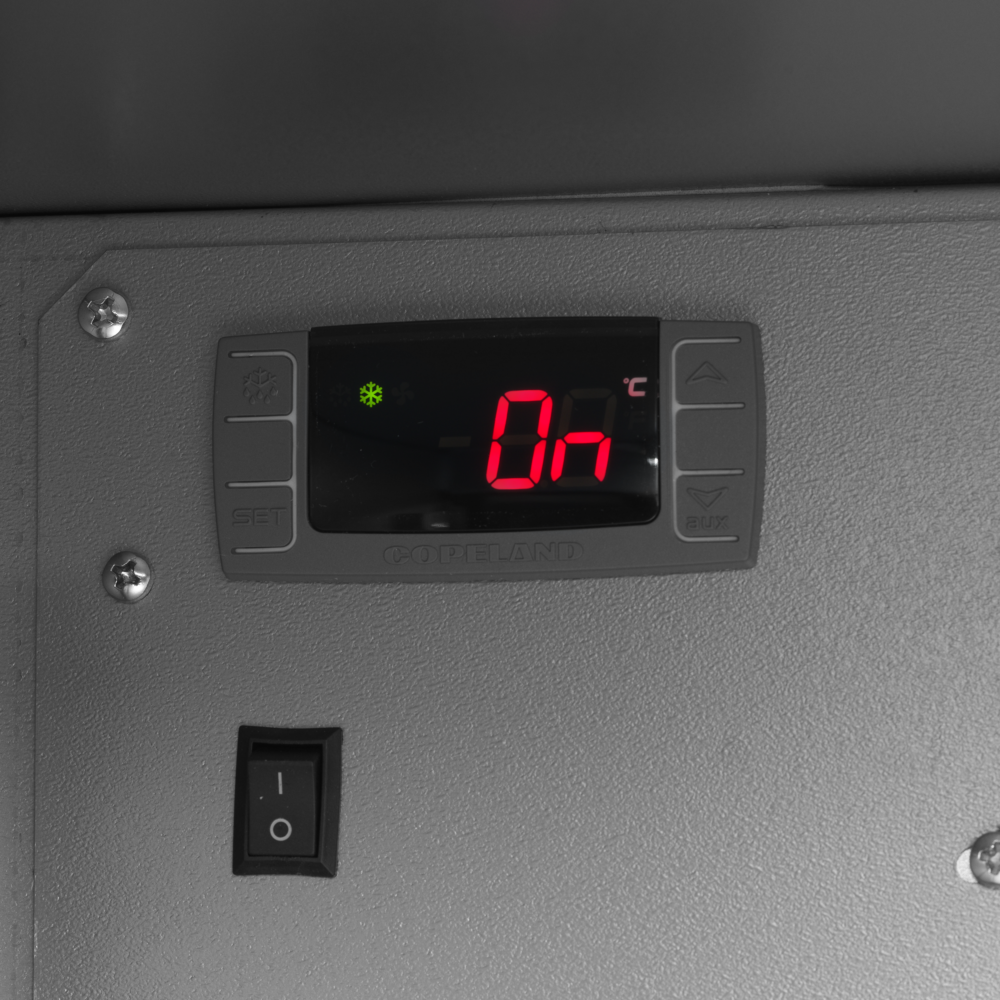

  • Digital controller and temperature display
  • Automatic defrost
  • Easy maintenance condenser
  • Lock

Product description

Spacious backbar cooler with glass doors

The SGD range of bottle coolers/keg coolers combines versatility, durability, and style. Designed for storing bottles or 20L/30L kegs, it features energy-efficient cooling, adjustable shelves, and a scratch-resistant anthracite finish. Choose between glass doors or solid doors to suit your needs. Perfect for hospitality environments, the SGD delivers a reliable performance and a sleek, modern look.

The Serrco by TEFCOLD SGD-360GE is a triple glass-door backbar cooler holding 401 litres net at +2 to +10 °C, cooled by a ventilated R290 system rated energy class E at 1104 kWh a year and running at 47 dB.

SPECIFICATION 48 facts · tap for all External W × D × H1670 x 620 x 840 mmWidth1670 mmDepth620 mmGross / net weight160 / 144 kgGross weight160 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Serrco by TEFCOLDsite
GTIN / EAN 5708181755560site
Product code 69085site
Sub title High-end Backbar Coolercatalogue
Type Triple Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 620 mmsite
External (W×D×H) 1670 × 620 × 840 mmcatalogue
External W × D × H 1670 x 620 x 840 mmsite
Gross / net weight 160 / 144 kgsite
Gross weight 160 kgcatalogue
Height 840 mmsite
Internal (W×D×H) 1605 × 425 × 682 mmcatalogue
Internal W × D × H 1605 x 425 x 682 mmsite
Packed (W×D×H) 1705 × 640 × 975 mmcatalogue
Packed W × D × H 1705 x 640 x 975 mmsite
Width 1670 mmsite

Capacity6

330ml bottles 365 pcssite
330ml cans 603 pcssite
500ml cans 372 pcssite
Doors 3catalogue
Gross volume 434 litrescatalogue
Shelves 6catalogue

Performance8

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 1104 kWh/yearsite
Energy consumption 3.01 kWh/24hsite
Energy efficiency index 63.4 %site
Input power 280 Wsite
Noise level 47 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 1605 x 220site
Exterior finish Anthracite RAL 7021site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Max load per shelf 165site
Reversible doors Nosite
Shelf dimensions 510 x 355 mm & 546 x 355 mmsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this triple door bar fridge earns its place

The Serrco by TEFCOLD SGD-360GE is a triple-door backbar cooler for merchandising chilled drinks in a customer-facing bar. Three hinged glass doors display bottles and cans behind the counter, framed by an anthracite RAL 7021 exterior and a silver interior. Gross capacity is 434 litres, with 401 litres of usable net volume across the three sections.

It holds a +2 to +10 °C band for bottled and canned drinks, with ventilated cooling to keep temperatures even across a fully loaded cabinet and automatic defrost to clear frost unattended. An electronic controller manages the setpoint. Running noise is 47 dB, low enough to sit in a front-of-house bar during service.

It draws 280 W from a 220-240 V, 50 Hz supply and cools on R290 hydrocarbon refrigerant with an 85 g charge. The internal display space measures 1605 × 425 × 682 mm (W×D×H), and packed for delivery the cabinet is 1705 × 640 × 975 mm — check access routes before it arrives. Energy class E at 1104 kWh a year is about £276 a year at 25p/kWh.

BEFORE YOU BUY

Questions, answered straight

It runs a +2 to +10 °C band via an electronic controller, with ventilated cooling for even temperatures and automatic defrost. That range suits bottled and canned drinks.

It is rated energy class E at 1104 kWh a year, about £276 a year at 25p/kWh. Your actual cost depends on tariff and workload.

Gross volume is 434 litres and usable net volume is 401 litres, across three glass-door sections with an internal display of 1605 × 425 × 682 mm.

It runs at 47 dB, low enough for a customer-facing bar. Ventilated cooling keeps the temperature even as the doors are worked through service.

It cools on R290 with an 85 g charge and draws 280 W from a 220-240 V, 50 Hz supply.

Packed dimensions are 1705 × 640 × 975 mm (W×D×H) and the internal display space is 1605 × 425 × 682 mm. Check access routes against the packed size, and our team can advise on installation and servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1605 x 425 x 682 mm
External Dimension (WxDxH): 1670 x 620 x 840 mm
Packed Dimension (WxDxH): 1705 x 640 x 975 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.01 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 1104 kWh/year m³
EEI: 63.4 %
Input Power: 280 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 47 dB(A)

Measures and Content

Cans 330 ml: 603 pcs pcs
Cans 500 ml: 372 pcs pcs
Bottles 330 ml: 365 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 160 / 144 kg
Gross / Net Volume: 434 / 401 l

Design and Material

Door Reversible: No
Shelf Color: Silver
Shelf Dimensions: 510 x 355 mm & 546 x 355 mm
Max load on Shelves: 165 kg/m²
Bottom Shelf Dimensions: 1605 x 220
Feet / Legs: Adjustable Feet
Exterior Finish: Anthracite RAL 7021
Interior Finish: Anthracite RAL 7021
Interior Light: LED
Lock: Yes
