CombiSteel Barcooler Black Single Door and 4 Drawers 7450.0322

£1,998.00

+vat

- +

SKU: 7450.0322

Product summary

Size W/D/H (mm) x x

Product description

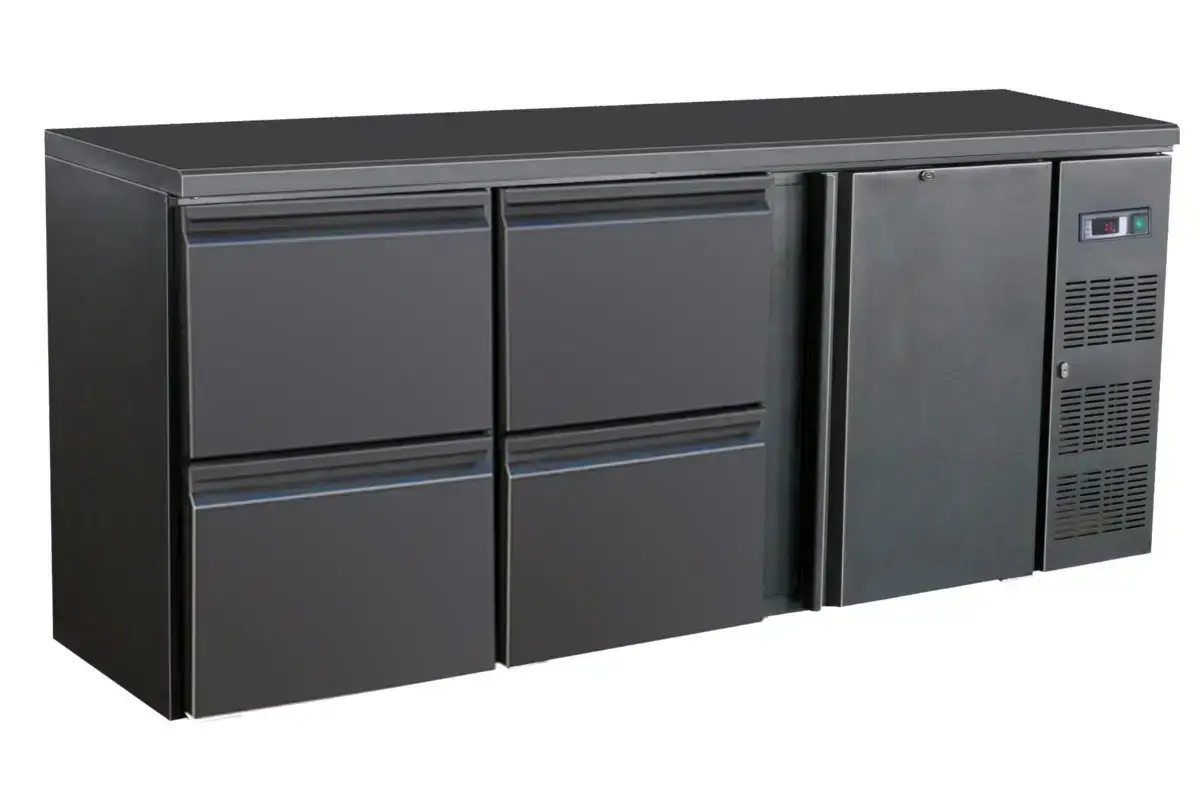

The Combisteel BARCOOLER 7450.0322 is a black back-bar refrigeration cabinet that pairs one hinged door with four drawers, built to keep bottles, mixers and garnishes cold and within reach of the pour in pubs, bars and hotels.

Downloads

SPECIFICATION 36 facts · tap for all Width2002 mmDepth513 mmHeight860 mmGross / net weight125 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242990988catalogue
Range / series Standard Linecatalogue
Type Triple Door Bar Fridgescatalogue

Size & weight7

Depth 513 mmsite
External (W×D×H) 2002 × 513 × 860 mmcatalogue
Gross / net weight 125 kgsite
Height 860 mmsite
Internal (W×D×H) 1618 × 415 × 760 mmcatalogue
Internal W × D × H 1618x415x760site
Width 2002 mmsite

Capacity4

Capacity 537 Ltrcatalogue
Doors 1catalogue
Gross volume 537 litrescatalogue
Shelves 2catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range 0/+10site

Power & energy7

Energy consumption 0,28site
Frequency 50 Hzcatalogue
Noise level 5050site
Rated input 280 Wcatalogue
Rated power 28 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Colour Blackcatalogue
Drawers 4site
Exterior finish Zwart gelakt staalsite
Insulation 40 mmcatalogue
Interior light Yes, LEDsite
Lock Yessite
Temperature display Yes, digitalcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this triple door bar fridge earns its place

The BARCOOLER 7450.0322 is a back-bar refrigeration unit finished in black, combining a single hinged-door section with a bank of four drawers. It holds 537 litres across 2 metres width, built for the working side of the bar where bottled beer, mixers, wine and prepped garnishes need to sit cold and close to the service point rather than in a back-store. The drawer layout lets staff separate stock by line so the next round is found without hunting.

In service, the split of one door and four drawers is the point: fast-moving bottles live behind the door, while the drawers hold the lines you reload between customers. It holds a temperature band of 0 to 10°C, with automatic defrost and ventilated cooling to maintain service-ready cold through a busy shift. Black lacquered steel finish keeps it discreet under bar lighting.

The cabinet measures 2002mm wide, 513mm deep and 860mm high, weighs 125kg and runs on a standard 230V supply. Before you commit to a bar run, check these dimensions against your under-bar or back-bar space and measure the route in carefully. Our team can talk through siting and access if the gap is tight, handle installation and cabling, and manage ongoing servicing once it is in place.

BEFORE YOU BUY

Questions, answered straight

The full external width, depth and height are in the spec panel. Measure your under-bar gap and the route in, then check them against those figures. Send us the measurements and we can confirm the fit before you order.

The hinged door covers a single cold section for taller or fast-moving bottles, while the four drawers let you separate stock by line for quick reloading. The exact internal capacity is listed in the spec panel.

Yes. The cabinet is finished in black, which keeps it discreet under bar lighting and in view of customers at the service point.

It holds 0 to 10°C for chilled drinks and prepped stock. Automatic defrost means you do not need to manually manage frost buildup, so it stays service-ready through long shifts. Check the temperature band against the specific drinks you plan to stock, and ask us if you need confirmation it suits your range.

The energy figure is on the product's energy label in the spec panel. It runs at 50 dB(A), so it is quiet enough for front-of-house use behind the bar. Drop the energy label into our energy label decoder to see the cost in pounds per year on your own electricity tariff.

Yes. Craven Cooling can advise on siting, install the cabinet and handle ongoing servicing. Call our team on 01792 732702 to arrange it.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Barcooler Black Single Door and 4 Drawers 7450.0322 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 2002 × 513 × 860 mm
Interior Dimensions 1618x415x760
Capacity 537 Ltr
Material Zwart gelakt staal
Colour / Finish Black
Temperature Range 0/+10
Max. Ambient Temp. 32
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 1
Number of Grids/Shelves 2
Electrical Power 0.28 kW
Voltage 230V / 50Hz
Mobile No
Lockable Yes
Noise Level 50 dB
Insulation 40 mm
Weight 125 kg
If you have any questions about the CombiSteel Barcooler Black Single Door and 4 Drawers 7450.0322 then please get in touch.
