CombiSteel Barcooler Black Triple Door and 2 Drawers 7450.0326

£1,810.54

+vat

SKU: 7450.0326

Product summary

Size W/D/H (mm) x x

Product description

The Combisteel 7450.0326 is a 698 litre black back-bar bottle cooler with three doors, two drawers and ventilated +0 to +10 °C refrigeration for a wide chilled drinks range.

Downloads

SPECIFICATION 36 facts · tap for all Width2542 mmDepth513 mmHeight860 mmGross / net weight150 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242991909catalogue
Range / series Standard Linecatalogue
Type Triple Door Bar Fridgescatalogue

Size & weight7

Depth 513 mmsite
External (W×D×H) 2542 × 513 × 860 mmcatalogue
Gross / net weight 150 kgsite
Height 860 mmsite
Internal (W×D×H) 2162 × 415 × 760 mmcatalogue
Internal W × D × H 2162x415x760site
Width 2542 mmsite

Capacity4

Capacity 698 Ltrcatalogue
Doors 3catalogue
Gross volume 698 litrescatalogue
Shelves 6catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range 0/+10site

Power & energy7

Energy consumption 0,44site
Frequency 50 Hzcatalogue
Noise level 5050site
Rated input 440 Wcatalogue
Rated power 44 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Colour Blackcatalogue
Drawers 2site
Exterior finish Zwart gelakt staalsite
Insulation 40 mmcatalogue
Interior light Yes, LEDsite
Lock Yessite
Temperature display Yes, digitalcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this triple door bar fridge earns its place

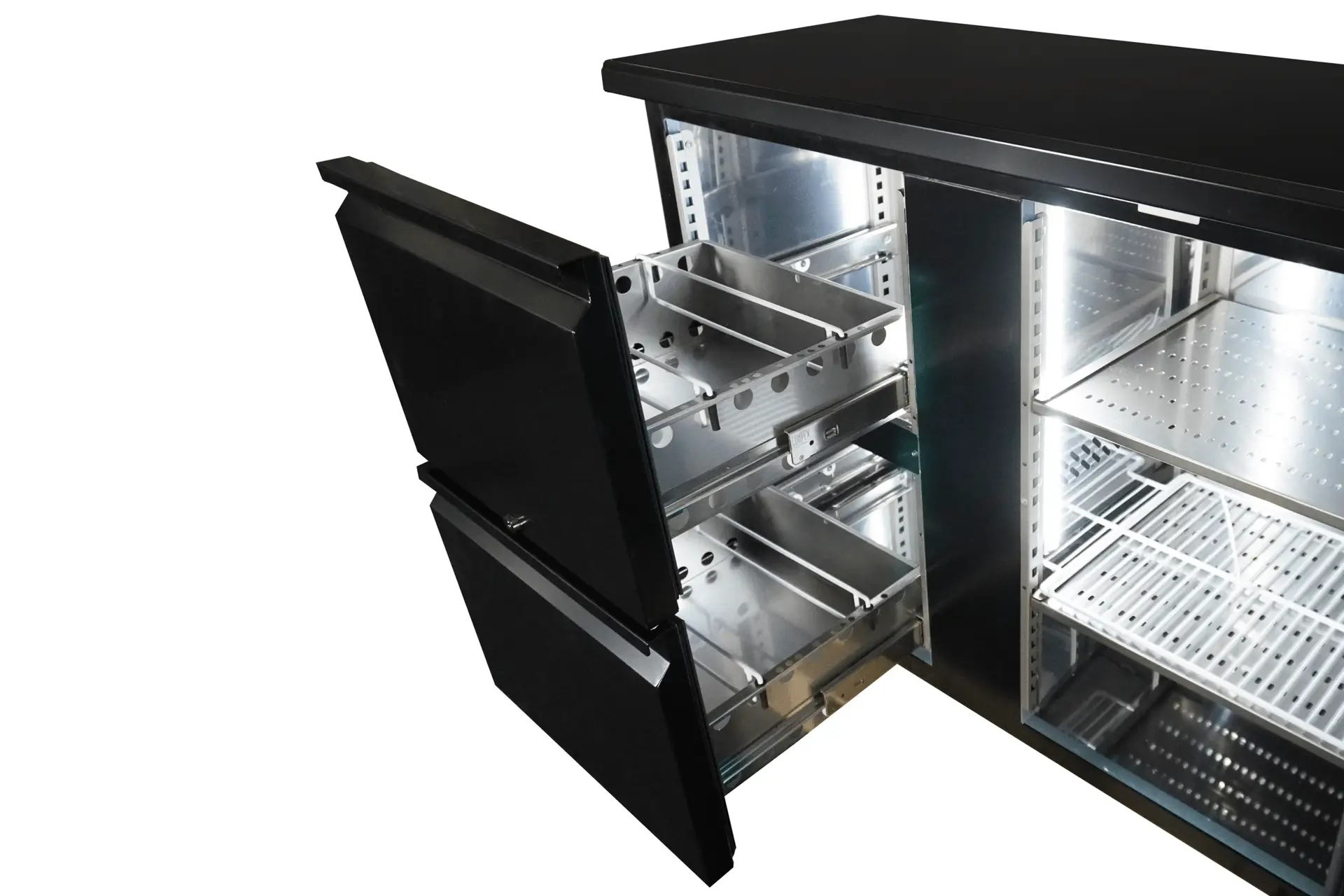

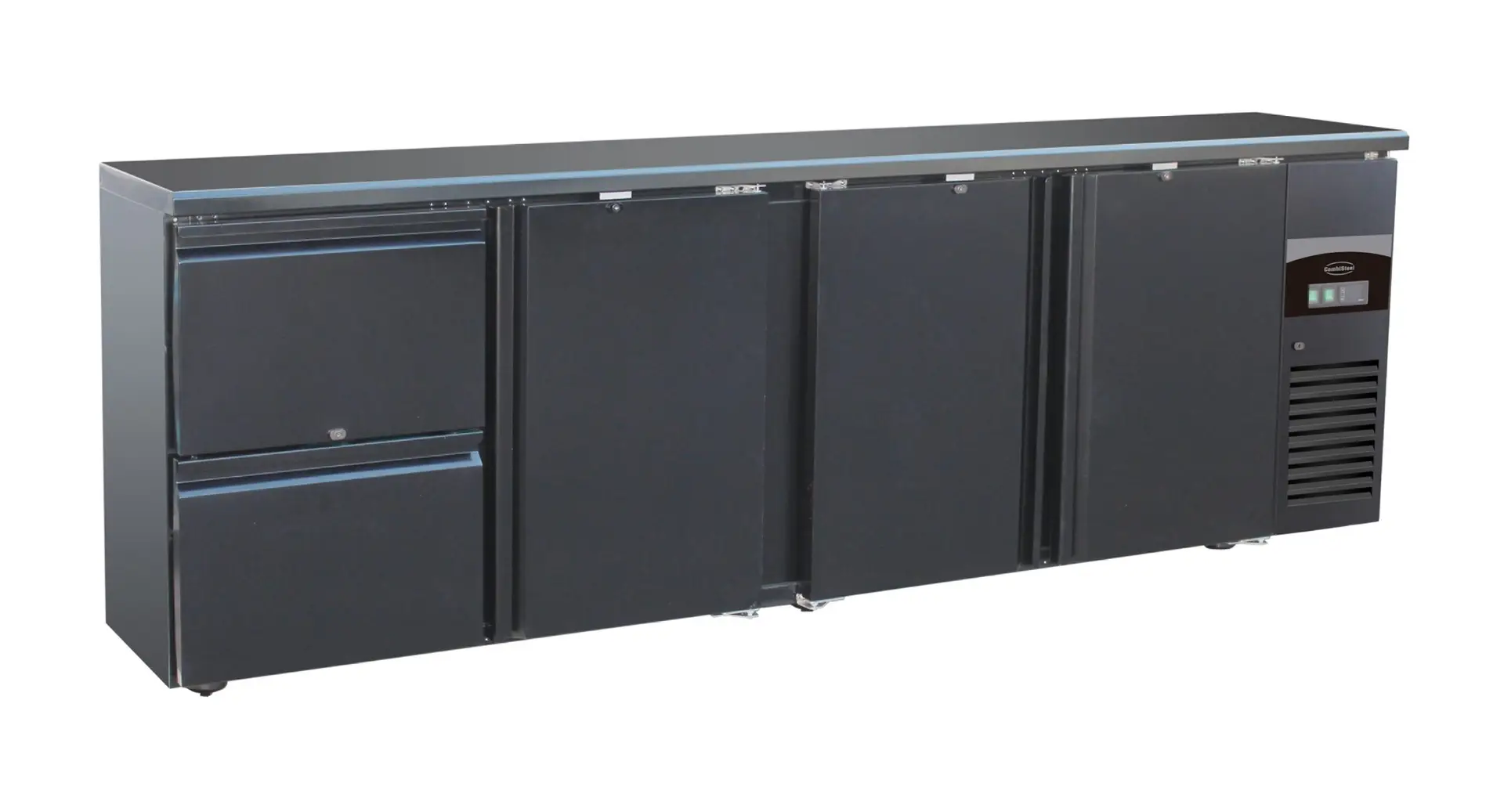

The 7450.0326 is a Combisteel Barcooler in black painted steel, built as a triple-door bar cabinet with three doors and two drawers. It is a back-bar unit designed to sit behind the counter as working serving stock, with a 698 litre gross volume for a broad chilled range. The three door sections give a wider spread of fast-reach bottled lines, and the two drawers help organise cans, mixers or slower-moving bottles along the length of the bar.

In service, the extra door means more of your regularly poured stock sits chilled and to hand, cutting trips to the cellar during peaks. Ventilated cooling holds the cabinet within a +0 to +10 °C range, while automatic defrost, a digital controller and LED lighting keep day-to-day use straightforward. The cabinet is lockable, uses R600a refrigerant and is rated for ambient conditions up to 32 °C.

As a back-bar cabinet it wants a counter run with clearance for airflow and for all three doors and both drawers to open, plus a nearby socket. The cabinet is 2542mm wide, 513mm deep and 860mm high, with internal dimensions of 2162 × 415 × 760mm and a 150kg gross weight. The listed supply is 230V/50Hz, and the published noise level is 50 dB(A), so confirm both the route into the building and the final bar position before ordering.

BEFORE YOU BUY

Questions, answered straight

It is 2542mm wide, 513mm deep and 860mm high, so it needs a proper run behind the counter. Check those dimensions against your available space and leave clearance for airflow and for the doors and drawers to open.

The three doors give a wider spread of fast-reach bottled lines than a narrower cabinet, and the drawers help organise cans, mixers and slower lines. More of your serving range stays cold in one place, so staff make fewer trips to the cellar.

It is a bar drinks cooler for bottled beers, mixers, cans and soft drinks held ready to serve. The published temperature band is +0 to +10 °C, so ask us if you want to use it for anything outside normal chilled drinks service.

That depends on the cabinet's energy data and your tariff. The product file does not give a yearly kWh figure here, so use the energy label decoder only when you have the label figure for this exact cabinet.

The gross volume is 698 litres, with internal dimensions listed as 2162 × 415 × 760mm. Actual bottle count depends on the mix of bottle and can sizes you carry.

The supplier-stated noise level is 50 dB(A). That matters for a back bar because the cabinet will usually sit near customers rather than in a plant room.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Barcooler Black Triple Door and 2 Drawers 7450.0326 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 2542 × 513 × 860 mm
Interior Dimensions 2162x415x760
Capacity 698 Ltr
Material Zwart gelakt staal
Colour / Finish Black
Temperature Range 0/+10
Max. Ambient Temp. 32
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 6
Electrical Power 0.44 kW
Voltage 230V / 50Hz
Mobile No
Lockable Yes
Noise Level 50 dB
Insulation 40 mm
Weight 150 kg
If you have any questions about the CombiSteel Barcooler Black Triple Door and 2 Drawers 7450.0326 then please get in touch.
