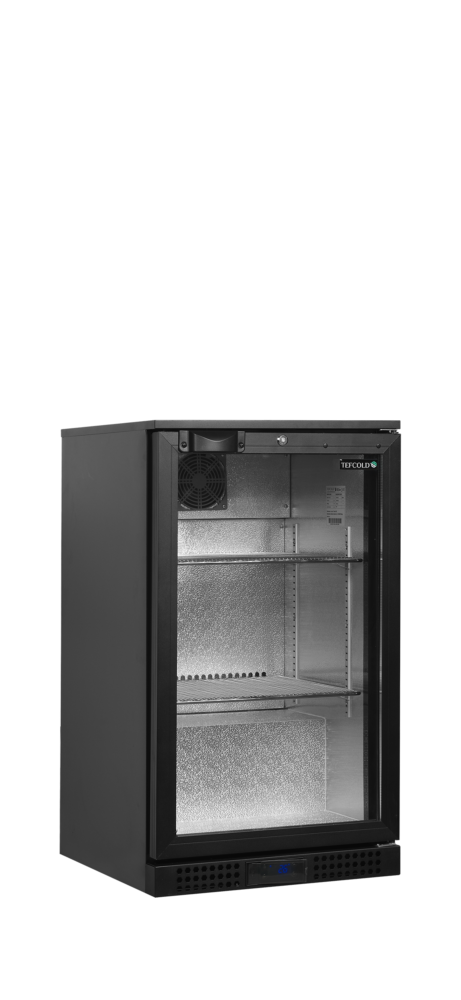

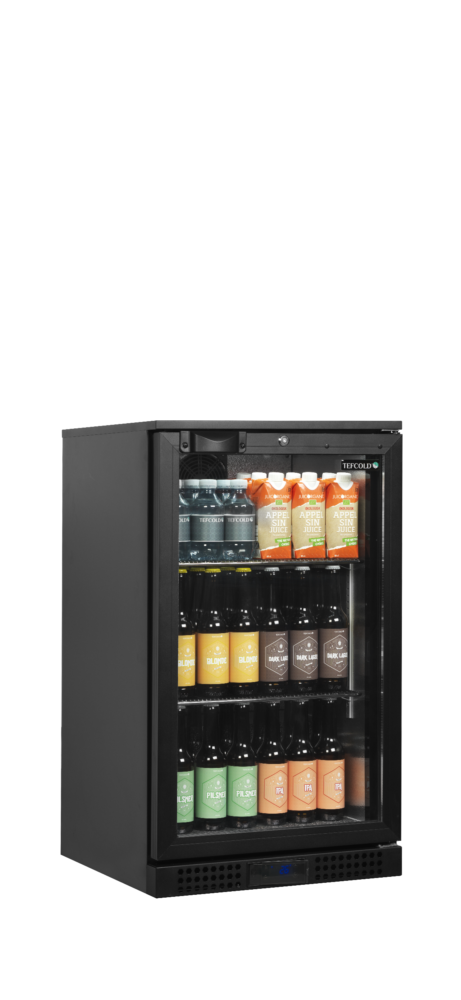

TEFCOLD BA6H Back Bar Cooler

£601.00 £387.00

+vat

- +

Brand:

SKU: 49824

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing door
  • Replaceable door gasket

Product description

A premium back bar fridge available as single, double or triple door. A versatile fan assisted cooler great for cooling beer, cider, wine or soft drinks. With LED lighting as standard helps to keep your energy bill down, there are also wine shelves available if required.

The TEFCOLD BA6H is a compact single glass-door back bar cooler for bottled drinks by the till, holding 92 litres net at +2 to +10 °C, running at a quiet 44 dB.

Sale!
SPECIFICATION 49 facts · tap for all External W × D × H500 x 520 x 870 mmWidth500 mmDepth520 mmGross / net weight45 / 40 kgGross weight45 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733490site
Product code 49824site
Sub title Back Bar Coolercatalogue
Type Single Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 520 mmsite
External (W×D×H) 500 × 520 × 870 mmcatalogue
External W × D × H 500 x 520 x 870 mmsite
Gross / net weight 45 / 40 kgsite
Gross weight 45 kgcatalogue
Height 870 mmsite
Internal (W×D×H) 410 × 418 × 720 mmcatalogue
Internal W × D × H 410 x 418 x 720 mmsite
Packed (W×D×H) 585 × 575 × 940 mmcatalogue
Packed W × D × H 585 x 575 x 940 mmsite
Width 500 mmsite

Capacity7

330ml bottles 70 pcssite
330ml cans 113 pcssite
500ml cans 96 pcssite
Display area 0.29 m²site
Doors 1catalogue
Gross volume 105 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 310 kWh/yearsite
Energy consumption 0.85 kWh/24hsite
Energy efficiency index 8 %site
Input power 95 Wsite
Noise level 44 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Blacksite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Shelf dimensions 395×350 mmsite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this single door bar fridge earns its place

The TEFCOLD BA6H is a compact back bar cooler built to chill and display bottled and canned drinks within arm's reach of the till. A single hinged glass door fronts 0.29 m² of display and two chrome wire shelves, holding 92 litres net (105 litres gross) in a 500 mm-wide cabinet. The black finish sits discreetly under a back-bar counter or along a serving line.

Ventilated cooling holds +2 to +10 °C under an electronic controller, with automatic defrost so there is no manual clear-down. It is rated to climate class 4 and runs at 44 dB, low enough for front-of-house. At energy class A it uses 310.2 kWh a year — about £78 a year at 25p/kWh.

The cabinet measures 500 × 520 × 870 mm (W×D×H) with a black exterior and stucco aluminium interior, and weighs 40 kg. It runs on a 220–240 V, 50 Hz supply through a standard 13-amp socket, and cooling uses R600a refrigerant with a 45-gram charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 500 mm wide, 520 mm deep and 870 mm tall, so check your counter height and depth before installing. It weighs 40 kg.

It runs at 44 dB and uses ventilated cooling with automatic defrost, so there is no manual clear-down.

At energy class A it uses 310.2 kWh a year, about £78 a year at 25p/kWh.

92 litres net (105 litres gross) over two chrome wire shelves behind a single hinged glass door, with 0.29 m² of display area.

+2 to +10 °C under an electronic controller, rated to climate class 4.

Yes — call 01792 732702 to arrange a visit. The cooler uses R600a refrigerant with a 45-gram charge and runs from a standard 13-amp socket.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 410 x 418 x 720 mm
External Dimension (WxDxH): 500 x 520 x 870 mm
Packed Dimension (WxDxH): 585 x 575 x 940 mm

Cooling and Functions

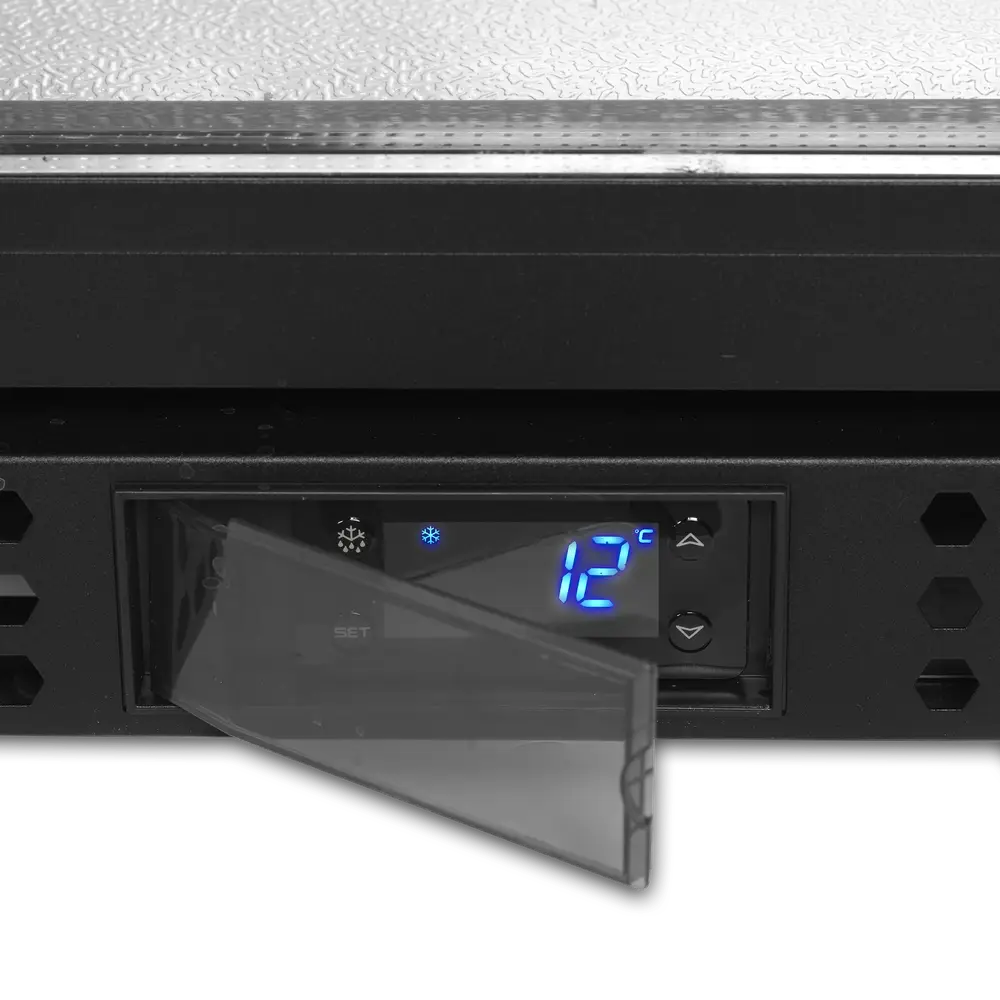

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 0.85 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 310 kWh/year m³
EEI: 8 %
Input Power: 95 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 44 dB(A)

Measures and Content

Cans 330 ml: 113 pcs pcs
Cans 500 ml: 96 pcs pcs
Bottles 330 ml: 70 pcs pcs
Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 45 / 40 kg
Gross / Net Volume: 105 / 92 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.29 m² m²

Design and Material

Door Reversible: Yes
Shelf Color: Chrome
Shelf Dimensions: 395×350 mm
Feet / Legs: 4 adjustable feet
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD BA6H Back Bar Cooler then please get in touch.
