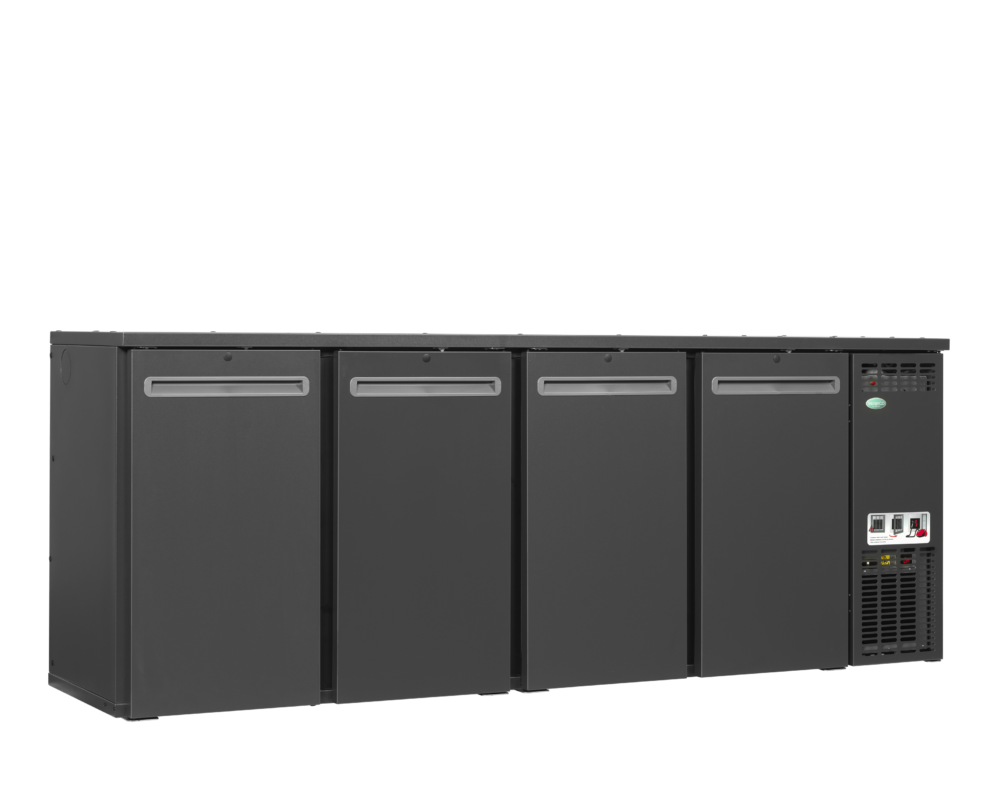

Serrco by TEFCOLD SCL-2222MU+ High-end Backbar Cooler

£2,775.00

+vat

Product summary

  • Many customisation possibilities
  • Removable cooling unit for easy service
  • Fast pull-down of temperature

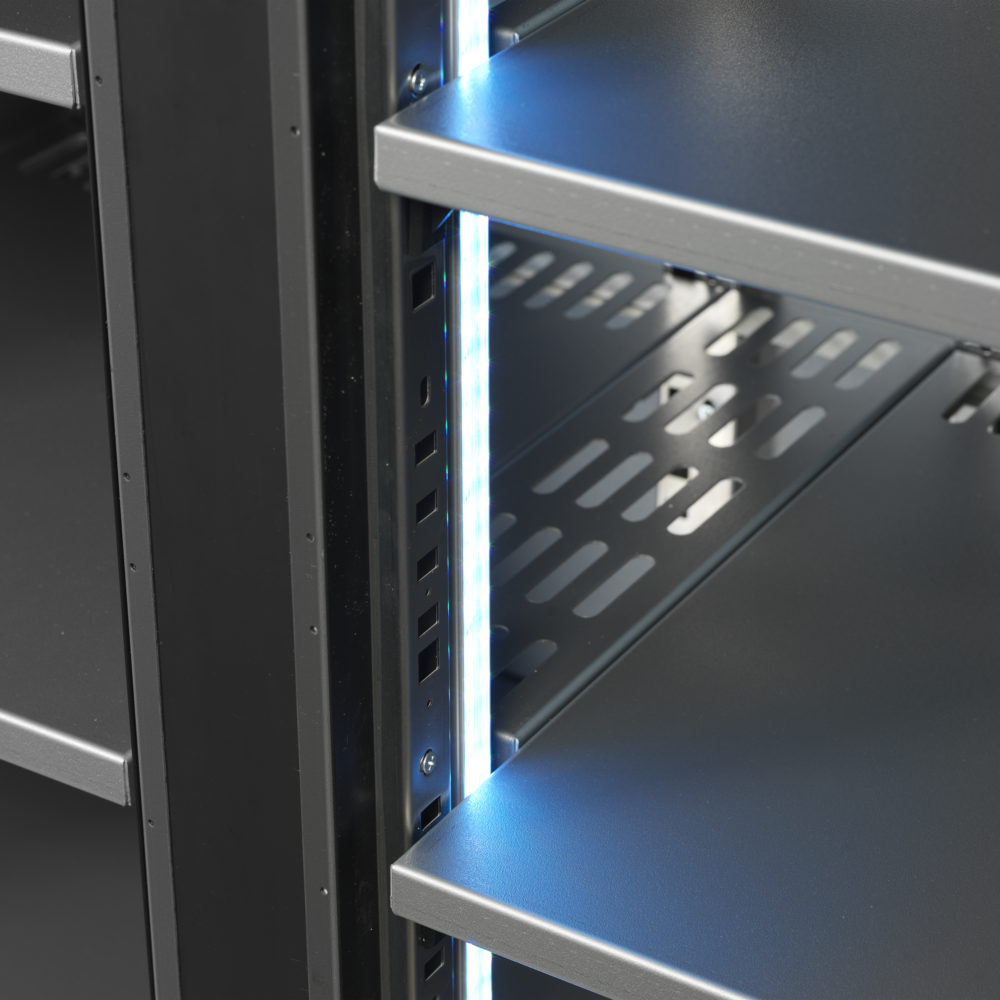

  • Adjustable plate shelves
  • White LED lighting
  • Skinplate exterior/interior
  • Digital controller and temperature display
  • Ventilated cooling
  • Optional lock

Product description

High-end backbar with unlimited options

The SCL Combi-Line from Serrco offers a whole host of opportunities. It comes with solid doors as standard but can easily be customised with different modules/fronts to meet your needs. It features adjustable plate shelves and white LED lighting. The cooling unit is installed as a removable module, which reduces service time from hours to mere minutes.

The Serrco by TEFCOLD SCL-2222MU+ is a four-door solid-door back bar cooler in anthracite RAL 7021, running +2 to +10 °C on R290 with ventilated cooling and automatic defrost, rated energy class C at 563 kWh a year and 41 dB.

SPECIFICATION 44 facts · tap for all External W × D × H2200 x 560 x 820 mmWidth2200 mmDepth560 mmGross / net weight170 / 151.5 kgGross weight170 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Serrco by TEFCOLDsite
GTIN / EAN 5708181755140site
Product code 68943site
Sub title High-end Backbar Coolercatalogue
Type Four Door Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 560 mmsite
External (W×D×H) 2200 × 560 × 820 mmcatalogue
External W × D × H 2200 x 560 x 820 mmsite
Gross / net weight 170 / 151.5 kgsite
Gross weight 170 kgcatalogue
Height 820 mmsite
Internal (W×D×H) 1820 × 470 × 735 mmcatalogue
Internal W × D × H 1820 x 470 x 735 mmsite
Packed (W×D×H) 2250 × 610 × 970 mmcatalogue
Packed W × D × H 2250 x 610 x 970 mmsite
Width 2200 mmsite

Capacity2

Gross volume 616 litrescatalogue
Shelves 8catalogue

Performance8

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R290site
Refrigerant charge 80 gsite
Temperature range +2 to +10site
Thermometer Yessite

Power & energy5

Annual energy consumption 563 kWh/yearsite
Energy consumption 1.54 kWh/24hsite
Input power 300 Wsite
Noise level 41 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Bottom shelf 1800 x 460site
Exterior finish Anthracite RAL 7021site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Lock Factory Optionsite
Max load per shelf 180site
Shelf dimensions 370 x 428 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this four door bar fridge earns its place

The Serrco by TEFCOLD SCL-2222MU+ is a four-door back bar cooler with hinged solid doors, finished in anthracite RAL 7021 outside with a silver interior. It offers 574 litres of net storage (616 litres gross) behind the bar, keeping bottled and canned stock chilled and out of sight for high-volume service.

Day to day it holds +2 to +10 °C with ventilated cooling and automatic defrost, controlled electronically, so temperature stays even across the cabinet without manual intervention. At 41 dB it runs quietly enough for front-of-house positions. Rated energy class C at 563 kWh a year, it works out at about £141 a year at 25p/kWh.

The interior measures 1820 × 470 × 735 mm (W×D×H) and the cabinet ships packed at 2250 × 610 × 970 mm, worth checking against doorways and access routes before delivery. Cooling is by R290 natural refrigerant with an 80 g charge, drawing 300 W from a 220–240 V/50 Hz supply.

BEFORE YOU BUY

Questions, answered straight

The SCL-2222MU+ has four hinged solid doors. Solid doors keep stock out of sight and hold temperature well, which suits back bar storage rather than open display.

It holds +2 to +10 °C using ventilated cooling, which circulates air for an even temperature across all four sections. An electronic controller manages the set point and automatic defrost handles frost build-up.

It is rated energy class C and uses 563 kWh a year. At 25p/kWh that is about £141 a year, which is helped by the ventilated system and solid doors holding the cold in.

It runs at 41 dB, which is low enough for most front-of-house positions. Ventilated cooling and automatic defrost mean it works without needing manual attention during service.

The cabinet ships packed at 2250 × 610 × 970 mm (W×D×H) with an interior of 1820 × 470 × 735 mm. Check your access route against the packed size, and contact Craven Cooling on 01792 732702 to confirm delivery and servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1820 x 470 x 735 mm
External Dimension (WxDxH): 2200 x 560 x 820 mm
Packed Dimension (WxDxH): 2250 x 610 x 970 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.54 kWh/24h
Temperature Range: +2 to +10 °C
Annual Energy Consumption: 563 kWh/year m³
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 41 dB(A)

Measures and Content

Temperature Range: +2 to +10 °C
Climate Class: 4
Gross / Net Weight: 170 / 151.5 kg
Gross / Net Volume: 616 / 574 l

Design and Material

Door Reversible: Yes
Shelf Color: Silver
Shelf Dimensions: 370 x 428 mm
Max load on Shelves: 180 kg/m²
Bottom Shelf Dimensions: 1800 x 460
Feet / Legs: Adjustable Feet
Exterior Finish: Anthracite RAL 7021
Interior Finish: Anthracite RAL 7021
Interior Light: LED
Lock: Factory Option
If you have any questions about the Serrco by TEFCOLD SCL-2222MU+ High-end Backbar Cooler then please get in touch.
