CombiSteel Beer Counter Triple Door 2L 7489.5345

+vat

Brand:

SKU: 7489.5345

Product summary

Size W/D/H (mm) x x

Product description

Ruimte voor 1 biervat per deur als je de roosters eruit haalt

Downloads

SPECIFICATION 27 facts · tap for all Width2500 mmDepth700 mmHeight950 mmGross / net weight287 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137842842catalogue
Type Bar Counters & Stationscatalogue

Size & weight7

Depth 700 mmsite
External (W×D×H) 2500 × 700 × 950 mmcatalogue
Gross / net weight 287 kgsite
Height 950 mmsite
Internal (W×D×H) 1545 × 565 × 795 mmcatalogue
Internal W × D × H 1545x565x795site
Width 2500 mmsite

Capacity3

Gross volume 690 litrescatalogue
Shelves 3catalogue
Sink dim 300×500catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy6

Energy consumption 0.46site
Frequency 50 Hzcatalogue
Rated input 460 Wcatalogue
Rated power 0.46 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Accessories Space for 1 beer keg per door when the shelves are removedcatalogue
Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue
THE WORKING VIEW

Why this bar counters & station earns its place

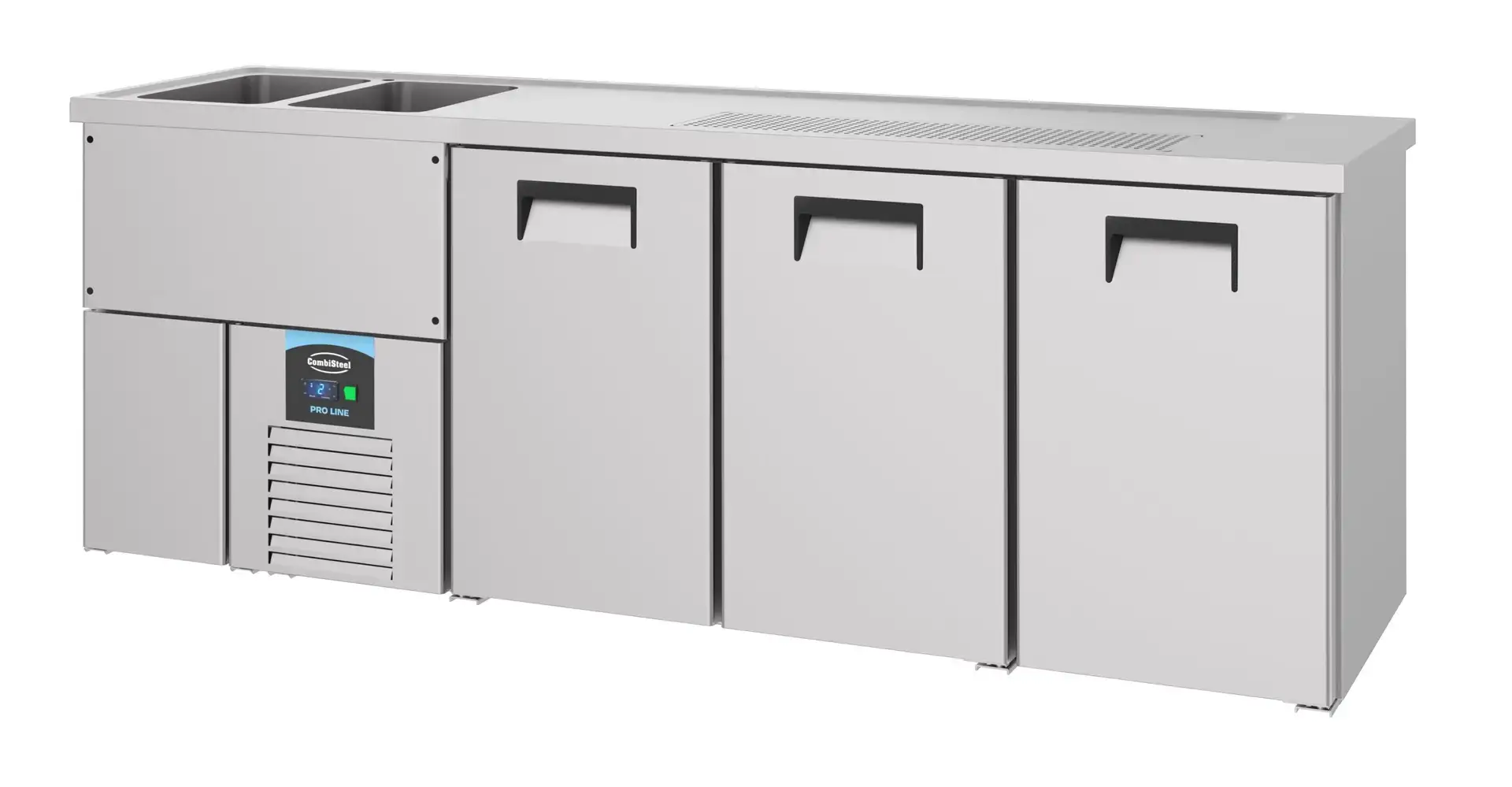

The Combisteel Beer Counter 3 Doors is a refrigerated bar counter built to hold bottled beer and other drinks cold and close to the point of service. It gives you a working counter surface with three refrigerated compartments beneath, so a whole run of chilled stock sits under the bar where staff pour and serve rather than in a separate cellar or back fridge. At 2.5 metres wide and 690 litres capacity, it holds serious volume for a busy service. In a busy service that means fewer trips away from the bar and drinks that are already at serving temperature when the customer orders.

Day to day it runs as under-counter refrigerated storage at -2 to +8°C: bottles are loaded through the three doors, kept chilled through service and pulled straight from below the pour point. The three-door layout splits the interior so different lines or stock levels can be organised across the counter, and the doors keep the cold in between grabs during a busy session. It is built in stainless steel and designed to hold serving stock at the ready, topped up from bulk storage as the night goes on.

This is a substantial, counter-length unit weighing 287 kg, so the practical work is in getting it in and sited: plan the delivery route, doorway widths and final position before it arrives, and allow clearance around the cabinet for the built-in refrigeration to vent. It is 2.5 metres wide, 700 mm deep and 950 mm tall, so it fits a standard counter height and depth. Once positioned and connected to a standard mains supply it forms a finished, refrigerated section of the bar with a usable worktop on top.

BEFORE YOU BUY

Questions, answered straight

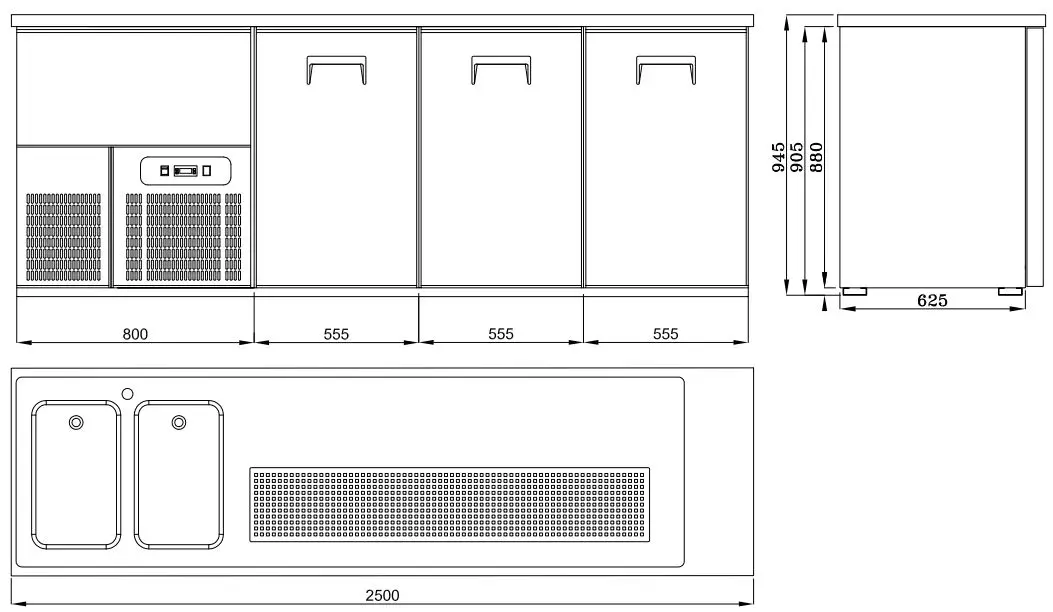

It is 2.5 metres wide, 700 mm deep and 950 mm tall — counter-length and counter-height designed to sit within a bar line. Plan the delivery route and doorway clearances before it arrives, and allow clearance for the compressor to vent around the back. At 287 kg, it needs confident handling to position.

It is built for bottled beer and other bottled or canned drinks kept at -2 to +8°C under the bar. The three refrigerated doors let you split stock across the counter for different products or stock levels. The 690-litre capacity holds serious volume for a busy service.

It is self-contained refrigeration, so it needs a level position in the bar line, a mains supply and ventilation clearance around it — no separate condenser or cellar connection. Because of its size and weight (287 kg), plan the final position before delivery and have help ready to move it.

Three doors give access to the refrigerated storage beneath the counter. The internal space measures 1545 mm wide, allowing you to organise serving stock across the run and top up from bulk as service continues.

That depends on its energy use and your tariff. The model's energy figures are on the specification table; run them through the energy label decoder to see the annual cost on your rate, or use the finance calculator for the monthly cost over a five-year term.

Craven Cooling supports and services the refrigeration it supplies. If you need a service, spare or fault visit, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Beer Counter Triple Door 2L 7489.5345 Product Data

Brand CombiSteel
Dimensions (W×D×H) 2500 × 700 × 950 mm
Interior Dimensions 1545x565x795
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3
Electrical Power 0.46 kW
Voltage 230V / 50Hz
Insulation 60 mm
Weight 287 kg
If you have any questions about the CombiSteel Beer Counter Triple Door 2L 7489.5345 then please get in touch.
