CombiSteel Beer Counter Triple Door 1L 7489.5335

£2,354.00

+vat

SKU: 7489.5335

Product summary

Size W/D/H (mm) x x

Product description

Ruimte voor 1 biervat per deur als je de roosters eruit haalt

The Combisteel Beer Counter 3 Doors is a refrigerated back-bar counter that holds bottled and canned drinks cold at the point of service, keeping stock chilled and within the bar team’s reach through a busy trading session.

Downloads

SPECIFICATION 27 facts · tap for all Width2100 mmDepth700 mmHeight950 mmGross / net weight251 kgVoltage / frequency23050Voltage230V / 50Hz

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137842828catalogue
Type Bar Counters & Stationscatalogue

Size & weight7

Depth 700 mmsite

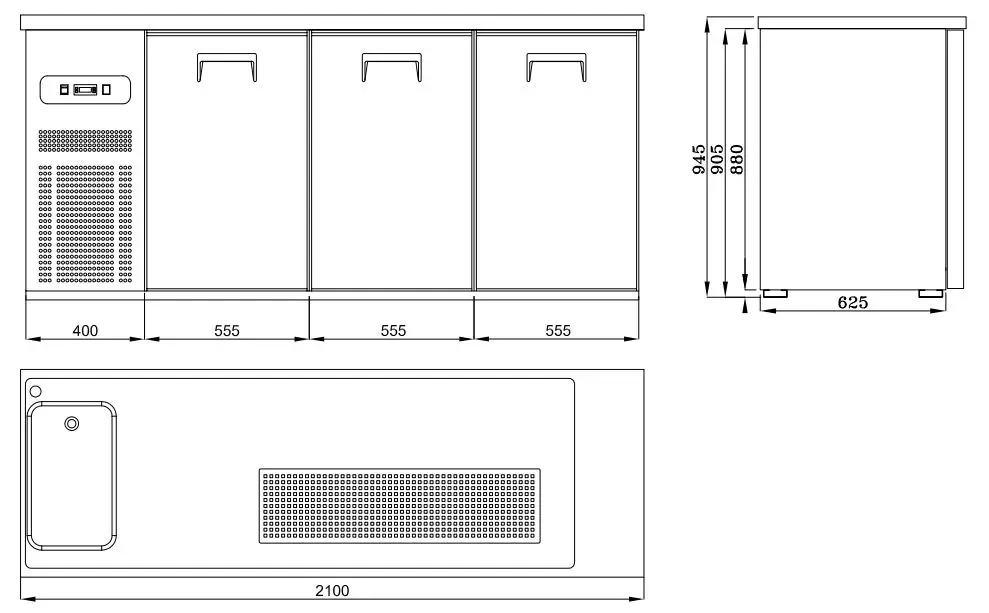

External (W×D×H) 2100 × 700 × 950 mmcatalogue
Gross / net weight 251 kgsite
Height 950 mmsite

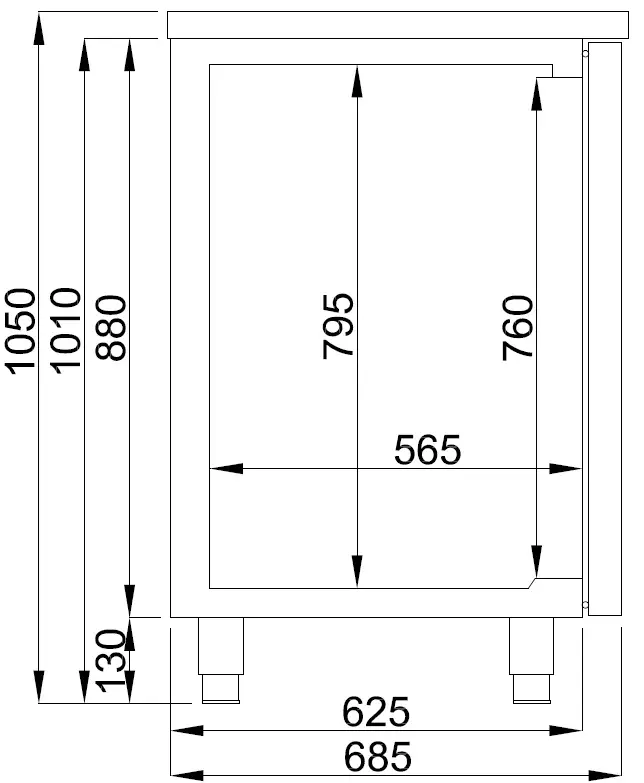

Internal (W×D×H) 1545 × 565 × 795 mmcatalogue
Internal W × D × H 1545x565x795site
Width 2100 mmsite

Capacity3

Gross volume 690 litrescatalogue
Shelves 3catalogue
Sink dim 300×500catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy6

Energy consumption 0.36site
Frequency 50 Hzcatalogue
Rated input 360 Wcatalogue
Rated power 0.36 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Accessories Space for 1 beer keg per door when the shelves are removedcatalogue
Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue
THE WORKING VIEW

Why this bar counters & station earns its place

The Beer Counter 3 Doors is a refrigerated back-bar cabinet built to sit behind the bar and hold chilled bottled and canned stock where the team actually pours. It puts a working reserve of 690 litres of cold drinks at waist height, so staff restock the front line without leaving their station or opening a walk-in mid-service. It is a service cabinet first, where capacity and speed of access matter more than open display, which makes it a fit for pubs, hotel bars and event bars running steady volume.

In use it runs as a chilled cabinet at -2 to +8°C, holding stock at a steady serving temperature ready to hand over. Multiple doored sections let staff pull from one part while the others stay shut, which keeps cold air in and recovery quick between rounds. The stainless-steel build stands up to the condensation and spills of a busy bar. Load it at the start of a session and it holds a cold working stock through the shift.

This is a floor-standing counter designed to be built into a back-bar run — 2.1 metres wide, 700 mm deep and 950 mm tall, so it fits a standard counter height and depth. At 251 kg it needs confident handling to position, so plan the length of wall and the clearance the compressor needs to vent before you commit to a position. Confirm these dimensions and electrical supply against your space, and measure your access route, as bar cabinets of this format are heavy. If you want the fit and the electrics sanity-checked, Craven Cooling can talk it through before delivery.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerated back-bar counter that holds 690 litres of bottled and canned stock chilled at -2 to +8°C at the point of service. It keeps a cold working reserve within the bar team's reach so they can restock the front line without leaving the station.

It is 2.1 metres wide, 700 mm deep and 950 mm tall. Check these dimensions against your available wall length and leave clearance for the compressor to vent. Measure your delivery route too, as at 251 kg it is heavy and awkward to manoeuvre through doorways.

It runs as a chilled cabinet for bottled and canned drinks at -2 to +8°C, which suits most beers, wines and soft drinks. The stainless-steel interior stands up to condensation and spills.

Running cost depends on the cabinet's energy rating and your electricity tariff. Check the energy figures in the spec table and use the energy label decoder in the tools below to turn them into pounds per year on your own tariff.

Yes. The three separate doors let staff open one part at a time while the others stay shut, keeping cold air in and recovery quick between rounds. The internal space measures 1545 mm wide across the three sections.

Yes. Craven Cooling services and repairs commercial refrigeration, and you can reach the team on 01792 732702 to arrange a visit or ask about spares.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Beer Counter Triple Door 1L 7489.5335 Product Data

Brand CombiSteel
Dimensions (W×D×H) 2100 × 700 × 950 mm
Interior Dimensions 1545x565x795
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3
Electrical Power 0.36 kW
Voltage 230V / 50Hz
Insulation 60 mm
Weight 251 kg
If you have any questions about the CombiSteel Beer Counter Triple Door 1L 7489.5335 then please get in touch.
