Elstar EM300 Upright Back Bar

£651.00

+vat

- +

Brand:

SKU: 31570

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock

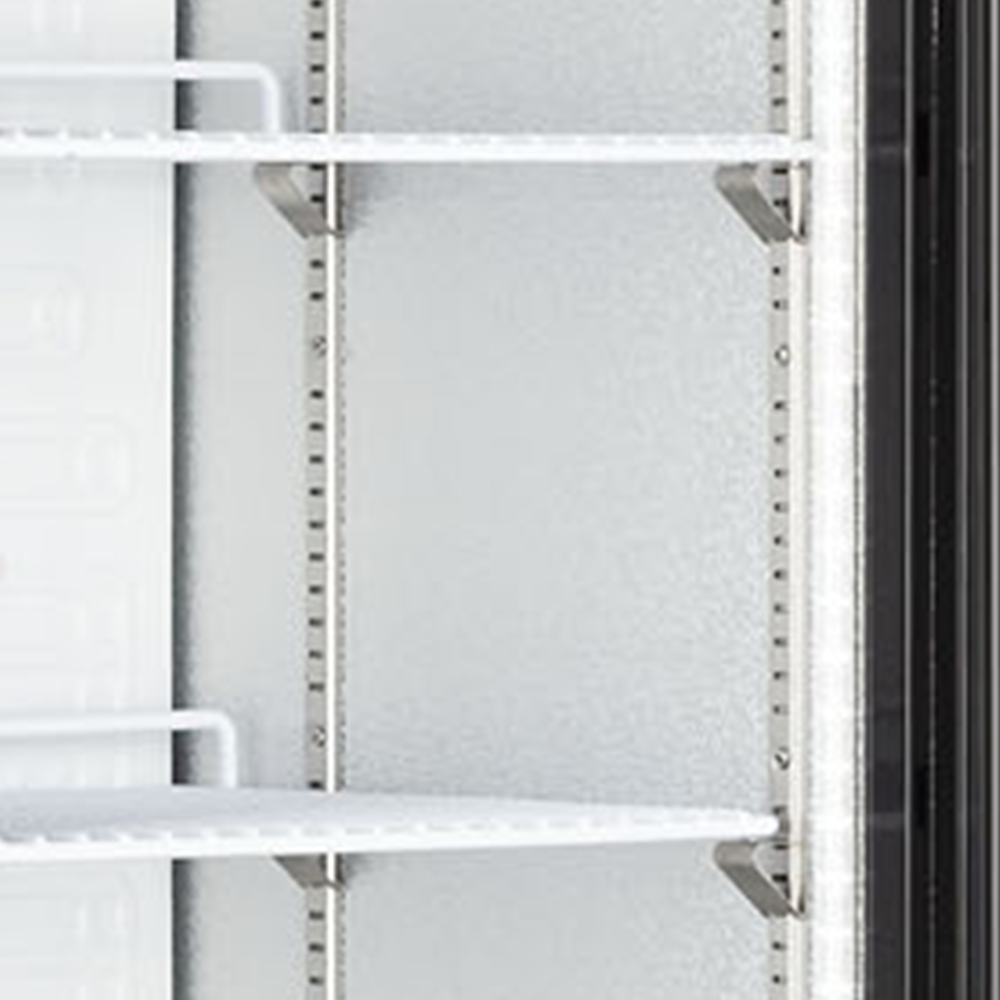

  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Replaceable door gasket
  • Door not reversible

Product description

Ideal for the pub or bar that wants to increase display capacity of chilled bottled drinks and cans while keeping the refrigeration footprint as low as possible. The EM upright range of back bar coolers come in single or double door options. Vertical LED interior lighting helps to illuminate the product and create an attractive display. The fan assisted refrigeration system ensures even and rapid cooling over the whole cabinet and an energy efficient refrigeration system helps keep running costs low.

The Elstar EM300 is a single-glass-door upright back bar cooler holding +2 to +8 °C across a 0.6 m² display front, drawing 744.6 kWh a year (energy class B) on R600a from a standard 13-amp supply.

SPECIFICATION 42 facts · tap for all External W × D × H600 x 520 x 1872 mmWidth600 mmDepth520 mmGross / net weight114 / 98 kgGross weight114 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elstarsite
GTIN / EAN 5708181991616site
Product code 31570site
Sub title Upright Back Barcatalogue
Type Back Bar Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 520 mmsite
External (W×D×H) 600 × 520 × 1872 mmcatalogue
External W × D × H 600 x 520 x 1872 mmsite
Gross / net weight 114 / 98 kgsite
Gross weight 114 kgcatalogue
Height 1872 mmsite
Internal (W×D×H) 535 × 424 × 1437 mmcatalogue
Internal W × D × H 535 x 424 x 1437 mmsite
Packed (W×D×H) 655 × 570 × 2028 mmcatalogue
Packed W × D × H 655 x 570 x 2028 mmsite
Width 600 mmsite

Capacity3

Display area 0.6 m²site
Doors 1catalogue
Gross volume 307 litrescatalogue

Performance8

Climate class 4site
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 85 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 730 kWh/yearsite
Energy consumption 2.04 kWh/24hsite
Energy efficiency index 15.5 %site
Input power 170 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Blacksite
Max load per shelf 196site
Reversible doors Nosite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this back bar fridge earns its place

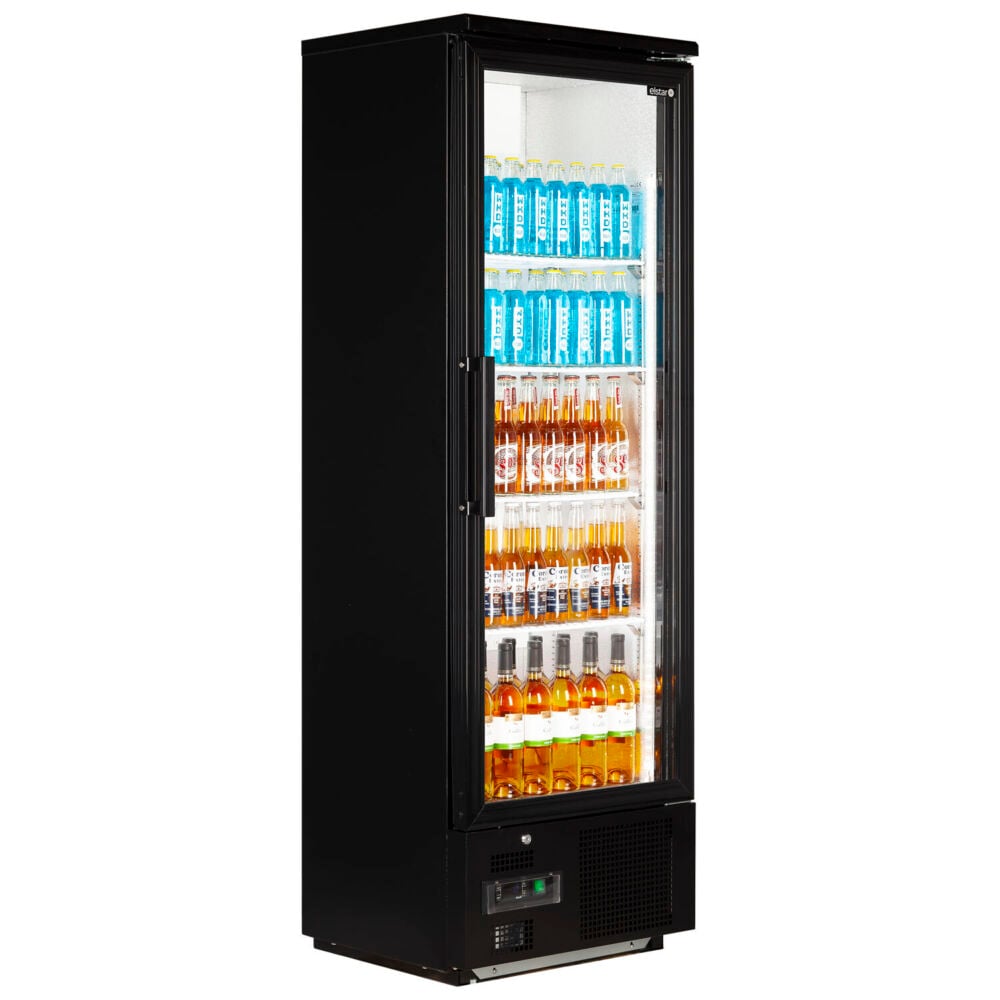

The Elstar EM300 is an upright back bar cooler built to merchandise bottled and canned drinks at the point of service. A single hinged glass door fronts a 0.6 m² display area, and the black exterior over a hammered aluminium interior is finished to stand on show at the bar rather than tucked away in a back store. It is a display-and-serve cabinet: stock stays chilled and visible within reach of whoever is pulling drinks.

It holds a +2 to +8 °C band suited to bottled beer, wine, soft drinks and mixers, with automatic electric defrost so there is no manual routine to run. Cooling is on R600a refrigerant with an 85 g charge, and the cabinet is rated at 56 dB, worth bearing in mind when siting it in a quieter front-of-house area. At 744.6 kWh a year (energy class B, EEI 15.5%) it costs about £186 a year to run at 25p/kWh.

Internally the cabinet measures 535 × 424 × 1437 mm (W×D×H) and it ships crated at 655 × 570 × 2028 mm, so check delivery access and doorways against the packed size. It runs from a standard 13-amp socket on a 220-240 V/50 Hz supply, draws 170 W, and weighs 98 kg net (114 kg gross).

BEFORE YOU BUY

Questions, answered straight

It runs a +2 to +8 °C band, which suits bottled and canned drinks such as beer, wine, soft drinks and mixers. It is a display cooler for chilled service, not a low-temperature or freezer cabinet.

It uses 744.6 kWh a year and is rated energy class B (EEI 15.5%). At 25p/kWh that is about £186 a year.

It ships crated at 655 × 570 × 2028 mm (W×D×H), so measure your access and doorways against the packed size before delivery. The cabinet itself is 535 mm wide internally.

No. It runs from a standard 13-amp socket on a 220-240 V/50 Hz supply and draws 170 W.

Defrost is automatic and electric, so there is no manual defrost routine to manage.

Yes. Craven Cooling supports its cabinets after installation — call the service team on 01792 732702 to arrange servicing or a fault visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 535 x 424 x 1437 mm
External Dimension (WxDxH): 600 x 520 x 1872 mm
Packed Dimension (WxDxH): 655 x 570 x 2028 mm

Cooling and Functions

Type of Defrost: Automatic, electric
Refrigerant: R600a
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.04 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 730 kWh/year m³
EEI: 15.5 %
Input Power: 170 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 114 / 98 kg
Gross / Net Volume: 307 / l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.6 m² m²

Design and Material

Door Reversible: No
Max load on Shelves: 196 kg/m²
Exterior Finish: Black
Interior Finish: Black
If you have any questions about the Elstar EM300 Upright Back Bar then please get in touch.
