Why this triple door upright glass door freezer earns its place

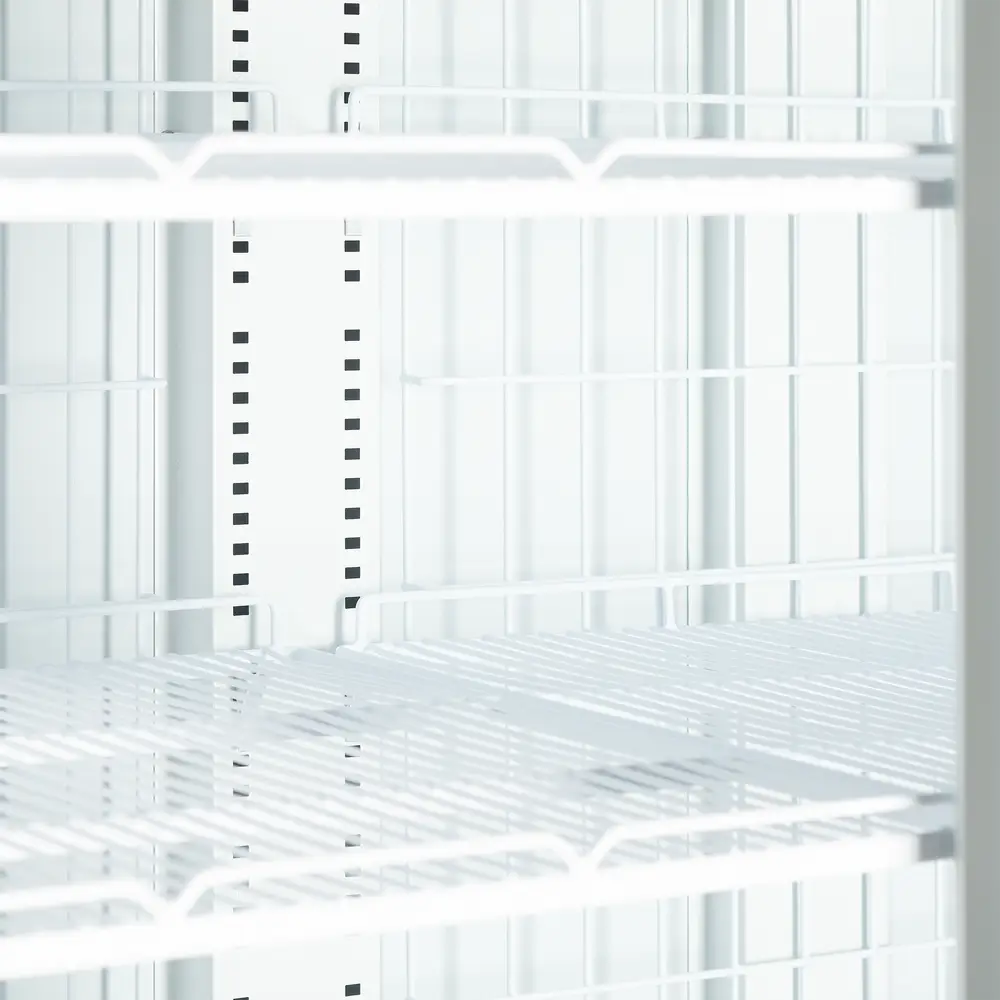

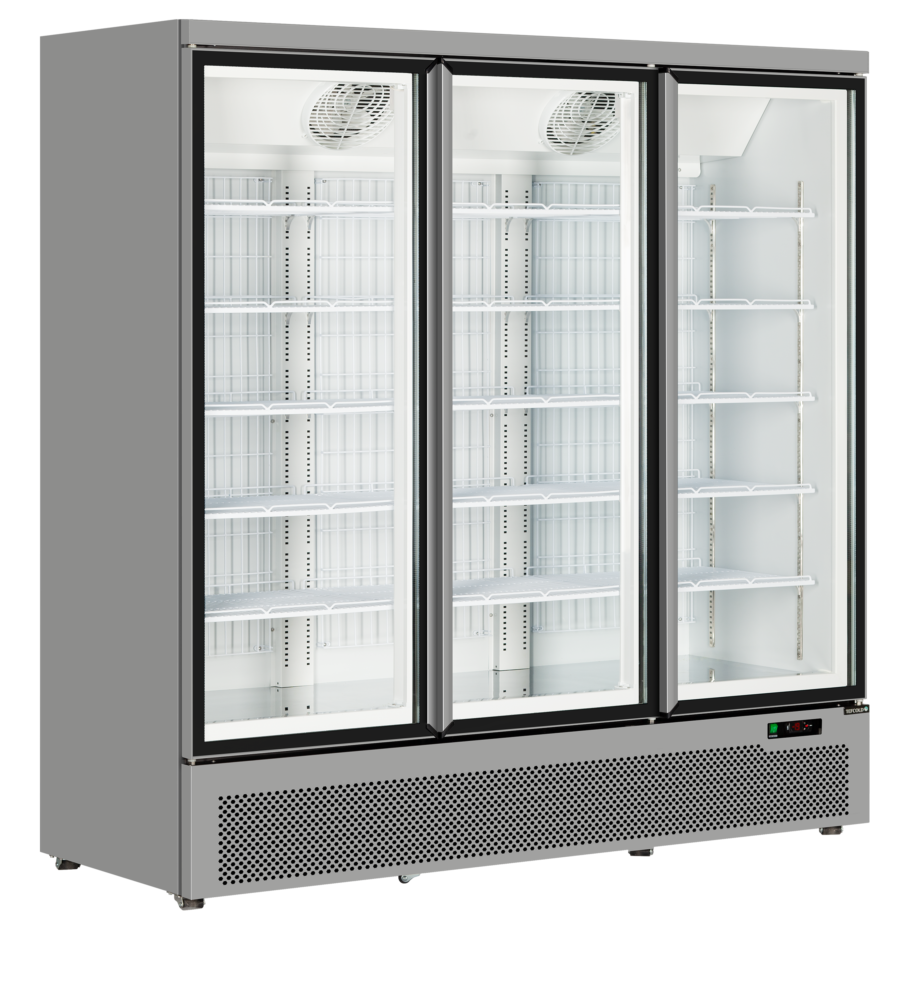

The Atom Maxi F3DS is a three-door upright glass display freezer built to merchandise frozen lines on the shop floor. Three hinged glass doors front 2.09 m² of display across 15 adjustable shelves, with a silver RAL9006 exterior and white RAL9003 interior, holding 1563 litres gross and 1090 litres net for ice cream, frozen food and impulse frozen stock.
Ventilated cooling holds the cabinet from -22 to -18 °C under an electronic controller with automatic defrost. It carries climate class 3 for standard indoor retail conditions and runs at 70 dB, so it suits a retail floor or back-of-store area rather than a quiet dining room. Rated energy class D, it uses 8701.6 kWh a year — about £2175 a year at 25p/kWh — at an energy efficiency index of 45.3.
Externally the cabinet measures 1880 × 760 × 2003 mm and weighs 305 kg net, so it needs a firm level floor and a planned delivery route. It runs on natural R290 refrigerant with a 95 g charge, drawing 1280 W from a standard 13 A, 220–240 V supply. It is delivered packed at 1905 × 780 × 2090 mm.
