Why this triple door upright glass door freezer earns its place

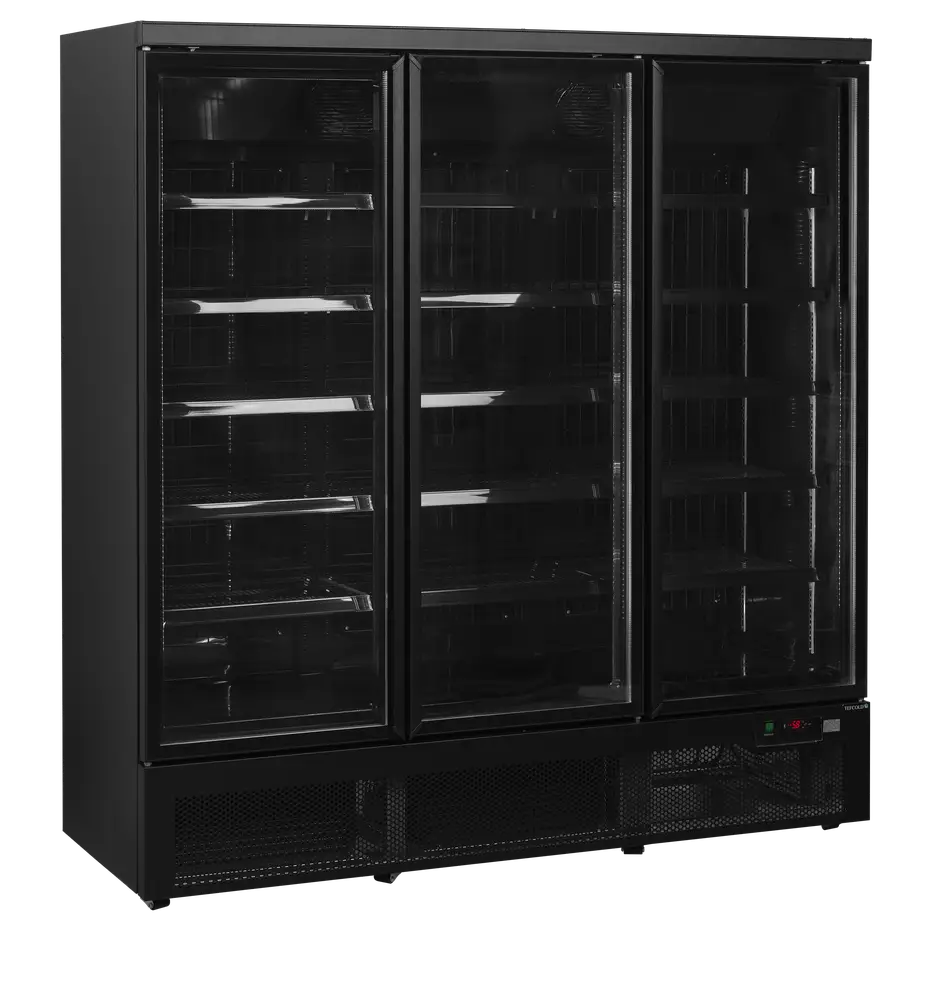

The Atom Maxi F3DBB is a triple-door upright display freezer built to merchandise a large frozen range behind glass. Three hinged glass doors front a black RAL9005 cabinet with a black interior, and 15 adjustable shelves let you set the layout to your product mix. With 1563 litres gross and 1090 litres net across 2.09 m² of display area, it puts a full frozen offer on show in a single run of the aisle.
In use the cabinet holds -22 to -18 °C for frozen food storage and display, managed by an electronic controller with automatic defrost. It is rated to climate class 3 and carries energy class D with an EEI of 45.3%. At its rated 8701.6 kWh a year that works out at about £2175 a year at 25p/kWh. Sound output is 70 dB, so it is best sited where that level of compressor noise is acceptable.
The cabinet measures 1760 × 580 × 1538 mm internally and weighs 355 kg gross, so plan the floor and access route accordingly. It runs on a 2 amp supply and draws 1280 W, and uses R290 natural hydrocarbon refrigerant. Confirm your final positioning and power point before delivery.
