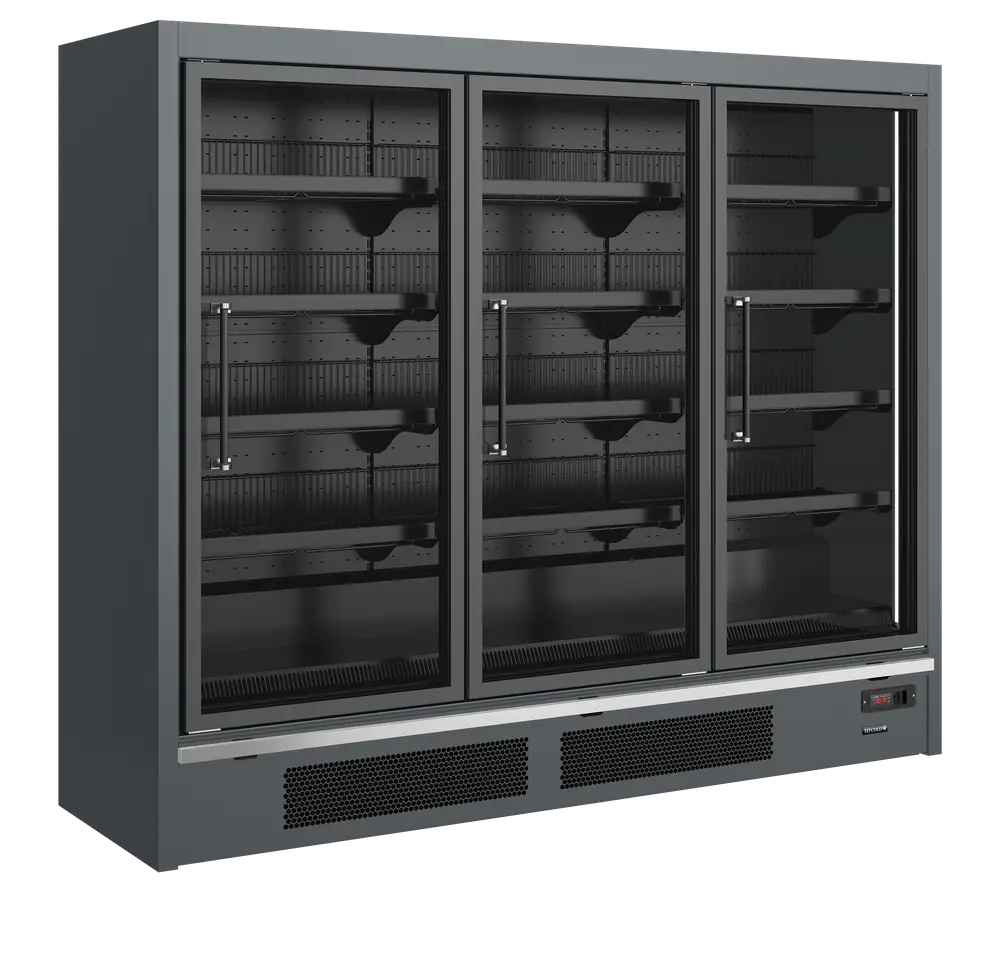

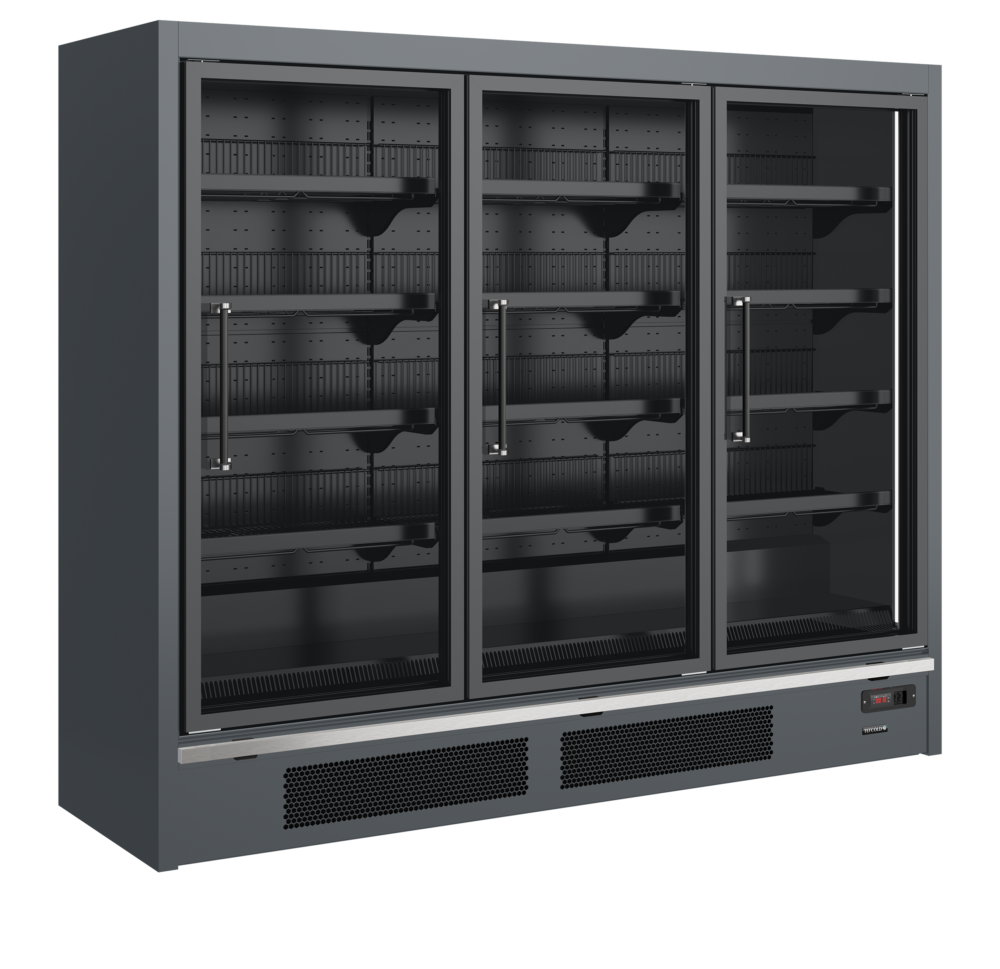

TEFCOLD Galaxy+ GPF3D Glass Door Freezer

£7,492.00

+vat

- +

Brand:

SKU: 68552

Energy Arrow

Product summary

  • Colour is anthracite RAL7016
  • Fully automatic
  • Heated glass to help prevent condensation
  • Triple glazed insulated glass
  • Adjustable shelves
  • Vertical LED interior light with switch
  • Epos Ticket Strips
  • Digital controller and temperature display
  • Adjustable feet
  • Ventilated cooling
  • Replaceable door gasket

Product description

Multideck freezer for exceptional product presentation

The Galaxy+ range of freezers offers exceptional product presentation with its beautiful design, adjustable shelves and heated glass doors with prevent condensation. This allows for multiplexing and increases your options for maximising the space you have available (multiplexing kit required).

The TEFCOLD Galaxy+ GPF3D is a triple-door upright glass door display freezer rated energy class D, with an energy efficiency index of 46.5% and an annual consumption of 12,921 kWh — about £3,230 a year to run at 25p/kWh.

SPECIFICATION 46 facts · tap for all External W × D × H2343 x 751 x 2005 mmWidth2343 mmDepth751 mmGross / net weight488 / 463 kgGross weight488 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181754372site
Product code 68552site
Sub title Glass Door Freezercatalogue
Type Triple Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 751 mmsite
External (W×D×H) 2343 × 751 × 2005 mmcatalogue
External W × D × H 2343 x 751 x 2005 mmsite
Gross / net weight 488 / 463 kgsite
Gross weight 488 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 2343 × 520 × 1386 mmcatalogue
Internal W × D × H 2343 x 520 x 1386 mmsite
Packed (W×D×H) 2600 × 850 × 2390 mmcatalogue
Packed W × D × H 2600 x 850 x 2390 mmsite
Width 2343 mmsite

Capacity3

Display area 3.2 m²site
Gross volume 2468 litrescatalogue
Shelves 12catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automatic, hot gassite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2×150 gsite
Temperature range -21 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 12921 kWh/yearsite
Energy consumption 35.4 kWh/24hsite
Energy efficiency index 46.5 %site
Input power 2212 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Anthracite RAL7016site
Feet / legs Adjustable Feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 5x 400mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this triple door upright glass door freezer earns its place

The Galaxy+ GPF3D is a triple-door upright glass door freezer, built to display frozen stock through full-height glass whilst holding it at -21 to -18 °C. Three glass doors give a wide run of frozen retail display — 2,468 litres — for self-service, where customers pick straight from the cabinet without staff intervention.

On energy, the cabinet is rated class D with an energy efficiency index of 46.5%. It consumes 12,921 kWh a year, which at 25p/kWh comes to about £3,230 a year — a figure worth modelling against your own tariff, as a large frozen display cabinet runs hard year-round. The triple-glazed insulated glass and heated doors help prevent condensation buildup, keeping the display clear and product visible.

At 2343 × 751 × 2005 mm external, it needs careful doorway planning and floor loading assessment. Confirm door access, floor loading and the incoming 220–240 V/50 Hz supply before installation; Craven Cooling can talk the fit through and size the electrics with you.

BEFORE YOU BUY

Questions, answered straight

It consumes 12,921 kWh a year, which is about £3,230 a year at 25p/kWh. Your actual cost depends on your tariff and how hard the cabinet is worked.

It is rated energy class D, with an energy efficiency index of 46.5%.

Yes — it is a triple-door upright glass door freezer, designed to show frozen stock through the glass for self-service or front-of-house retail.

Confirm door access and floor loading against the specification table for this product, which lists full external and internal dimensions, weights and supply requirements.

Yes. Craven Cooling supplies and can service this equipment; call 01792 732702 to discuss installation, the electrical supply or a servicing plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2343 x 520 x 1386 mm
External Dimension (WxDxH): 2463 x 751 x 2005 mm
Packed Dimension (WxDxH): 2600 x 850 x 2390 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 2×150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 35.4 kWh/24h
Temperature Range: -21 to -18 °C
Annual Energy Consumption: 12921 kWh/year m³
EEI: 46.5 %
Input Power: 2212 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -21 to -18 °C
Climate Class: 3
Gross / Net Weight: 488 / 463 kg
Gross / Net Volume: 2468 / 1300 l
Max Ambient: +25°C, 60% RH
Total Display Area: 3.2 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite RAL7016
Shelf Dimensions: 5x 400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: Adjustable Feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GPF3D Glass Door Freezer then please get in touch.
