CombiSteel Triple Glass Door Display Freezer Black JDE-1530F BL 7455.2250

+vat

Brand:

SKU: 7455.225

Product summary

Size W/D/H (mm) 1880 x 710 x 2003

Product description

With door heating which can be operated via a switch

Downloads

SPECIFICATION 37 facts · tap for all Width1880 mmDepth710 mmHeight2003 mmGross / net weight340 kgGross weight305 kgVoltage / frequency23050

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 7435137864820catalogue
Type Triple Door Upright Glass Door Freezerscatalogue

Size & weight8

Depth 710 mmsite
External (W×D×H) 1880 × 710 × 2003 mmcatalogue
Gross / net weight 340 kgsite
Gross weight 305 kgcatalogue
Height 2003 mmsite
Internal (W×D×H) 1760 × 530 × 1554 mmcatalogue
Internal W × D × H 1760x530x1554site
Width 1880 mmsite

Capacity3

Capacity – Ltrcatalogue
Net volume 1450 litrescatalogue
Shelves 15catalogue

Performance6

Controller Push buttoncatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range -18/-22site

Power & energy7

Energy consumption 1,05site
Frequency 50 Hzcatalogue
Noise level 6868site
Rated input 1050 Wcatalogue
Rated power 105 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings8

Accessories 8 castors and 15 grids with clips and price card holderscatalogue
Colour Blackcatalogue
Doors Left and right hingedsite
Exterior finish Powder coated steelsite
Insulation 60 mmcatalogue
Interior finish Aluminiumsite
Interior light Yes, LEDsite
Lock Nosite

Other stated facts2

Energy (24h) 2384 kWh/24hcatalogue
Mobility Yescatalogue
THE WORKING VIEW

Why this triple door upright glass door freezer earns its place

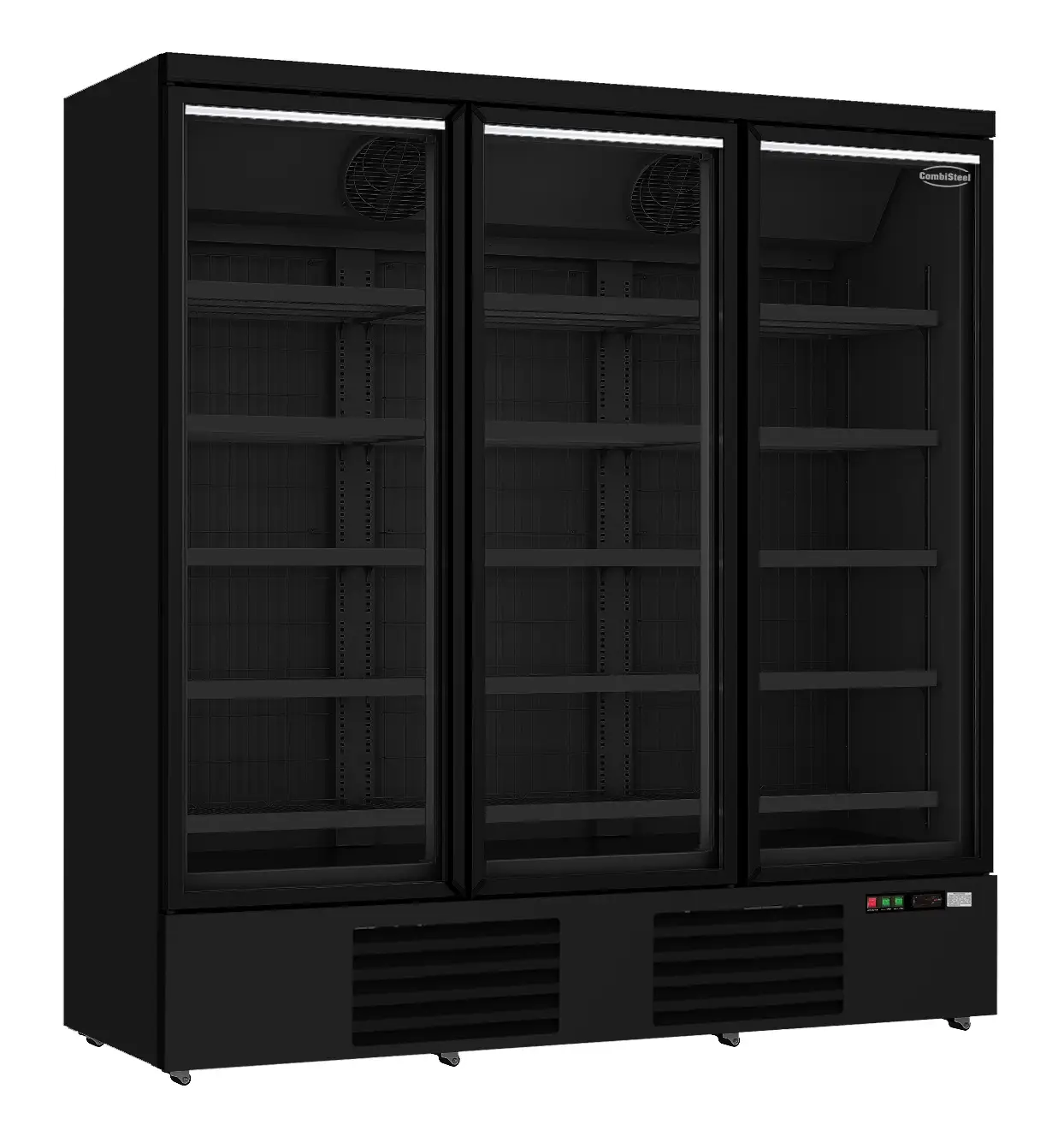

A three-door upright display freezer in black, built to put frozen retail lines in front of customers behind full-height glass. The dark cabinet frames the product while every shelf stays on show and lit with LED, so shoppers read the whole range — ice cream, frozen ready meals, frozen bakery, frozen veg — before they open a door. It holds -18 to -22 °C, the standard frozen-storage range.

In daily use it is a browse-and-serve freezer: the customer reads the range through the glass, opens one door and the rest of the cabinet stays sealed and cold. The glazed front carries the merchandising while the doors limit warm-air ingress each time it is opened, which matters more at freezer temperatures than in a chiller. Each door carries heating to prevent ice-up, and the cabinet defrosts automatically so staff don't have to. Black framing keeps a tidy front-of-house look and hides marks better than steel.

It is a freestanding three-door upright with an external footprint of 1880 mm wide by 710 mm deep by 2003 mm tall, so plan the aisle run or wall it sits against and the clearance to load and face up stock across all three doors. It weighs 340 kg, so confirm your floor can support it and book the forklift or pallet truck in with delivery. The cabinet runs at 68 dB(A), a standard noise level for a freezer with ventilated cooling. Craven Cooling can arrange delivery, positioning and commissioning, and back the freezer with servicing once it is running — we recommend booking the electrical connection through a qualified electrician when it lands. Note: this freezer requires a circuit breaker with type C characteristics due to its higher inrush current.

BEFORE YOU BUY

Questions, answered straight

It is a glass-door display freezer for frozen retail stock — ice cream, frozen ready meals, frozen bakery and similar — merchandised behind three full-height glass doors. It holds -18 to -22 °C, the standard range for frozen storage.

Black. The dark framing frames the product and tends to look tidier than steel in a customer-facing aisle.

Glass doors keep every shelf on show and lit with LED while sealing the cold inside. Customers read the range through the glass and open only the door they need, which limits warm-air ingress at freezer temperatures. Each door carries heating to prevent ice-up.

Yes — a three-door upright designed to stand in an aisle run or against a wall. External dimensions are 1880 mm wide, 710 mm deep and 2003 mm tall, with clearance to load and face up stock across all three doors.

Yes — we arrange delivery, positioning and commissioning, and back the freezers we supply with servicing. Call 01792 732702 to book a visit or talk through a fault. Note: this freezer requires a circuit breaker with type C characteristics.

Through three full-height glass doors across the front. One opens at a time to reach the shelves behind it, keeping the rest of the cabinet sealed and frozen.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Triple Glass Door Display Freezer Black JDE-1530F BL 7455.2250 Product Data

Brand CombiSteel
Dimensions (W×D×H) 1880 × 710 × 2003 mm
Interior Dimensions 1760x530x1554
Capacity – Ltr
Material Powder coated steel
Interior Material Aluminium
Colour / Finish Black
Temperature Range -18/-22
Max. Ambient Temp. 32
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 15
Electrical Power 1.05 kW
Energy Use 23.84 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable No
Noise Level 68 dB
Insulation 60 mm
Weight 305 kg
If you have any questions about the CombiSteel Triple Glass Door Display Freezer Black JDE-1530F BL 7455.2250 then please get in touch.
