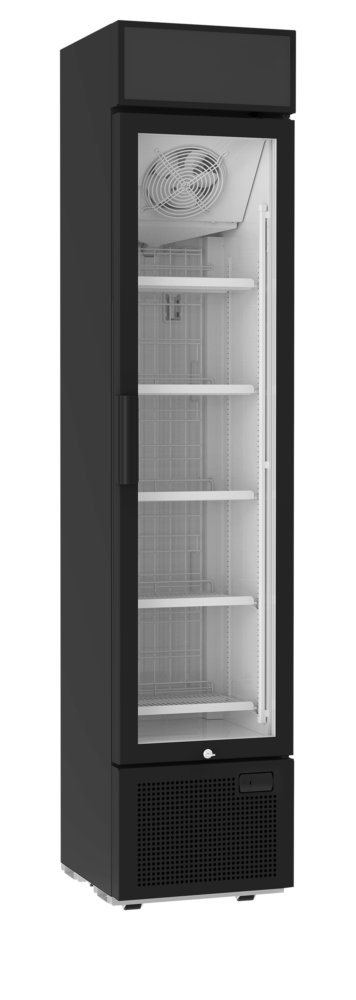

TEFCOLD FSF176VH B Slim Display Freezer

£1,139.00

+vat

Brand:

SKU: 71794

Energy Arrow

Product summary

  • Great product presentation
  • Ideal for branding
  • LED illuminated canopy
  • LED interior light
  • Heated glass to help prevent condensation
  • Adjustable shelves
  • Automatic defrost
  • Digital controller and temperature display

Product description

Slim Display Freezer with Canopy

The FSF slim glass door display freezer is only 435 mm wide and is therefore perfect for places where you have limited space for showcasing frozen treats. It is equipped with an illuminated canopy, adjustable shelves, interior LED lighting, and a heated glass door for a great product display.

The Tefcold FSF176VH is a slim single-door upright glass-door display freezer that holds -23 to -12 °C across a 190-litre gross (113-litre net) cabinet, running an automatic defrost and R290 refrigerant behind five wire shelves.

SPECIFICATION 49 facts · tap for all External W × D × H435 x 531 x 2016 mmWidth435 mmDepth531 mmGross / net weight97 / 88 kgGross weight97 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181761622site
Product code 71794site
Sub title Slim Display Freezercatalogue
Type Single Door Upright Glass Door Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 531 mmsite
External (W×D×H) 435 × 531 × 2016 mmcatalogue
External W × D × H 435 x 531 x 2016 mmsite
Gross / net weight 97 / 88 kgsite
Gross weight 97 kgcatalogue
Height 2016 mmsite
Internal (W×D×H) 357 × 362 × 1410 mmcatalogue
Internal W × D × H 357 x 362 x 1410 mmsite
Packed (W×D×H) 500 × 585 × 2180 mmcatalogue
Packed W × D × H 500 x 585 x 2180 mmsite
Width 435 mmsite

Capacity4

Display area 0.39 m²site
Doors 1catalogue
Gross volume 190 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 7site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 35 °Ccatalogue
Maximum ambient +35°C, 75% RHsite
Refrigerant R290site
Refrigerant charge 75 gsite
Temperature range -23 to -12site
Thermometer Yessite

Power & energy6

Annual energy consumption 3432.46 kWh/yearsite
Energy consumption 9.404 kWh/24hsite
Energy efficiency index 63.2 %site
Input power 800 Wsite
Noise level 56 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings7

Canopy L-Shapesite
Castors 4 wheelssite
Exterior finish Blacksite
Feet / legs 2 adjustable feetsite
Interior light Vertical LEDsite
Reversible doors Nosite
Shelf dimensions 335 x 265 mmsite

Other stated facts1

Energy class Ecatalogue
THE WORKING VIEW

Why this single door upright glass door freezer earns its place

The FSF176VH is a slim upright glass-door freezer built to merchandise frozen stock rather than just store it. A single heated glass door and 0.39 m² of display area put ice cream, frozen ready meals or frozen bakery in full view, with five wire shelves splitting the 190-litre gross cabinet (113 litres net usable) into readable, restockable tiers. The black exterior and white interior suit a shop-floor or front-of-house position where the frozen range needs to sell itself.

Day to day the cabinet holds a frozen band of -23 to -12 °C and runs an automatic defrost, so there is no manual routine to manage between restocks. It draws 800 W and is rated climate class 7, and at a measured 56 dB it is a working-freezer noise level worth siting away from quiet seating. On the energy label it sits at class E with an energy efficiency index of 63.2%, using 3432.5 kWh a year — about £858 a year at 25p/kWh.

The FSF176VH runs on natural R290 hydrocarbon refrigerant with a 75 g charge, keeping the cabinet's direct climate impact low. It weighs 97 kg gross, so plan a solid floor position and a delivery route that can take that weight on the trolley. For external dimensions, packed size, electrical supply and warranty terms, check the specification table below before you commit to a spot.

BEFORE YOU BUY

Questions, answered straight

The FSF176VH holds a frozen band of -23 to -12 °C. It uses an automatic defrost, so there is no manual defrost routine to schedule between restocks.

The cabinet is 190 litres gross and 113 litres net usable, split across five wire shelves. The glazed front gives 0.39 m² of display area to merchandise the range.

It is energy class E with an energy efficiency index of 63.2%, using 3432.5 kWh a year — about £858 a year at 25p/kWh. Your actual figure depends on your tariff and siting.

It runs at a measured 56 dB, which is normal for a working display freezer. If it is going near quiet seating, site it with that in mind rather than directly beside guests.

It runs on natural R290 hydrocarbon refrigerant with a 75 g charge, which keeps the cabinet's direct climate impact low. It is rated climate class 7.

Yes — Craven Cooling services commercial refrigeration across the UK. Call our team on 01792 732702 to arrange servicing or talk through siting and delivery before you buy.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 357 x 362 x 1410 mm
External Dimension (WxDxH): 435 x 531 x 2016 mm
Packed Dimension (WxDxH): 500 x 585 x 2180 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 75 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 9.404 kWh/24h
Temperature Range: -23 to -12 °C
Annual Energy Consumption: 3432.46 kWh/year m³
EEI: 63.2 %
Input Power: 800 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 56 dB(A)

Measures and Content

Temperature Range: -23 to -12 °C
Climate Class: 7
Gross / Net Weight: 97 / 88 kg
Gross / Net Volume: 190 / 113 l
Max Ambient: +35°C, 75% RH
Total Display Area: 0.39 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 335 x 265 mm
Max load on Shelves: 171 kg/m²
Canopy Type: L-Shape
Feet / Legs: 2 adjustable feet
Castors: 4 wheels
Exterior Finish: Black
Interior Finish: Black
Interior Light: Vertical LED
Lock: Yes
If you have any questions about the TEFCOLD FSF176VH B Slim Display Freezer then please get in touch.
