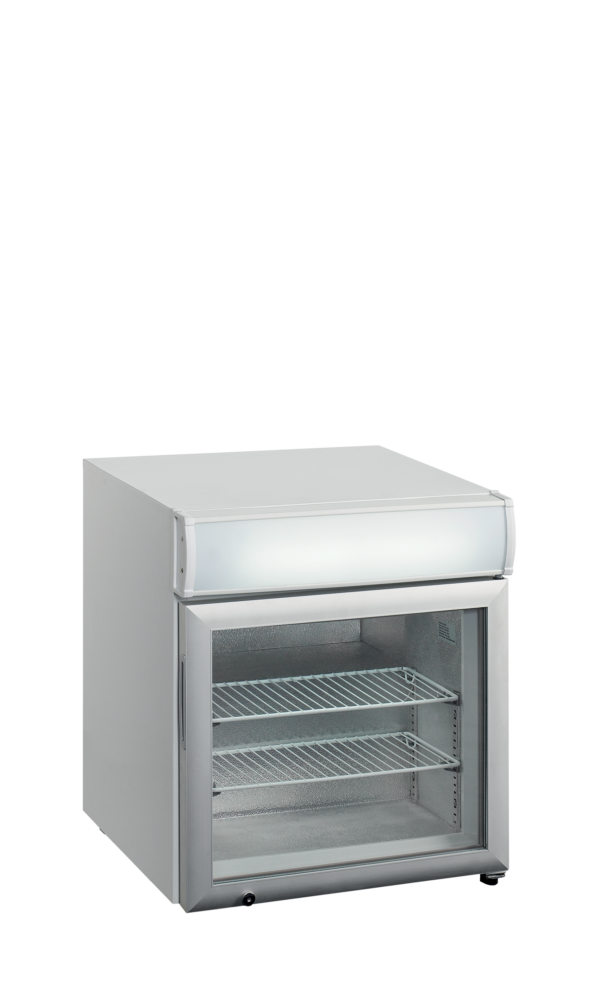

TEFCOLD UF50GCP Glass Door Display Freezer

£440.00

+vat

Brand:

SKU: 20050

Energy Arrow

Product summary

  • Static cooling
  • Lock

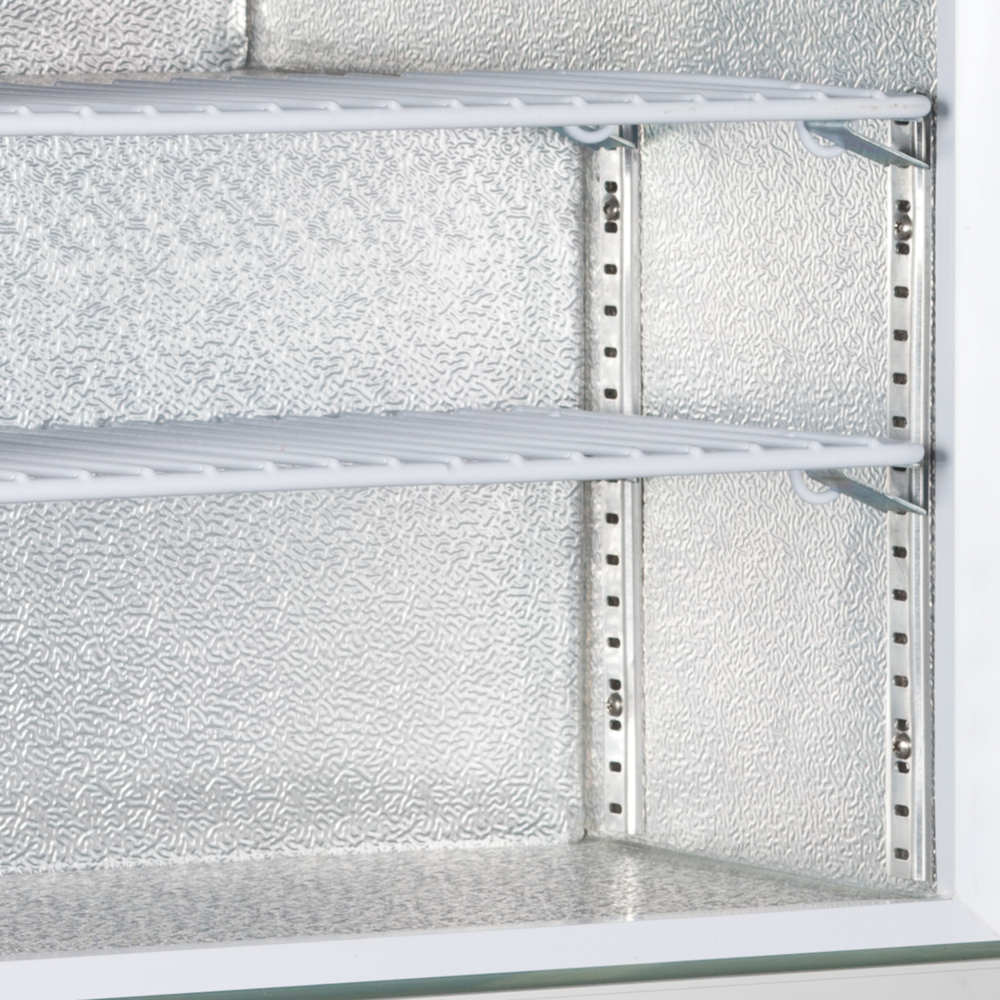

  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Self-closing door
  • LED Light canopy with switch
  • Replaceable door gasket
  • Heated triple glazed door to prevent condensation

Product description

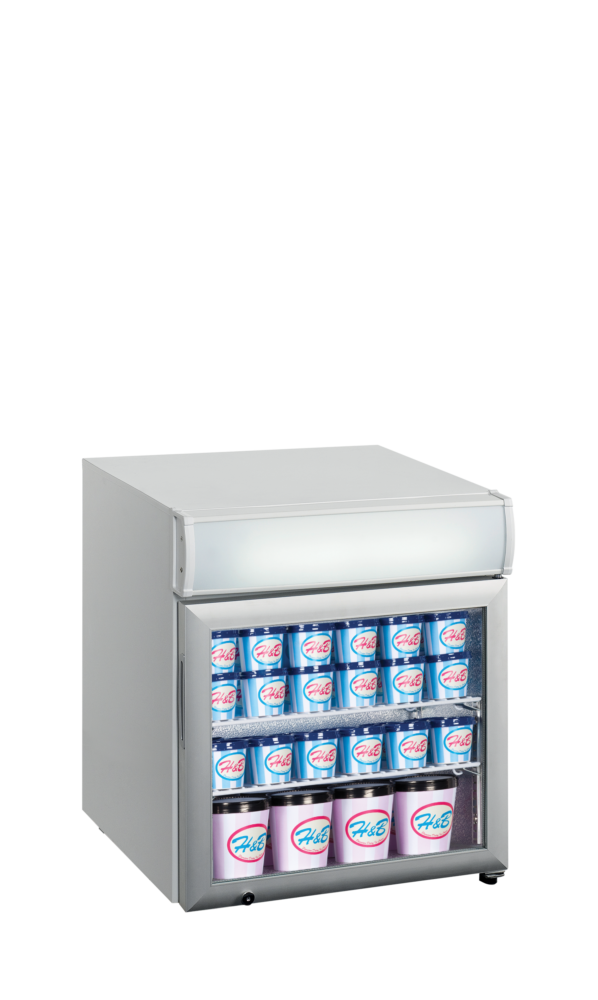

Versatile glass door counter-top freezers. The UF-GP and UF-GCP ranges are widely accepted as the best on the market. Popular with many ice cream manufacturers, with a small footprint it is ideal for capturing impulse sales. Often used for large and small ice cream tubs as well as other frozen food. A lock is fitted, and the unit comes with a switchable light and adjustable shelves as standard. Units are designed specifically for 125ml and 500ml ice cream tubs making the tubs a perfect fit inside the unit with no wasted space, though they can be used for other frozen food.

The TEFCOLD UF50GCP is a countertop glass door display freezer with 48 litres of net capacity at -24 to -12 °C, measuring 570 mm wide by 657 mm tall and drawing 154 W from a standard 13 A plug — frozen impulse display for counters that are already tight.

SPECIFICATION 48 facts · tap for all External W × D × H570 x 530 x 657 mmWidth570 mmDepth530 mmGross / net weight46 / 42 kgGross weight46 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181501556site
Product code 20050site
Sub title Glass Door Display Freezercatalogue
Type Countertop Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 530 mmsite
External (W×D×H) 570 × 530 × 657 mmcatalogue
External W × D × H 570 x 530 x 657 mmsite
Gross / net weight 46 / 42 kgsite
Gross weight 46 kgcatalogue
Height 657 mmsite
Internal (W×D×H) 450 × 420 × 380 mmcatalogue
Internal W × D × H 450 x 420 x 380 mmsite
Packed (W×D×H) 610 × 600 × 730 mmcatalogue
Packed W × D × H 610 x 600 x 730 mmsite
Width 570 mmsite

Capacity4

Display area 0.23 m²site
Doors 1catalogue
Gross volume 50 litrescatalogue
Shelves 2catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 45 gsite
Temperature range -24 to -12site
Thermometer Nosite

Power & energy6

Annual energy consumption 1031 kWh/yearsite
Energy consumption 2.82 kWh/24hsite
Energy efficiency index 22 %site
Input power 154 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Canopy Curvedsite
Exterior finish Whitesite
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Lock Yessite
Shelf dimensions 440 x 210 mmsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this countertop freezer earns its place

The UF50GCP is countertop frozen display at its most compact: 48 litres net — 50 litres gross — behind a heated hinged glass door, with 0.23 m² of display area to put frozen impulse lines in front of customers as they pay. The white cabinet, inside and out, keeps attention on the stock rather than the box, and its 570 × 530 mm footprint fits counters where a full-size display cabinet never would.

Day to day it holds -24 to -12 °C on a mechanical controller, with static cooling and manual defrost — simple, serviceable and quiet at 45 dB. The heated glass door is designed to keep the viewing panel clear, and a climate class 4 ambient rating means it is specified for warm salesrooms. Energy class is C at 1,029.3 kWh a year, which works out at about £257 a year at 25p/kWh.

Getting it in place is simple. The cabinet stands 657 mm tall on its 570 × 530 mm footprint and weighs 42 kg net, so two people can lift it onto a counter, and it packs down to 610 × 600 × 730 mm for transit. It runs on a 220-240 V/50 Hz supply through a standard 13 A plug, drawing 154 W, on R290 refrigerant with a 45 g charge.

BEFORE YOU BUY

Questions, answered straight

The footprint is 570 mm wide by 530 mm deep, standing 657 mm tall. At 42 kg net it sits on any counter that can take the weight.

It operates between -24 and -12 °C, set on a mechanical controller, and carries a climate class 4 ambient rating.

Energy class C at 1,029.3 kWh a year — about £257 a year at 25p/kWh. Power draw is 154 W.

Yes. It runs on a 220-240 V/50 Hz supply through a standard 13 A plug, so no dedicated electrics are needed.

Defrost is manual: switch the cabinet off periodically and let the frost clear before restarting. Cooling is static, with no fans to maintain.

Craven Cooling supplies and services commercial refrigeration across the UK. Call 01792 732702 to arrange servicing or discuss whether the UF50GCP suits your counter.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 450 x 420 x 380 mm
External Dimension (WxDxH): 570 x 545 x 657 mm
Packed Dimension (WxDxH): 610 x 600 x 730 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 45 g
Thermometer: No

Power and Consumption

Energy Consumption: 2.82 kWh/24h
Temperature Range: -24 to -12 °C
Annual Energy Consumption: 1031 kWh/year m³
EEI: 22 %
Input Power: 154 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -12 °C
Climate Class: 4
Gross / Net Weight: 46 / 42 kg
Gross / Net Volume: 50 / 48 l
Max Ambient: +30°C, 55% RH
Total Display Area: 0.23 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 440 x 210 mm
Canopy Type: Curved
Feet / Legs: 4 adjustable feet
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD UF50GCP Glass Door Display Freezer then please get in touch.
