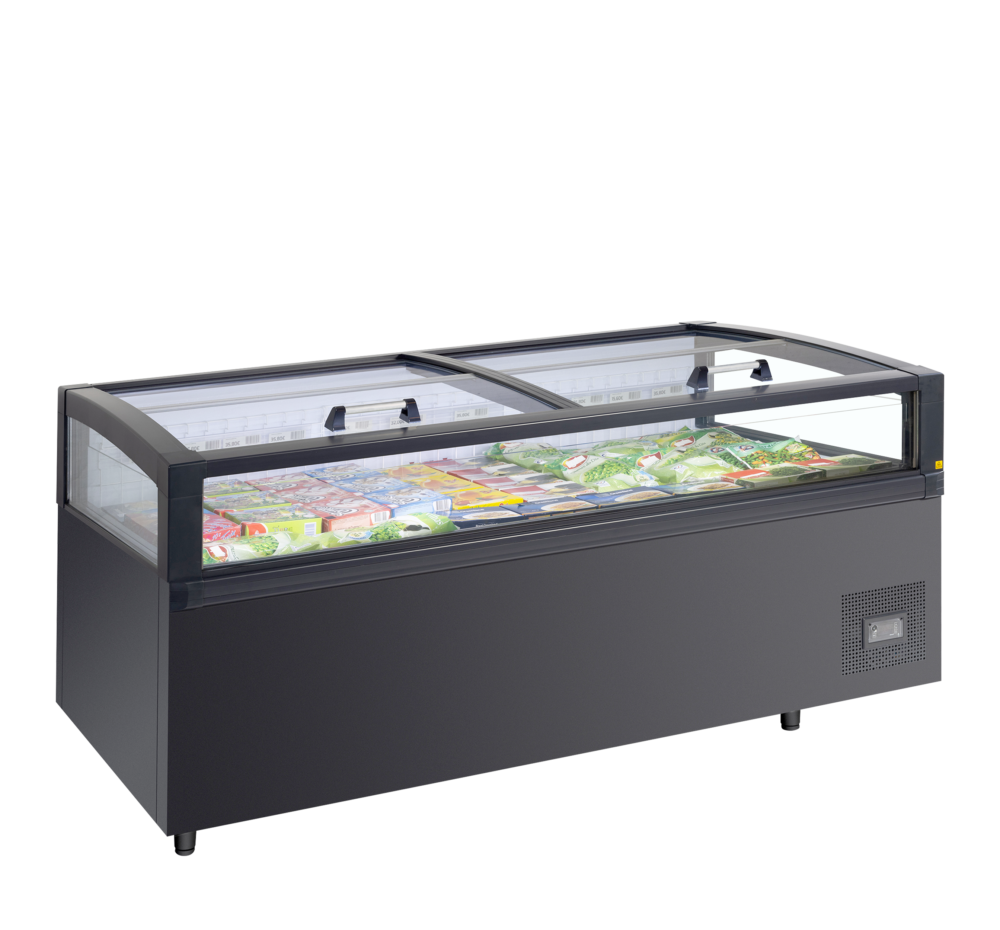

TEFCOLD View HC Chiller / Freezer

£3,174.00

+vat

Brand:

SKU: 51580

Energy Arrow

Product summary

  • Great product visibility
  • Easily switchable between cooler and freezer
  • Energy saving variable speed compressor
  • Front to back sliding lids for easy access
  • Triple glazed insulated glass on all 3 sides
  • LED interior light
  • Digital controller and temperature display
  • Adjustable false base

Product description

Super market display freezer headcase

The VIEW combines a super market chiller/freezer’s versatility with modern design aesthetics. Enhanced product display is realized through three glass-sided walls and sliding lids atop. Effortlessly changes between chilling and freezing modes; select your desired temperature on the digital controller.

The TEFCOLD View HC is a glass-top display chiller/freezer that switches between chilled and frozen merchandising as stock needs change, offering 613 litres net across 1.5 m² of display, adjustable from -22 to +10 °C.

SPECIFICATION 44 facts · tap for all External W × D × H1983 x 980 x 970 mmWidth1983 mmDepth980 mmGross / net weight210 / 166 kgGross weight210 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181735098site
Product code 51580site
Sub title Chiller / Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 980 mmsite
External (W×D×H) 1983 × 980 × 970 mmcatalogue
External W × D × H 1983 x 980 x 970 mmsite
Gross / net weight 210 / 166 kgsite
Gross weight 210 kgcatalogue
Height 970 mmsite
Internal (W×D×H) 1798 × 820 × 880 mmcatalogue
Internal W × D × H 1798 x 820 x 880 mmsite
Packed (W×D×H) 2060 × 1066 × 1028 mmcatalogue
Packed W × D × H 2060 x 1066 x 1028 mmsite
Width 1983 mmsite

Capacity2

Display area 1.5 m²site
Gross volume 995 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automatic, hot gassite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 113 gsite
Temperature range -22 to +10site
Thermometer Yessite

Power & energy6

Annual energy consumption 3518 kWh/yearsite
Energy consumption 9.64 kWh/24hsite
Energy efficiency index 45.1 %site
Input power 520 Wsite
Noise level 52 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable feetsite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The View HC is a glass-top display chiller/freezer that puts stock on show from above, with 1.5 m² of display area for merchandising impulse frozen or chilled lines at the front of store. Gross volume is 995 litres and net usable volume is 613 litres. The exterior is finished in anthracite (RAL7016) over a white interior, a cabinet built to sit in the aisle rather than the back room.

Its temperature is adjustable right across -22 to +10 °C, so the same cabinet can be set to run frozen or held at chill as the stock plan changes. Cooling is static with automatic hot-gas defrost, so ice is cleared without manual intervention, and control is electronic. Noise is rated at 52 dB and it carries climate class 3. On energy class D it uses 3518 kWh a year, about £880 a year at 25p/kWh.

It draws 520 W and runs from a 13-amp supply. External dimensions are 1983 × 980 × 970 mm (W×D×H) — just under two metres long and 980 mm deep — so measure access routes before delivery. Gross weight is 210 kg (166 kg net). Cooling uses R290 refrigerant with a 113 g charge.

BEFORE YOU BUY

Questions, answered straight

Its temperature is adjustable across -22 to +10 °C, so the same cabinet can be set to run frozen or held at chill depending on the stock you are merchandising.

External dimensions are 1983 × 980 × 970 mm (W×D×H) — just under two metres long and 980 mm deep. Measure your access route and doorways before delivery, and plan for a 210 kg gross weight.

Gross volume is 995 litres and net usable volume is 613 litres, across a 1.5 m² glass-top display area.

It is energy class D and uses 3518 kWh a year, about £880 a year at 25p/kWh. The real figure depends on your tariff, ambient conditions and how it is set.

It draws 520 W and runs from a 13-amp supply, so a standard socket is enough for a cabinet of this size.

It uses R290 refrigerant with a 113 g charge, static cooling and automatic hot-gas defrost. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1798 x 820 x 880 mm
External Dimension (WxDxH): 1983 x 980 x 970 mm
Packed Dimension (WxDxH): 2060 x 1066 x 1028 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 113 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 9.64 kWh/24h
Temperature Range: -22 to +10 °C
Annual Energy Consumption: 3518 kWh/year m³
EEI: 45.1 %
Input Power: 520 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 52 dB(A)

Measures and Content

Temperature Range: -22 to +10 °C
Climate Class: 3
Gross / Net Weight: 210 / 166 kg
Gross / Net Volume: 995 / 613 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.5 m² m²

Design and Material

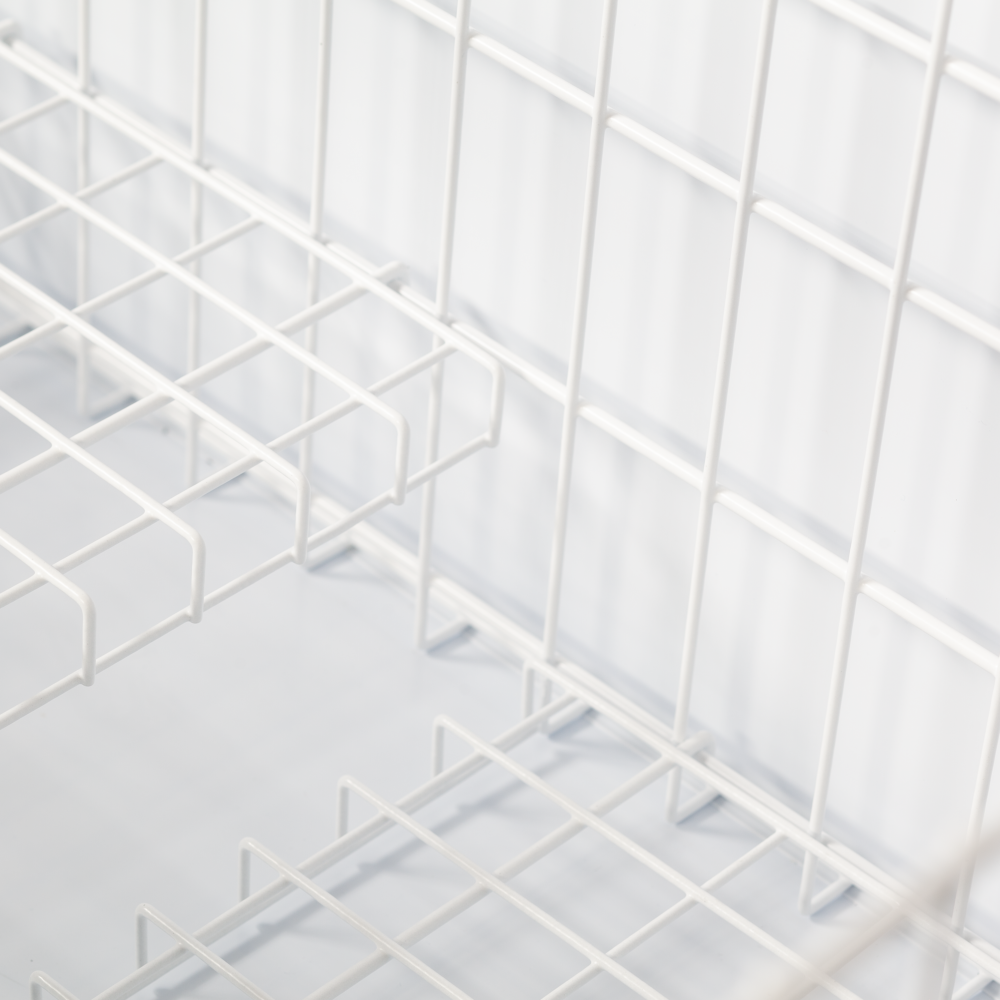

Divider System: Yes
Number of dividers: 2 pcs
Feet / Legs: 4 adjustable feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD View HC Chiller / Freezer then please get in touch.
