TEFCOLD SUPER 220DE RAL7016 High Vision Supermarket Freezer

£1,880.00

+vat

- +

Brand:

SKU: 33553

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • 2 Dividers supplied as standard

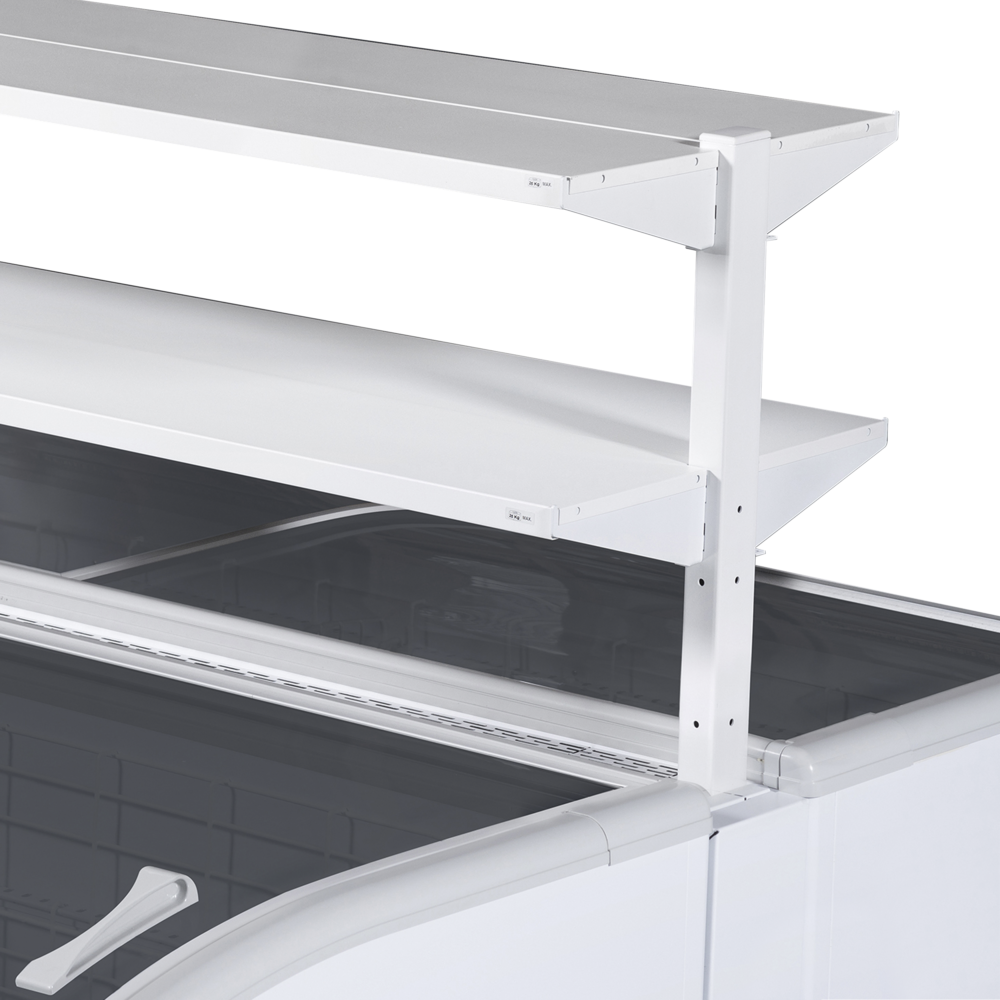

  • Multiplexable,shelving kit options
  • EPOS ticket strip option
  • Defrost drain

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

SPECIFICATION 44 facts · tap for all External W × D × H2220 x 920 x 790 mmWidth2220 mmDepth920 mmGross / net weight190 / 135 kgGross weight190 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181993498site
Product code 33553site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 2220 × 920 × 790 mmcatalogue
External W × D × H 2220 x 920 x 790 mmsite
Gross / net weight 190 / 135 kgsite
Gross weight 190 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 2062 × 774 × 490 mmcatalogue
Internal W × D × H 2062 x 774 x 490 mmsite
Packed (W×D×H) 2310 × 1020 × 850 mmcatalogue
Packed W × D × H 2310 x 1020 x 850 mmsite
Width 2220 mmsite

Capacity2

Display area 1.42 m²site
Gross volume 870 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2573 kWh/yearsite
Energy consumption 7.05 kWh/24hsite
Energy efficiency index 33 %site
Input power 662 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The Tefcold Super 220DE is a high-vision supermarket display freezer built for merchandising frozen lines in high-traffic retail. It offers 870 litres gross and 630 litres net over 1.42 m² of display area, finished in anthracite RAL7016 with a white interior. At 2220 mm wide it forms a substantial frozen run for open browsing.

Day to day it holds -24 to -18 °C with static cooling, automatic defrost and an electronic controller, and is rated to climate class 3 for retail environments. It uses R290 refrigerant with a 60 g charge and runs at 48 dB. At 2573.2 kWh a year it works out to about £643 a year at 25p/kWh, sitting in energy class C with an energy efficiency index of 33% and drawing 662 W; actual running cost varies with your tariff and ambient conditions.

The cabinet measures 2220 × 920 × 790 mm and ships as a 2310 × 1020 × 850 mm packed carton, so measure wide access points before delivery. It weighs 135 kg net and 190 kg gross, and connects to a standard 13-amp supply at 220-240V/50Hz single phase.

BEFORE YOU BUY

Questions, answered straight

870 litres gross and 630 litres net, with 1.42 m² of display area for high-vision merchandising.

-24 to -18 °C with static cooling, automatic defrost and an electronic controller. It is rated to climate class 3 for retail environments.

It is energy class C at 2573.2 kWh a year, about £643 a year at 25p/kWh, drawing 662 W. Actual cost depends on your tariff and ambient conditions.

The cabinet is 2220 mm wide, 920 mm deep and 790 mm high, and the packed carton is 2310 × 1020 × 850 mm. Measure wide access points and plan for a 190 kg gross delivery.

R290 with a 60 g charge, a low-GWP hydrocarbon refrigerant, paired with static cooling.

Yes, our engineers cover installation and servicing across the region. Call 01792 732702 to arrange.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2062 x 774 x 490 mm
External Dimension (WxDxH): 2220 x 920 x 790 mm
Packed Dimension (WxDxH): 2310 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.05 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2573 kWh/year m³
EEI: 33 %
Input Power: 662 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 190 / 135 kg
Gross / Net Volume: 870 / 630 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.42 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 220DE RAL7016 High Vision Supermarket Freezer then please get in touch.
