TEFCOLD SUPER 200HC DE RAL7016 High Vision Supermarket Freezer

£2,105.00

+vat

Brand:

SKU: 33574

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • Defrost drain
  • 2 Dividers supplied as standard

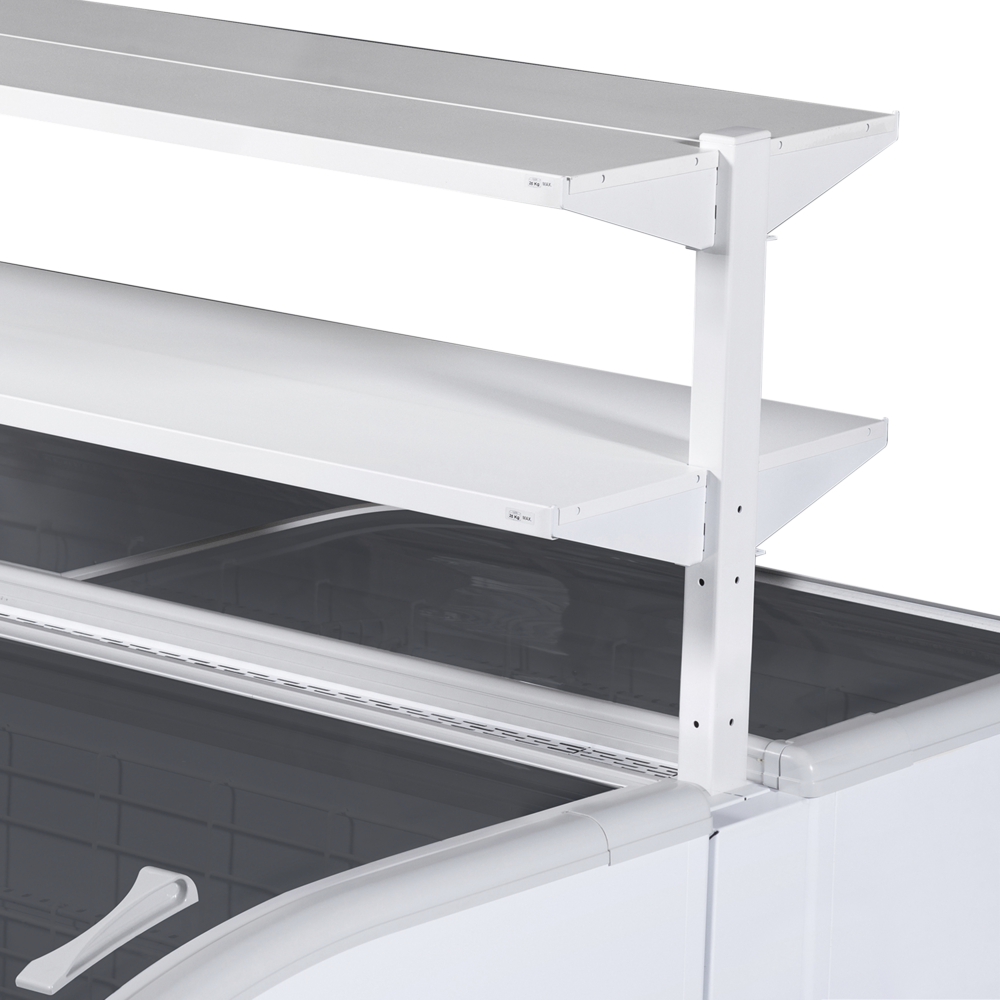

  • Multiplexable,shelving kit options
  • EPOS ticket strip option

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.

The TEFCOLD SUPER 200HC DE is a high-vision supermarket freezer for merchandising frozen stock, holding 430 litres net at -24 to -18 °C across a 1.38 m² glass-top display, running on natural R290 refrigerant with automatic defrost.

SPECIFICATION 44 facts · tap for all External W × D × H1990 x 920 x 790 mmWidth1990 mmDepth920 mmGross / net weight162 / 121 kgGross weight162 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181993696site
Product code 33574site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 1990 × 920 × 790 mmcatalogue
External W × D × H 1990 x 920 x 790 mmsite
Gross / net weight 162 / 121 kgsite
Gross weight 162 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 1834 × 774 × 400 mmcatalogue
Internal W × D × H 1834 x 774 x 400 mmsite
Packed (W×D×H) 2090 × 1020 × 850 mmcatalogue
Packed W × D × H 2090 x 1020 x 850 mmsite
Width 1990 mmsite

Capacity2

Display area 1.38 m²site
Gross volume 540 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2463 kWh/yearsite
Energy consumption 6.75 kWh/24hsite
Energy efficiency index 33 %site
Input power 656 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The TEFCOLD SUPER 200HC DE is a high-vision supermarket freezer with a glass top for clear sight of frozen stock, finished in anthracite (RAL7016) outside and white inside. It offers 540 litres gross and 430 litres net with a 1.38 m² display area, built to merchandise frozen lines where customers browse and self-select. The high-vision format keeps packs visible and shoppable in a retail aisle.

It holds -24 to -18 °C with static cooling and automatic defrost, managed by an electronic controller for steady frozen temperatures. The freezer uses natural R290 hydrocarbon refrigerant and carries an energy class C rating at 2463.8 kWh a year, about £616 a year at 25p/kWh. At 48 dB it suits a shop floor, and it is rated climate class 3.

The interior measures 1834 × 774 × 400 mm (W×D×H) and the freezer weighs 162 kg gross, so plan delivery and positioning for a large, heavy cabinet — packed it is 2090 mm long. It runs from a standard 13 A / 220–240 V supply.

BEFORE YOU BUY

Questions, answered straight

-24 to -18 °C, with static cooling, automatic defrost and an electronic controller.

Natural R290 hydrocarbon refrigerant. It is rated energy class C at 2463.8 kWh a year, about £616 a year at 25p/kWh.

540 litres gross and 430 litres net, across a 1.38 m² high-vision display area.

The interior is 1834 × 774 × 400 mm (W×D×H) and it weighs 162 kg gross; packed length is 2090 mm, so plan access and handling.

Yes — it runs at 48 dB, is rated climate class 3, and is finished in anthracite RAL7016 with a white interior.

A standard 13 A / 220–240 V supply. For servicing or spares call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1834 x 774 x 400 mm
External Dimension (WxDxH): 1990 x 920 x 790 mm
Packed Dimension (WxDxH): 2090 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.75 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2463 kWh/year m³
EEI: 33 %
Input Power: 656 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 162 / 121 kg
Gross / Net Volume: 540 / 430 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.38 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 200HC DE RAL7016 High Vision Supermarket Freezer then please get in touch.
