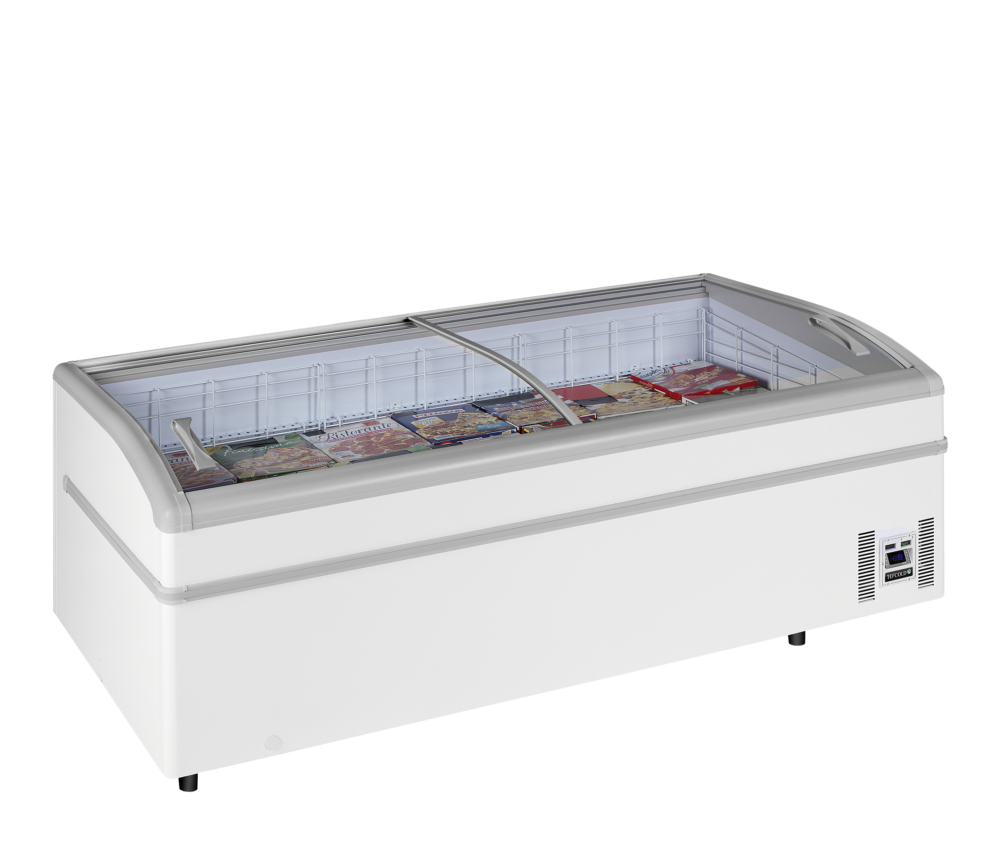

TEFCOLD SUPER 200DE White High Vision Supermarket Freezer

£1,944.00

+vat

Brand:

SKU: 19285

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • Dual temp options available
  • LED interior light with switch
  • Digital controller and temperature display
  • Low maintenance condensor
  • Bumper bars
  • 2 Dividers supplied as standard

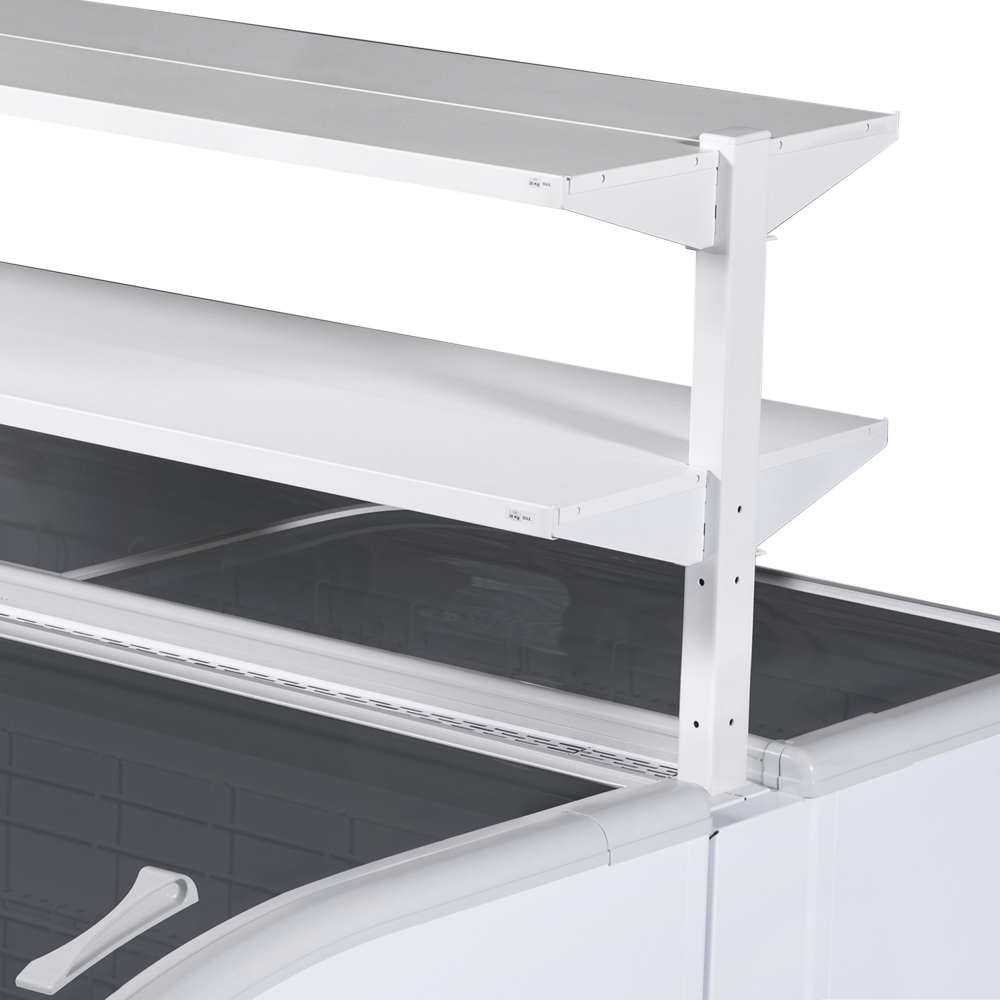

  • Multiplexable,shelving kit options
  • EPOS ticket strip option
  • Defrost drain

Product description

The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market. Arcaboa is known for its high-quality build and reliability.

The TEFCOLD SUPER 200DE is a white high-vision supermarket display freezer holding 800 litres gross (580 litres net) across a 1.29 m² display area, running at -24 to -18 °C on natural R290 refrigerant with static cooling, automatic defrost and a 13 A supply.

SPECIFICATION 44 facts · tap for all External W × D × H2020 x 920 x 790 mmWidth2020 mmDepth920 mmGross / net weight168 / 127 kgGross weight168 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181606985site
Product code 19285site
Sub title High Vision Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 920 mmsite
External (W×D×H) 2020 × 920 × 790 mmcatalogue
External W × D × H 2020 x 920 x 790 mmsite
Gross / net weight 168 / 127 kgsite
Gross weight 168 kgcatalogue
Height 790 mmsite
Internal (W×D×H) 1862 × 773 × 490 mmcatalogue
Internal W × D × H 1862 x 773 x 490 mmsite
Packed (W×D×H) 2110 × 1020 × 850 mmcatalogue
Packed W × D × H 2110 x 1020 x 850 mmsite
Width 2020 mmsite

Capacity2

Display area 1.29 m²site
Gross volume 800 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 60 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2357 kWh/yearsite
Energy consumption 6.46 kWh/24hsite
Energy efficiency index 33 %site
Input power 662 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Dividers 2site
Exterior finish Whitesite
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The TEFCOLD SUPER 200DE is a supermarket display freezer built for high-traffic frozen retail. It presents 1.29 m² of display area across 800 litres of gross capacity (580 litres net usable), finished in white inside and out for a clean retail face on a convenience store, forecourt or supermarket floor where frozen lines need to be seen and reached quickly.

It holds a frozen band of -24 to -18 °C using static cooling with automatic defrost, so there is no manual defrost routine to schedule. An electronic controller manages the temperature, rated running noise is 48 dB, and the cabinet carries a climate class 3 rating. Cooling comes from natural hydrocarbon R290 refrigerant with a 60 g charge.

Externally the cabinet measures 2020 × 920 × 790 mm (W×D×H) and weighs 127 kg net (168 kg gross). The packed size of 2110 × 1020 × 850 mm is worth checking against your delivery route and doorway before it arrives. It runs from a standard 13 A supply drawing 662 W at 220-240 V.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 2020 mm wide and 790 mm high installed, and ships packed at 2110 × 1020 × 850 mm (W×D×H). Measure your delivery route and doorway against the packed size before it arrives.

Rated energy use is 2357.9 kWh a year, which is about £590 a year at 25p/kWh. It carries energy class C with an energy efficiency index of 33%.

It runs at -24 to -18 °C, suited to frozen stock. Static cooling and automatic defrost hold the band without a manual defrost routine.

It connects to a standard 13 A supply and draws 662 W at 220-240 V, 50 Hz. No special installation is needed beyond a suitable socket.

Gross capacity is 800 litres with 580 litres net usable, presented across a 1.29 m² display area.

Yes — our engineers cover installation and servicing; call 01792 732702 to arrange. It uses R290 refrigerant and an electronic controller, both standard for our service team.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1862 x 773 x 490 mm
External Dimension (WxDxH): 2020 x 920 x 790 mm
Packed Dimension (WxDxH): 2110 x 1020 x 850 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 60 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 6.46 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2357 kWh/year m³
EEI: 33 %
Input Power: 662 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 168 / 127 kg
Gross / Net Volume: 800 / 580 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.29 m² m²

Design and Material

Number of dividers: 2 pcs
Feet / Legs: 4 adjustable legs
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD SUPER 200DE White High Vision Supermarket Freezer then please get in touch.
