TEFCOLD MTF210B VS Wall Freezer/Chiller

£4,039.00

+vat

Brand:

SKU: 48704

Energy Arrow

Product summary

  • Easily switchable between cooler and freezer
  • Ideal for optimizing store space
  • Side-to-centre ventilated cooling
  • Requires display chiller/freezer to sit underneath
  • Energy saving variable speed compressor
  • Heated Self-closing glass doors
  • Black exterior
  • Telescopic legs
  • Automatic defrost
  • Requires stand building and cabinet lifting onto stand

Product description

The MTF range of supermarket wall freezers/coolers is ideal for maximising store space with the TEFCOLD SFI Freezer/Cooler beneath. It is easily switchable between cooler and freezer, and features efficient side-to-center ventilated cooling, heated self-closing doors, and automatic defrost. Can be placed against a wall or installed as an island display.

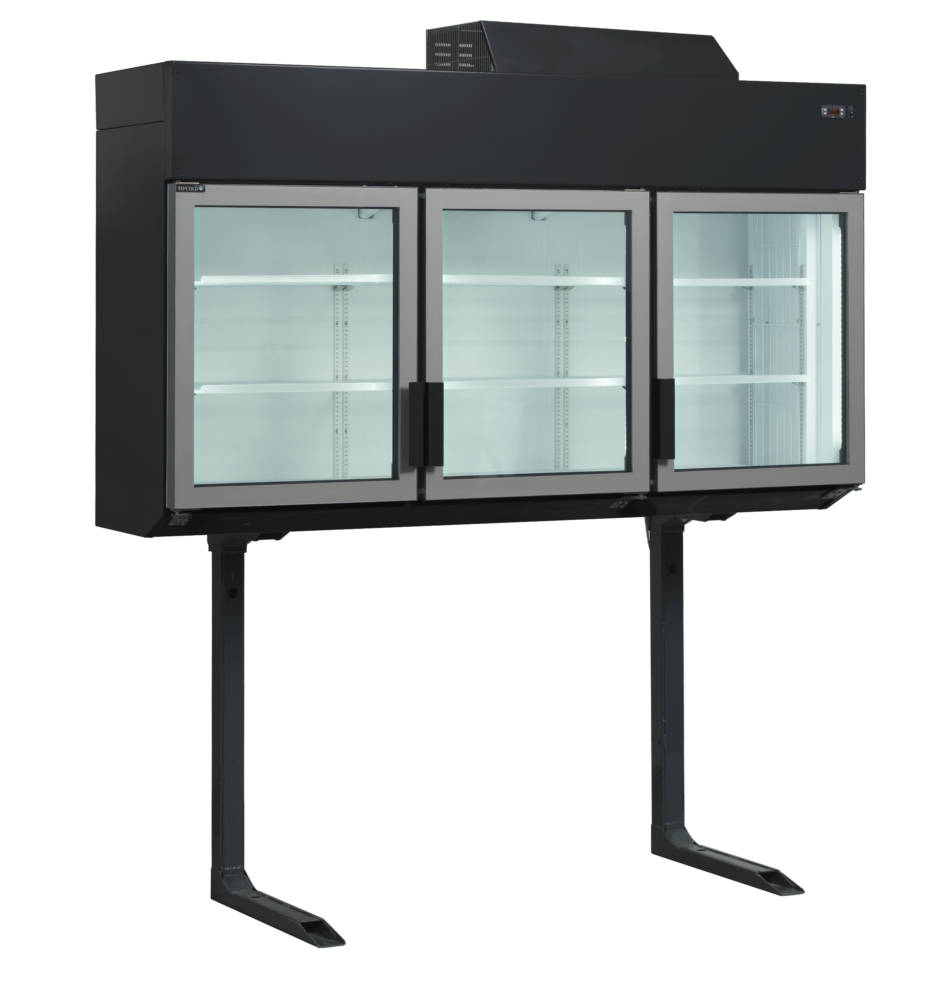

The Tefcold MTF210B VS is a black wall-site display freezer/chiller with three self-closing heated glass doors, 893 litres gross and 628 litres net capacity, ventilated cooling, automatic defrost and natural R290 refrigerant, running from a 13-amp supply at about £683 a year at 25p/kWh.

SPECIFICATION 47 facts · tap for all External W × D × H2100 x 745 x 2430 mmWidth2100 mmDepth745 mmGross / net weight355 / 288 kgGross weight355 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730376site
Product code 48704site
Sub title Wall Freezer/Chillercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 2100 × 745 × 2430 mmcatalogue
External W × D × H 2100 x 745 x 2430 mmsite
Gross / net weight 355 / 288 kgsite
Gross weight 355 kgcatalogue
Height 2430 mmsite
Internal (W×D×H) 1980 × 480 × 947 mmcatalogue
Internal W × D × H 1980 x 480 x 947 mmsite
Packed (W×D×H) 2225 × 790 × 1630 mmcatalogue
Packed W × D × H 2225 x 790 x 1630 mmsite
Width 2100 mmsite

Capacity4

Display area 1.44 m²site
Doors 3catalogue
Gross volume 893 litrescatalogue
Shelves 9catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 145 gsite
Temperature range -24 to -18 / -1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 2732 kWh/yearsite
Energy consumption 7.49 kWh/24hsite
Energy efficiency index 22.6 %site
Input power 900 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Blacksite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 595×423site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

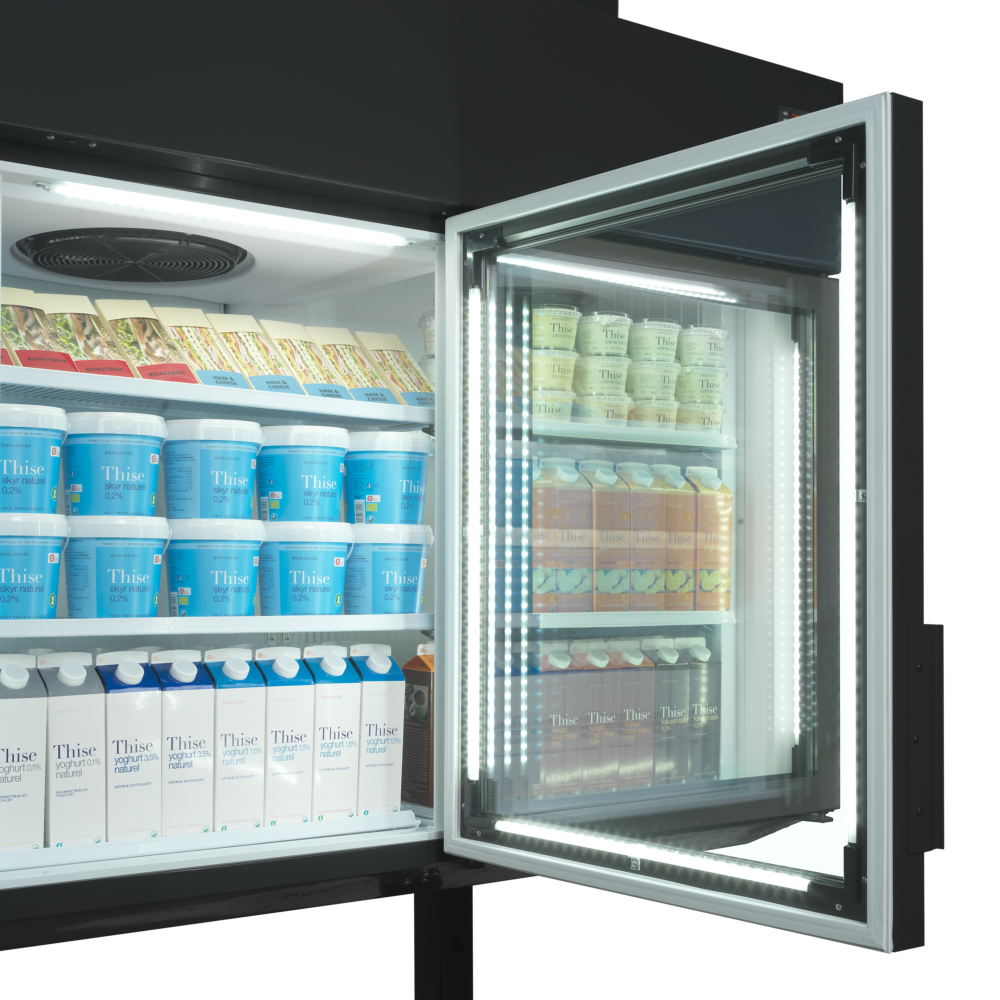

The Tefcold MTF210B VS is a large black-finished wall-site display freezer/chiller fronted by three self-closing heated glass doors, so packaged stock stays visible and lit while the doors seal themselves shut behind each customer. With 893 litres of gross capacity and 628 litres of usable net volume behind a 1.17 m² display, it is built to hold a full range in a single upright footprint.

Cooling is ventilated for even air distribution across the shelves, and defrost is fully automatic, so there is no manual defrost routine. An electronic controller holds the setting, the heated glass doors resist misting front-of-house, and the cabinet is built for climate class 4 ambient conditions. It is rated energy class C with a 22.6% energy efficiency index and a measured 58 dB, and on 2,733.8 kWh a year it costs about £683 to run at 25p/kWh.

It runs on a standard 220–240 V 13-amp supply and uses natural R290 hydrocarbon refrigerant with a 145 g charge. The three doors are self-closing and heated to stay clear. At 288 kg net it is a substantial unit, so plan lifting and positioning accordingly and confirm the delivery route can take a large upright cabinet before it arrives.

BEFORE YOU BUY

Questions, answered straight

Rated energy class C, it uses 2,733.8 kWh a year, which is about £683 at 25p/kWh. Its energy efficiency index is 22.6%.

A standard 220–240 V single-phase 13-amp supply. Fit it to a dedicated socket given the cabinet's size and its door heaters.

The three doors are heated and self-closing, which resists condensation front-of-house and stops them being left open on a busy shop floor.

It is measured at 58 dB, audible up close but manageable in a trading environment. Site it away from quiet seating where you can.

Natural R290 hydrocarbon refrigerant with a 145 g charge, a low-GWP gas standard across commercial display cabinets.

Yes. We handle installation, siting advice and ongoing servicing; call 01792 732702 to arrange delivery or a maintenance visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1980 x 480 x 947 mm
External Dimension (WxDxH): 2100 x 745 x 2430 mm
Packed Dimension (WxDxH): 2225 x 790 x 1630 mm

Cooling and Functions

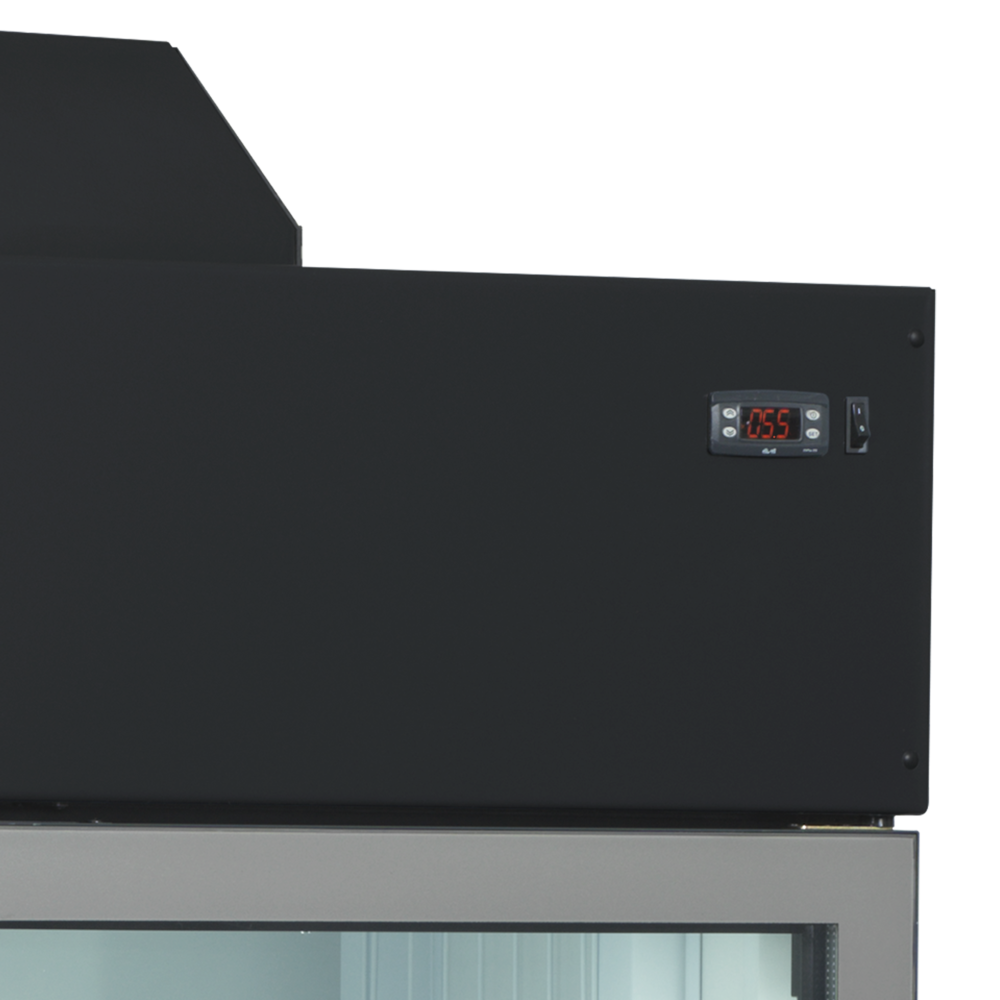

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 145 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.49 kWh/24h
Temperature Range: -24 to -18 / -1 to +8 °C
Annual Energy Consumption: 2732 kWh/year m³
EEI: 22.6 %
Input Power: 900 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: -24 to -18 / -1 to +8 °C
Climate Class: 4
Gross / Net Weight: 355 / 288 kg
Gross / Net Volume: 893 / 628 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1.44 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 595×423
Max load on Shelves: 196 kg/m²
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the TEFCOLD MTF210B VS Wall Freezer/Chiller then please get in touch.
