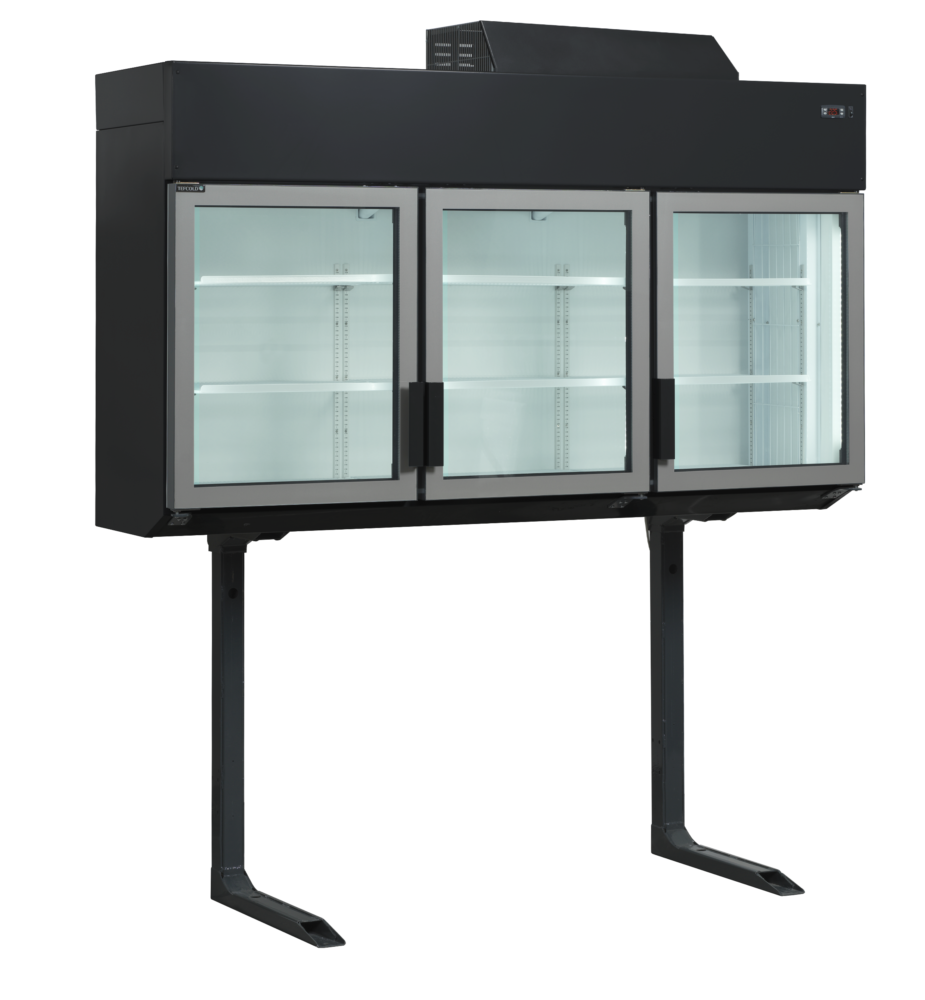

TEFCOLD MTF185B VS Wall Freezer/Chiller

£3,899.00

+vat

Brand:

SKU: 48706

Energy Arrow

Product summary

  • Easily switchable between cooler and freezer
  • Ideal for optimizing store space
  • Side-to-centre ventilated cooling
  • Requires display chiller/freezer to sit underneath
  • Energy saving variable speed compressor
  • Heated Self-closing glass doors
  • Black exterior
  • Telescopic legs
  • Automatic defrost
  • Requires stand building and cabinet lifting onto stand

Product description

The MTF range of supermarket wall freezers/coolers is ideal for maximising store space with the TEFCOLD SFI Freezer/Cooler beneath. It is easily switchable between cooler and freezer, and features efficient side-to-center ventilated cooling, heated self-closing doors, and automatic defrost. Can be placed against a wall or installed as an island display.

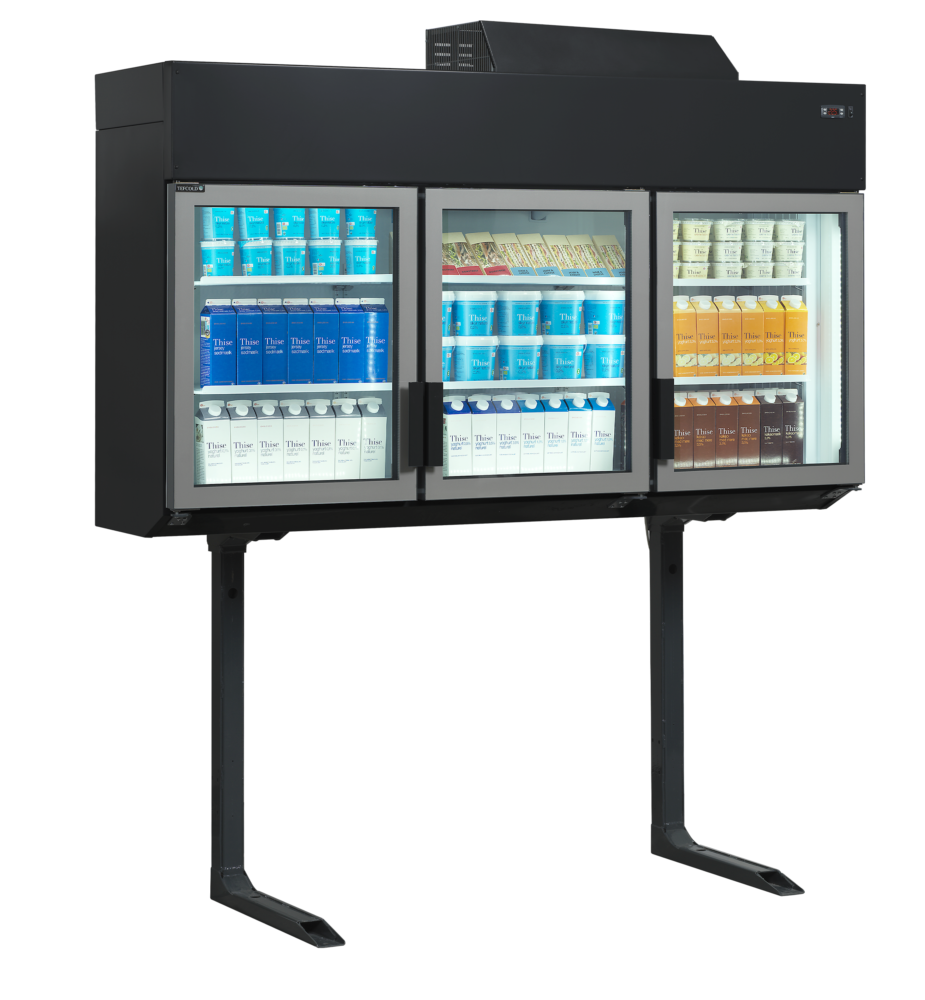

The Tefcold MTF185B VS is a black upright glass-door display cabinet with three self-closing heated glass doors, 779 litres gross (545 litres net) and 1.0 m² of display area, cooled by ventilated R290 refrigeration with automatic defrost and an electronic controller.

SPECIFICATION 47 facts · tap for all External W × D × H1850 x 745 x 2430 mmWidth1850 mmDepth745 mmGross / net weight334 / 272 kgGross weight334 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730390site
Product code 48706site
Sub title Wall Freezer/Chillercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1850 × 745 × 2430 mmcatalogue
External W × D × H 1850 x 745 x 2430 mmsite
Gross / net weight 334 / 272 kgsite
Gross weight 334 kgcatalogue
Height 2430 mmsite
Internal (W×D×H) 1730 × 480 × 947 mmcatalogue
Internal W × D × H 1730 x 480 x 947 mmsite
Packed (W×D×H) 1975 × 790 × 1630 mmcatalogue
Packed W × D × H 1975 x 790 x 1630 mmsite
Width 1850 mmsite

Capacity4

Display area 1 m²site
Doors 3catalogue
Gross volume 779 litrescatalogue
Shelves 9catalogue

Performance10

Climate class 4site

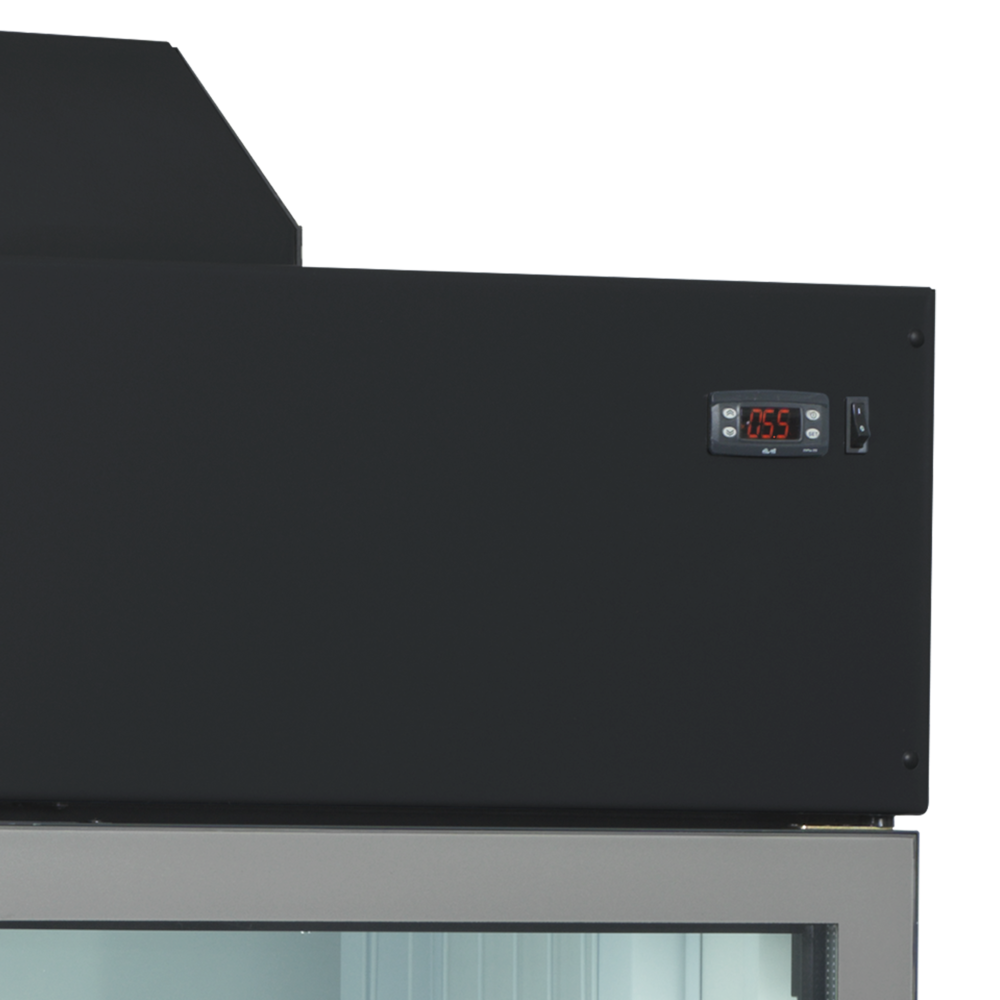

Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 135 gsite
Temperature range -24 to -18 / -1 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 2672 kWh/yearsite
Energy consumption 7.32 kWh/24hsite
Energy efficiency index 24.8 %site
Input power 850 Wsite
Noise level 58 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish Blacksite
Interior light LEDsite
Max load per shelf 196site
Reversible doors Nosite
Shelf dimensions 510×423site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The Tefcold MTF185B VS is a full-height glass-door display cabinet built to front a large range through three self-closing heated glass doors. With 779 litres of gross volume, 545 litres net and 1.0 m² of display area, it carries serious capacity behind a black exterior and a white painted-steel interior. The self-closing doors keep the cabinet shut between customers, and the heated glass helps the fronts stay clear for a full view of the stock.

Day to day it uses ventilated cooling with automatic defrost and an electronic controller, giving even air movement across the load and a clear setting to work from. It runs on R290 hydrocarbon refrigerant with a 135 g charge at climate class 4, and runs at a measured 58 dB(A). Rated energy class C, it uses 2672 kWh a year — about £668 a year at 25p/kWh.

The cabinet has an internal footprint of 1730 × 480 × 947 mm (W×D×H) and connects at 220-240V/50Hz, so confirm your circuit and measure your access route before delivery. It is a heavy unit at 334 kg gross (272 kg net), so plan lifting equipment and a clear path into position, with clearance for the three doors to swing.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 779 litres and net capacity is 545 litres, fronted across 1.0 m² of display area behind three doors. Net figures reflect usable space once internal fittings are accounted for.

Rated energy class C, it uses 2672 kWh a year — about £668 a year at 25p/kWh. Your actual cost depends on tariff, ambient conditions and door traffic.

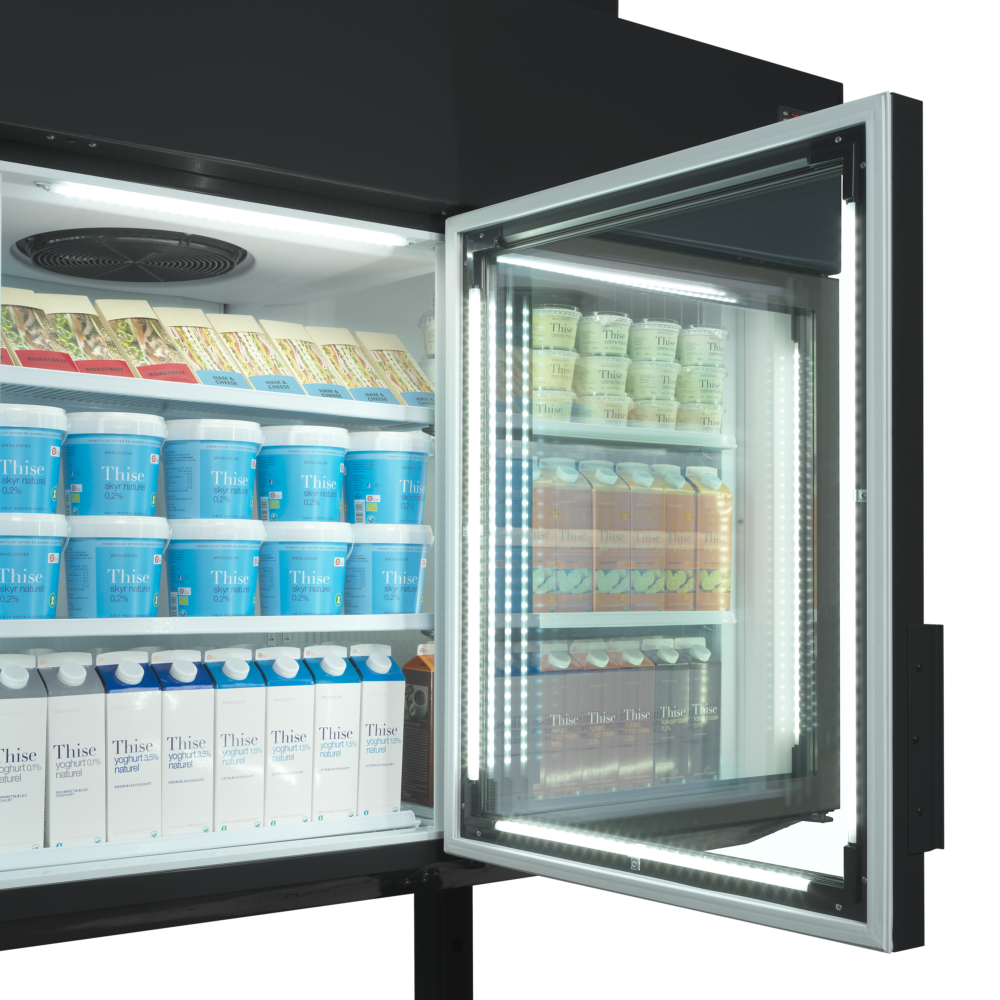

The three doors are self-closing, so they shut on their own between customers, and the heated glass helps keep the fronts clear for an unobstructed view of the stock. That keeps the range visible and the cabinet sealed in busy trading.

It has a 1730 × 480 × 947 mm (W×D×H) internal footprint and weighs 334 kg gross. Measure your access route and plan lifting equipment and clearance for the doors before delivery.

It runs on R290 hydrocarbon refrigerant with a 135 g charge and connects at 220-240V/50Hz. Confirm the circuit rating for your site before installation.

Yes. We service and support the cabinets we supply — call the team on 01792 732702 to arrange a visit or discuss a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1730 x 480 x 947 mm
External Dimension (WxDxH): 1850 x 745 x 2430 mm
Packed Dimension (WxDxH): 1975 x 790 x 1630 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 135 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.32 kWh/24h
Temperature Range: -24 to -18 / -1 to +8 °C
Annual Energy Consumption: 2672 kWh/year m³
EEI: 24.8 %
Input Power: 850 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 58 dB(A)

Measures and Content

Temperature Range: -24 to -18 / -1 to +8 °C
Climate Class: 4
Gross / Net Weight: 334 / 272 kg
Gross / Net Volume: 779 / 545 l
Max Ambient: +30°C, 55% RH
Total Display Area: 1 m² m²

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: 510×423
Max load on Shelves: 196 kg/m²
Exterior Finish: Black
Interior Finish: Black
Interior Light: LED
If you have any questions about the TEFCOLD MTF185B VS Wall Freezer/Chiller then please get in touch.
