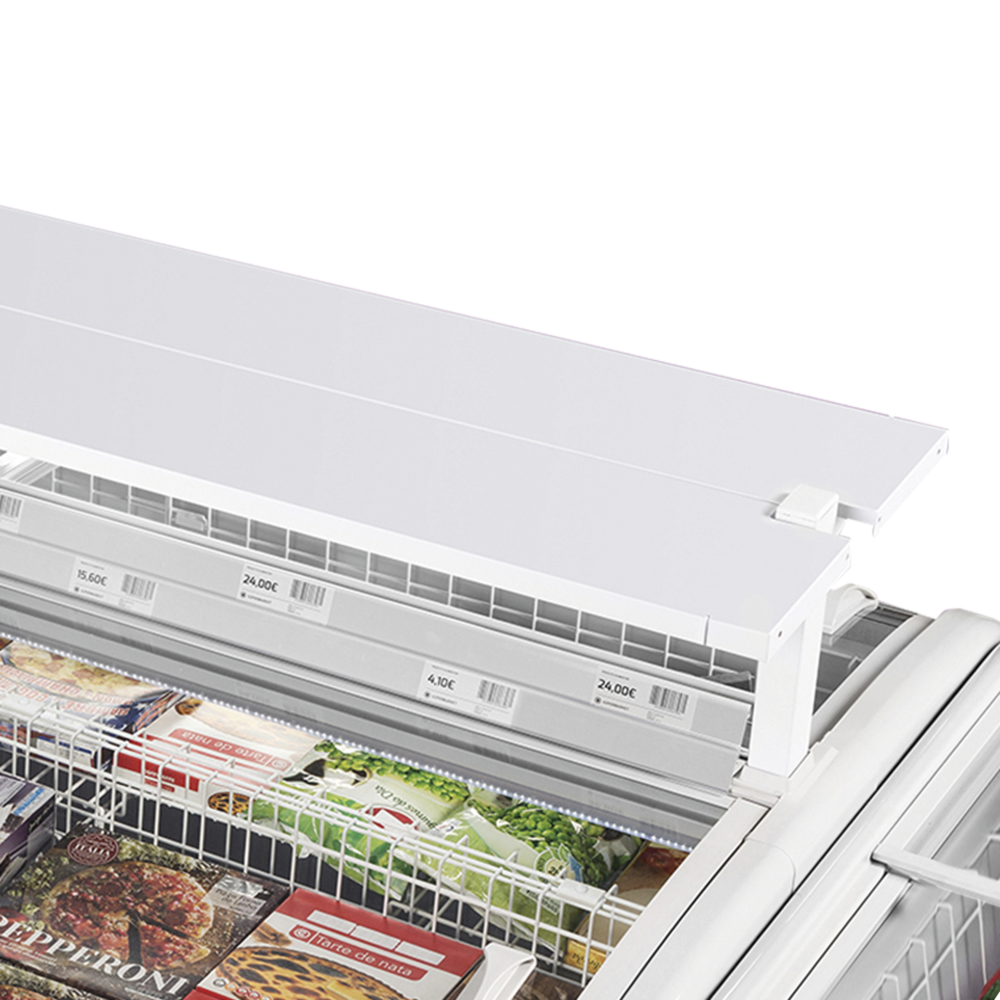

TEFCOLD DUPLA 2.2DE HC White High Vision Freezer

£1,862.00

+vat

Brand:

SKU: 30830

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • LED interior light with switch
  • Digital controller and temperature display
  • Fan assisted self cleaning condenser
  • Defrost drain
  • Bumper bars
  • Low energy consumption
  • High internal volume with small footprint
  • Shelving and ticket strips are optional extra – POA

Product description

The Dupla is an innovative solution, designed to create maximum storage and display area in a small footprint. Instead of having two freezers back to back, the Dupla is built as a single “back to back” island site freezer. By removing the dividing wall that would normally be between the 2 units a significant amount of space is created. Using an advanced refrigeration system, the cabinet uses significantly less energy rather than two traditional back to back systems. Save space, increase display area and reduce running costs.

The TEFCOLD DUPLA 2.2DE HC is a 1470 mm wide display chest freezer holding 334 litres net at -24 to -18 °C in energy class C — about £374 a year to run at 25p/kWh — for supermarket and convenience store frozen impulse lines.

SPECIFICATION 43 facts · tap for all External W × D × H1470 x 812 x 915 mmWidth1470 mmDepth812 mmGross / net weight125 / 85 kgGross weight125 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991678site
Product code 30830site
Sub title High Vision Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 812 mmsite
External (W×D×H) 1470 × 812 × 915 mmcatalogue
External W × D × H 1470 x 812 x 915 mmsite
Gross / net weight 125 / 85 kgsite
Gross weight 125 kgcatalogue
Height 915 mmsite
Internal (W×D×H) 1190 × 605 × 620 mmcatalogue
Internal W × D × H 1190 x 605 x 620 mmsite
Packed (W×D×H) 1530 × 1000 × 1050 mmcatalogue
Packed W × D × H 1530 x 1000 x 1050 mmsite
Width 1470 mmsite

Capacity2

Display area 0.65 m²site
Gross volume 425 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 80 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1496 kWh/yearsite
Energy consumption 4.1 kWh/24hsite
Energy efficiency index 34 %site
Input power 267 Wsite
Noise level 46 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The TEFCOLD DUPLA 2.2DE HC is a white display chest freezer from TEFCOLD's High Vision range, holding 334 litres net — 425 litres gross — with 0.65 m² of display area. At 915 mm tall it sits at browsing height, putting frozen impulse stock where customers can reach straight in, and its 1470 mm width gives a proper run of frozen display in the middle of a store or at the end of an aisle.

It holds -24 to -18 °C — a genuine storage-grade frozen band, not just display temperature — using static cooling with automatic defrost and an electronic controller. It is quiet at 46 dB(A) and rated to climate class 3. The efficiency is the headline: energy class C, using 1496.5 kWh a year, which works out at about £374 a year at 25p/kWh — unusually low for frozen display.

Installation needs little planning: the cabinet measures 1470 × 812 × 915 mm, weighs 85 kg net, and runs from a standard 13 A socket at 220-240 V, drawing just 267 W. Packed size is 1530 × 1000 × 1050 mm for delivery route checks. The refrigerant is R290, a low-GWP hydrocarbon, with an 80 g charge.

BEFORE YOU BUY

Questions, answered straight

It holds -24 to -18 °C, which is a full frozen storage band, not a display-only compromise. Stock merchandised in it is held at the same temperatures you would expect from a storage freezer.

It is energy class C — strong for frozen display — using 1496.5 kWh a year, about £374 a year at 25p/kWh. The Energy label decoder below converts that to your own tariff.

The cabinet is 1470 mm wide, 812 mm deep and 915 mm tall, packed at 1530 × 1000 × 1050 mm, so check the delivery route against the packed size. Its counter-height format suits aisle ends and centre-store positions where customers reach in from above.

No. It runs from a standard 13 A plug at 220-240 V and draws only 267 W, so any sound standard socket will do.

No — it uses static cooling with automatic defrost, managed by an electronic controller, so there is no manual defrost routine to schedule.

Craven Cooling supplies and supports commercial refrigeration across the UK. For servicing, parts or a breakdown, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1190 x 605 x 620 mm
External Dimension (WxDxH): 1470 x 812 x 915 mm
Packed Dimension (WxDxH): 1530 x 1000 x 1050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.1 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 1496 kWh/year m³
EEI: 34 %
Input Power: 267 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 46 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 125 / 85 kg
Gross / Net Volume: 425 / 334 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.65 m² m²

Design and Material

Feet / Legs: 4 adjustable legs
Exterior Finish: White
Interior Finish: White
Interior Light: LED
If you have any questions about the TEFCOLD DUPLA 2.2DE HC White High Vision Freezer then please get in touch.
