TEFCOLD 1100CHV WH Island Site Freezer

£1,814.00

+vat

Brand:

SKU: 19273

Energy Arrow

Product summary

  • Flat sliding lids
  • Static cooling
  • Adjustable feet
  • Thermometer
  • Low maintenance condensor
  • Bumper bars 1100CHV has a central partition
  • Twin controllers on 1100CHV
  • Defrost drain

Product description

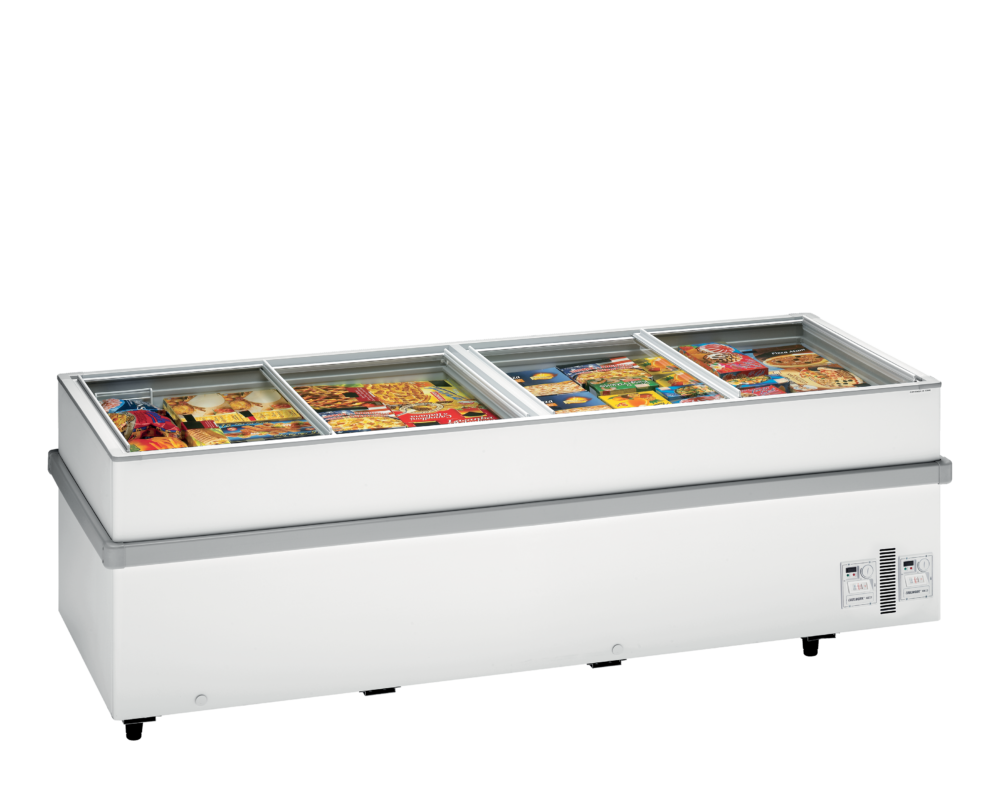

The excellent CHV range from Arcaboa is the industry standard for quality island site chest freezers. The 1100CHV is the most popular version with its huge 1032 litre capacity and large glass lids to create a great display. All controls are on the outside of the unit along with a temperature display. One of our best selling cabinets.

The TEFCOLD 1100CHV WH is a 2500 mm-wide white island site display freezer offering 805 litres of net capacity, static cooling, manual defrost and electronic control, running on R290 refrigerant from a standard 13 A supply.

SPECIFICATION 43 facts · tap for all External W × D × H2500 x 960 x 780 mmWidth2500 mmDepth960 mmGross / net weight200 / 125 kgGross weight200 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181606862site
Product code 19273site
Sub title Island Site Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 960 mmsite
External (W×D×H) 2500 × 960 × 780 mmcatalogue
External W × D × H 2500 x 960 x 780 mmsite
Gross / net weight 200 / 125 kgsite
Gross weight 200 kgcatalogue
Height 780 mmsite
Internal (W×D×H) 2280 × 790 × 485 mmcatalogue
Internal W × D × H 2280 x 790 x 485 mmsite
Packed (W×D×H) 2590 × 1030 × 840 mmcatalogue
Packed W × D × H 2590 x 1030 x 840 mmsite
Width 2500 mmsite

Capacity2

Display area 1.36 m²site
Gross volume 1032 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 85 gsite
Temperature range -22 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1789 kWh/yearsite
Energy consumption 4.9 kWh/24hsite
Energy efficiency index 24.74 %site
Input power 545 Wsite
Noise level 48 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Whitesite
Feet / legs 4 adjustable legssite
Interior light LED as optionsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The 1100CHV WH is a white island site display freezer built to sit as a standalone unit and let shoppers reach frozen product from every side. At 2500 mm wide it is a large-footprint merchandising freezer for frozen lines in the middle of the floor rather than against a wall.

It runs under an electronic controller using static cooling with a manual defrost that needs clearing periodically, at a rated 48 dB and a climate class 3 rating for normal indoor conditions. At 1788.5 kWh a year it works out at about £447 a year at 25p/kWh, before your own tariff is applied.

The freezer measures 2500 × 960 × 780 mm (W×D×H) externally with 2280 × 790 × 485 mm of internal space, giving a gross 1032 litres and net 805 litres. It weighs 125 kg net and ships packed at 2590 × 1030 × 840 mm, so check the packed width against your delivery route. It runs from a standard 13 A supply at 220-240 V/50 Hz, draws 545 W and uses R290 refrigerant with a 95 g charge.

BEFORE YOU BUY

Questions, answered straight

It is rated at 1788.5 kWh a year. At 25p/kWh that is about £447 a year, before your own tariff is applied.

It offers a gross 1032 litres and net 805 litres, in an open island format accessible from all sides.

No. It uses static cooling with a manual defrost, so it needs clearing down periodically as part of routine cleaning.

It measures 2500 × 960 × 780 mm (W×D×H) and ships packed at 2590 × 1030 × 840 mm. Check the packed width against doorways on the delivery path.

No. It runs from a standard 13 A supply at 220-240 V/50 Hz and draws 545 W, using R290 refrigerant with a 95 g charge.

Yes. Craven Cooling can arrange servicing and support once the freezer is in place — call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2280 x 790 x 485 mm
External Dimension (WxDxH): 2500 x 960 x 780 mm
Packed Dimension (WxDxH): 2590 x 1030 x 840 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 2 x 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.9 kWh/24h
Temperature Range: -22 to -18 °C
Annual Energy Consumption: 1789 kWh/year m³
EEI: 24.74 %
Input Power: 545 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 48 dB(A)

Measures and Content

Temperature Range: -22 to -18 °C
Climate Class: 3
Gross / Net Weight: 200 / 125 kg
Gross / Net Volume: 1032 / 805 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.36 m² m²

Design and Material

Feet / Legs: 4 adjustable legs
Exterior Finish: White
Interior Finish: White
Interior Light: LED as option
If you have any questions about the TEFCOLD 1100CHV WH Island Site Freezer then please get in touch.
