TEFCOLD DUPLA 2.2DE HC RAL7016 Supermarket Freezer

£1,770.00

+vat

- +

Brand:

SKU: 34021

Energy Arrow

Product summary

  • Curved sliding lids
  • Static cooling
  • Automatic defrost
  • LED interior light with switch
  • Digital controller and temperature display
  • Fan assisted self cleaning condenser
  • Defrost drain
  • Bumper bars
  • Low energy consumption
  • High internal volume with small footprint

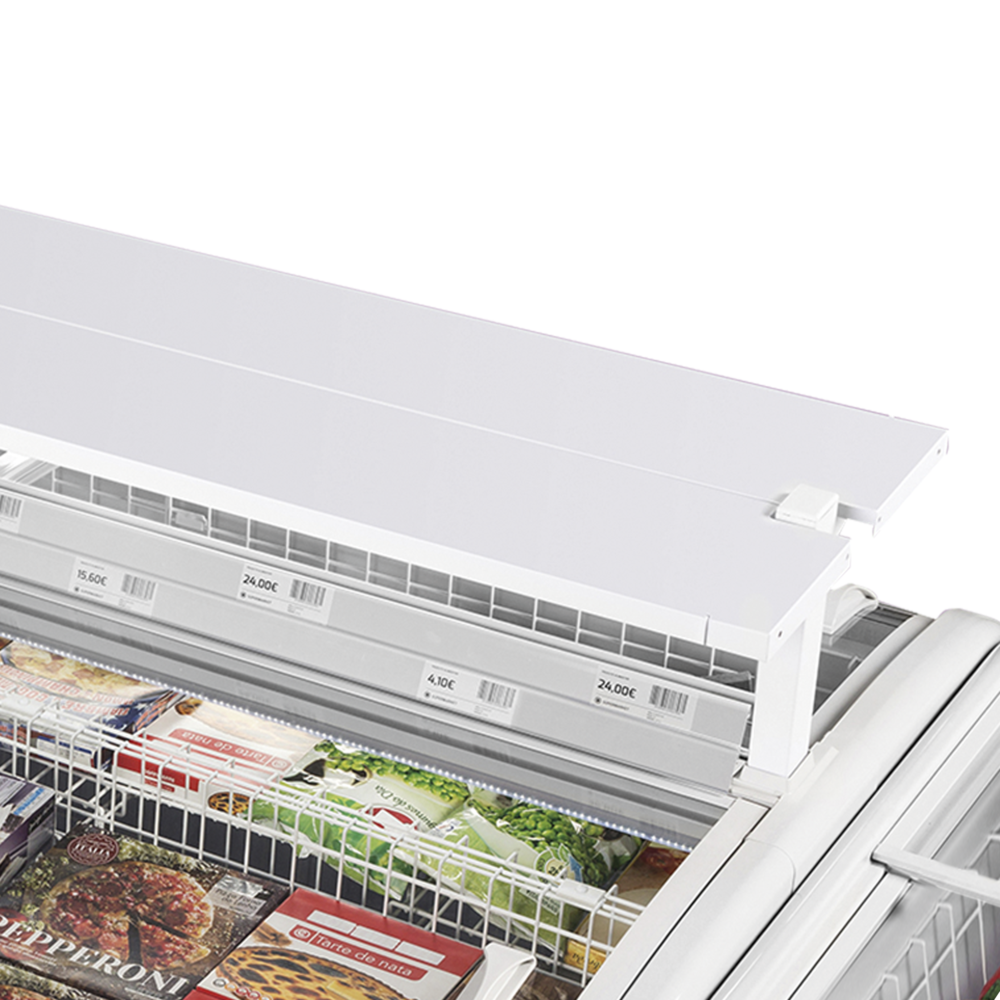

  • Shelving and ticket strips are optional extra – POA

Product description

The Dupla is an innovative solution, designed to create maximum storage and display area in a small footprint. Instead of having two freezers back to back, the Dupla is built as a single “back to back” island site freezer. By removing the dividing wall that would normally be between the 2 units a significant amount of space is created. Using an advanced refrigeration system, the cabinet uses significantly less energy rather than two traditional back to back systems. Save space, increase display area and reduce running costs.

SPECIFICATION 42 facts · tap for all External W × D × H1470 x 812 x 915 mmWidth1470 mmDepth812 mmGross / net weight125 / 85 kgGross weight125 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181994600site
Product code 34021site
Sub title Supermarket Freezercatalogue
Type Supermarket Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 812 mmsite
External (W×D×H) 1470 × 812 × 915 mmcatalogue
External W × D × H 1470 x 812 x 915 mmsite
Gross / net weight 125 / 85 kgsite
Gross weight 125 kgcatalogue
Height 915 mmsite
Internal (W×D×H) 1190 × 605 × 620 mmcatalogue
Internal W × D × H 1190 x 605 x 620 mmsite
Packed (W×D×H) 1530 × 1000 × 1050 mmcatalogue
Packed W × D × H 1530 x 1000 x 1050 mmsite
Width 1470 mmsite

Capacity2

Display area 0.65 m²site
Gross volume 425 litrescatalogue

Performance10

Climate class 3site
Controller Electronicsite
Cooling type Staticsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 80 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 1496 kWh/yearsite
Energy consumption 4.1 kWh/24hsite
Energy efficiency index 34 %site
Input power 267 Wsite
Noise level 46 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Exterior finish Anthracite RAL7016site
Feet / legs 4 adjustable legssite
Interior light LEDsite

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this supermarket freezer earns its place

The Tefcold DUPLA 2.2DE HC RAL7016 is a supermarket display freezer built to move frozen impulse lines. Its 0.65 m² display area presents 425 litres of gross volume (334 litres net) across a 1470 mm-wide cabinet, putting frozen product where shoppers reach it. The anthracite RAL7016 exterior and white interior suit a customer-facing aisle or a back-of-house run.

The cabinet holds a -24 to -18 °C band under static cooling with automatic defrost and an electronic controller, keeping frozen stock hard through trading. It uses R290 hydrocarbon refrigerant with an 80 g charge and runs at 46 dB. It carries climate class 3, rated for ambient temperatures up to 25 °C. At energy class C it draws 1496.5 kWh a year — about £374 a year at 25p/kWh.

Externally it measures 1470 mm wide, 812 mm deep and 915 mm tall, and ships boxed at 1530 × 1000 × 1050 mm, so measure your doorways and access route against the packed figure before delivery. It runs from a standard 13-amp socket on a 220–240 V supply, draws 267 W, and weighs 125 kg gross, 85 kg net.

BEFORE YOU BUY

Questions, answered straight

It is energy class C and uses 1496.5 kWh a year, roughly £374 a year at 25p/kWh. Your actual cost depends on your tariff.

A -24 to -18 °C band under static cooling with automatic defrost, set on an electronic controller.

The cabinet is 1470 mm wide, 812 mm deep and 915 mm tall, and 1530 × 1000 × 1050 mm boxed. Check your narrowest access point against the packed dimensions before it arrives.

A standard 13-amp socket on a 220–240 V supply. It draws 267 W in use.

R290 hydrocarbon refrigerant with an 80 g charge, contributing to its energy class C rating.

Yes. Craven Cooling runs its own service operation and can support Tefcold cabinets in the field. Call 01792 732702 to arrange a visit or talk a fault through.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1190 x 605 x 620 mm
External Dimension (WxDxH): 1470 x 812 x 915 mm
Packed Dimension (WxDxH): 1530 x 1000 x 1050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.1 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 1496 kWh/year m³
EEI: 34 %
Input Power: 267 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 46 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 125 / 85 kg
Gross / Net Volume: 425 / 334 l
Max Ambient: +25°C, 60% RH
Total Display Area: 0.65 m² m²

Design and Material

Feet / Legs: 4 adjustable legs
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD DUPLA 2.2DE HC RAL7016 Supermarket Freezer then please get in touch.
