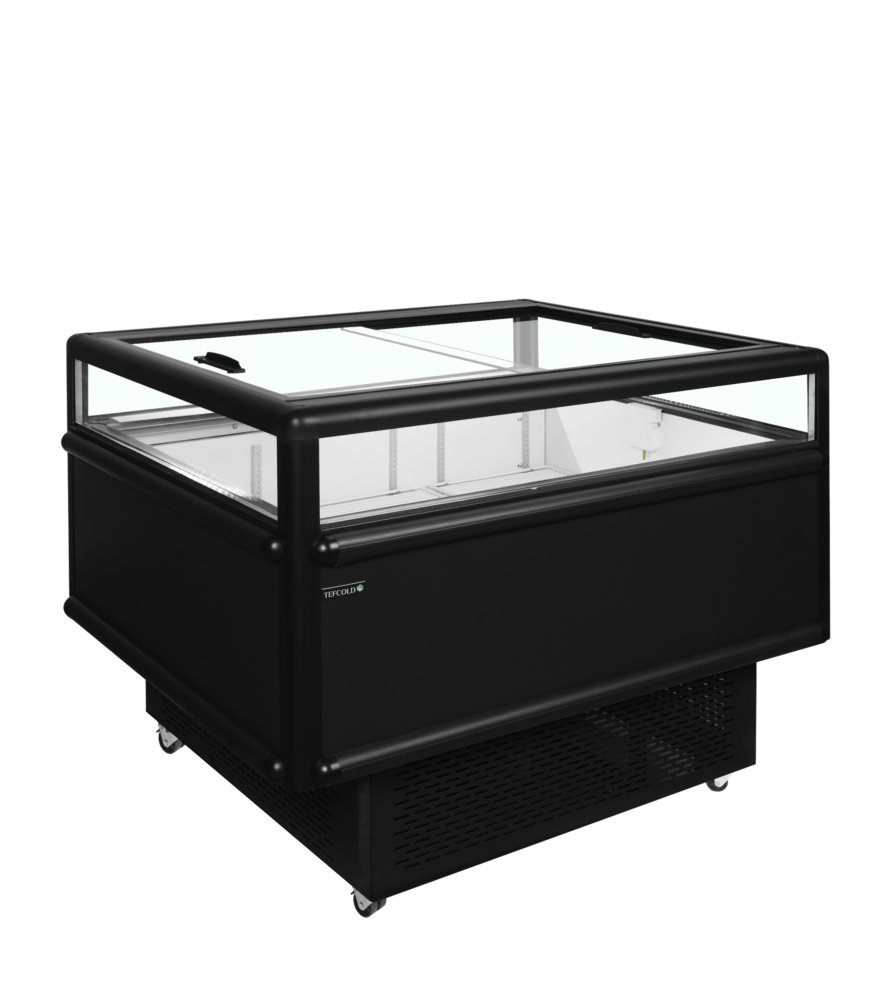

TEFCOLD UHD201 /Black Impulse Chiller/Freezer

£2,191.00

+vat

Brand:

SKU: 48826

Energy Arrow

Product summary

  • Freezer / Chiller
  • Dual temperature
  • Ideal for impulse buys and promotions

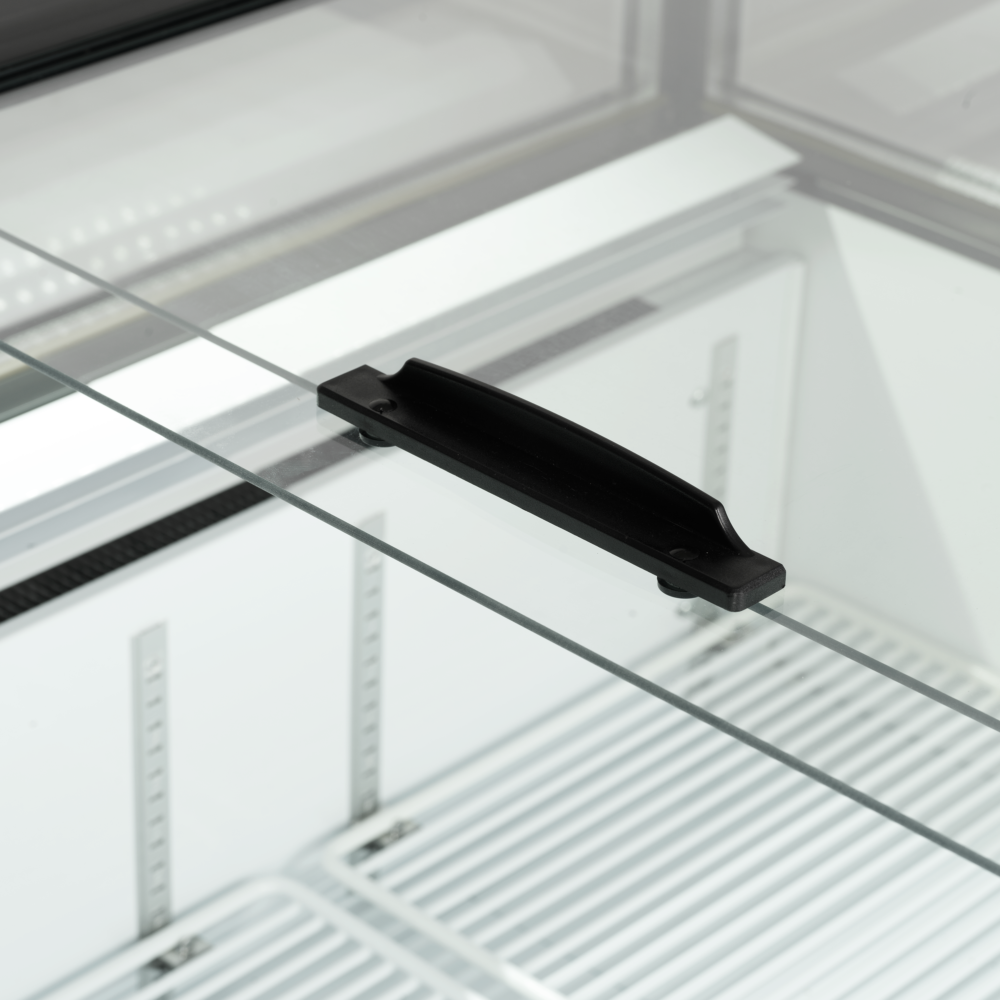

  • Sliding glass lids
  • Glass sides for better presentation of products
  • Impressive storage space
  • Ventilated cooling
  • Bumper bars on 4 sides
  • Castors with brake

Product description

Versatile chiller/freezer, designed to drive impulse sales

The UHD201 /Black offers unparalleled flexibility in refrigeration solutions for retail environments. Easily switch between freezer and cooling functions, and with sturdy castors, it can be effortlessly relocated within the store. Despite its compact size, this chiller/freezer provides an impressive storage capacity and 360-degree product visibility, making it a versatile and visually appealing option for your store. The ample space below the glass sides allows for personalised branding.

The TEFCOLD UHD201 Black Impulse Chiller/Freezer is an open-front impulse display cabinet with 0.84 m² of glass-fronted display and 165 litres of net capacity, using R290 refrigerant with automatic hot-gas defrost at energy class F and costing about £1008 a year at 25p/kWh.

SPECIFICATION 41 facts · tap for all External W × D × H1255 x 1015 x 962 mmWidth1255 mmDepth1015 mmGross / net weight142 / 132 kgGross weight142 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730802site
Product code 48826site
Sub title Impulse Chiller/Freezercatalogue
Type Impulse Cooler/Freezercatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1015 mmsite
External (W×D×H) 1255 × 1015 × 962 mmcatalogue
External W × D × H 1255 x 1015 x 962 mmsite
Gross / net weight 142 / 132 kgsite
Gross weight 142 kgcatalogue
Height 962 mmsite
Internal (W×D×H) 1075 × 705 × 295 mmcatalogue
Internal W × D × H 1075 x 705 x 295 mmsite
Packed (W×D×H) 1400 × 1100 × 1120 mmcatalogue
Packed W × D × H 1400 x 1100 x 1120 mmsite
Width 1255 mmsite

Capacity2

Display area 0.84 m²site
Gross volume 200 litrescatalogue

Performance8

Climate class 3site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 310 gsite
Temperature range -2 to 5 / -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 4032 kWh/yearsite
Energy consumption 11.05 kWh/24hsite
Energy efficiency index 79.4 %site
Input power 661 Wsite
Noise level 50 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Black/Glasssite
Interior light LED Horizontalsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this impulse cooler/freezer earns its place

The TEFCOLD UHD201 Black Impulse Chiller/Freezer is an open-front impulse merchandiser built to sit at the point of sale and turn browsing into an extra basket item. Its black-and-glass front presents 0.84 m² of display, with a gross volume of 200 litres and 165 litres of net usable space for packed food and drink. The format is designed to be seen into and reached straight into, placing impulse stock where footfall already is.

Cooling is ventilated for even air movement across the load, and defrost is automatic on a hot-gas cycle, so there is no manual defrost to schedule. An electronic controller manages operation. The cabinet carries an energy class of F, draws 4033.3 kWh a year — about £1008 a year at 25p/kWh — and runs at a measured 50 dB, quiet enough for a shop floor or counter position.

The interior measures 1075 × 705 × 295 mm (W×D×H). Packed for transport the cabinet measures 1400 × 1100 × 1120 mm and weighs 142 kg gross, 132 kg net, so plan delivery access and final siting accordingly. It runs from a 220-240 V supply and draws 661 W. Refrigerant is R290 hydrocarbon with a 310 g charge, a low-GWP gas standard on efficient modern cabinets.

BEFORE YOU BUY

Questions, answered straight

The interior is 1075 × 705 × 295 mm and it ships packed at 1400 × 1100 × 1120 mm. Plan your delivery route and final position around a gross weight of 142 kg.

It draws 4033.3 kWh a year at energy class F, which is about £1008 a year at 25p/kWh. Your actual figure depends on your tariff and how it is sited.

Defrost is automatic on a hot-gas cycle, managed by the electronic controller, so there is no manual defrost routine to run.

It runs at a measured 50 dB, which suits a counter or front-of-house position without dominating the space.

It uses R290 hydrocarbon refrigerant with a 310 g charge, a low-GWP gas standard on efficient modern cabinets.

It runs from a 220-240 V supply and draws 661 W. For installation advice or servicing, call our team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1075 x 705 x 295 mm
External Dimension (WxDxH): 1255 x 1015 x 962 mm
Packed Dimension (WxDxH): 1400 x 1100 x 1120 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 310 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.05 kWh/24h
Temperature Range: -2 to 5 / -24 to -18 °C
Annual Energy Consumption: 4032 kWh/year m³
EEI: 79.4 %
Input Power: 661 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 50 dB(A)

Measures and Content

Temperature Range: -2 to 5 / -24 to -18 °C
Climate Class: 3
Gross / Net Weight: 142 / 132 kg
Gross / Net Volume: 200 / 165 l
Total Display Area: 0.84 m² m²

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: Black/Glass
Interior Finish: Black/Glass
Interior Light: LED Horizontal
If you have any questions about the TEFCOLD UHD201 /Black Impulse Chiller/Freezer then please get in touch.
