TEFCOLD ST401 Hinged Glass Lid Chest Freezer

£615.00

+vat

Brand:

SKU: 52268

Energy Arrow

Product summary

  • Flat hinged glass lid
  • Static cooling
  • Castors

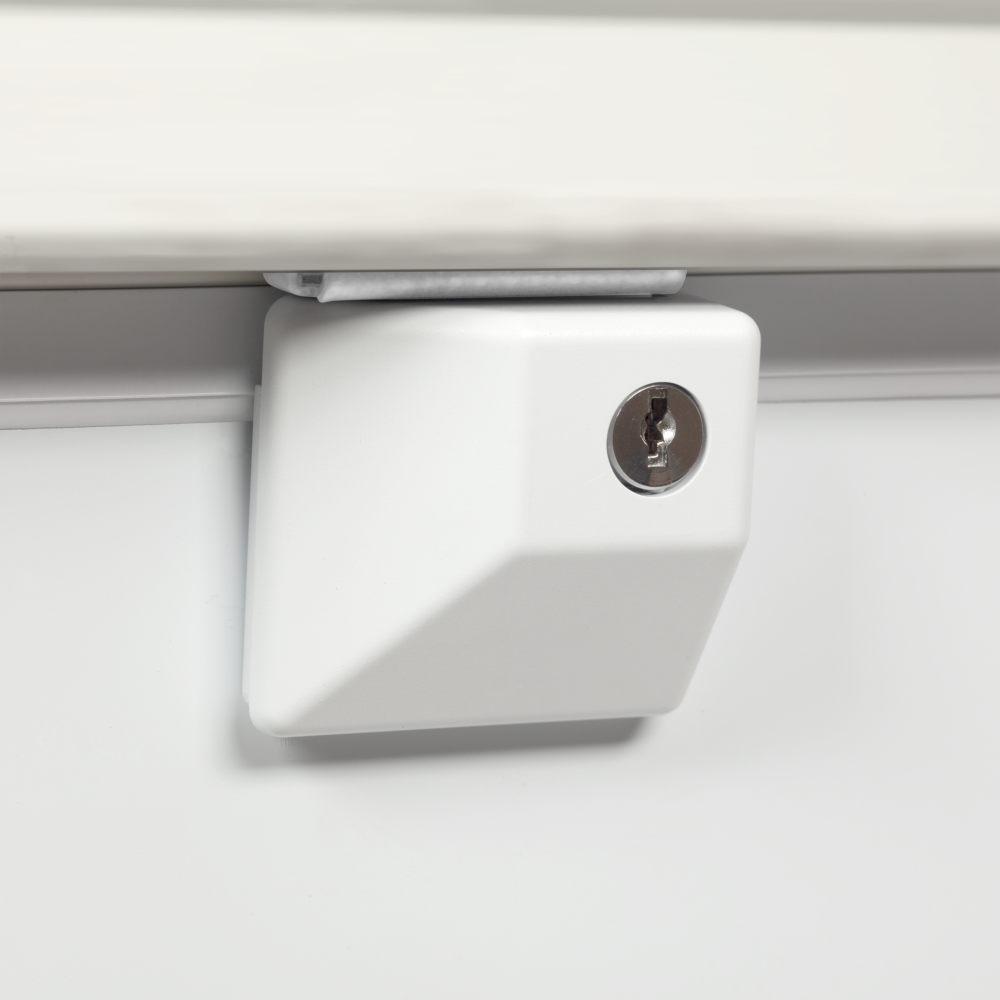

  • Lock
  • Digital temperature display
  • Defrost drain

Product description

Ideal for storing ice cream and frozen foods.

A quality and solidly built commercial display chest freezer from TEFCOLD. The ST range comes with a flat double-glazed glass hinged lid with a robust aluminium frame and lock. A hinged lid is often preferred as customers are less likely to leave the lid open compared to a sliding lid, reducing energy consumption and helping to stop ice forming in the freezer. The cabinet comes with castors fitted as standard. Available in 4 sizes to suit all situations. Ideal for smaller convenience stores, corner shops for storage of ice cream and frozen foods.

The TEFCOLD ST401 is a hinged glass-lid chest freezer that stores and merchandises frozen stock from a single top-opening cabinet, holding 350 litres net from -24 to -14 °C on a 1302 mm-wide footprint.

SPECIFICATION 41 facts · tap for all External W × D × H1302 x 715 x 878 mmWidth1302 mmDepth715 mmGross / net weight78 / 69 kgGross weight78 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181736408site
Product code 52268site
Sub title Hinged Glass Lid Chest Freezercatalogue
Type Display Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 715 mmsite
External (W×D×H) 1302 × 715 × 878 mmcatalogue
External W × D × H 1302 x 715 x 878 mmsite
Gross / net weight 78 / 69 kgsite
Gross weight 78 kgcatalogue
Height 878 mmsite
Internal (W×D×H) 1182 × 510 × 682 mmcatalogue
Internal W × D × H 1182 x 510 x 682 mmsite
Packed (W×D×H) 1400 × 750 × 1000 mmcatalogue
Packed W × D × H 1400 x 750 x 1000 mmsite
Width 1302 mmsite

Capacity1

Gross volume 401 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 854 kWh/yearsite
Energy consumption 2.34 kWh/24hsite
Energy efficiency index 43.1 %site
Input power 141 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 double castorssite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this display chest freezer earns its place

The TEFCOLD ST401 is a display chest freezer with a hinged glass lid, built to store and merchandise frozen stock from a single top-opening cabinet. The glass lid lets customers see the contents while the freezer holds 350 litres of net capacity from 401 litres gross. The white exterior and white painted-steel interior give a clean finish for shop-floor or back-of-house use.

Static cooling holds the cabinet from -24 to -14 °C, deep enough for long-term frozen storage of packed goods, ice cream and frozen ingredients. Defrost is manual, so the cabinet is emptied and cleared of ice build-up periodically, and a mechanical controller sets the temperature. It runs at 45 dB on R290 hydrocarbon refrigerant. Rated energy class D at 854.1 kWh a year, it costs about £214 a year at 25p/kWh.

The cabinet measures 1302 × 715 × 878 mm (W×D×H) and weighs 78 kg gross, packing to 1400 × 750 × 1000 mm for delivery — check doorways and access against the packed size before it arrives. It runs from a standard 13 A supply at 220-240 V, drawing 141 W, and is rated to climate class 4. The R290 charge is 105 g.

BEFORE YOU BUY

Questions, answered straight

Installed it is 1302 mm wide, 715 mm deep and 878 mm high, and packed for delivery it measures 1400 × 750 × 1000 mm. Check your access route against the packed dimensions before delivery.

It runs from -24 to -14 °C on static cooling, deep enough for long-term frozen storage of packed goods, ice cream and frozen ingredients. A mechanical controller sets the temperature.

No, defrost is manual. The cabinet needs emptying and clearing of ice build-up periodically to keep it running efficiently.

It is rated energy class D and uses 854.1 kWh a year, about £214 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the lid is opened.

It runs from a standard 13 A socket at 220-240 V and draws 141 W. It uses R290 hydrocarbon refrigerant and is rated to climate class 4.

Yes. We supply and service commercial refrigeration across the UK — call 01792 732702 for installation, servicing or spares.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1182 x 510 x 682 mm
External Dimension (WxDxH): 1302 x 715 x 878 mm
Packed Dimension (WxDxH): 1400 x 750 x 1000 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.34 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 854 kWh/year m³
EEI: 43.1 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 4
Gross / Net Weight: 78 / 69 kg
Gross / Net Volume: 401 / 350 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: 4 double castors
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD ST401 Hinged Glass Lid Chest Freezer then please get in touch.
