TEFCOLD IC502SC Ice Cream Freezer

£639.00

+vat

Brand:

SKU: 71468

Energy Arrow

Product summary

  • Flat sliding glass lids with lock
  • Great branding possibilities
  • Includes full set of baskets
  • LED interior light
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

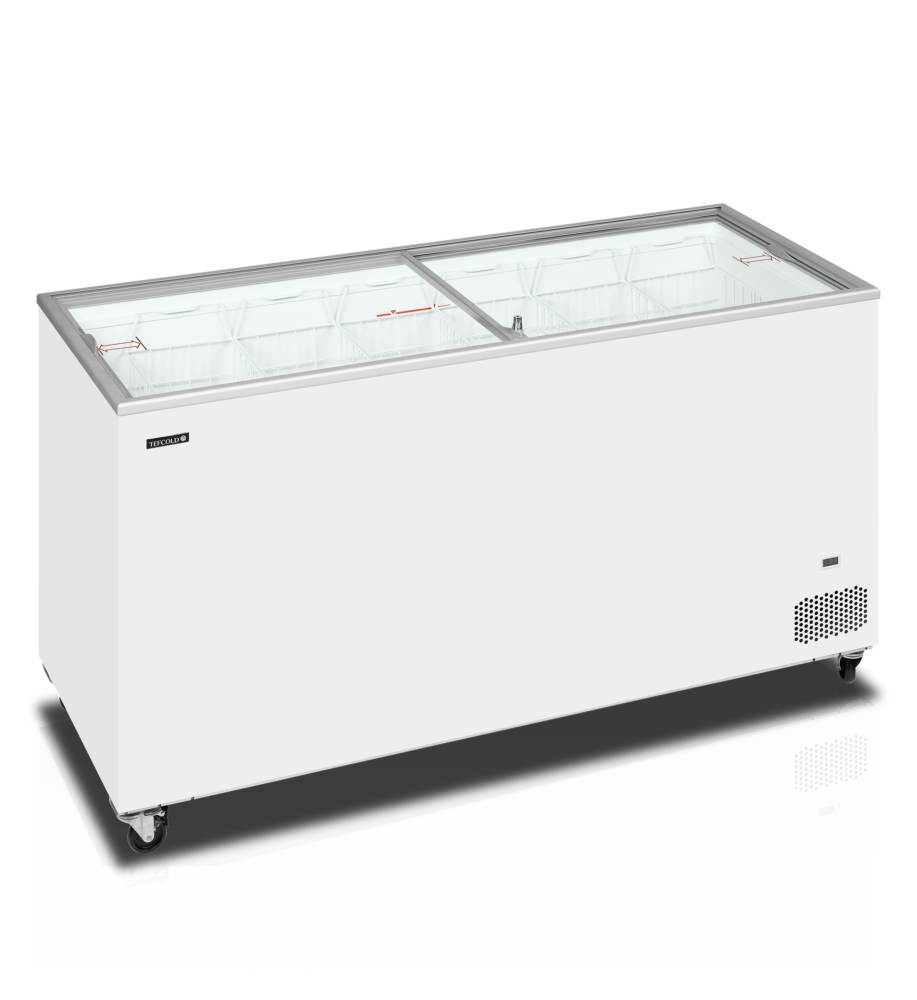

Chest freezer with flat sliding glass lids

The IC-SC freezer is a price friendly compact display chest freezer. It is great for start-up companies, seasonal sale etc.
It is very stable and solid build, but at the same time on wheels so that it is easy to change location in the shop. It is available in various sizes and is ideal for display of frozen food including ice cream and lollies. Temperature can be held around -14°C for ice cream or around -21°C for other frozen foods.

The Tefcold IC502SC is a static-cooled display chest ice cream freezer holding 430 litres net (491 litres gross), running at -24 to -14 °C on natural R290 refrigerant with a mechanical controller and manual defrost, energy class D at about £256 a year at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H1550 x 630 x 892 mmWidth1550 mmDepth630 mmGross / net weight90 / 72 kgGross weight90 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181760540site
Product code 71468site
Sub title Ice Cream Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1550 × 630 × 892 mmcatalogue
External W × D × H 1550 x 630 x 892 mmsite
Gross / net weight 90 / 72 kgsite
Gross weight 90 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 1430 × 510 × 655 mmcatalogue
Internal W × D × H 1430 x 510 x 655 mmsite
Packed (W×D×H) 1640 × 750 × 960 mmcatalogue
Packed W × D × H 1640 x 750 x 960 mmsite
Width 1550 mmsite

Capacity1

Gross volume 491 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 1025.285 kWh/yearsite
Energy consumption 2.809 kWh/24hsite
Energy efficiency index 45.1 %site
Input power 350 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The Tefcold IC502SC is a display chest ice cream freezer built to hold frozen tubs and pre-packed lines at the point of sale. It carries 491 litres gross and 430 litres net inside a white cabinet with white painted steel interior, keeping stock cold and to hand where customers can reach it.

In use it holds -24 to -14 °C using static cooling and a mechanical controller, with a manual defrost routine to clear ice build-up. It runs at 45 dB, which keeps it unobtrusive on a counter or shop floor, and it is rated energy class D with an energy efficiency index of 45.1 %. At its measured 1025.3 kWh a year, that works out at about £256 a year at 25p/kWh.

The internal space measures 1430 × 510 × 655 mm (W×D×H), and the cabinet draws 350 W on a 220-240 V/50 Hz supply. Cooling is handled by natural R290 refrigerant with a 110 g charge. Gross weight is 90 kg and net weight 72 kg.

BEFORE YOU BUY

Questions, answered straight

It holds a temperature band of -24 to -14 °C, cooled by a static system and set on a mechanical controller. That suits frozen tubs and pre-packed ice cream lines held at the counter.

It is rated energy class D with an energy efficiency index of 45.1 % and a measured consumption of 1025.3 kWh a year. That works out at about £256 a year at 25p/kWh.

The cabinet carries 491 litres gross and 430 litres net, with an internal space of 1430 × 510 × 655 mm (W×D×H).

It runs at 45 dB, quiet enough to sit front of house on a counter or shop floor without dominating the space.

It uses natural R290 refrigerant with a 110 g charge, and defrost is manual. Clearing ice build-up periodically keeps it running efficiently.

It draws 350 W on a 220-240 V/50 Hz supply. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1430 x 510 x 655 mm
External Dimension (WxDxH): 1550 x 630 x 892 mm
Packed Dimension (WxDxH): 1640 x 750 x 960 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.809 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 1025.285 kWh/year m³
EEI: 45.1 %
Input Power: 350 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 90 / 72 kg
Gross / Net Volume: 491 / 430 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: LED

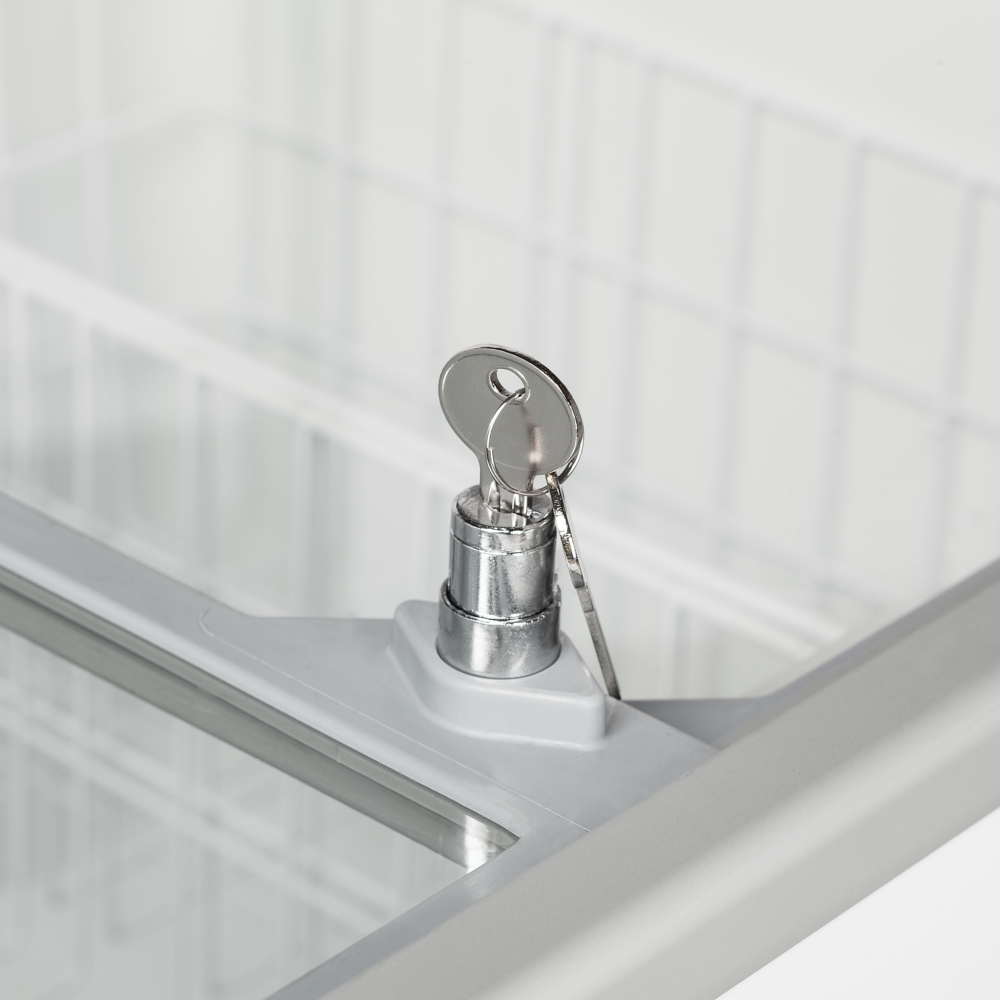

Lock: Yes
If you have any questions about the TEFCOLD IC502SC Ice Cream Freezer then please get in touch.
