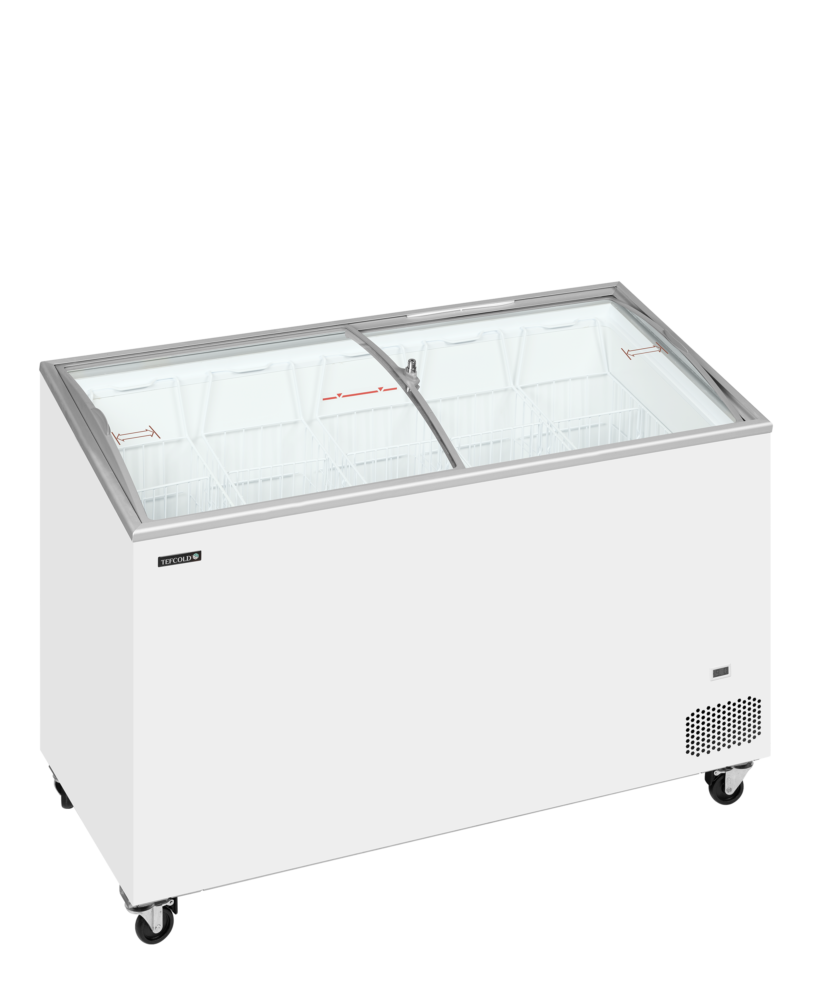

TEFCOLD IC402SCEB Sliding Curved Glass Lid Chest Freezer

£579.00

+vat

- +

Brand:

SKU: 71477

Energy Arrow

Product summary

  • Sloping display for excellent presentation

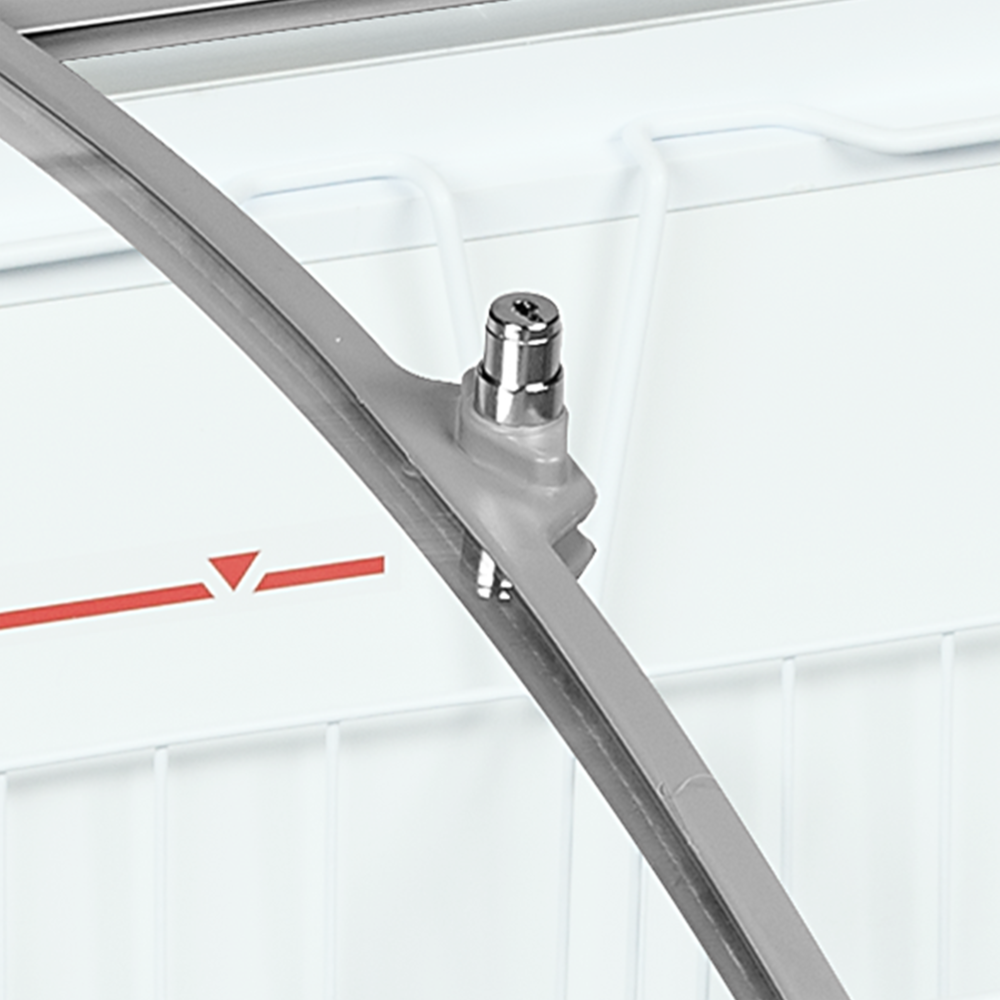

  • Curved sliding lids with lock
  • Includes full set of baskets
  • Ideal for branding
  • LED interior light
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

Sliding Curved Glass Lid Chest Freezer

An excellent choice of sliding glass lid chest freezers, similar to the IC-SC range but with a sloping top for a better visual display and curved lids which always look better. Ideal for display of frozen food including ice cream and lollies. Sturdy heavy duty castors are fitted to enable easy movement of the cabinet, two of the four castors are lockable. Excellent adjustment of the temperature means you can hold a temperature around -14°C ready to serve ice cream, or down to -24°C for other frozen food. The unit comes with a lock as standard and a defrost drain for easy cleaning. The unit also has a fan assisted condenser for efficient operation. A full set of baskets with dividers supplied as standard (except IC101SCEB which does not come with dividers). A firm favourite with many ice cream companies. (A glass canopy version for scooping ice cream is also available).

SPECIFICATION 42 facts · tap for all External W × D × H1300 x 615 x 949 mmWidth1300 mmDepth615 mmGross / net weight76 / 66 kgGross weight76 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181760533site
Product code 71477site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 615 mmsite
External (W×D×H) 1300 × 615 × 949 mmcatalogue
External W × D × H 1300 x 615 x 949 mmsite
Gross / net weight 76 / 66 kgsite
Gross weight 76 kgcatalogue
Height 949 mmsite
Internal (W×D×H) 1180 × 495 × 710 mmcatalogue
Internal W × D × H 1180 x 495 x 710 mmsite
Packed (W×D×H) 1400 × 750 × 1040 mmcatalogue
Packed W × D × H 1400 x 750 x 1040 mmsite
Width 1300 mmsite

Capacity1

Gross volume 352 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 827.82 kWh/yearsite
Energy consumption 2.268 kWh/24hsite
Energy efficiency index 43.1 %site
Input power 240 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The IC402SCEB is a sliding curved glass-lid chest freezer built for impulse frozen display — ice cream and packaged frozen lines shown through a curved glass top that customers slide open to reach in. The white cabinet puts the product on show at eye-catching angle rather than tucking it away in solid-lid storage.

It runs at -24 to -14 °C on static cooling, the band that keeps frozen and scooping product firm. Defrost is manual and the controls are mechanical, so temperature is set and held without a digital menu. Running noise is 45 dB, quiet enough for a shop floor, and the refrigerant is R290.

Energy class is D, and at 827.8 kWh a year that works out at about £207 a year at 25p/kWh. The cabinet is finished in white outside with white painted steel inside. Manual defrost is the routine upkeep task, cleared periodically by hand as normal for a static-cooled display freezer.

BEFORE YOU BUY

Questions, answered straight

The IC402SCEB holds -24 to -14 °C on static cooling, the band that keeps frozen and scooping product firm. The controls are mechanical.

It is energy class D, rated at 827.8 kWh a year — about £207 a year at 25p/kWh.

No, defrost is manual. You clear the ice periodically by hand, which is normal for a static-cooled display chest freezer. The refrigerant is R290.

Running noise is 45 dB, quiet enough for a customer-facing retail area.

It is a sliding curved glass lid, so customers and staff slide it open to reach the product while it stays on show through the curved top.

Yes, our team handles servicing and breakdowns on Tefcold cabinets. Call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1180 x 495 x 710 mm
External Dimension (WxDxH): 1300 x 615 x 949 mm
Packed Dimension (WxDxH): 1400 x 750 x 1040 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.268 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 827.82 kWh/year m³
EEI: 43.1 %
Input Power: 240 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 76 / 66 kg
Gross / Net Volume: 352 / 310 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD IC402SCEB Sliding Curved Glass Lid Chest Freezer then please get in touch.
