TEFCOLD IC401SC Ice Cream Freezer

£575.00

+vat

Brand:

SKU: 49762

Energy Arrow

Product summary

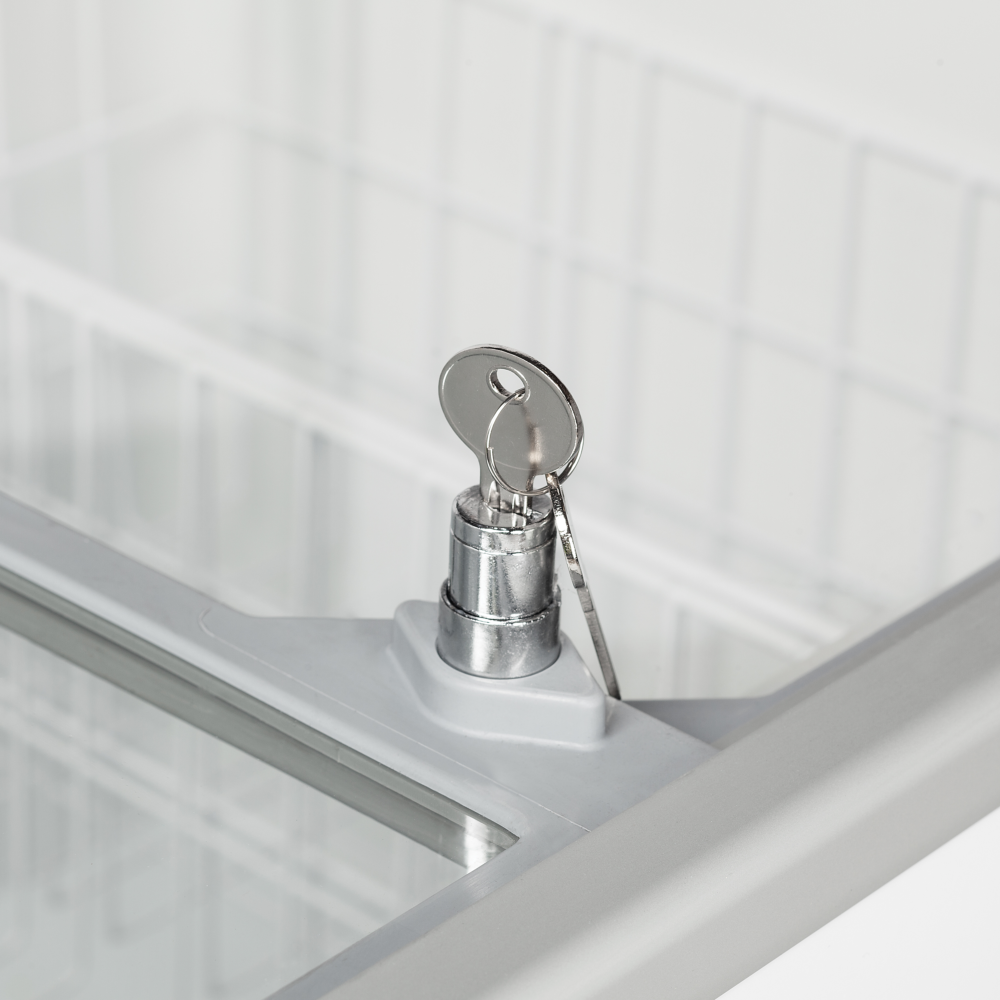

  • Flat sliding glass lids with lock
  • 2 wire baskets, white
  • Great branding possibilities
  • Digital thermometer
  • Powder coated white steel inner liner
  • Castors with brake

Product description

Chest freezer with flat sliding glass lids

The IC-SC range of sliding glass lid chest freezers is ideal for display of ice creams, lollies, or other frozen goods. The units come with a full set of baskets with ample storage underneath. Units come fitted with castors. There are 5 different sizes to suit a range of requirements. Ideal for convenience stores, cafes and small shops.

The TEFCOLD IC401SC is a display freezer built for ice cream and frozen retail, holding 350 litres net at -24 to -14 °C, built to climate class 5 for warmer ambient conditions.

SPECIFICATION 41 facts · tap for all External W × D × H1300 x 630 x 892 mmWidth1300 mmDepth630 mmGross / net weight74 / 64 kgGross weight74 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733292site
Product code 49762site
Sub title Ice Cream Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1300 × 630 × 892 mmcatalogue
External W × D × H 1300 x 630 x 892 mmsite
Gross / net weight 74 / 64 kgsite
Gross weight 74 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 1180 × 510 × 655 mmcatalogue
Internal W × D × H 1180 x 510 x 655 mmsite
Packed (W×D×H) 1400 × 750 × 940 mmcatalogue
Packed W × D × H 1400 x 750 x 940 mmsite
Width 1300 mmsite

Capacity1

Gross volume 401 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 857 kWh/yearsite
Energy consumption 2.35 kWh/24hsite
Energy efficiency index 44.5 %site
Input power 141 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The IC401SC is a display freezer built for frozen retail, keeping product visible at the point of sale. It holds 350 litres of net volume from a 401-litre gross cabinet, in a white finish with a white painted-steel interior — a compact merchandising freezer for seasonal frozen and ice cream lines.

It runs -24 to -14 °C through static cooling with a mechanical controller and manual defrost, so build a periodic defrost into your routine. It carries an energy class D rating with an energy efficiency index of 44.5%, drawing 857.8 kWh a year — about £214 a year at 25p/kWh over a full year, though seasonal trading typically brings that down. It is built to climate class 5, which suits warmer ambient conditions, and runs at a quiet 45 dB.

The cabinet measures 1300 × 630 × 892 mm externally and ships packed at 1400 × 750 × 940 mm, with a gross weight of 74 kg (64 kg net). It runs from a standard 13 A supply at 220-240 V with an input power of 141 W, and uses R290 refrigerant with a 105 g charge.

BEFORE YOU BUY

Questions, answered straight

It runs -24 to -14 °C through static cooling with a mechanical controller, suited to frozen and pre-packed ice cream lines. It is a display freezer, not a chiller.

It is built to climate class 5, which is rated for warmer ambient conditions, making it suited to seaside kiosks and busy summer trade.

It is rated energy class D at 857.8 kWh a year, about £214 a year at 25p/kWh over a full year. Seasonal use typically brings that down, and your tariff and lid use will affect the real figure.

350 litres net from a 401-litre gross cabinet, in a compact 1300 × 630 × 892 mm footprint.

Yes. It uses static cooling with manual defrost, so schedule a periodic defrost to keep it running efficiently. For servicing or a maintenance plan, call Craven Cooling on 01792 732702.

A standard 13 A supply at 220-240 V, with an input power of 141 W. It uses R290 refrigerant with a 105 g charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1180 x 510 x 655 mm
External Dimension (WxDxH): 1300 x 630 x 892 mm
Packed Dimension (WxDxH): 1400 x 750 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.35 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 857 kWh/year m³
EEI: 44.5 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 74 / 64 kg
Gross / Net Volume: 401 / 350 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD IC401SC Ice Cream Freezer then please get in touch.
