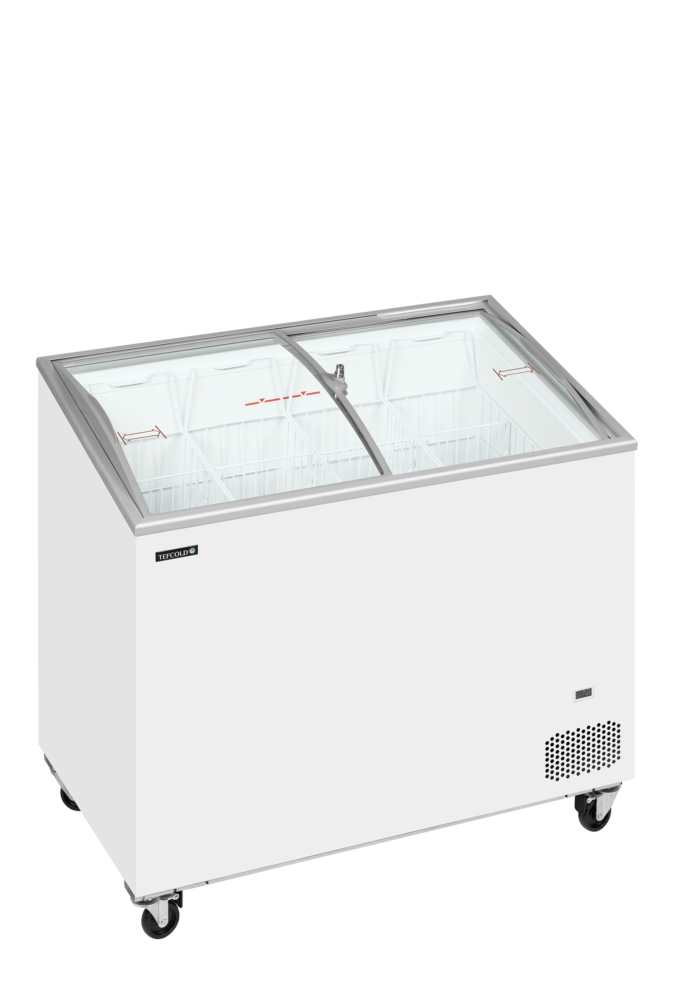

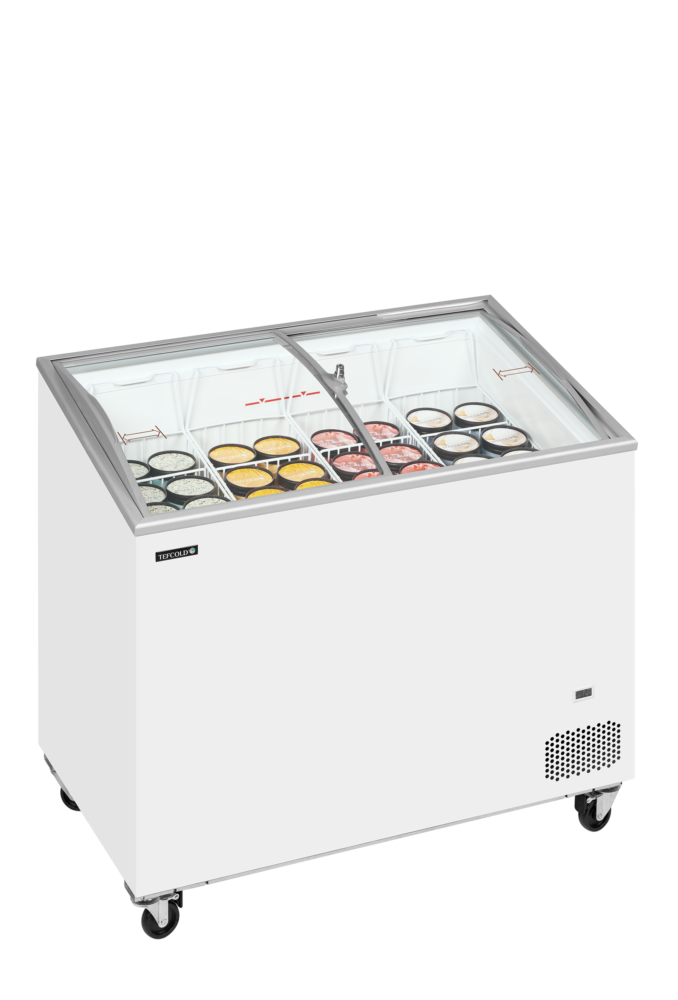

TEFCOLD IC301SCEB Sliding Curved Glass Lid Chest Freezer

£548.00

+vat

- +

Brand:

SKU: 48840

Energy Arrow

Product summary

  • Sloping display for excellent presentation

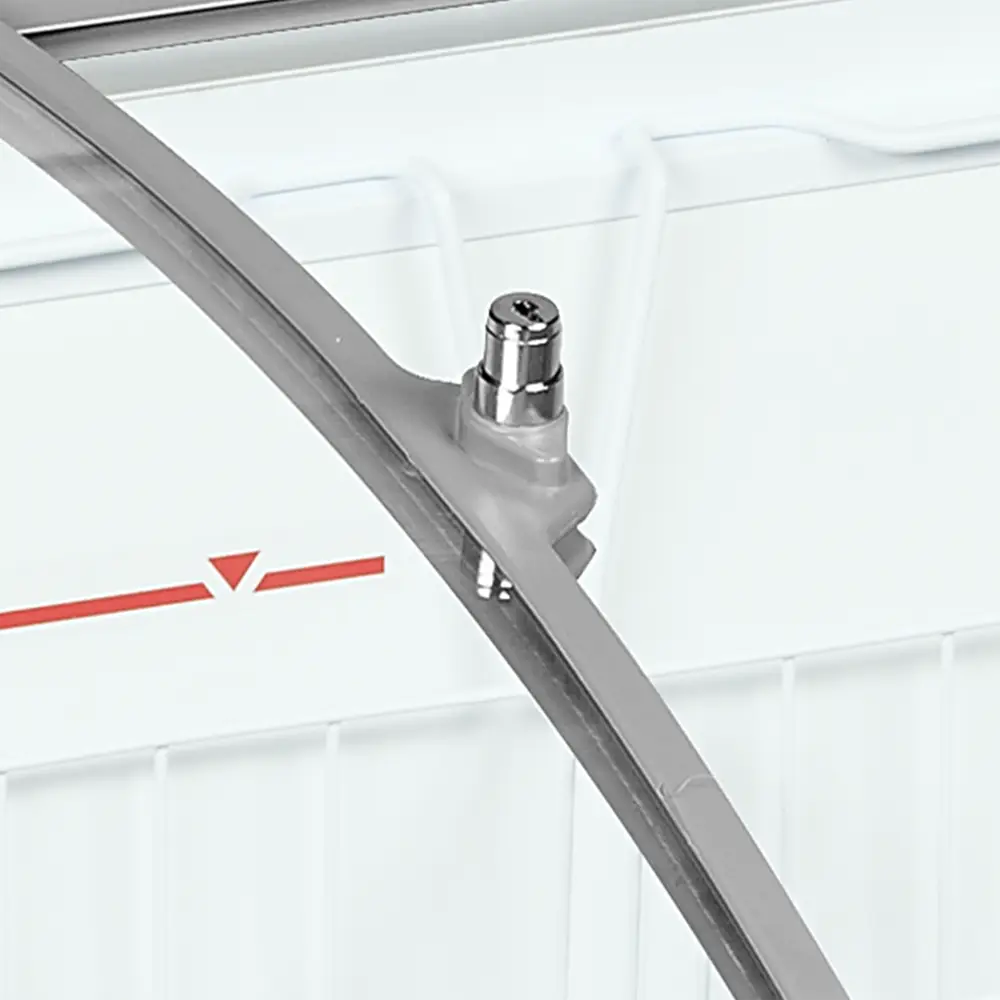

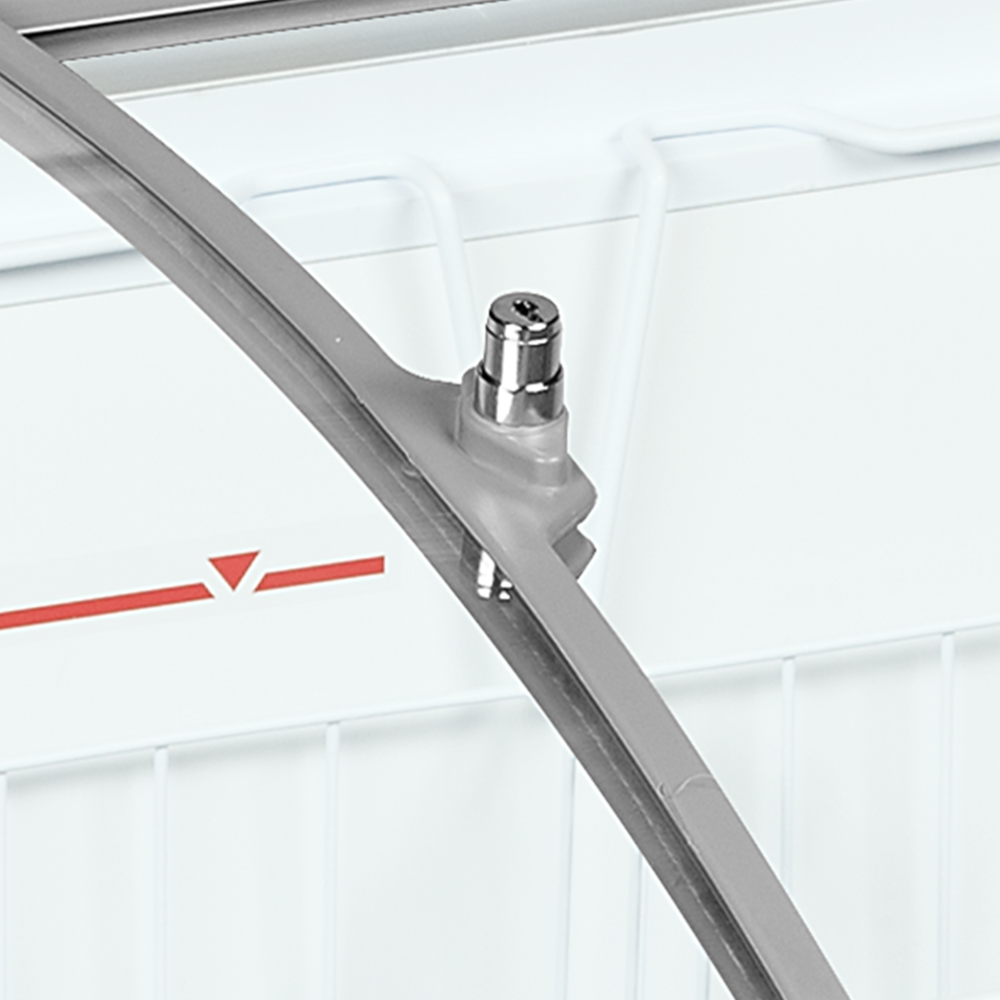

  • Curved sliding lids with lock

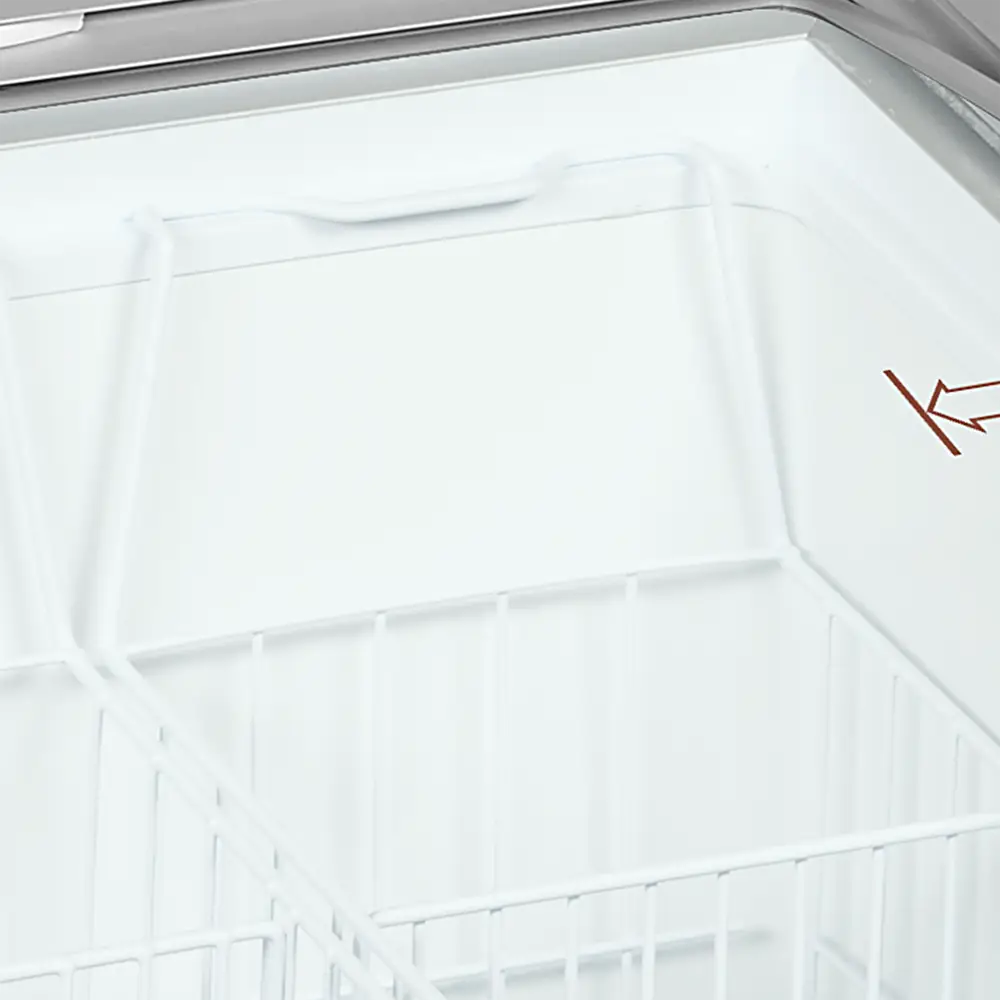

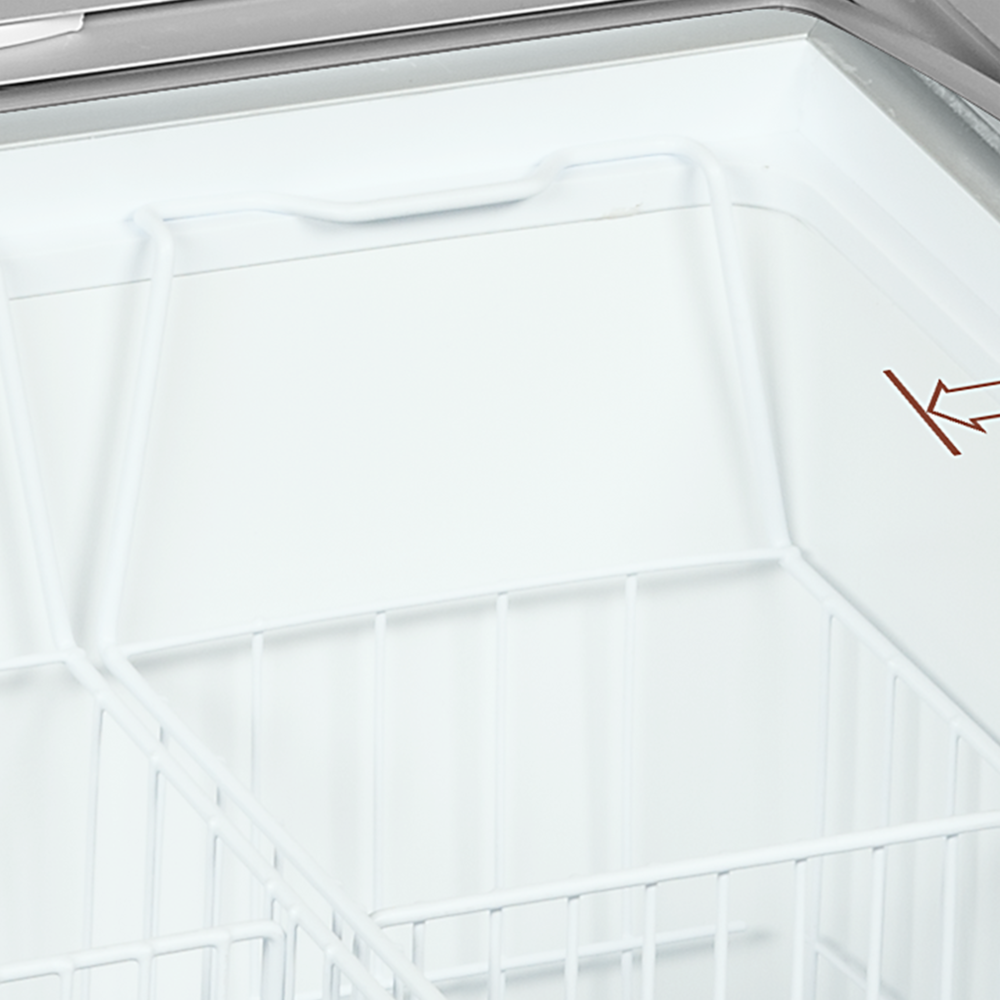

  • Includes full set of baskets
  • Ideal for branding
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

An excellent choice of sliding glass lid chest freezers, similar to the IC-SC range but with a sloping top for a better visual display and curved lids which always look better. Ideal for display of frozen food including ice cream and lollies. Sturdy heavy duty castors are fitted to enable easy movement of the cabinet, two of the four castors are lockable. Excellent adjustment of the temperature means you can hold a temperature around -14°C, ready to serve ice cream, or down to -24°C for other frozen food. The unit comes with a lock as standard and a defrost drain for easy cleaning. The unit also has a fan assisted condenser for efficient operation. A full set of baskets with dividers supplied as standard (except IC101SCEB which does not come with dividers). A firm favourite with many ice cream companies. (A glass canopy version for scooping ice cream is also available).

The TEFCOLD IC301SCEB is a curved sliding-glass-lid display chest freezer with 264 litres gross capacity that holds frozen stock at -24 to -14 °C on static cooling, running on R290 refrigerant at energy class D and drawing 141 W from a standard 13 A supply.

SPECIFICATION 42 facts · tap for all External W × D × H1010 x 615 x 949 mmWidth1010 mmDepth615 mmGross / net weight65 / 57 kgGross weight65 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730970site
Product code 48840site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 615 mmsite
External (W×D×H) 1010 × 615 × 949 mmcatalogue
External W × D × H 1010 x 615 x 949 mmsite
Gross / net weight 65 / 57 kgsite
Gross weight 65 kgcatalogue
Height 949 mmsite
Internal (W×D×H) 890 × 495 × 710 mmcatalogue
Internal W × D × H 890 x 495 x 710 mmsite
Packed (W×D×H) 1100 × 750 × 1010 mmcatalogue
Packed W × D × H 1100 x 750 x 1010 mmsite
Width 1010 mmsite

Capacity1

Gross volume 264 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 85 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 758 kWh/yearsite
Energy consumption 2.08 kWh/24hsite
Energy efficiency index 48.9 %site
Input power 141 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The IC301SCEB is a display chest freezer built to sell frozen stock, not just store it. The curved sliding glass lid puts ice cream, ice lollies and frozen impulse lines on show while keeping them under cover, and the 264-litre gross / 230-litre net cabinet gives you a wide, shallow well that is easy to face up and easy for customers to reach into. The white exterior suits a shop floor or a kiosk counter without drawing attention away from the product.

Day to day it runs static cooling across a -24 to -14 °C band, held on a mechanical controller, so ice cream stays firm and scoopable. Defrost is manual, so you plan it into a quiet period rather than losing display time to an automatic cycle. It is rated energy class D at 758 kWh a year, which works out at about £190 a year at 25p/kWh, and it runs at 45 dB — quiet enough for a customer-facing spot.

The cabinet measures 890 × 495 × 710 mm internally and ships packed at 1100 × 750 × 1010 mm, so check your delivery route and final position against the packed size. At 65 kg gross it is a two-person lift into place. It plugs into a standard 13 A socket on a 220-240 V supply and uses R290 refrigerant with an 85 g charge, with a white painted steel interior for easy wipe-down.

BEFORE YOU BUY

Questions, answered straight

It runs across a -24 to -14 °C band on static cooling, controlled by a mechanical thermostat. That range keeps ice cream firm and frozen impulse stock properly frozen.

It is rated energy class D at 758 kWh a year, which is about £190 a year at 25p/kWh. Actual cost depends on your tariff and how often the lid is opened.

No, defrost is manual. You switch it off and clear the ice yourself, so plan it into a quiet trading period rather than expecting an automatic cycle.

The cabinet ships packed at 1100 × 750 × 1010 mm and the unit itself is 890 mm wide internally, so measure your access route against the packed dimensions before delivery day.

It runs on a standard 220-240 V supply through a 13 A socket, drawing 141 W, so no special electrical work is needed for a normal shop or kiosk position.

It runs at 45 dB, which is quiet enough for a customer-facing position. For servicing or spec questions our team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 890 x 495 x 710 mm
External Dimension (WxDxH): 1010 x 615 x 949 mm
Packed Dimension (WxDxH): 1100 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 85 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.08 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 758 kWh/year m³
EEI: 48.9 %
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 65 / 57 kg
Gross / Net Volume: 264 / 230 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD IC301SCEB Sliding Curved Glass Lid Chest Freezer then please get in touch.
