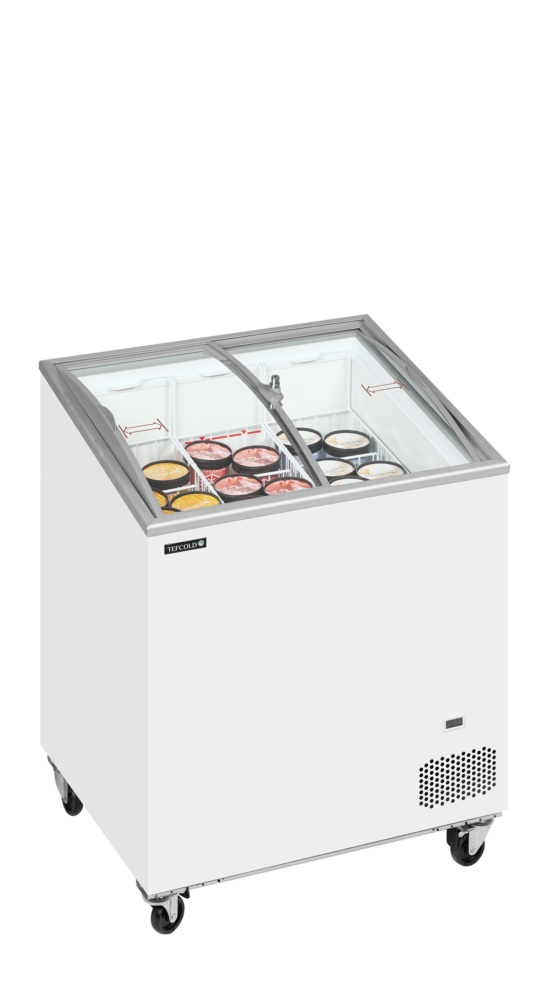

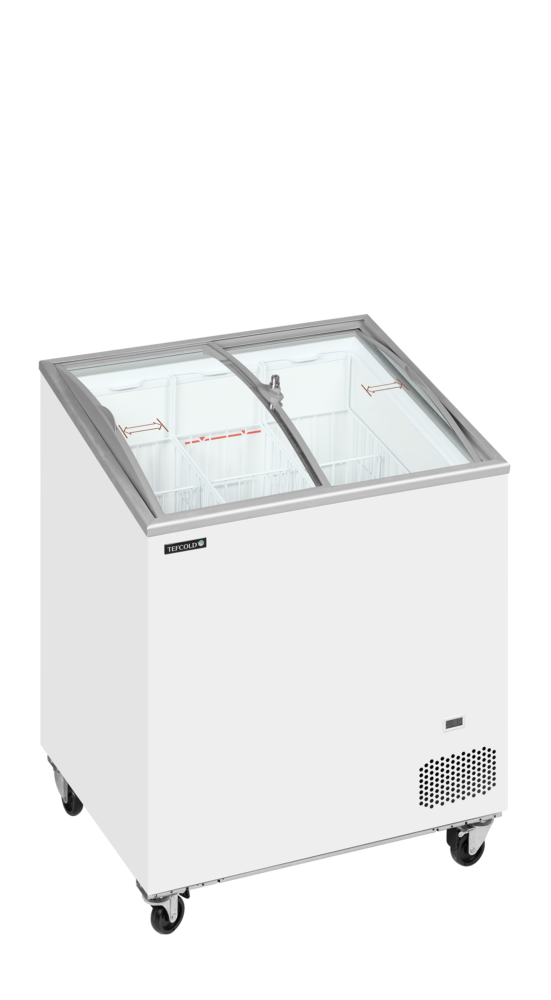

TEFCOLD IC201SCEB Sliding Curved Glass Lid Chest Freezer

£482.00

+vat

Brand:

SKU: 48838

Energy Arrow

Product summary

  • Sloping display for excellent presentation

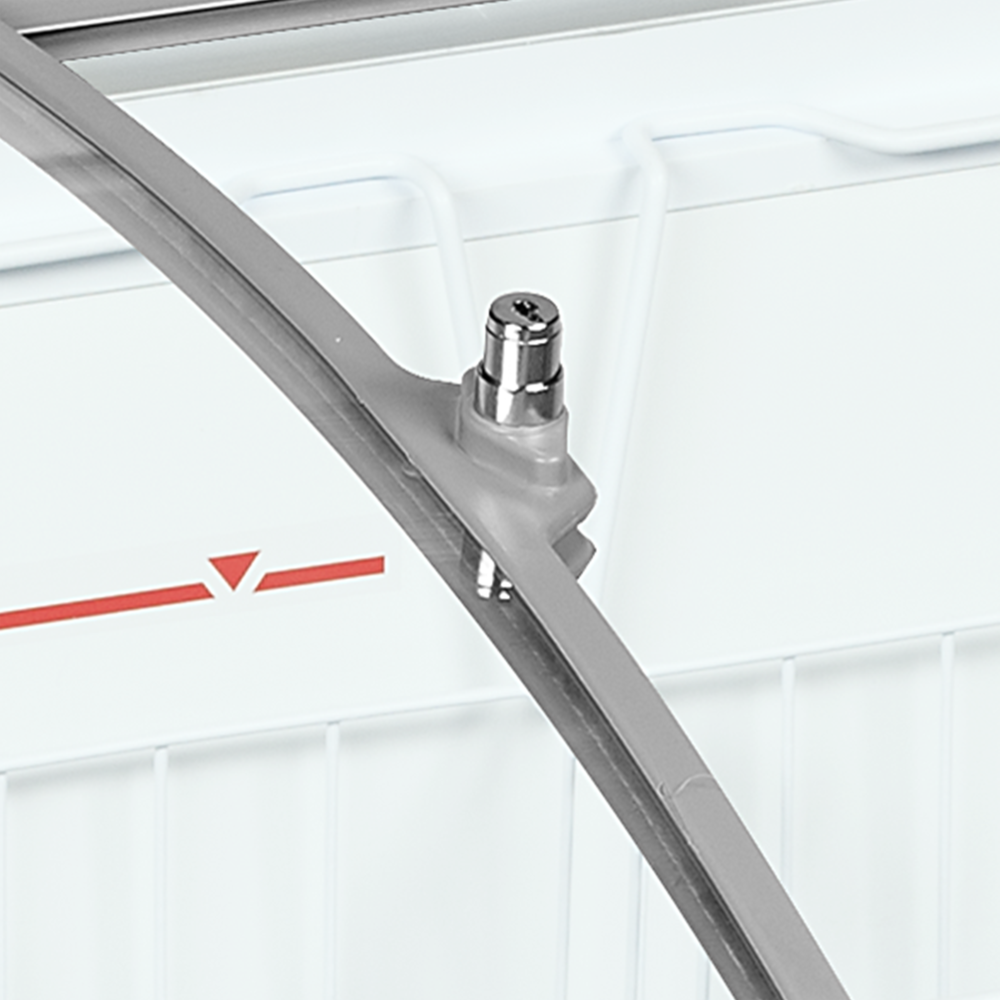

  • Curved sliding lids with lock
  • Ideal for branding
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

An excellent choice of sliding glass lid chest freezers, similar to the IC-SC range but with a sloping top for a better visual display and curved lids which always look better. Ideal for display of frozen food including ice cream and lollies. Sturdy heavy duty castors are fitted to enable easy movement of the cabinet, two of the four castors are lockable. Excellent adjustment of the temperature means you can hold a temperature around -14°C, ready to serve ice cream, or down to -24°C for other frozen food. The unit comes with a lock as standard and a defrost drain for easy cleaning. The unit also has a fan assisted condenser for efficient operation. A full set of baskets with dividers supplied as standard (except IC101SCEB which does not come with dividers). A firm favourite with many ice cream companies. (A glass canopy version for scooping ice cream is also available).

The TEFCOLD IC201SCEB is a white curved-glass sliding-lid display chest freezer running -24 to -14 °C for frozen impulse lines, with manual defrost, a mechanical controller, energy class D and roughly £138 a year in electricity at 25p/kWh.

SPECIFICATION 42 facts · tap for all External W × D × H720 x 615 x 949 mmWidth720 mmDepth615 mmGross / net weight58 / 53 kgGross weight58 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730956site
Product code 48838site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 615 mmsite
External (W×D×H) 720 × 615 × 949 mmcatalogue
External W × D × H 720 x 615 x 949 mmsite
Gross / net weight 58 / 53 kgsite
Gross weight 58 kgcatalogue
Height 949 mmsite
Internal (W×D×H) 600 × 495 × 710 mmcatalogue
Internal W × D × H 600 x 495 x 710 mmsite
Packed (W×D×H) 800 × 750 × 1010 mmcatalogue
Packed W × D × H 800 x 750 x 1010 mmsite
Width 720 mmsite

Capacity1

Gross volume 176 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R600asite
Refrigerant charge 55 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 552 kWh/yearsite
Energy consumption 1.51 kWh/24hsite
Energy efficiency index 44 %site
Input power 98 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The TEFCOLD IC201SCEB is a chest freezer with a curved glass sliding lid, built to put frozen stock on show rather than bury it beneath a solid top. The clear lid turns the cabinet into a display point for ice cream, frozen impulse lines and grab-and-go stock, so customers can see what is inside before they lift it. The exterior is finished in white with a white painted steel interior, a clean look that sits well in a shop aisle or serve point.

It runs across a -24 to -14 °C band, cold enough to hold ice cream and frozen goods hard, and uses a mechanical controller with manual defrost — you set the dial and clear the frost down by hand periodically. It is rated to climate class 5, built to keep temperature in warm ambient conditions, and at 45 dB it is quiet enough to sit in a customer-facing aisle without intruding on the space.

Power comes from a standard 13-amp supply, so it plugs into an ordinary socket with no special electrical work. Cooling uses R600a refrigerant with a 55 g charge, a low-GWP hydrocarbon that keeps the running footprint down. On energy it sits at class D with an energy efficiency index of 44%, drawing 98 W and working out at about £138 a year in electricity at 25p/kWh. Confirm the internal and packed dimensions on the spec sheet against your floor space and access route before delivery.

BEFORE YOU BUY

Questions, answered straight

It runs a -24 to -14 °C band, cold enough to keep ice cream and frozen stock hard. Defrost is manual, controlled from a mechanical dial, so you clear the frost down by hand periodically.

No. It runs on a standard 13-amp supply and plugs into an ordinary socket, so no dedicated circuit or electrical work is needed.

It is energy class D with an energy efficiency index of 44%, drawing 98 W. At 551.1 kWh a year that works out at about £138 a year in electricity at 25p/kWh.

It is rated at 45 dB, quiet enough to sit in a customer-facing aisle or at a serve point without intruding on the space.

It uses R600a, a low-GWP hydrocarbon refrigerant, with a 55 g charge. The cabinet is rated to climate class 5 for warm ambient conditions.

Yes. Craven Cooling handles servicing and repairs — call the service team on 01792 732702 to arrange a visit or talk through a fault.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 600 x 495 x 710 mm
External Dimension (WxDxH): 720 x 615 x 949 mm
Packed Dimension (WxDxH): 800 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.51 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 552 kWh/year m³
EEI: 44 %
Input Power: 98 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 58 / 53 kg
Gross / Net Volume: 176 / 157 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD IC201SCEB Sliding Curved Glass Lid Chest Freezer then please get in touch.
