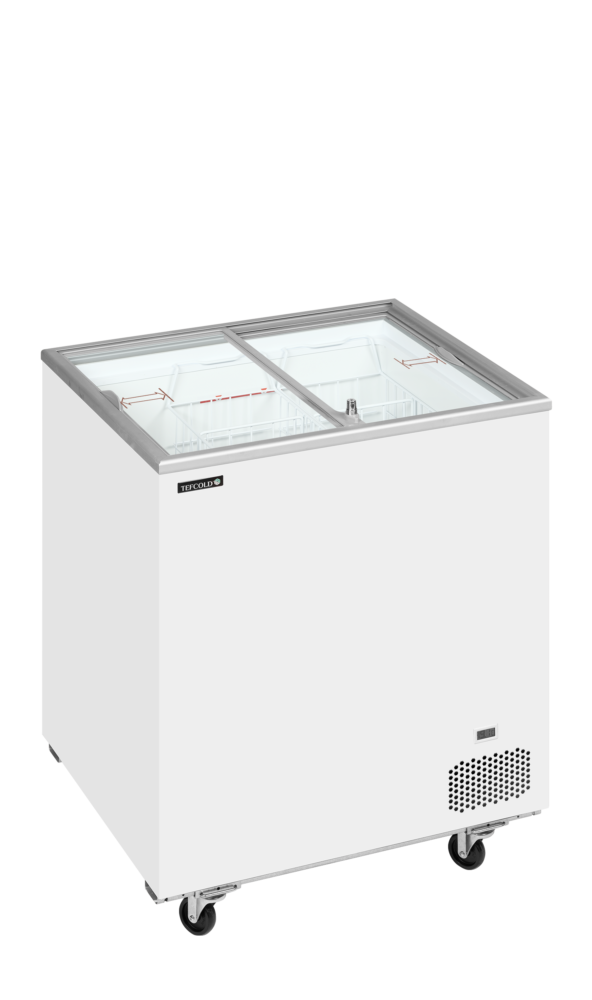

TEFCOLD IC201SC Sliding Flat Glass Lid Chest Freezer

£460.00

+vat

Brand:

SKU: 48830

Energy Arrow

Product summary

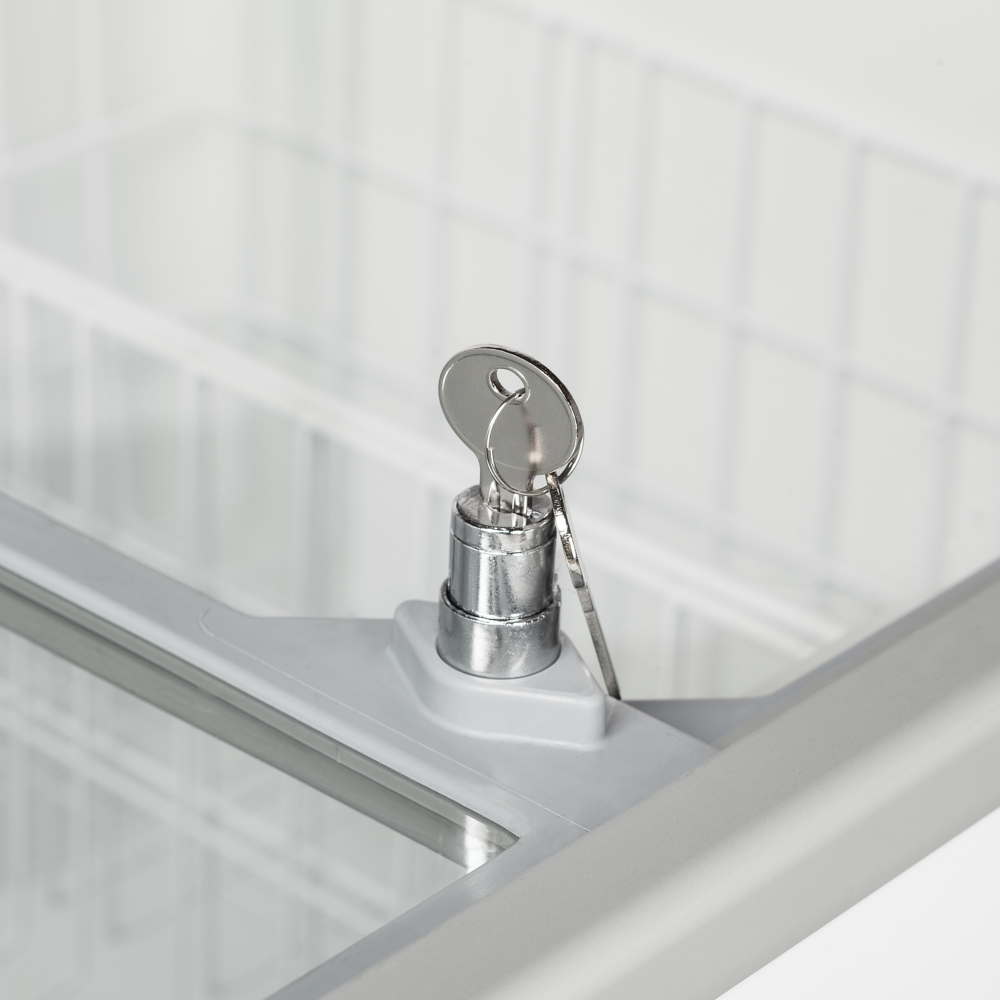

  • Flat sliding glass lids with lock
  • Includes full set of baskets
  • Great branding possibilities
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

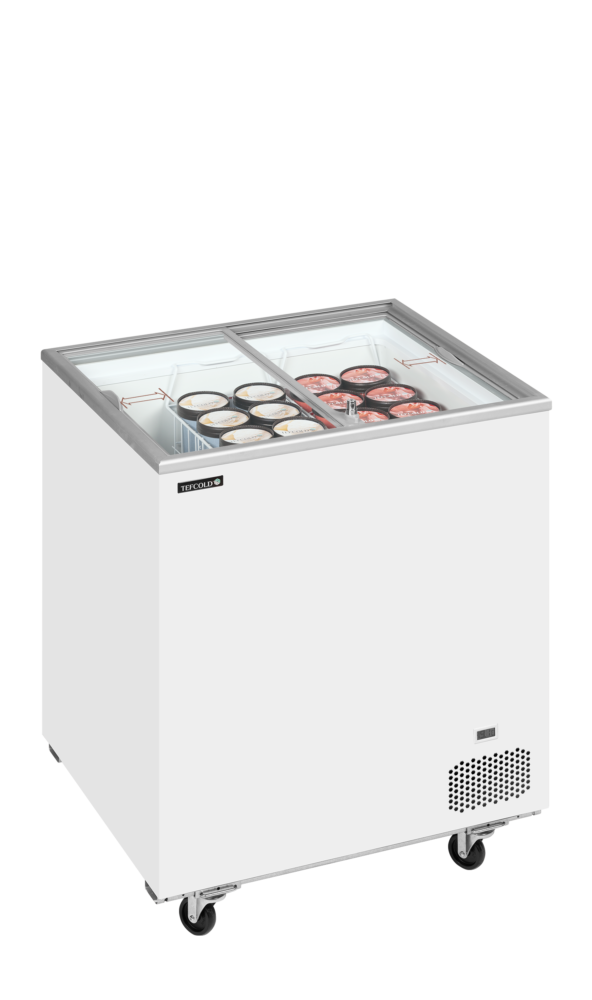

the IC-SC range of sliding glass lid chest freezers is ideal for display of ice creams, lollies, or other frozen goods. The units come with a full set of baskets with ample storage underneath. Units come fitted with castors. There are 5 different sizes to suit a range of requirements. Ideal for convenience stores, cafés and small shops.

The TEFCOLD IC201SC is a compact display chest freezer with a sliding flat glass lid, holding 165 litres of frozen stock at -24 to -14 °C, with static cooling, manual defrost, R600a refrigerant and a white 720 × 630 × 892 mm cabinet that runs from a standard 13-amp socket.

SPECIFICATION 41 facts · tap for all External W × D × H720 x 630 x 892 mmWidth720 mmDepth630 mmGross / net weight54 / 46 kgGross weight54 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181730871site
Product code 48830site
Sub title Sliding Flat Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 720 × 630 × 892 mmcatalogue
External W × D × H 720 x 630 x 892 mmsite
Gross / net weight 54 / 46 kgsite
Gross weight 54 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 600 × 510 × 655 mmcatalogue
Internal W × D × H 600 x 510 x 655 mmsite
Packed (W×D×H) 800 × 750 × 940 mmcatalogue
Packed W × D × H 800 x 750 x 940 mmsite
Width 720 mmsite

Capacity1

Gross volume 191 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R600asite
Refrigerant charge 55 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 534 kWh/yearsite
Energy consumption 1.46 kWh/24hsite
Energy efficiency index 42.1 %site
Input power 98 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The TEFCOLD IC201SC is a display chest freezer built to merchandise frozen stock from the top down. The sliding flat glass lid puts ice cream, frozen desserts and pre-packed lines on view while keeping them covered, and the cabinet holds 165 litres net (191 litres gross) in a footprint of 720 mm wide by 630 mm deep. It suits high-turnover impulse selling where customers browse and self-serve.

Cooling is static and the cabinet runs at -24 to -14 °C under a mechanical thermostat, with manual defrost when the frozen store is cleared down. It is rated to climate class 5 and produces 45 dB in operation. At energy class D it draws 532.9 kWh a year — about £133 a year at 25p/kWh — from a 98-watt input.

The cabinet stands 892 mm tall with a white exterior and white painted steel interior. It runs on a 220–240 V, 50 Hz supply through a standard 13-amp socket, so no special electrics are needed. Cooling uses R600a refrigerant with a 55-gram charge.

BEFORE YOU BUY

Questions, answered straight

It runs from -24 to -14 °C using static cooling and a mechanical thermostat. It is rated to climate class 5.

At energy class D it uses 532.9 kWh a year, about £133 a year at 25p/kWh. Input power is 98 watts.

No. It runs on a standard 220–240 V, 50 Hz supply through a 13-amp socket, so no dedicated electrics are needed.

Defrost is manual, carried out when the cabinet is cleared of stock. There is no automatic defrost cycle.

External dimensions are 720 × 630 × 892 mm (W×D×H), with 165 litres net and 191 litres gross capacity. Net weight is 46 kg.

Yes. Craven Cooling's engineers cover TEFCOLD refrigeration; call 01792 732702 to arrange a service visit. The cabinet uses R600a refrigerant with a 55-gram charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 600 x 510 x 655 mm
External Dimension (WxDxH): 720 x 630 x 892 mm
Packed Dimension (WxDxH): 800 x 750 x 940 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.46 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 534 kWh/year m³
EEI: 42.1 %
Input Power: 98 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 54 / 46 kg
Gross / Net Volume: 191 / 165 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Lock: Yes
If you have any questions about the TEFCOLD IC201SC Sliding Flat Glass Lid Chest Freezer then please get in touch.
